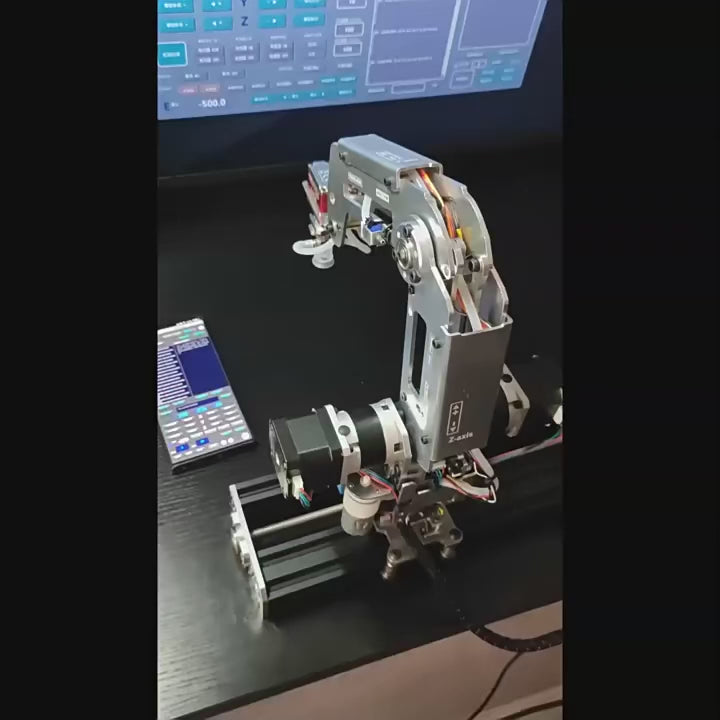

Industrial Multi Axis Robotic Arm with Micro-Stepping and Suction Cup/Stepper Motor Claw
Unlock advanced robotics learning and automation with the 3 DOF Multi-Axis Programming Robotic Arm Kit with Quad Vacuum Suction Cups and Sliding Table — a premium mechanical platform designed for hobbyists, students, educators, and engineers alike. This DIY semi-assembled robotic arm kit combines high-precision industrial components with a flexible control system, giving you complete control over movement, gripping, and automation workflows.

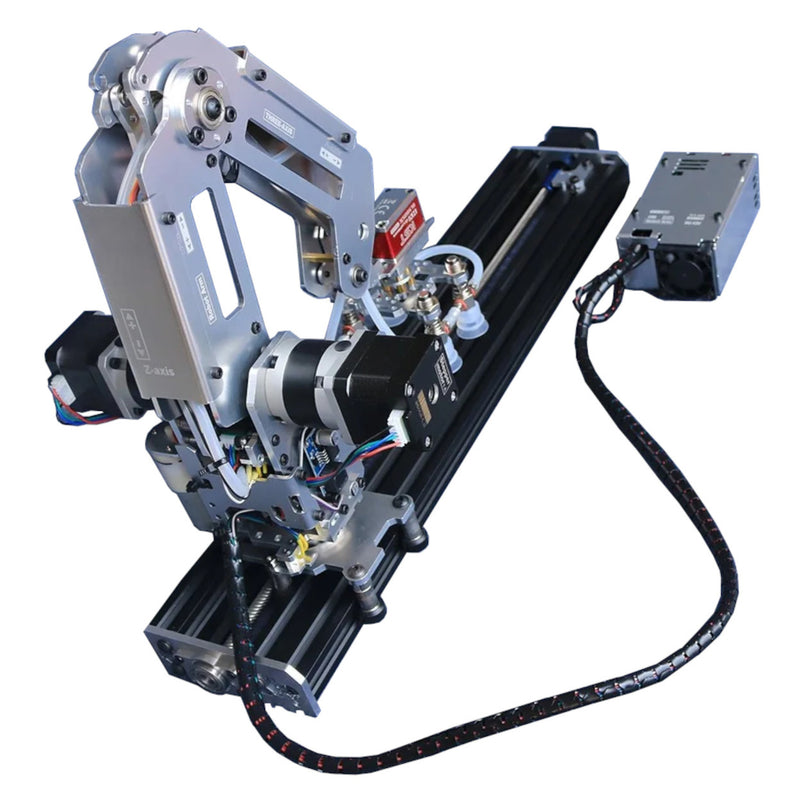

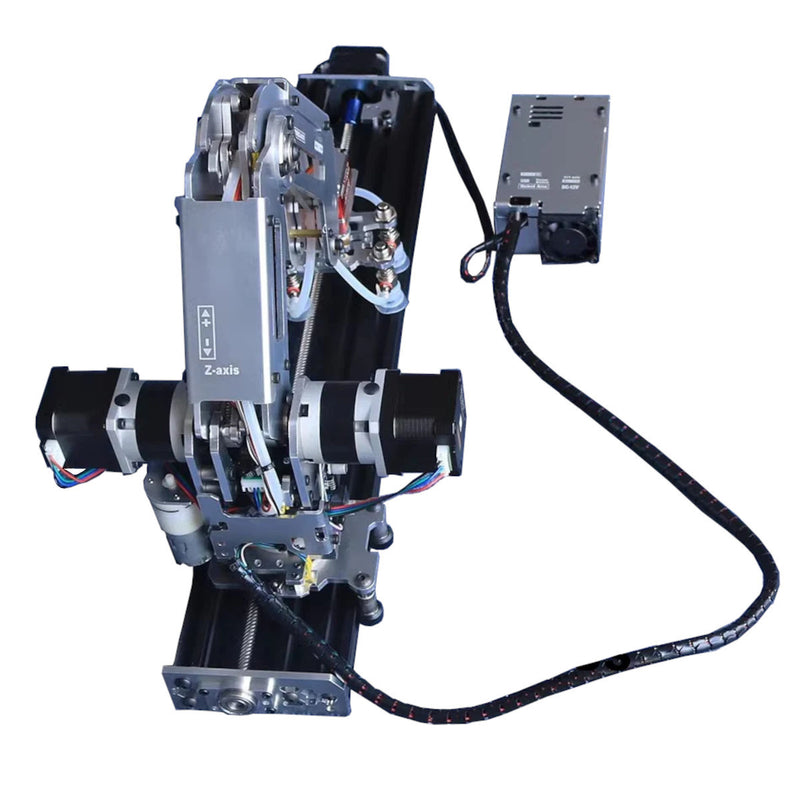

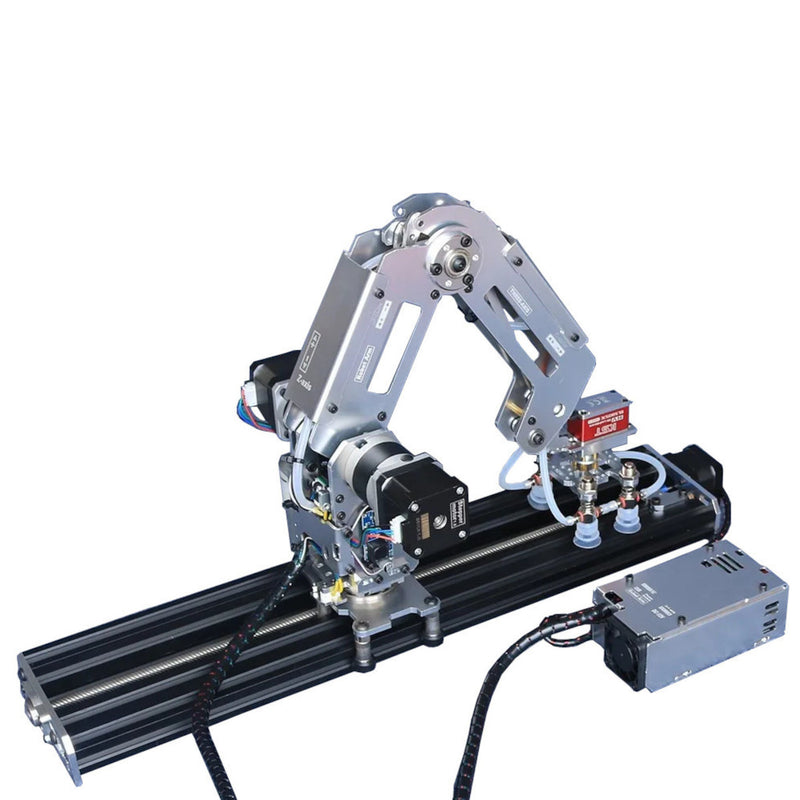

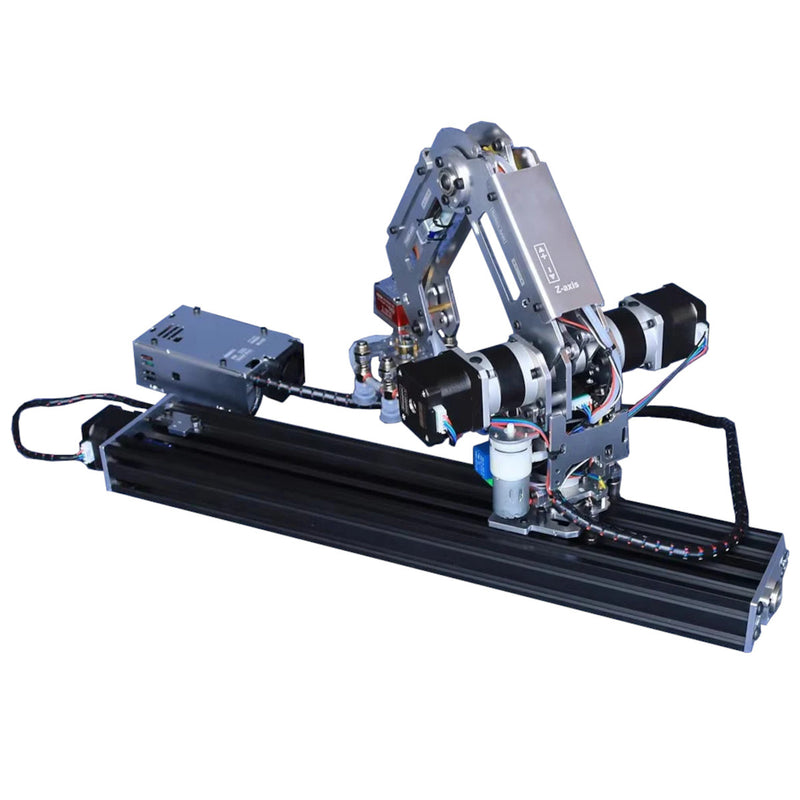

Built to mimic the range of motion of a human arm, this kit includes a full metal robot arm frame, precision industrial stepper motors, servo, integrated vacuum suction system, and a robust sliding table for extended reach. Every piece is engineered for easy assembly and reliable performance, making it ideal for both beginners and advanced robotics users.
The frame and brackets are manufactured from high-quality metal with a non-ferrous oxidation surface finish, ensuring a durable, corrosion-resistant structure with smooth edges. High-precision bearings in each joint reduce friction and improve movement accuracy. The kit features a planetary reducer motor for stable torque output and smooth actuation.
The included Industrial Motion Controller (Arduino Mega 2560 compatible with RAMPS 1.4 Shield) comes pre-loaded with palletising firmware and supports multiple control methods, allowing you to begin programming and controlling the robot immediately without mechanical calibration hassles
This 3 DOF robotic arm excels in a variety of applications, including:
| DIY robotics projects and electronics learning |
| Academic research and engineering education |
| Industrial simulation and pick-and-place automation |
| Robotics competitions and maker challenges |
| Python and microcontroller programming experimentation |
The robust quad vacuum suction cup system, driven by a dedicated vacuum pump and three-way valve, provides reliable gripping performance for flat, smooth objects — ideal for pick-and-place workflows and automation demos. Combined with the sliding table, the arm’s work envelope is significantly enhanced for larger workspace tasks.
This kit makes a fantastic learning platform for anyone interested in mechanical design, automation, embedded systems, and real-world robotic control. It’s an excellent choice for makers, laboratories, schools, and advanced hobbyists looking to grow their skills in robotic systems and automation.
Key Features
| Full metal robotic arm with precision bearings and planetary motors |
| High-precision industrial stepper motors for smooth and accurate motion |
| Arduino Mega 2560 compatible controller with pre-loaded palletising firmware |
| Quad vacuum suction gripping system for automated pick-and-place operations |
| Sliding table for extended reach and a larger working workspace |
| Flexible programming and control through multiple interfaces |
| Ideal for education, DIY projects, robotics competitions, and industrial simulation |
Specifications
| Component | Specification |
|---|---|
| Vacuum Pump | |
| Rated Voltage | DC 4.5–6.6V |
| No-load Current | 0.15A |
| Pressure Range | 400–650 mm Hg |
| Weight | 65 g |
| Three-Way Electronic Valve | |
| Rated Voltage | DC 6V |
| Operating Current | 220 mA |
| Suitable Voltage Range | DC 4.8–6.6V |
| Power | 2 W |
| Pressure Range | 0–350 mm Hg |
| Cable Length | 15 cm |
| Weight | 16 g |
| Robotic Arm & Sliding Table | |
| Dimensions (Arm Closed) | 165 × 213 × 28 mm (L × W × H) |
| Maximum Extension | 280 mm (Base to upper suction cup) |
| Effective Travel Range (Rail Sliding Table) | 390 mm |
| Robotic Arm Bucket Weight | Approximately 500 g |
| Attribute | Details |
|---|---|
| High-Concerned Chemical | None |
| Is Electric | No Battery |
| Power Source | Electric |
| Theme | Animals & Nature, Transportation, Fantasy & Sci-Fi, Occupations, Sports, Music |
| Warning | Cannot get water |
| Model Number | Multi Axis Industrial Stepping Robotic Arm Frame |
| Brand Name | YoufangSmart |
| Recommended Age | 14+ Years |
| Origin | Mainland China |
| Material | Metal |
| Key Features | Manipulator Robot Arm, Mechanical Robotic Arm, Multi-Axis Robotic Arm, Start Kit, Multi-Axis Robot, DIY Kit, Programmable Arduino, Robot Stepper Kit, Multi Degree-of-Freedom 3-Axis Robot Arm, Industrial Stepping Metal Manipulator Model, Multi-DOF Industrial Robotic Model, Stepping Robotic Arm, With Servos, Large Suction Air Pump, Stepper Motor, For Arduino |
Package Contents
| Item | Quantity |
|---|---|
| Robot Arm Frame | ×1 |
| Quad Suction Cups with Vacuum Motor | ×1 |
| High-Precision Industrial Stepper Motors | ×1 |
| Servo Motor | ×1 |
| Controller | ×1 |
| Sliding Table | ×1 |
| Necessary Screws and Accessories | ×1 |
| 12V 5A Power Adapter | ×1 |
