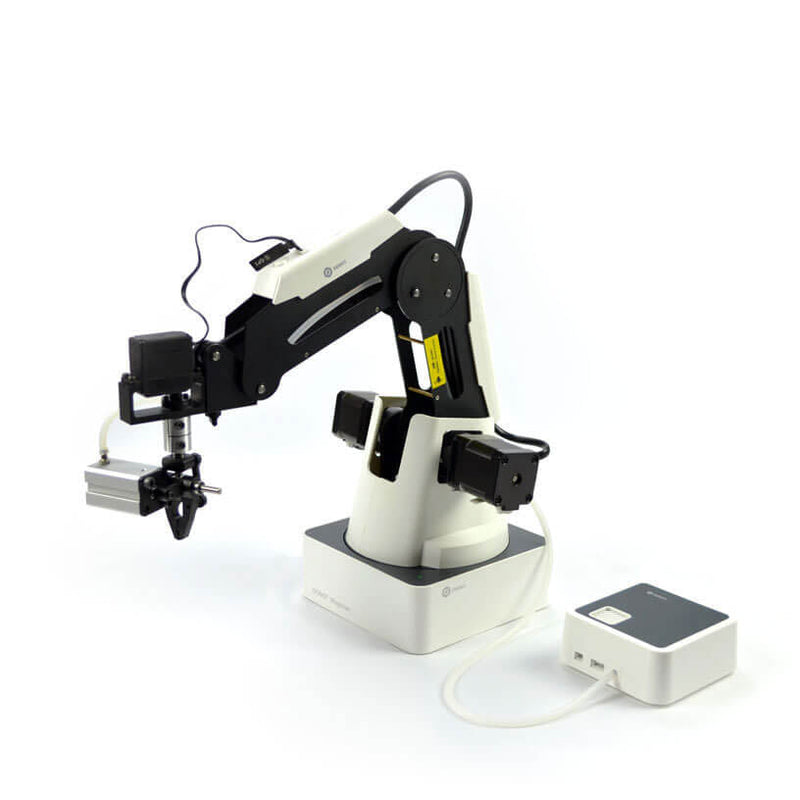

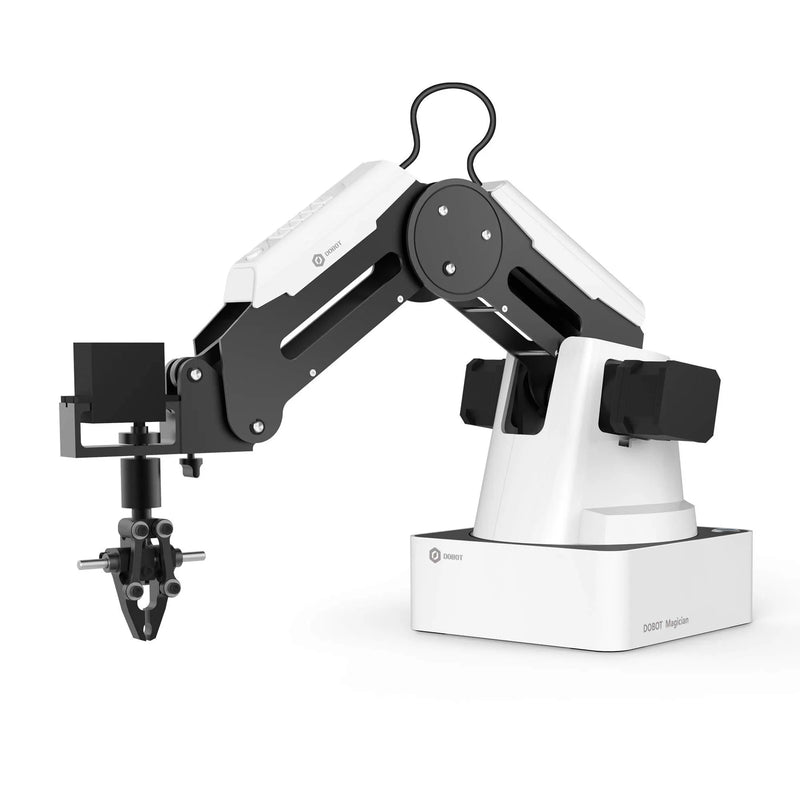

DOBOT Magician
Desktop Grade Robot For Advanced Education
The Magician is the world's first desktop grade 4-axis robot. It can perform a wide range of tasks such as 3D printing, laser graving, calligraphy and drawing. 13 interface ports are available to support secondary developement, lab projects and robotics curricula.
Studies such as robotic systems, the DH convention, control of robot movement and robot programming can be taught to different levels of students. A variety of application scenarios can be developed through the use of programming software and hardware accessories.
Operable By One Person
The Magician is designed for students and consumers in mind. It is extremely portable and capable of various automation tasks. Users can interact with the Magician using quick access command buttons or wirelessly with portable computing devices.
High Expandability With Secondary Development
The Magician has 13 interface ports and wireless connectivity for secondary development. Controller support is available for beginners.
Wide Selection Of Accessories

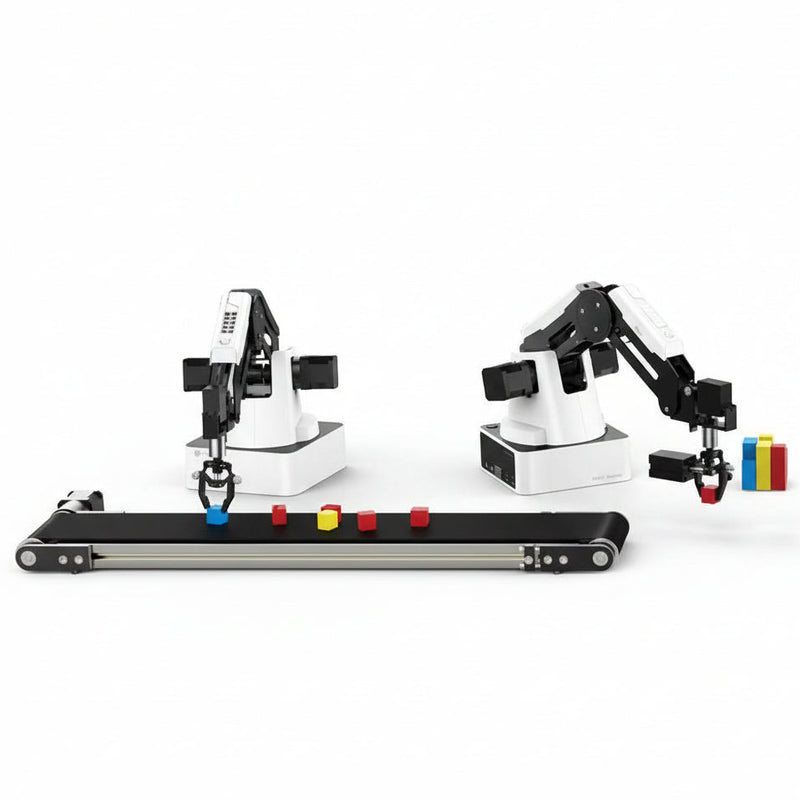

A wide variety of accessories such as grippers, rails, conveyor belts, mobility and vision modules are available to allow the Magician to complete different tasks.
Key Performance Parameters
Basic Kit vs Education Kit – What’s the Difference?
Basic Kit
The Magician Basic Kit includes the core robot arm and essential accessories required to get started with desktop robotics. It is ideal for beginners, hobbyists, and entry-level learning environments focusing on fundamental robot operation, programming, and motion control.
Education Kit
The Magician Education Kit includes everything in the Basic Kit plus advanced expansion modules such as wireless communication, joystick control, laser engraving, pneumatic gripping, and 3D printing accessories. It is designed for classrooms, labs, and institutions that require hands-on teaching of robotics, automation, and secondary development.
Specifications
| Number of Axis | 4 |
| Payload | 500 g |
| Max. Reach | 320 mm |
| Repeatability | ±0.2 mm |
| Communication | USB / Wi-Fi* / Bluetooth* |
| Power Supply | 100V – 240V, 50/60 Hz |
| Power In | 12V / 6.5A DC |
| Consumption | 78W Max |
| Working Temperature | -10° to 60° C |
| Axis Movement | |
|---|---|
| Joint 1 (Base) | Range: -120° ~ +120° Max Speed: 320° / s |
| Joint 2 (Rear Arm) | Range: -5° ~ +90° Max Speed: 320° / s |
| Joint 3 (Forearm) | Range: -15° ~ +90° Max Speed: 320° / s |
| Joint 4 (Rotation Servo) | Range: -140° ~ +140° Max Speed: 480° / s |
| Physical | |
| Net Weight | 3.4 kg |
| Gross Weight (Standard Version) | 7.2 kg |
| Gross Weight (Education Version) | 8.0 kg |
| Base Dimension (Footprint) | 158 mm × 158 mm |
| Materials | Aluminum Alloy 6061, ABS Engineering Plastic |
| Controller | Dobot Integrated Controller |
| Robot Mounting | Desktop |
| Packing Size (L × W × H) | 421 × 334 × 352 mm |
| Applications | |
| Software | DobotLab, DobotStudio, Repetier Host, GrblController 3.6, DobotBlockly |
| SDK (Software Development Kit) | Communication Protocol, Dobot Program Library |
| Extensible I/O Interfaces | I/O × 10 (Analog Input / PWM Output) Controllable 12V Power Output × 4 Communication Interface (UART, Reset, Stop, 12V, 5V, Two I/O) Stepper × 2 |
| End Effectors | |

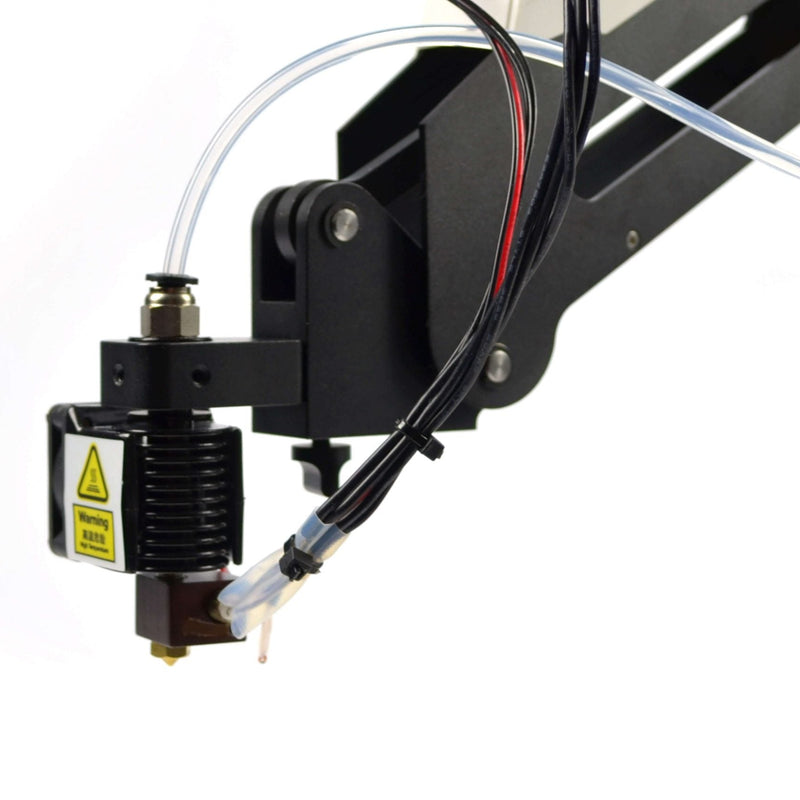

| 3D Printer Kit | Maximum Print Size: 150 × 150 × 150 mm Material: PLA Resolution: 0.1 mm |
| Laser * | Power Consumption: 500 mW Type: 405 nm (Blue Laser) Power: 12V, TTL Trigger (With PWM Driver) |

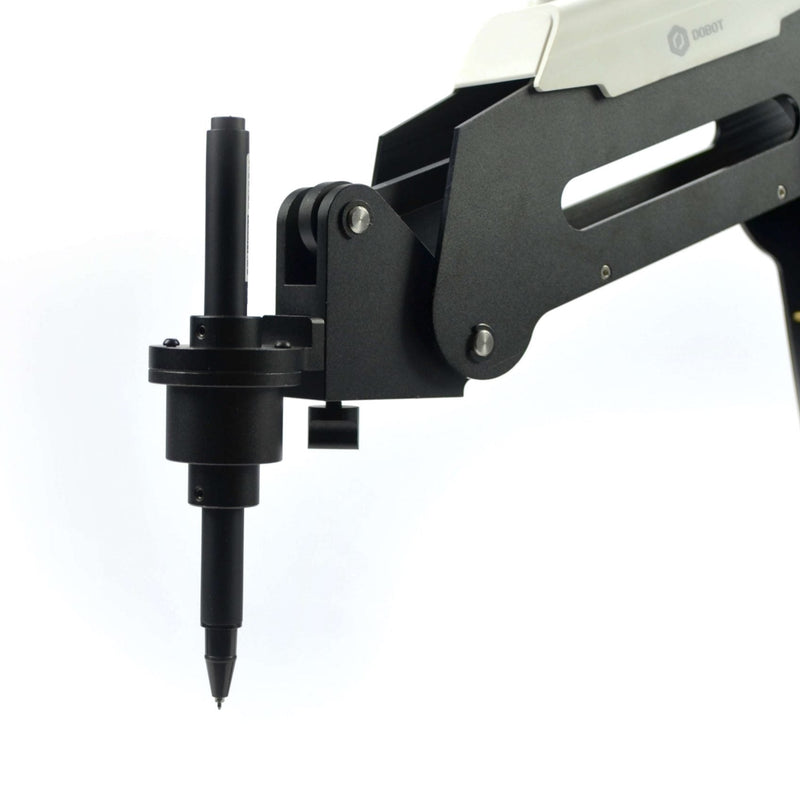

| Pen Holder | Pen Diameter: 10 mm |

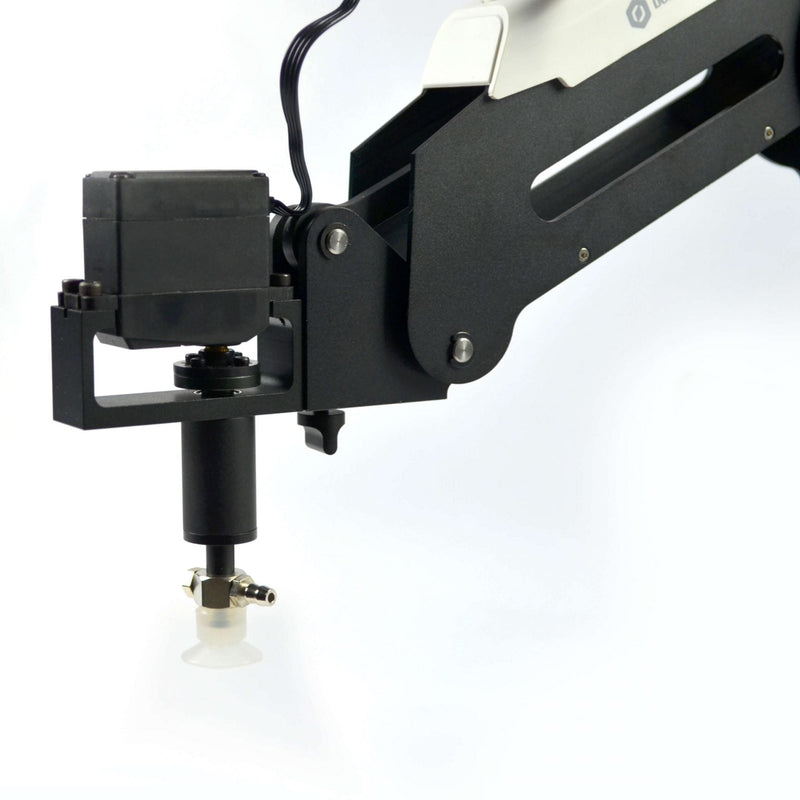

| Vacuum Suction Cup | Suction Cup Diameter: 20 mm Pressure: -35 kPa |

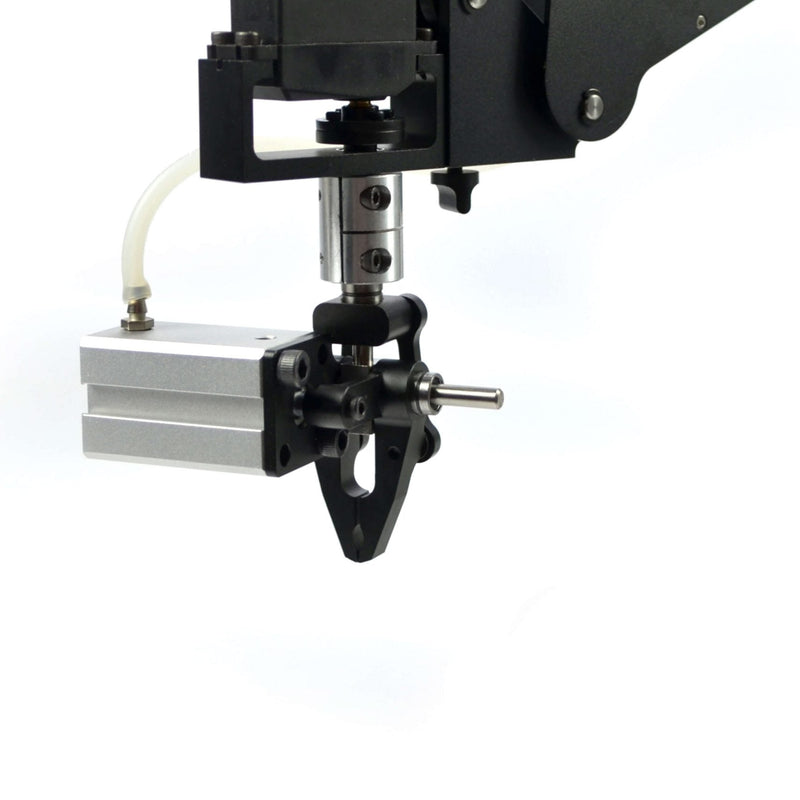

| Gripper | Range: 27.5 mm Drive Type: Pneumatic Force: 8 N |
Resources
| User Guide | Download |
| FAQs | Download |
Package Content
Magician Robot – Basic Kit
| Category | Included Items |
|---|---|
| Robot Arm | Robot Arm Power Adapter USB Cable Masking Tape Feed Tape |
| Accessories | Shipping List Quick Start Guide Glass Plate Sensor Calibration Board |
| Writing & Drawing Kit | Pen Holder Pen |
| Pneumatic Kit | Pneumatic Gripper Suction Cup & Joint 4 Air Pump Controller |
| 3D Printing Kit | Extruder Hot End Filament Holder PLA Filament (200 g) |
| Tool Package | Hexagon Screwdriver (M1.5 / M2 / M2.5) Quick Fix Screw Calibration Tool Jackscrew ×2 |

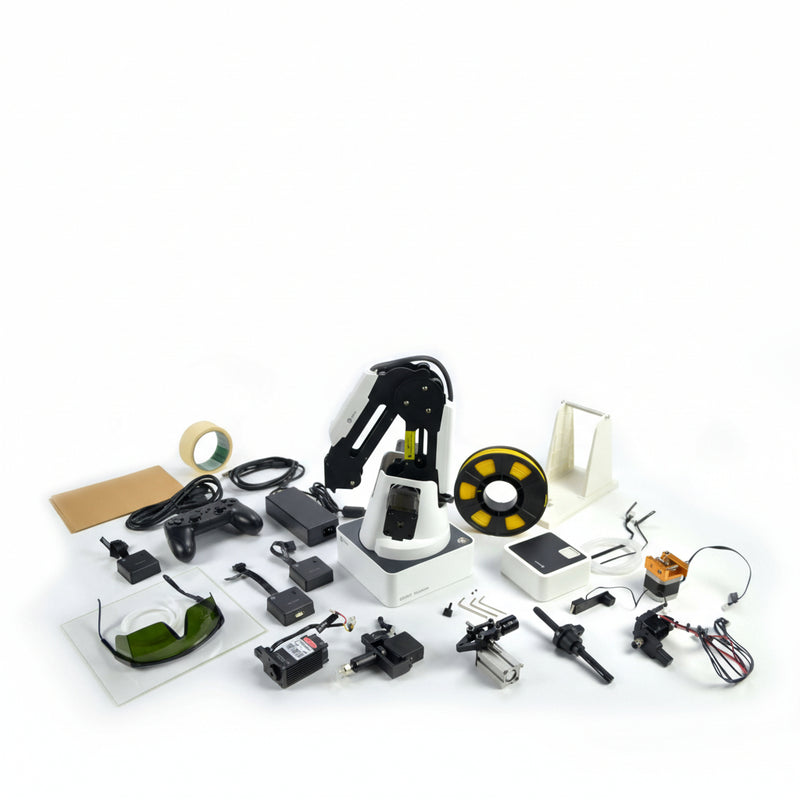

Magician Robot – Education Kit
| Category | Included Items |
|---|---|
| Robot Arm | Robot Arm Power Adapter USB Cable Masking Tape Feed Tape |
| Accessories | Shipping List Quick Start Guide Glass Plate Sensor Calibration Board Kraft Liner Paper Bluetooth Module (Wireless-1) Wi-Fi Module (Wireless-2) |
| Writing & Drawing Kit | Pen Holder Pen |
| Pneumatic Kit | Pneumatic Gripper Suction Cup & Joint 4 Air Pump Controller |
| 3D Printing Kit | Extruder Hot End Filament Holder PLA Filament (200 g) |
| Joystick Control Kit | USB Connector Host Joystick |
| Laser Kit | Laser Module Laser Protective Glasses |
| Tool Package | Hexagon Screwdriver (M1.5 / M2 / M2.5) Quick Fix Screw Calibration Tool Jackscrew ×2 |
