This hot air rework station features a PID programmable temperature control system and real time temperature tracking of each component, as well as an automatic temperature correction with rapid speed compensation and minimum tolerance.
It comes equipped with a hot air gun and soldering iron.
The anti-static design prevents static or electricity leakage.
Personalized Functions: A. Temperature Correction Function: The rework station will automatically correct the temperature due to environmental changes or replacement of the heating coil, soldering iron or other components. B. Sleep Mode: The soldering iron automatically goes to sleep if it is left in a still condition for 10 minutes, and the temperature will decrease to 200℃. This prevents the iron tip from oxidizing and other damage, as well as eliminates the need for a heat waiting period. Activation Method: a). Shake the iron handle several times. b). Press any button once. C). Power-off first and then power-on. C. Cold/Hot Air Switch: Switch from cold or hot air by pressing the button-the cold air function is especially designed to cool down heated elements processing.

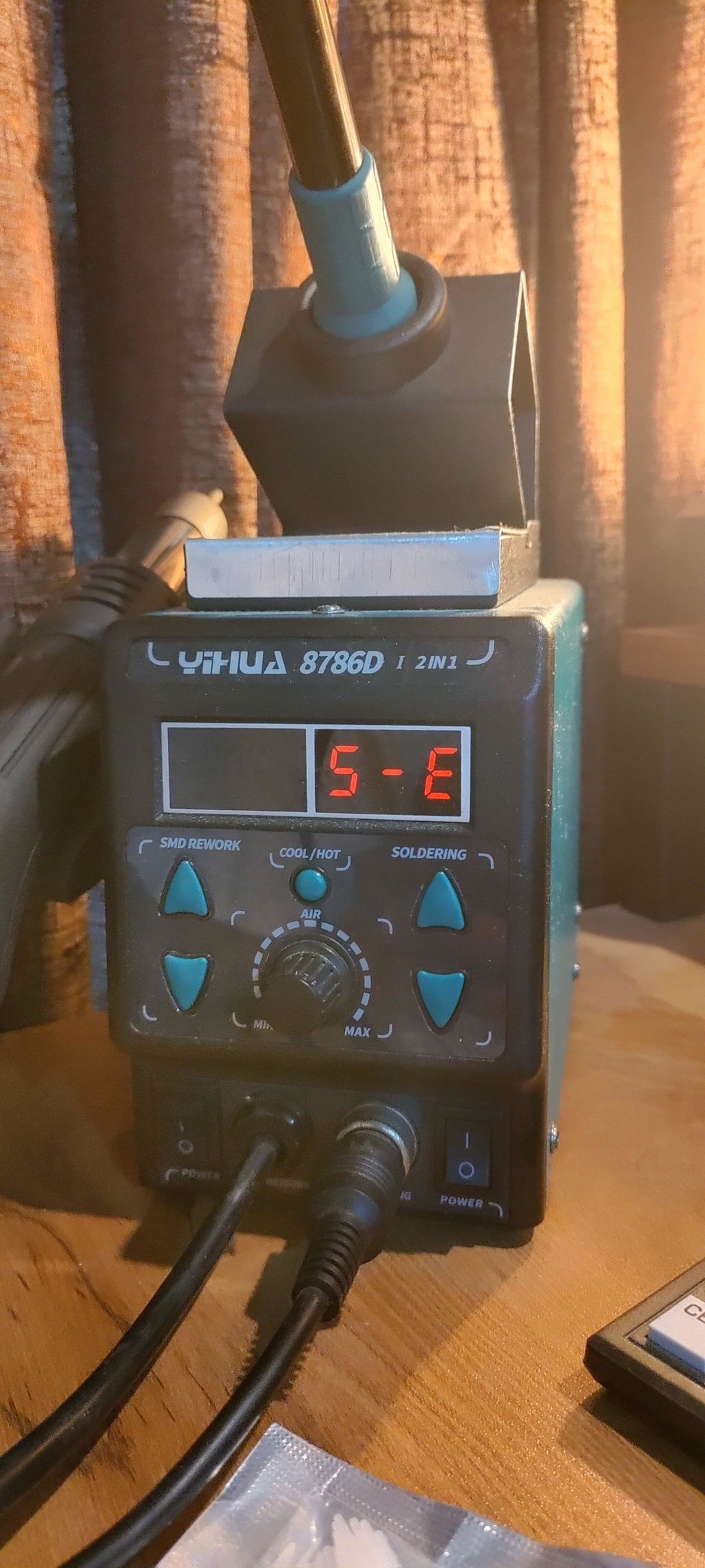

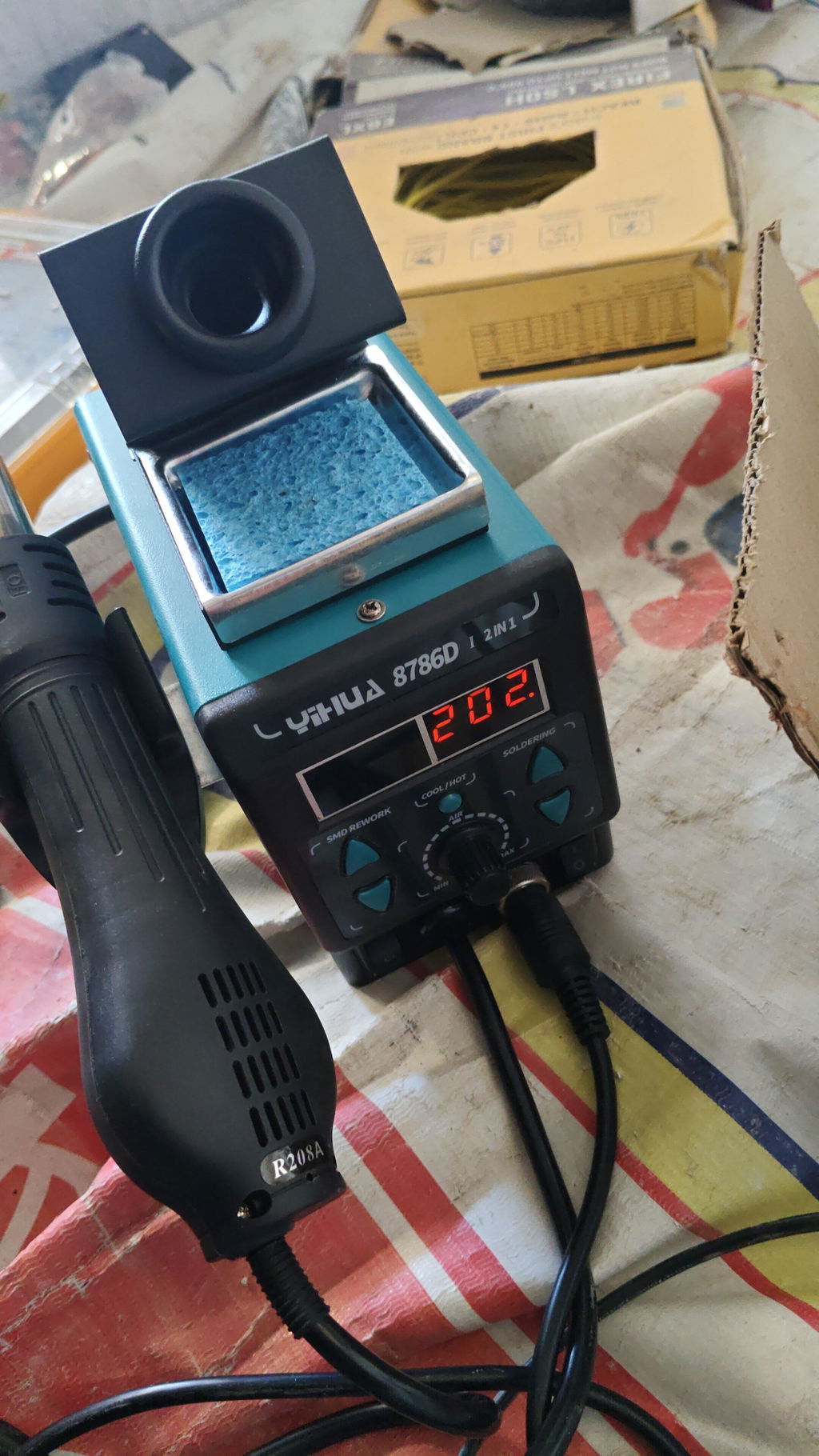

Satisfied, must buy for budget electronics enthusiasts.
Unlike other chinese products, this soldering station is well documented how to use. The contact between heating element and solder tip is a bit lacking so temperature shown does not match quite well. Add some thermal paste between heating element and solder tip to increase thermal conductivity and fix this issue. Need to do further testing with hot air gun, but for now it seems to be working correctly. I was also given prompt support by thinkrobotics for my queries. Thanks for the service.
