Name: EC200U-AU C4-P01 development board Designed for QuecPython
Brand: waveshare
SKU: ELC8096
Price: 5749.99 INR
Availability: InStock

{"id":9692223537469,"title":"EC200U-AU C4-P01 development board Designed for QuecPython","handle":"ec200u-au-c4-p01","description":"\u003cdiv class=\"pdT\" style=\"text-align: left;\"\u003e\n\u003ch1 style=\"text-align: center;\" class=\"richTitle\"\u003eEC200U-AU C4-P01 Development Board\u003c\/h1\u003e\n\u003ch4 style=\"text-align: center;\" class=\"hilitBlock2\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eCompact \u0026amp; Portable Development Board Designed for QuecPython\u003c\/span\u003e\u003c\/h4\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003eSupports LTE Cat-1 \/ Bluetooth Communication, GNSS Positioning\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-1.jpg\" alt=\"EC200U C4-P01 development board, front view\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"alignl pdTRBL2\"\u003e\n\u003cp\u003eThe\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eEC200U-AU C4-P01\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003edevelopment board is equipped with\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eEC200U-AU LTE Cat 1\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ewireless communication module, with maximum data rate up to 10 Mbps downlink and 5 Mbps uplink, supports multi-mode \u0026amp; multi-band and is cost-effective. Designed in the compact and unified form factor, compatible with Quectel multi-mode LTE Standard EC20-CE. Onboard Type-C port for easy development with just a USB Type-C cable. Onboard 40PIN GPIO pin header which is compatible with most Raspberry Pi HATs.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eEquipped with EC200U-AU LTE Cat 1 wireless communication module, multi-mode \u0026amp; multi-band support\u003c\/li\u003e\n\u003cli\u003eOnboard 40PIN GPIO header, compatible with most Raspberry Pi HATs\u003c\/li\u003e\n\u003cli\u003e5 LEDs for indicating module operating status\u003c\/li\u003e\n\u003cli\u003eSupports TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS protocols, etc.\u003c\/li\u003e\n\u003cli\u003eSupports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)\u003c\/li\u003e\n\u003cli\u003eOnboard Nano SIM card slot and eSIM card slot, dual card single standby\u003c\/li\u003e\n\u003cli\u003eOnboard MIPI connector for connecting MIPI screen and is fully compatible with Raspberry PI peripherals\u003c\/li\u003e\n\u003cli\u003eOnboard camera connector, supports customized SPI cameras with a maximum of 300,000 pixels\u003c\/li\u003e\n\u003cli\u003eProvides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development\u003c\/li\u003e\n\u003cli\u003eComes with online development resources and manual (example in QuecPython)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003cth\u003eBG95-M3\u003c\/th\u003e\n\u003cth\u003eEC200U-EU\u003c\/th\u003e\n\u003cth\u003eEC200U-AU\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eProduct Picture\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/BG95-M3-Zero\/BG95-M3-Zero-1_300.jpg\" alt=\"BG95-M3\"\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-EU-C4-P01\/EC200U-EU-C4-P01-1_300.jpg\" alt=\"EC200U-EU\"\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-1_300.jpg\" alt=\"EC200U-AU\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eApplicable Region\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGlobal\u003c\/td\u003e\n\u003ctd\u003eEurope, Middle East, Africa, Australia, New Zealand, Brazil\u003c\/td\u003e\n\u003ctd\u003eAustralia\/Latin America\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"4\"\u003eFrequency Band\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLTE-FDD\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCat M1:\u003cbr\u003eB1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85\u003cbr\u003eCat NB2:\u003cbr\u003eB1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B66, B71, B85\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B7, B8, B20, B28\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B7, B8, B28, B66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLTE-TDD\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eB38, B40, B41\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGSM \/ GPRS \/ EDGE\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e850, 900, 1800, 1900 MHz\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eGSM: B2, B3, B5, B8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGNSS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003eGPS, GLONASS, BDS, Galileo, QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBluetooth\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eBluetooth 4.2 (BR\/EDR)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eWi-Fi Scan\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e2.4 GHz 11b (Rx)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"4\"\u003eData transmission\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCAT 1\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eLTE-FDD: DL 10 Mbps; UL 5 Mbps\u003cbr\u003eLTE-TDD: DL 8.96 Mbps; UL 3.1 Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNB-IoT\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCat NB2:\u003cbr\u003eDL 127 Kbps; UL 158.5 Kbps\u003cbr\u003eCat NB1:\u003cbr\u003eDL 32 Kbps; UL 70 Kbps\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eN\/A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCat-M\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDL 588 Kbps; UL 1119 Kbps\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eN\/A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGSM \/ GPRS \/ EDGE\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eEDGE: DL 296 Kbps; UL 236.8 Kbps\u003cbr\u003eGPRS: DL 107 Kbps; UL 85.6 Kbps\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eGSM: DL 85.6 Kbps; UL 85.6 Kbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"4\"\u003eOthers\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eType-C USB Port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003eSupports AT commands testing, GNSS positioning, firmware upgrading, etc.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCommunication Protocol\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eTCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSIM Card\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNano SIM card (supports 1.8V only)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eNano SIM and eSIM, dual card single standby\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndicator\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSIM_CHK: lights up when a SIM card is inserted into the card slot\u003cbr\u003eNET: Network indicator\u003cbr\u003ePSM: Sleep indicator\u003cbr\u003ePWM: PWM function indicator\u003cbr\u003ePWR: Power indicator\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eP01: Module Pin 1, default as EC200A-XX PWM0\u003cbr\u003eP05: Module Pin 5, NET_MODE indicator\u003cbr\u003eSCK1: SIM1 detection indicator, lights up when SIM1 card is inserted\u003cbr\u003eSCK2: SIM2 detection indicator, lights up when SIM2 card is inserted\u003cbr\u003ePWR: Power indicator\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eButtons\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePWK: Power ON\/OFF\u003cbr\u003ePON: PSM wake-up\u003cbr\u003eBOOT: Forcing into firmware burning mode\u003cbr\u003eUSB ON\/OFF: USB power consumption detection switch\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003ePWK: Power ON\/OFF\u003cbr\u003eRST: Reset\u003cbr\u003eBOOT: Forcing into firmware burning mode\u003cbr\u003eUSB ON\/OFF: USB power consumption detection switch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAntenna Connectors\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eLTE main antenna + DIV antenna + GNSS antenna\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eLTE main antenna + DIV \/ WIFI (scanning only) \/ Bluetooth antenna + GNSS antenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e-30 ~ 75°C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStorage Temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e-45 ~ 90°C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eType-C interface\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eeasy to develop with just a USB Type-C cable\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-3.jpg\" alt=\"EC200U C4-P01 development board with Type-C interface\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eOnboard 40PIN GPIO header\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eCompatible with most Raspberry Pi HATs\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-5.jpg\" alt=\"EC200U C4-P01 development board with 40PIN GPIO pin header\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eSupports various development tools\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eProvides tools such as QPYcom, Thonny IDE plugin, \u003cbr\u003eand VSCode plugin, etc. for easy learning and development\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-7.jpg\" alt=\"EC200U C4-P01 development board supports various development tools\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eWhat’s onboard\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-intro.jpg\" alt=\"EC200U C4-P01 development board onboard components\"\u003e\n\u003ctable style=\"width: 80%; margin: auto;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: left; vertical-align: top; border: 0px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOnboard Components\u003c\/strong\u003e\u003c\/p\u003e\n\u003col\u003e\n\u003cli\u003e\u003cstrong\u003eEC200U module\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003ePWR Power indicator\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eNET Network indicator\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003ePWM function indicator\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM1 indicator\u003c\/strong\u003e\u003cbr\u003elights up when SIM1 card is inserted\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM2 indicator\u003c\/strong\u003e\u003cbr\u003elights up when SIM2 card is inserted\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003ePower ON\/OFF button\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eReset button\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eBOOT button\u003c\/strong\u003e\u003cbr\u003ePress before powering on to force firmware burning mode\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eUSB detection ON\/OFF\u003c\/strong\u003e\u003cbr\u003eNormally closed: USB can be connected normally;\u003cbr\u003eNormally open: Type-C supplies power only to the evaluation board, used for module power consumption measurement\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003eInterfaces\u003c\/strong\u003e\u003c\/p\u003e\n\u003col start=\"11\"\u003e\n\u003cli\u003e\n\u003cstrong\u003eRaspberry Pi GPIO Header\u003c\/strong\u003e\u003cbr\u003eCompatible with Raspberry Pi HATs, for more details, please refer to Pinout Definition\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower ON\/OFF jumper\u003c\/strong\u003e\u003cbr\u003eConnect: auto turn on, short press PWK button to restart\u003cbr\u003eDisconnect: short press PWK button to power on, long press to power off\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003e1.8V output jumper\u003c\/strong\u003e\u003cbr\u003eConnect: outputs 1.8V externally\u003cbr\u003eDisconnect: used to test power consumption\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eModule power supply jumper\u003c\/strong\u003e\u003cbr\u003eConnect: DCDC to power the module\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/td\u003e\n\u003ctd style=\"text-align: left; vertical-align: top; border: 0px;\"\u003e\n\u003col start=\"15\"\u003e\n\u003cli\u003e\n\u003cstrong\u003eSD power supply selection\u003c\/strong\u003e\u003cbr\u003eConnect: enable SD power supply\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eGNSS active power supply selection\u003c\/strong\u003e\u003cbr\u003eConnect: enable GNSS active power supply\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM card slot 1\u003c\/strong\u003e\u003cbr\u003efor Nano SIM card\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM card slot 2\u003c\/strong\u003e\u003cbr\u003efor eSIM card\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSD card slot\u003c\/strong\u003e\u003cbr\u003eBefore using the SD card, enable SD power supply in the 10-Pin Header\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eMIPI interface\u003c\/strong\u003e\u003cbr\u003eSupports MIPI LCD and is fully compatible with Raspberry Pi peripherals\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eCamera interface\u003c\/strong\u003e\u003cbr\u003eSupports customized SPI cameras with a maximum of 300,000 pixels\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eReserved matrix keyboard pads\u003c\/strong\u003e\u003cbr\u003eusers can customize soldering or connection of the keyboard buttons （Note: the keyboard buttons are not included by default）\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eUSB Type-C port\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eADC testing points\u003c\/strong\u003e\u003cbr\u003eADC0_IN\/ADC1_IN ADC measurement interface\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eLTE main antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eGNSS antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eDIV\/Wi-Fi\/Bluetooth antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eMIC \u0026amp; SPK header\u003c\/strong\u003e\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003ePinout definition\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-inter.jpg\" alt=\"EC200U C4-P01 development board pinout definition\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eOutline dimensions\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-size.jpg\" alt=\"EC200U C4-P01 development board outline dimensions\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\"\u003eResources\u003c\/h2\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cstrong\u003eWIKI:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/EC200U-AU-C4-P01\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/EC200U-AU-C4-P01\u003c\/a\u003e\u003cbr\u003e\u003cstrong\u003eQuectel Resources:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"https:\/\/python.quectel.com\/doc\/Getting_started\/en\/evb\/ec200x-evb.html\" target=\"_blank\"\u003ehttps:\/\/python.quectel.com\/doc\/Getting_started\/en\/evb\/ec200x-evb.html\u003c\/a\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003ch2 style=\"text-align: left;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: left;\"\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp style=\"text-align: left;\"\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.193 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003cp style=\"text-align: left;\"\u003eEC200U-AU C4-P01 x1\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-pack.jpg\" alt=\"EC200U-AU C4-P01\" style=\"float: left;\"\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2024-10-11T08:38:30+05:30","created_at":"2024-10-11T06:54:03+05:30","vendor":"waveshare","type":"","tags":["27096","4G","Amplifier","ANT-ACC","Antenna","Dual-frequency Active Antenna","EC200U","ELC8","External","Global","GNSS","GPS","GPS antenna mount","gps module","GPS-MOD","L1","L5","Multi-GNSS Positioning Systems","Positioning","Quectel","satellite","Waveshare","WVSH"],"price":574999,"price_min":574999,"price_max":574999,"available":true,"price_varies":false,"compare_at_price":699999,"compare_at_price_min":699999,"compare_at_price_max":699999,"compare_at_price_varies":false,"variants":[{"id":49473190428989,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC8096","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EC200U-AU C4-P01 development board Designed for QuecPython","public_title":null,"options":["Default Title"],"price":574999,"weight":150,"compare_at_price":699999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-1.jpg?v=1728609874","\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-2.jpg?v=1728609874","\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-3.jpg?v=1728609874","\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-4.jpg?v=1728609874","\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-5.jpg?v=1728609874"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-1.jpg?v=1728609874","options":["Title"],"media":[{"alt":null,"id":41034865246525,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-1.jpg?v=1728609874"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-1.jpg?v=1728609874","width":800},{"alt":null,"id":41034865115453,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-2.jpg?v=1728609874"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-2.jpg?v=1728609874","width":800},{"alt":null,"id":41034865049917,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-3.jpg?v=1728609874"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-3.jpg?v=1728609874","width":800},{"alt":null,"id":41034864984381,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-4.jpg?v=1728609874"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-4.jpg?v=1728609874","width":800},{"alt":null,"id":41034864951613,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-5.jpg?v=1728609874"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/ec200u-au-c4-p01-5.jpg?v=1728609874","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv class=\"pdT\" style=\"text-align: left;\"\u003e\n\u003ch1 style=\"text-align: center;\" class=\"richTitle\"\u003eEC200U-AU C4-P01 Development Board\u003c\/h1\u003e\n\u003ch4 style=\"text-align: center;\" class=\"hilitBlock2\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\"\u003eCompact \u0026amp; Portable Development Board Designed for QuecPython\u003c\/span\u003e\u003c\/h4\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003eSupports LTE Cat-1 \/ Bluetooth Communication, GNSS Positioning\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-1.jpg\" alt=\"EC200U C4-P01 development board, front view\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"alignl pdTRBL2\"\u003e\n\u003cp\u003eThe\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eEC200U-AU C4-P01\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003edevelopment board is equipped with\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eEC200U-AU LTE Cat 1\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ewireless communication module, with maximum data rate up to 10 Mbps downlink and 5 Mbps uplink, supports multi-mode \u0026amp; multi-band and is cost-effective. Designed in the compact and unified form factor, compatible with Quectel multi-mode LTE Standard EC20-CE. Onboard Type-C port for easy development with just a USB Type-C cable. Onboard 40PIN GPIO pin header which is compatible with most Raspberry Pi HATs.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eEquipped with EC200U-AU LTE Cat 1 wireless communication module, multi-mode \u0026amp; multi-band support\u003c\/li\u003e\n\u003cli\u003eOnboard 40PIN GPIO header, compatible with most Raspberry Pi HATs\u003c\/li\u003e\n\u003cli\u003e5 LEDs for indicating module operating status\u003c\/li\u003e\n\u003cli\u003eSupports TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS protocols, etc.\u003c\/li\u003e\n\u003cli\u003eSupports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)\u003c\/li\u003e\n\u003cli\u003eOnboard Nano SIM card slot and eSIM card slot, dual card single standby\u003c\/li\u003e\n\u003cli\u003eOnboard MIPI connector for connecting MIPI screen and is fully compatible with Raspberry PI peripherals\u003c\/li\u003e\n\u003cli\u003eOnboard camera connector, supports customized SPI cameras with a maximum of 300,000 pixels\u003c\/li\u003e\n\u003cli\u003eProvides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development\u003c\/li\u003e\n\u003cli\u003eComes with online development resources and manual (example in QuecPython)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eModel\u003c\/th\u003e\n\u003cth\u003eBG95-M3\u003c\/th\u003e\n\u003cth\u003eEC200U-EU\u003c\/th\u003e\n\u003cth\u003eEC200U-AU\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eProduct Picture\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/BG95-M3-Zero\/BG95-M3-Zero-1_300.jpg\" alt=\"BG95-M3\"\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-EU-C4-P01\/EC200U-EU-C4-P01-1_300.jpg\" alt=\"EC200U-EU\"\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-1_300.jpg\" alt=\"EC200U-AU\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eApplicable Region\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGlobal\u003c\/td\u003e\n\u003ctd\u003eEurope, Middle East, Africa, Australia, New Zealand, Brazil\u003c\/td\u003e\n\u003ctd\u003eAustralia\/Latin America\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"4\"\u003eFrequency Band\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLTE-FDD\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCat M1:\u003cbr\u003eB1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85\u003cbr\u003eCat NB2:\u003cbr\u003eB1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B66, B71, B85\u003c\/td\u003e\n\u003ctd\u003eB1, B3, B5, B7, B8, B20, B28\u003c\/td\u003e\n\u003ctd\u003eB1, B2, B3, B4, B5, B7, B8, B28, B66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLTE-TDD\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eB38, B40, B41\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGSM \/ GPRS \/ EDGE\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e850, 900, 1800, 1900 MHz\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eGSM: B2, B3, B5, B8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGNSS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003eGPS, GLONASS, BDS, Galileo, QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eBluetooth\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eBluetooth 4.2 (BR\/EDR)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eWi-Fi Scan\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003e2.4 GHz 11b (Rx)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"4\"\u003eData transmission\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCAT 1\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eN\/A\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eLTE-FDD: DL 10 Mbps; UL 5 Mbps\u003cbr\u003eLTE-TDD: DL 8.96 Mbps; UL 3.1 Mbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNB-IoT\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCat NB2:\u003cbr\u003eDL 127 Kbps; UL 158.5 Kbps\u003cbr\u003eCat NB1:\u003cbr\u003eDL 32 Kbps; UL 70 Kbps\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eN\/A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCat-M\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eDL 588 Kbps; UL 1119 Kbps\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eN\/A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGSM \/ GPRS \/ EDGE\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eEDGE: DL 296 Kbps; UL 236.8 Kbps\u003cbr\u003eGPRS: DL 107 Kbps; UL 85.6 Kbps\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eGSM: DL 85.6 Kbps; UL 85.6 Kbps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"4\"\u003eOthers\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eType-C USB Port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003eSupports AT commands testing, GNSS positioning, firmware upgrading, etc.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCommunication Protocol\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eTCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSIM Card\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eNano SIM card (supports 1.8V only)\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eNano SIM and eSIM, dual card single standby\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndicator\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSIM_CHK: lights up when a SIM card is inserted into the card slot\u003cbr\u003eNET: Network indicator\u003cbr\u003ePSM: Sleep indicator\u003cbr\u003ePWM: PWM function indicator\u003cbr\u003ePWR: Power indicator\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eP01: Module Pin 1, default as EC200A-XX PWM0\u003cbr\u003eP05: Module Pin 5, NET_MODE indicator\u003cbr\u003eSCK1: SIM1 detection indicator, lights up when SIM1 card is inserted\u003cbr\u003eSCK2: SIM2 detection indicator, lights up when SIM2 card is inserted\u003cbr\u003ePWR: Power indicator\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eButtons\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePWK: Power ON\/OFF\u003cbr\u003ePON: PSM wake-up\u003cbr\u003eBOOT: Forcing into firmware burning mode\u003cbr\u003eUSB ON\/OFF: USB power consumption detection switch\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003ePWK: Power ON\/OFF\u003cbr\u003eRST: Reset\u003cbr\u003eBOOT: Forcing into firmware burning mode\u003cbr\u003eUSB ON\/OFF: USB power consumption detection switch\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAntenna Connectors\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eLTE main antenna + DIV antenna + GNSS antenna\u003c\/td\u003e\n\u003ctd colspan=\"2\"\u003eLTE main antenna + DIV \/ WIFI (scanning only) \/ Bluetooth antenna + GNSS antenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e-30 ~ 75°C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eStorage Temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"3\"\u003e-45 ~ 90°C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eType-C interface\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eeasy to develop with just a USB Type-C cable\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-3.jpg\" alt=\"EC200U C4-P01 development board with Type-C interface\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eOnboard 40PIN GPIO header\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eCompatible with most Raspberry Pi HATs\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-5.jpg\" alt=\"EC200U C4-P01 development board with 40PIN GPIO pin header\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eSupports various development tools\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\"\u003eProvides tools such as QPYcom, Thonny IDE plugin, \u003cbr\u003eand VSCode plugin, etc. for easy learning and development\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-7.jpg\" alt=\"EC200U C4-P01 development board supports various development tools\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eWhat’s onboard\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-intro.jpg\" alt=\"EC200U C4-P01 development board onboard components\"\u003e\n\u003ctable style=\"width: 80%; margin: auto;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: left; vertical-align: top; border: 0px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOnboard Components\u003c\/strong\u003e\u003c\/p\u003e\n\u003col\u003e\n\u003cli\u003e\u003cstrong\u003eEC200U module\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003ePWR Power indicator\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eNET Network indicator\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003ePWM function indicator\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM1 indicator\u003c\/strong\u003e\u003cbr\u003elights up when SIM1 card is inserted\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM2 indicator\u003c\/strong\u003e\u003cbr\u003elights up when SIM2 card is inserted\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003ePower ON\/OFF button\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eReset button\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eBOOT button\u003c\/strong\u003e\u003cbr\u003ePress before powering on to force firmware burning mode\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eUSB detection ON\/OFF\u003c\/strong\u003e\u003cbr\u003eNormally closed: USB can be connected normally;\u003cbr\u003eNormally open: Type-C supplies power only to the evaluation board, used for module power consumption measurement\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cbr\u003e\n\u003cp\u003e\u003cstrong\u003eInterfaces\u003c\/strong\u003e\u003c\/p\u003e\n\u003col start=\"11\"\u003e\n\u003cli\u003e\n\u003cstrong\u003eRaspberry Pi GPIO Header\u003c\/strong\u003e\u003cbr\u003eCompatible with Raspberry Pi HATs, for more details, please refer to Pinout Definition\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower ON\/OFF jumper\u003c\/strong\u003e\u003cbr\u003eConnect: auto turn on, short press PWK button to restart\u003cbr\u003eDisconnect: short press PWK button to power on, long press to power off\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003e1.8V output jumper\u003c\/strong\u003e\u003cbr\u003eConnect: outputs 1.8V externally\u003cbr\u003eDisconnect: used to test power consumption\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eModule power supply jumper\u003c\/strong\u003e\u003cbr\u003eConnect: DCDC to power the module\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/td\u003e\n\u003ctd style=\"text-align: left; vertical-align: top; border: 0px;\"\u003e\n\u003col start=\"15\"\u003e\n\u003cli\u003e\n\u003cstrong\u003eSD power supply selection\u003c\/strong\u003e\u003cbr\u003eConnect: enable SD power supply\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eGNSS active power supply selection\u003c\/strong\u003e\u003cbr\u003eConnect: enable GNSS active power supply\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM card slot 1\u003c\/strong\u003e\u003cbr\u003efor Nano SIM card\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSIM card slot 2\u003c\/strong\u003e\u003cbr\u003efor eSIM card\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSD card slot\u003c\/strong\u003e\u003cbr\u003eBefore using the SD card, enable SD power supply in the 10-Pin Header\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eMIPI interface\u003c\/strong\u003e\u003cbr\u003eSupports MIPI LCD and is fully compatible with Raspberry Pi peripherals\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eCamera interface\u003c\/strong\u003e\u003cbr\u003eSupports customized SPI cameras with a maximum of 300,000 pixels\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eReserved matrix keyboard pads\u003c\/strong\u003e\u003cbr\u003eusers can customize soldering or connection of the keyboard buttons （Note: the keyboard buttons are not included by default）\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eUSB Type-C port\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eADC testing points\u003c\/strong\u003e\u003cbr\u003eADC0_IN\/ADC1_IN ADC measurement interface\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eLTE main antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eGNSS antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eDIV\/Wi-Fi\/Bluetooth antenna connector\u003c\/strong\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003eMIC \u0026amp; SPK header\u003c\/strong\u003e\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003ePinout definition\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-inter.jpg\" alt=\"EC200U C4-P01 development board pinout definition\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eOutline dimensions\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-size.jpg\" alt=\"EC200U C4-P01 development board outline dimensions\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: left;\"\u003eResources\u003c\/h2\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\n\u003cstrong\u003eWIKI:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/EC200U-AU-C4-P01\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/EC200U-AU-C4-P01\u003c\/a\u003e\u003cbr\u003e\u003cstrong\u003eQuectel Resources:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"https:\/\/python.quectel.com\/doc\/Getting_started\/en\/evb\/ec200x-evb.html\" target=\"_blank\"\u003ehttps:\/\/python.quectel.com\/doc\/Getting_started\/en\/evb\/ec200x-evb.html\u003c\/a\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: left;\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003ch2 style=\"text-align: left;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: left;\"\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp style=\"text-align: left;\"\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.193 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003cp style=\"text-align: left;\"\u003eEC200U-AU C4-P01 x1\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/EC200U-AU-C4-P01\/EC200U-AU-C4-P01-details-pack.jpg\" alt=\"EC200U-AU C4-P01\" style=\"float: left;\"\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Model	BG95-M3	EC200U-EU	EC200U-AU
Product Picture
Applicable Region	Global	Europe, Middle East, Africa, Australia, New Zealand, Brazil	Australia/Latin America
Frequency Band
LTE-FDD	Cat M1: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85 Cat NB2: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B66, B71, B85	B1, B3, B5, B7, B8, B20, B28	B1, B2, B3, B4, B5, B7, B8, B28, B66
LTE-TDD	N/A	B38, B40, B41
GSM / GPRS / EDGE	850, 900, 1800, 1900 MHz	GSM: B2, B3, B5, B8
GNSS	GPS, GLONASS, BDS, Galileo, QZSS
Bluetooth	N/A	Bluetooth 4.2 (BR/EDR)
Wi-Fi Scan	N/A	2.4 GHz 11b (Rx)
Data transmission
CAT 1	N/A	LTE-FDD: DL 10 Mbps; UL 5 Mbps LTE-TDD: DL 8.96 Mbps; UL 3.1 Mbps
NB-IoT	Cat NB2: DL 127 Kbps; UL 158.5 Kbps Cat NB1: DL 32 Kbps; UL 70 Kbps	N/A
Cat-M	DL 588 Kbps; UL 1119 Kbps	N/A
GSM / GPRS / EDGE	EDGE: DL 296 Kbps; UL 236.8 Kbps GPRS: DL 107 Kbps; UL 85.6 Kbps	GSM: DL 85.6 Kbps; UL 85.6 Kbps
Others
Type-C USB Port	Supports AT commands testing, GNSS positioning, firmware upgrading, etc.
Communication Protocol	PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6	TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS
SIM Card	Nano SIM card (supports 1.8V only)	Nano SIM and eSIM, dual card single standby
Indicator	SIM_CHK: lights up when a SIM card is inserted into the card slot NET: Network indicator PSM: Sleep indicator PWM: PWM function indicator PWR: Power indicator	P01: Module Pin 1, default as EC200A-XX PWM0 P05: Module Pin 5, NET_MODE indicator SCK1: SIM1 detection indicator, lights up when SIM1 card is inserted SCK2: SIM2 detection indicator, lights up when SIM2 card is inserted PWR: Power indicator
Buttons	PWK: Power ON/OFF PON: PSM wake-up BOOT: Forcing into firmware burning mode USB ON/OFF: USB power consumption detection switch	PWK: Power ON/OFF RST: Reset BOOT: Forcing into firmware burning mode USB ON/OFF: USB power consumption detection switch
Antenna Connectors	LTE main antenna + DIV antenna + GNSS antenna	LTE main antenna + DIV / WIFI (scanning only) / Bluetooth antenna + GNSS antenna
Operating Temperature	-30 ~ 75°C
Storage Temperature	-45 ~ 90°C

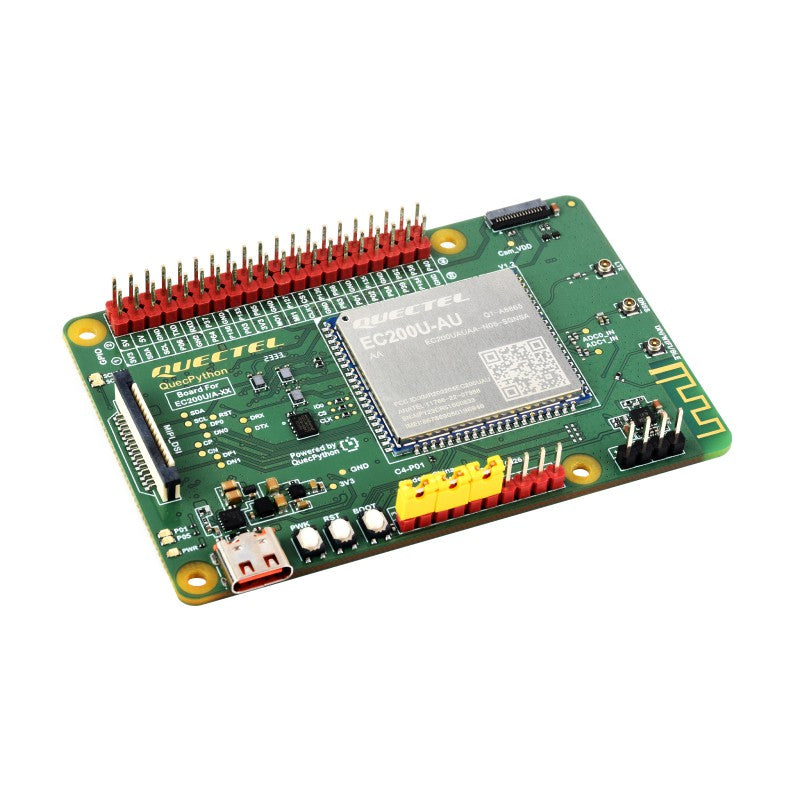

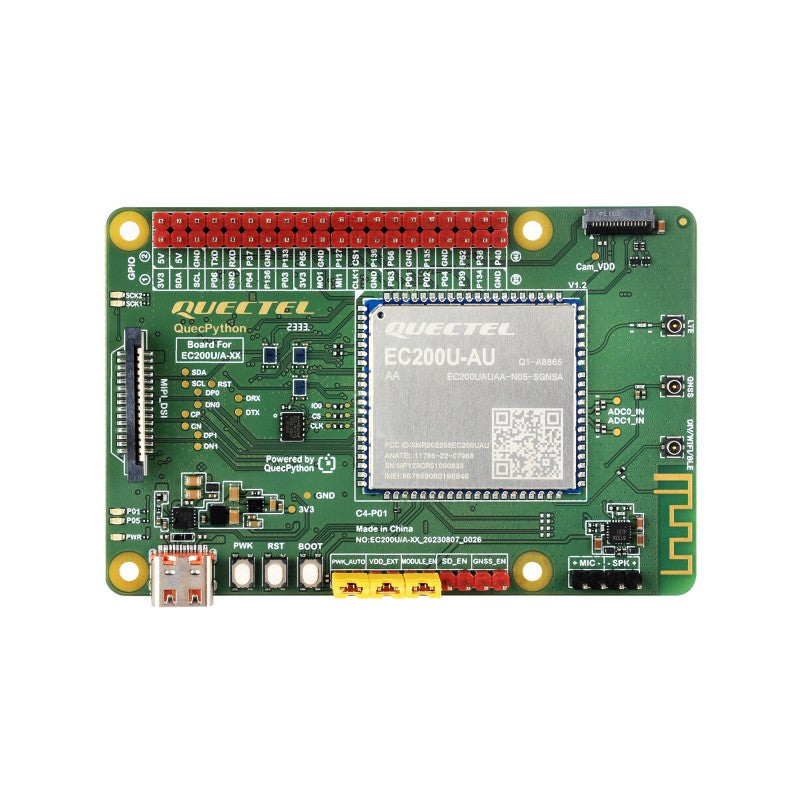

EC200U-AU C4-P01 development board Designed for QuecPython

EC200U-AU C4-P01 Development Board

Compact & Portable Development Board Designed for QuecPython

Features

Specifications

Type-C interface

Onboard 40PIN GPIO header

Supports various development tools

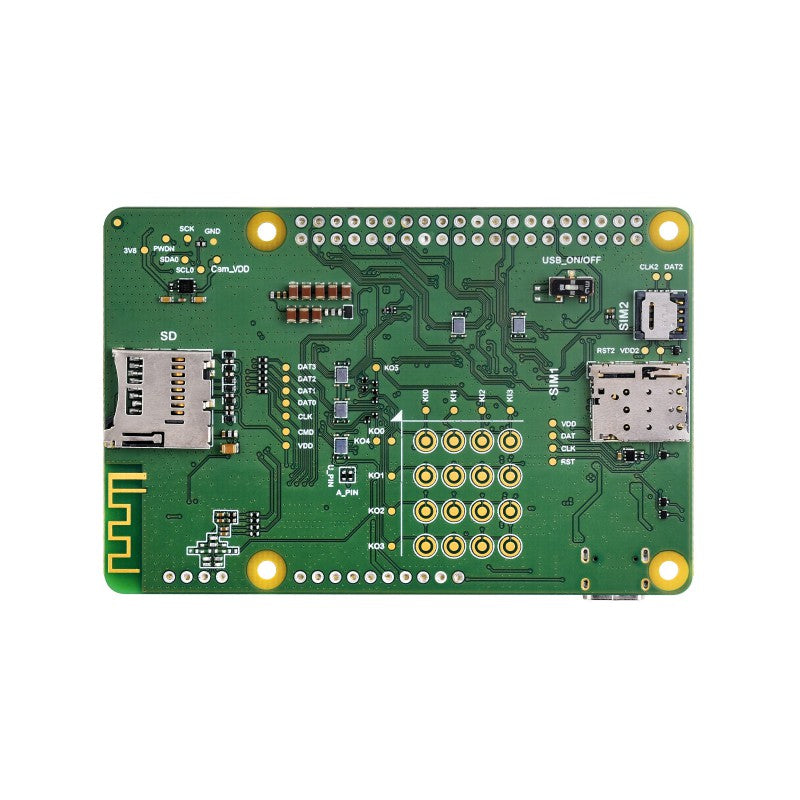

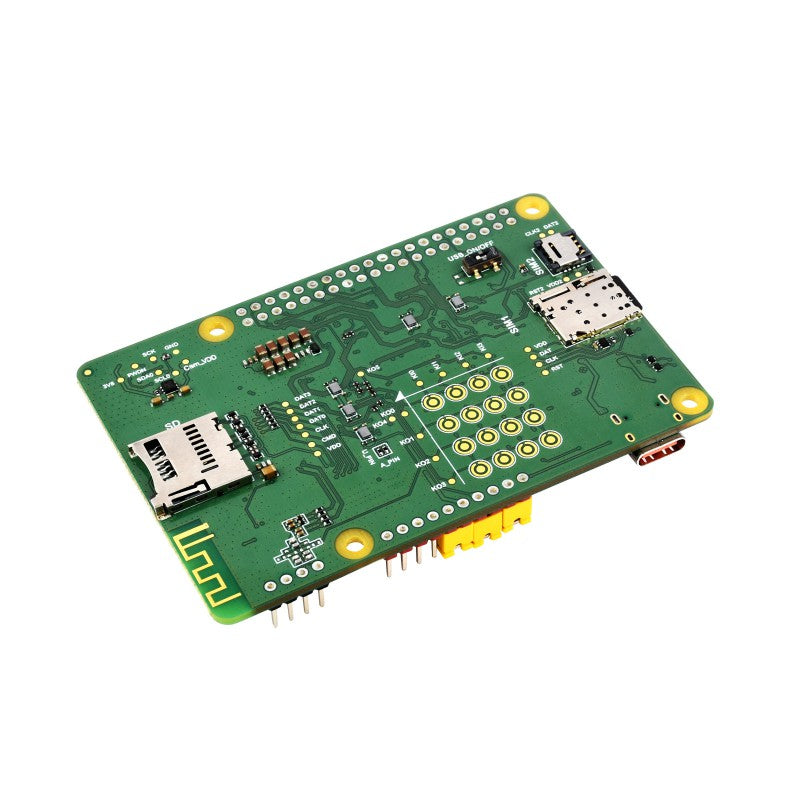

What’s onboard

Pinout definition

Outline dimensions

Resources

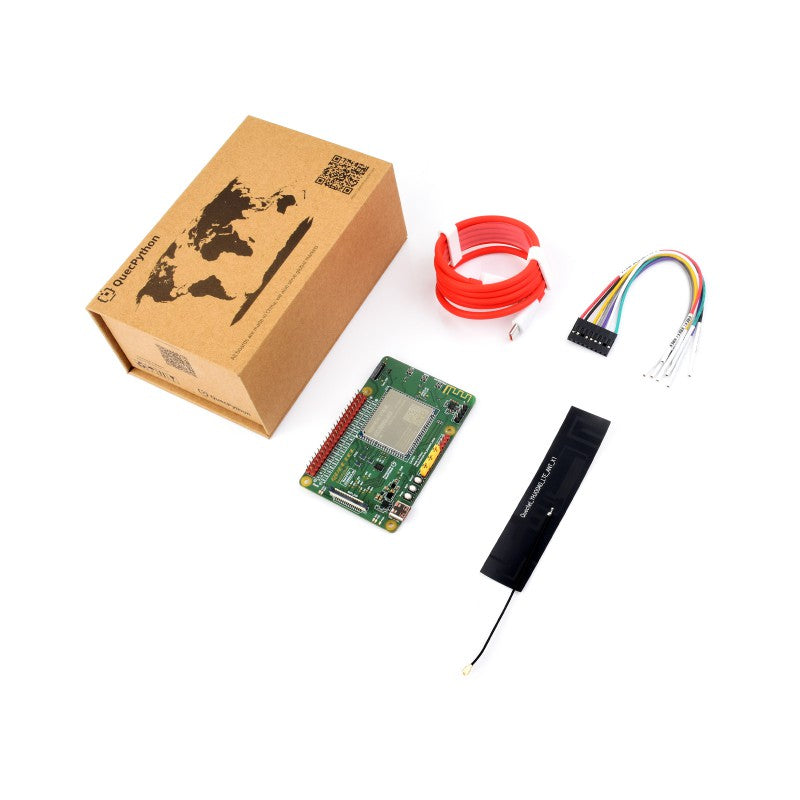

Package Contains:
