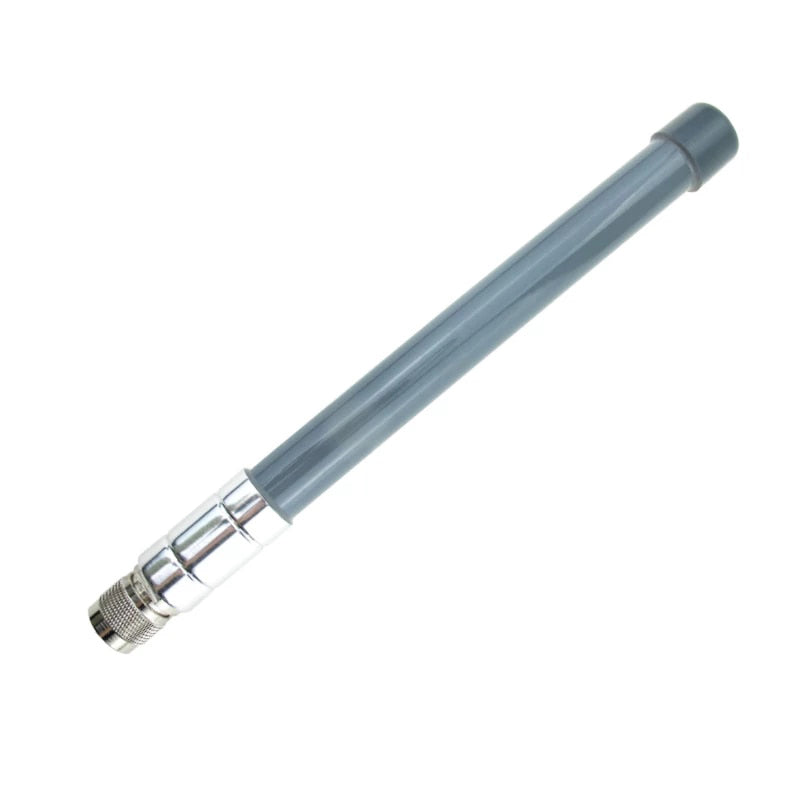

Fiberglass Waterproof LoRa High Gain Antenna with Lightening Arrestor (868Mhz) - WPA WPC Certified

SKU: ELC8038-5

Regular price ₹ 3,999.99
Sale price ₹ 3,999.99 Regular price ₹ 5,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
Gain (dBi):
This is a pre order item. We will ship it when it comes in stock.

The antenna has aN-Type connector, so it can be easily connected to the gateway and all other helium miners.

The antenna can be used in any environment that requires a long-distance LoRa connection, for agriculture, environmental monitoring, and urban monitoring.

Specification:

  • Model: 5dBi Gain Antenna
  • Frequency: 868MHz
  • Antenna gain: 5dBi

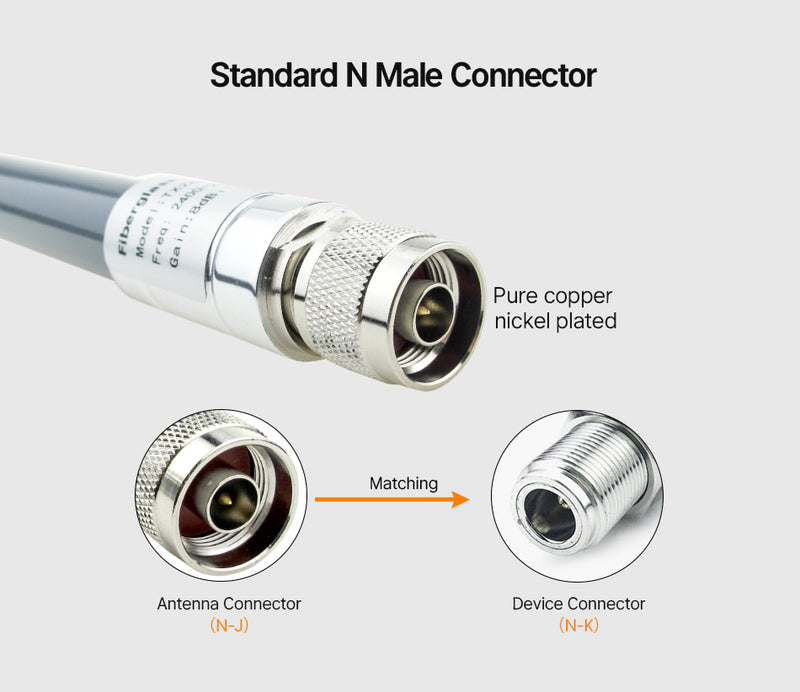

  • Antenna Connector:N-J
  • Efficiency: ≥60%

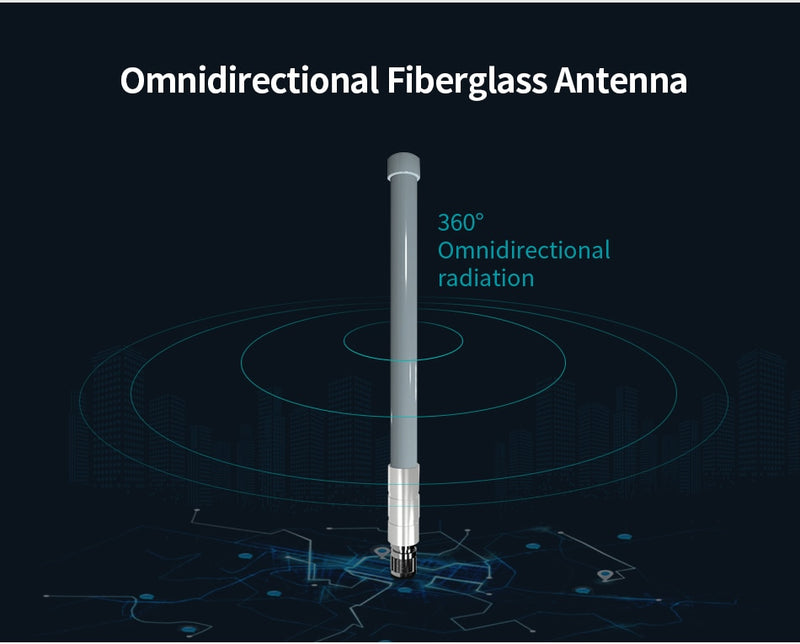

  • Radiation mode: omnidirectional
  • Maximum Power: 50W
  • Polarization: linear polarization/vertical
  • Impedance: 50 ohm
  • Antenna Length: 59cm
  • Antenna Diameter: 19.5mm
  • Cooler material: CU
  • Material plastic: FRP (white light)



  • Model: 10dBi Gain Antenna
  • V.S.W.R(Less than or equal to): 1.5(dBi)
  • Input Impedance:50Ω
  • Max Power:100W
  • Polarization:Vertical
  • Radiation pattern:omni-directional
  • Antenna Length:108.5cm
  • Antenna diameter: 19.5mm
  • Weight:0.35kg
  • Interface: N-J Male
  • Protection:DC ground

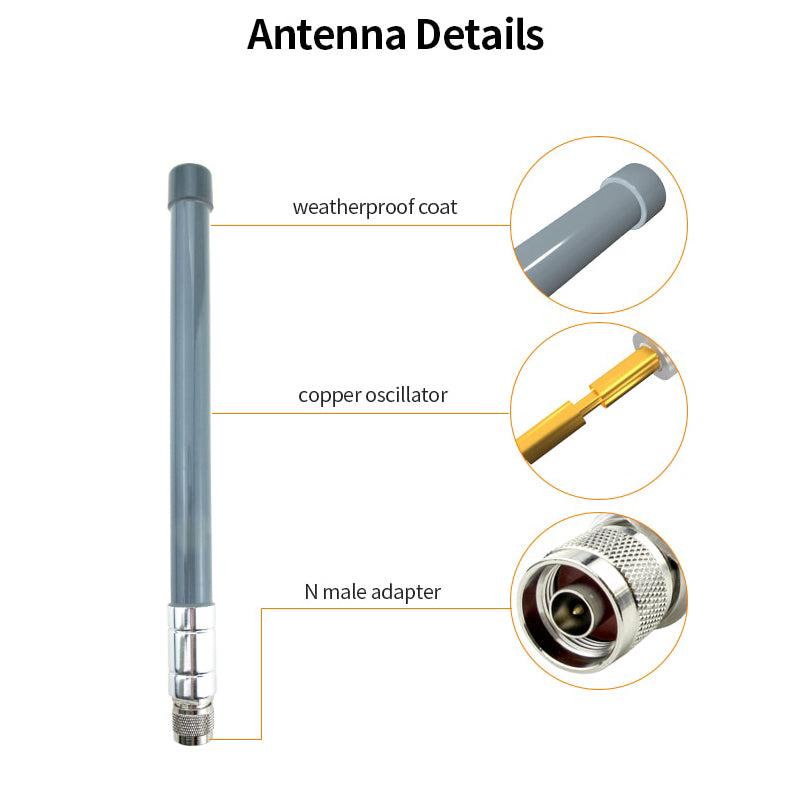

  • Radome material:fiberglass
  • Material:pure copper
  • Operational Humidity:Less than 65%
  • Rated Wind Velocity:100Km/h
  • Working Temp:-45℃ +65℃
  • Widely application:outdoor, base station,repeater,home
  • Frequency range:868MHz

Package Includes:

  • 1x Fiberglass Antenna

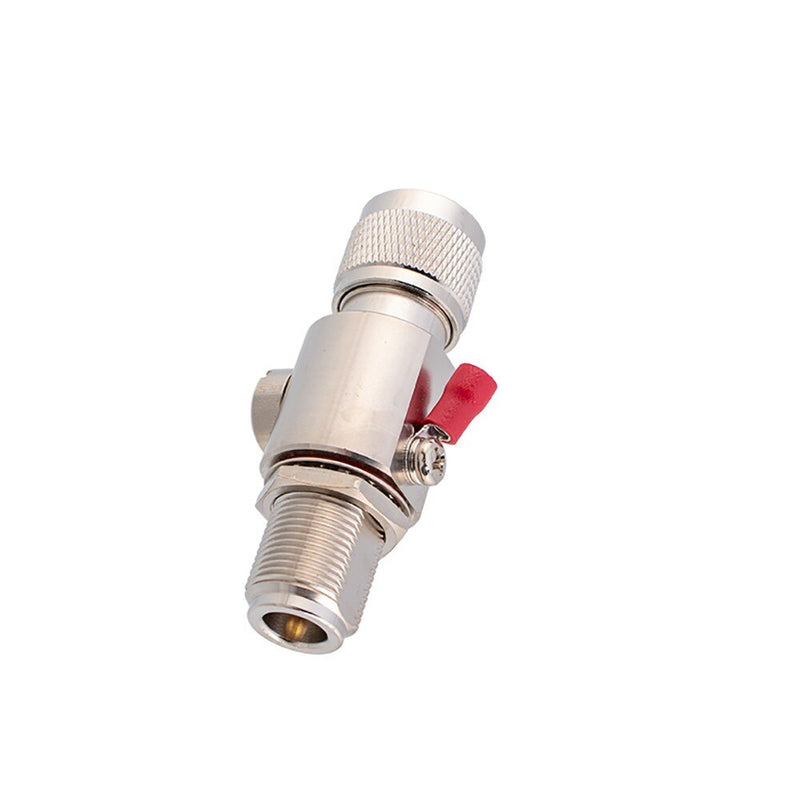

  • 1x Lightening Arrestor

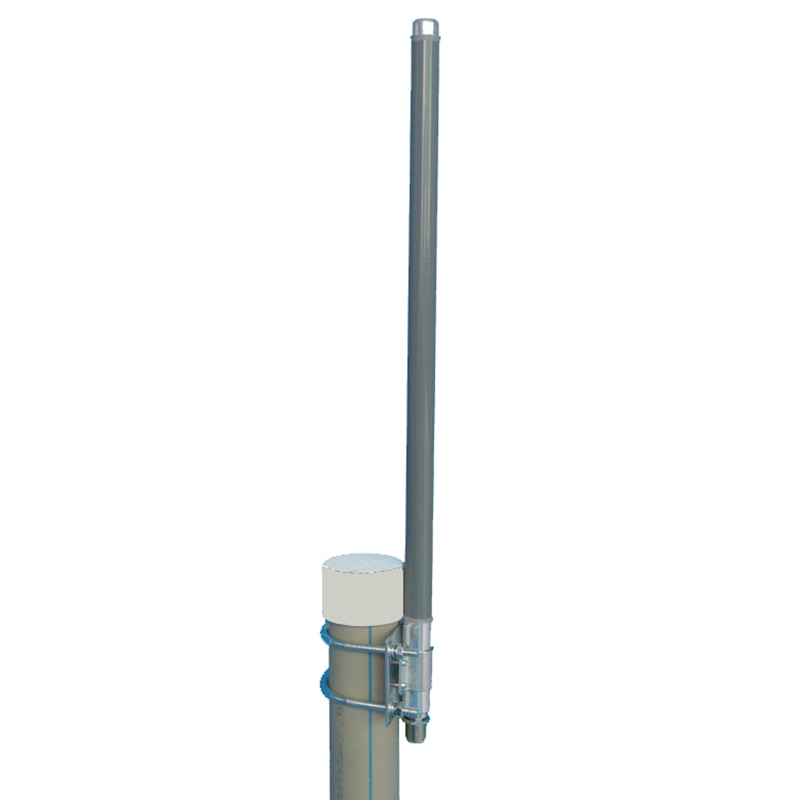

  • 1x Mounting Accessories
