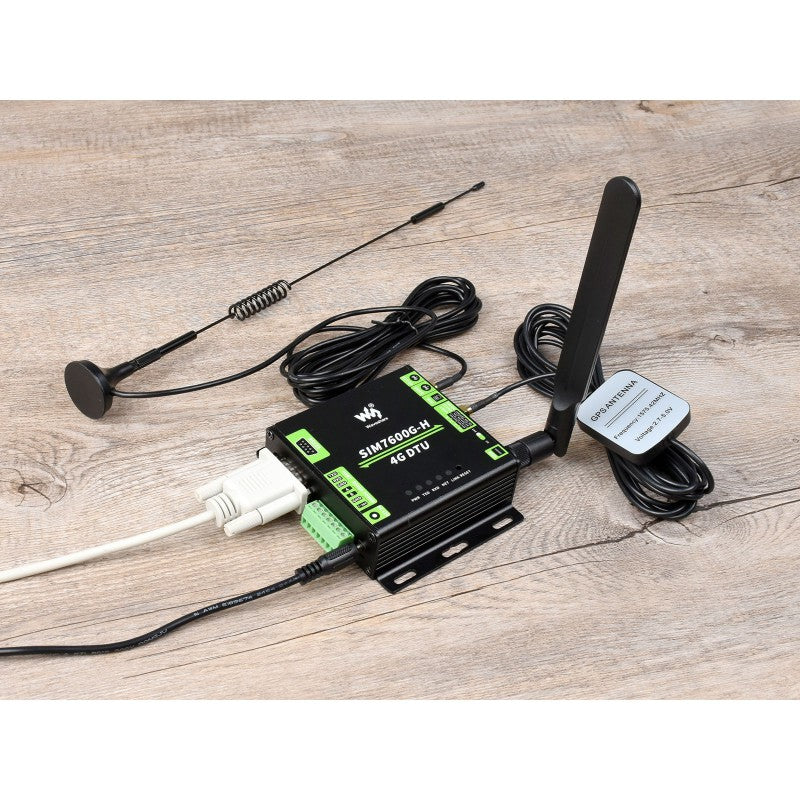

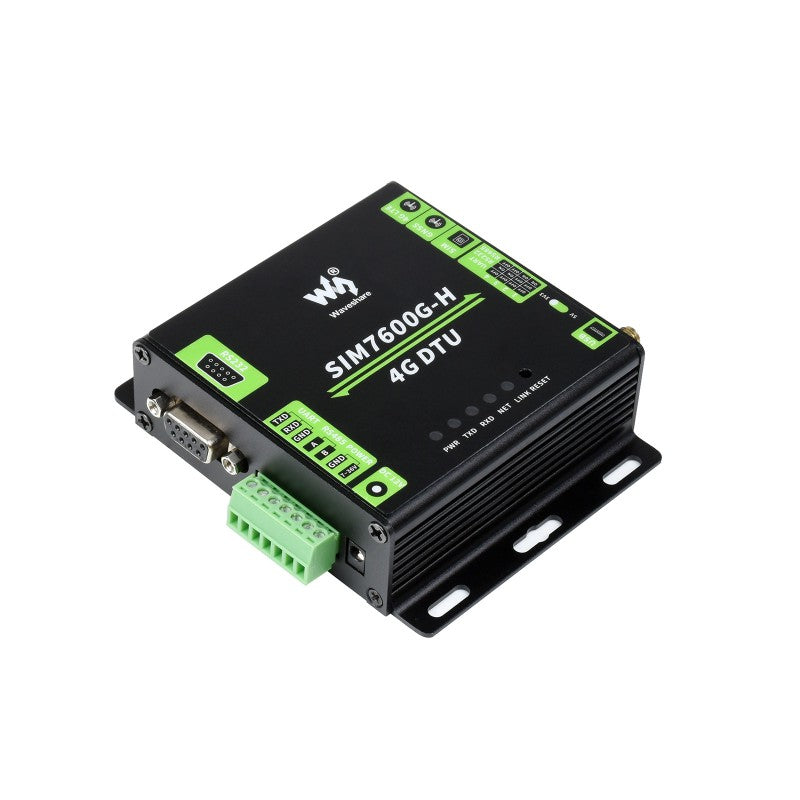

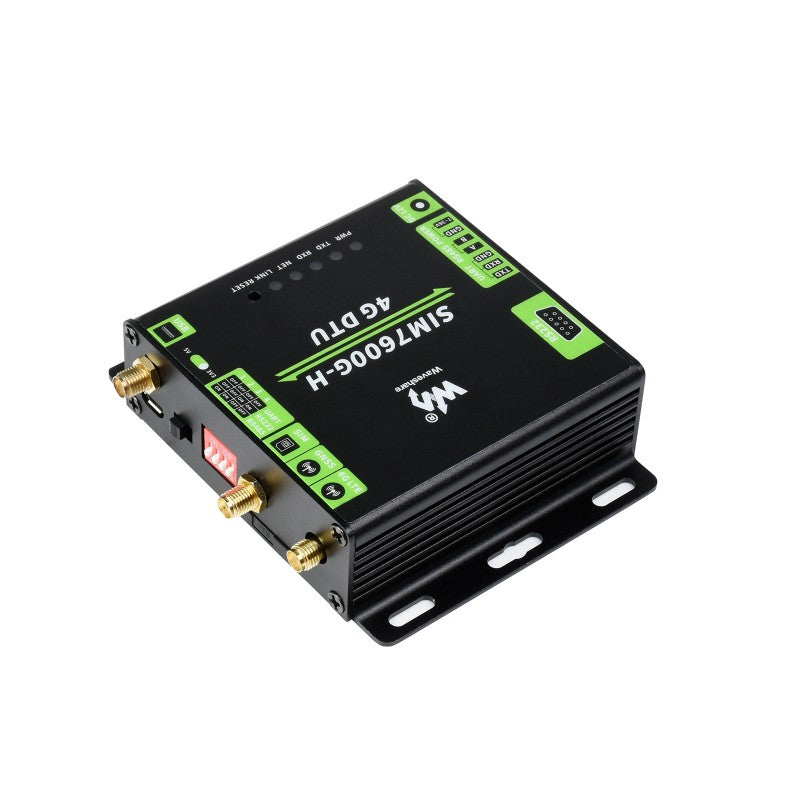

Name: Industrial Grade SIM7600G-H 4G DTU, USB UART/RS232/RS485
Brand: Waveshare
SKU: ELC3067
Price: 6949.99 INR
Availability: InStock

{"id":9600718897469,"title":"Industrial Grade SIM7600G-H 4G DTU, USB UART\/RS232\/RS485","handle":"industrial-sim7600g-h-4g-dtu","description":"\u003cdiv class=\"pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch1 class=\"richTitle textUpper\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eSIM7600G-H 4G DTU\u003c\/h1\u003e\n\u003ch3 class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003esupports USB, UART\/RS232\/RS485 communication\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003e4G\/3G\/2G dial-up \u0026amp; GNSS positioning, global band support\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003cdiv class=\"alignl subBlock pdTRBL2\"\u003e\n\u003cp\u003eSupports communication between USB \/ serial port (UART\/RS232\/RS485) and 4G network, supports GNSS positioning, compatible with OS like Windows\/Linux.\u003c\/p\u003e\n\u003cp\u003eAn ideal choice for fields like Raspberry Pi project, industrial control, industrial data collection, and other IoT applications that require 4G network connection.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-1.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"bgGrey pdTRBL subBlock alignl\"\u003e\n\u003cul\u003e\n\u003cli\u003e4G DTU development kit designed for industrial applications, allows direct integration or secondary development\u003c\/li\u003e\n\u003cli\u003eBased on SIM7600G-H communication module, supports global coverage of 4G\/3G\/2G network\u003c\/li\u003e\n\u003cli\u003eSupports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning\u003c\/li\u003e\n\u003cli\u003eUSB to 4G communication, UART\/RS232\/RS485 to 4G communication\u003c\/li\u003e\n\u003cli\u003e7 ~ 36 V wide range power supply, ideal for industrial applications\u003c\/li\u003e\n\u003cli\u003eOnboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception\u003c\/li\u003e\n\u003cli\u003eMulti protection circuits, such as ESD protection, anti-surge, stable and safe communication performance\u003c\/li\u003e\n\u003cli\u003eBaudrate: 300bps ~ 4Mbps (115200bps by default)\u003c\/li\u003e\n\u003cli\u003eAT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)\u003c\/li\u003e\n\u003cli\u003eAluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged \u0026amp; elegant\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\" data-mce-style=\"width: 70%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003eFrequency band\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e4G\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eLTE-FDD: \u003c\/strong\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66\u003cbr\u003e\u003cstrong\u003eLTE-TDD:\u003c\/strong\u003e B34, B38, B39, B40, B41\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e3G\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eUMTS\/HSDPA\/HSPA+: \u003c\/strong\u003eB1, B2, B4, B5, B6, B8, B19\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2G\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eGSM\/GPRS\/EDGE: \u003c\/strong\u003e850, 900, 1800, 1900 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGNSS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGPS, Beidou, GLONASS, GALILEO, QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eApplicable regions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGlobal support\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003eData rate\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e4G (LTE Cat-4)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e150Mbps(DL) \/ 50Mbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e3G (HSPA+)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e42Mbps(DL) \/ 5.76Mbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2G (EDGE)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e236.8Kbps(DL) \/ 236.8Kbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2G (GPRS)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e85.6Kbps(DL) \/ 85.6Kbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003e\u003cstrong\u003eSoftware features\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCommunication protocol\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eTCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS\u003cbr\u003e(controlled via AT commands, with module Open Linux SDK for secondary development)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOS support\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eWindows\/Linux etc.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003e\u003cstrong\u003eHardware description\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\"\u003e\u003cstrong\u003eSerial port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eRS232:\u003c\/strong\u003e\u003cbr\u003econnector: DB9 female\u003cbr\u003eprotection: TVS protection, anti-surge, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eRS485:\u003c\/strong\u003e\u003cbr\u003econnector: screw terminals (A, B)\u003cbr\u003eprotection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eTTL(UART):\u003c\/strong\u003e\u003cbr\u003eoperating voltage: 3.3V or 5V\u003cbr\u003econnector: screw terminals (TXD, RXD, GND)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSerial port baudrate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003esupports 300bps ~ 921600bps, 115200bps by default\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eUSB port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eoperating voltage: 5V\u003cbr\u003econnector: Micro USB\u003cbr\u003eprotection: ESD protection diode\u003cbr\u003eusage: parameter configuration, dial-up, firmware upgrade\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower input\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003econnector: 7~36V screw terminals or DC 12V jack\u003cbr\u003eprotection: Schottky diode protection, reverse-proof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHardware protection\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eembedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating voltage\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e7 ~ 36V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\"\u003e\u003cstrong\u003eOperating current\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eidle: 10~30mA @12V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003etransmit: 80~450mA @12V (depending on the network condition)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndicator\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePWR (power supply), RXD\/TXD (UART RX\/TX), NET (network), LINK (user-defined)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eButton\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ereset button\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSIM card\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003estandard SIM card (1.8V \/ 3V)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAntenna connector\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eMAIN LTE, AUX LTE, GNSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e-40℃ ~ 80℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eGlobal band 4G\/3G\/2G support\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-3.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-3.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eWindows\/Linux support\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003econnect to the host via USB, install driver, the high speed 4G connection will be ready to use\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-5.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-5.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eGNSS positioning\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003esupports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-7.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-7.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eCloud Communication\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003esupports USB\/UART communication interfaces\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003esupports TCP\/UDP\/FTP\/FTPS\/HTTP\/HTTPS communication protocols\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-9.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-9.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eSecondary development support\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\n\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003ethe module comes with SIMCom AT firmware by default,\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003ewhile Open Linux SDK is also available for developing your own software function\u003c\/span\u003e\n\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-11.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-11.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eMultiple antennas\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eHigh Gain LTE MAIN antenna: magnetic base, waterproof, supports outdoor usage through extension cable\u003cbr\u003eHigh Gain LTE AUX antenna: for signal enchantment, speeding up the data rate\u003cbr\u003eGPS antenna: 28±2dB gain, IP65~IP67 waterproof\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eResources\u003c\/h2\u003e\n\u003cbr\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-13.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eIndicators and button\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003emonitoring the connection and signal status in real time\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.gif\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.gif\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"bgGrey alignl subBlock mgnTB\"\u003e\n\u003col\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003ePWR:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003elights up red when power-on\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eTXD:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eblinking blue when transmitting data\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eRXD:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eblinking blue when receiving data\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eNET:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eblinking green when network connection is established\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eLINK:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ea user-defined LED\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eRESET:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ereset button\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg class=\"mgnTB\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-size.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/SIM7600G-H_4G_DTU\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/SIM7600G-H_4G_DTU\" target=\"_blank\"\u003eSIM7600G-H_4G_DTU\u003c\/a\u003e\u003c\/p\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003cmeta charset=\"utf-8\"\u003e\n\u003col\u003e\n\u003cli\u003eSIM7600G-H 4G DTU main unit x1\u003c\/li\u003e\n\u003cli\u003eHigh gain LTE MAIN antenna (~ 3m) x1\u003c\/li\u003e\n\u003cli\u003eHigh gain LTE AUX antenna x1\u003c\/li\u003e\n\u003cli\u003eGPS antenna x1\u003c\/li\u003e\n\u003cli\u003eSerial cable male to female (~ 1.5m) x1\u003c\/li\u003e\n\u003cli\u003eUSB-A to micro-B cable (~ 1.2m) x1\u003c\/li\u003e\n\u003cli\u003e12V 1.0A power adapter x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cimg class=\"mgnTB\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-pack.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-pack.jpg\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c!----\u003e","published_at":"2024-08-12T06:38:46+05:30","created_at":"2024-08-12T06:19:48+05:30","vendor":"Waveshare","type":"Wireless Communications","tags":["2.4GHz","21150","2GB","4","485","4G","4GB","5Ghz","802.11ac","8GB","band","dual","ETH","Gateway","INDSTRL","industrial","IPEX","MODBUS","Module","Pi","RS232","RS232\/485 TO WIFI ETH (B)","RS485","RS485 TO LTE CAT4","RS485 TO LTE CAT4 (EU)","SBC2","Serial Server","SIM7600","SIM7600G-H","UART","WaveSH","WAVESHARE","Wifi","WRLS-MOD","WVSH"],"price":694999,"price_min":694999,"price_max":694999,"available":true,"price_varies":false,"compare_at_price":999999,"compare_at_price_min":999999,"compare_at_price_max":999999,"compare_at_price_varies":false,"variants":[{"id":49228400296253,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC3067","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Industrial Grade SIM7600G-H 4G DTU, USB UART\/RS232\/RS485","public_title":null,"options":["Default Title"],"price":694999,"weight":80,"compare_at_price":999999,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-2.jpg?v=1723425121","\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-7.jpg?v=1723425121","\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-1.jpg?v=1723425121","\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-4.jpg?v=1723425121","\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-6.jpg?v=1723425121","\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-5.jpg?v=1723425121","\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-3.jpg?v=1723425121"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-2.jpg?v=1723425121","options":["Title"],"media":[{"alt":null,"id":39965713858877,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-2.jpg?v=1723425121"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-2.jpg?v=1723425121","width":800},{"alt":null,"id":39965713891645,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-7.jpg?v=1723425121"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-7.jpg?v=1723425121","width":800},{"alt":null,"id":39965713367357,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-1.jpg?v=1723425121"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-1.jpg?v=1723425121","width":800},{"alt":null,"id":39965713793341,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-4.jpg?v=1723425121"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-4.jpg?v=1723425121","width":800},{"alt":null,"id":39965713563965,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-6.jpg?v=1723425121"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-6.jpg?v=1723425121","width":800},{"alt":null,"id":39965713760573,"position":6,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-5.jpg?v=1723425121"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-5.jpg?v=1723425121","width":800},{"alt":null,"id":39965713826109,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-3.jpg?v=1723425121"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/sim7600g-h-4g-dtu-3.jpg?v=1723425121","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv class=\"pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch1 class=\"richTitle textUpper\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eSIM7600G-H 4G DTU\u003c\/h1\u003e\n\u003ch3 class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003esupports USB, UART\/RS232\/RS485 communication\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003e4G\/3G\/2G dial-up \u0026amp; GNSS positioning, global band support\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003cdiv class=\"alignl subBlock pdTRBL2\"\u003e\n\u003cp\u003eSupports communication between USB \/ serial port (UART\/RS232\/RS485) and 4G network, supports GNSS positioning, compatible with OS like Windows\/Linux.\u003c\/p\u003e\n\u003cp\u003eAn ideal choice for fields like Raspberry Pi project, industrial control, industrial data collection, and other IoT applications that require 4G network connection.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-1.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eFeatures\u003c\/h2\u003e\n\u003cdiv class=\"bgGrey pdTRBL subBlock alignl\"\u003e\n\u003cul\u003e\n\u003cli\u003e4G DTU development kit designed for industrial applications, allows direct integration or secondary development\u003c\/li\u003e\n\u003cli\u003eBased on SIM7600G-H communication module, supports global coverage of 4G\/3G\/2G network\u003c\/li\u003e\n\u003cli\u003eSupports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning\u003c\/li\u003e\n\u003cli\u003eUSB to 4G communication, UART\/RS232\/RS485 to 4G communication\u003c\/li\u003e\n\u003cli\u003e7 ~ 36 V wide range power supply, ideal for industrial applications\u003c\/li\u003e\n\u003cli\u003eOnboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception\u003c\/li\u003e\n\u003cli\u003eMulti protection circuits, such as ESD protection, anti-surge, stable and safe communication performance\u003c\/li\u003e\n\u003cli\u003eBaudrate: 300bps ~ 4Mbps (115200bps by default)\u003c\/li\u003e\n\u003cli\u003eAT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)\u003c\/li\u003e\n\u003cli\u003eAluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged \u0026amp; elegant\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\" data-mce-style=\"width: 70%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003eFrequency band\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e4G\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eLTE-FDD: \u003c\/strong\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66\u003cbr\u003e\u003cstrong\u003eLTE-TDD:\u003c\/strong\u003e B34, B38, B39, B40, B41\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e3G\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eUMTS\/HSDPA\/HSPA+: \u003c\/strong\u003eB1, B2, B4, B5, B6, B8, B19\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2G\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eGSM\/GPRS\/EDGE: \u003c\/strong\u003e850, 900, 1800, 1900 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eGNSS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGPS, Beidou, GLONASS, GALILEO, QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eApplicable regions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eGlobal support\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003eData rate\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e4G (LTE Cat-4)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e150Mbps(DL) \/ 50Mbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e3G (HSPA+)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e42Mbps(DL) \/ 5.76Mbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2G (EDGE)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e236.8Kbps(DL) \/ 236.8Kbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2G (GPRS)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e85.6Kbps(DL) \/ 85.6Kbps(UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003e\u003cstrong\u003eSoftware features\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCommunication protocol\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eTCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS\u003cbr\u003e(controlled via AT commands, with module Open Linux SDK for secondary development)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOS support\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eWindows\/Linux etc.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"2\"\u003e\u003cstrong\u003eHardware description\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\"\u003e\u003cstrong\u003eSerial port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cstrong\u003eRS232:\u003c\/strong\u003e\u003cbr\u003econnector: DB9 female\u003cbr\u003eprotection: TVS protection, anti-surge, ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eRS485:\u003c\/strong\u003e\u003cbr\u003econnector: screw terminals (A, B)\u003cbr\u003eprotection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cstrong\u003eTTL(UART):\u003c\/strong\u003e\u003cbr\u003eoperating voltage: 3.3V or 5V\u003cbr\u003econnector: screw terminals (TXD, RXD, GND)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSerial port baudrate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003esupports 300bps ~ 921600bps, 115200bps by default\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eUSB port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eoperating voltage: 5V\u003cbr\u003econnector: Micro USB\u003cbr\u003eprotection: ESD protection diode\u003cbr\u003eusage: parameter configuration, dial-up, firmware upgrade\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower input\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003econnector: 7~36V screw terminals or DC 12V jack\u003cbr\u003eprotection: Schottky diode protection, reverse-proof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHardware protection\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eembedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating voltage\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e7 ~ 36V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\"\u003e\u003cstrong\u003eOperating current\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eidle: 10~30mA @12V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003etransmit: 80~450mA @12V (depending on the network condition)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndicator\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ePWR (power supply), RXD\/TXD (UART RX\/TX), NET (network), LINK (user-defined)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eButton\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003ereset button\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSIM card\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003estandard SIM card (1.8V \/ 3V)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAntenna connector\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eMAIN LTE, AUX LTE, GNSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e-40℃ ~ 80℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eGlobal band 4G\/3G\/2G support\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-3.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-3.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eWindows\/Linux support\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003econnect to the host via USB, install driver, the high speed 4G connection will be ready to use\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-5.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-5.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eGNSS positioning\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003esupports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-7.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-7.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eCloud Communication\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003esupports USB\/UART communication interfaces\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003esupports TCP\/UDP\/FTP\/FTPS\/HTTP\/HTTPS communication protocols\u003c\/span\u003e\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-9.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-9.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-style=\"text-align: center;\"\u003eSecondary development support\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-style=\"text-align: center;\"\u003e\n\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003ethe module comes with SIMCom AT firmware by default,\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"color: rgb(194, 0, 1);\" data-mce-style=\"color: rgb(194, 0, 1);\"\u003ewhile Open Linux SDK is also available for developing your own software function\u003c\/span\u003e\n\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-11.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-11.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eMultiple antennas\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eHigh Gain LTE MAIN antenna: magnetic base, waterproof, supports outdoor usage through extension cable\u003cbr\u003eHigh Gain LTE AUX antenna: for signal enchantment, speeding up the data rate\u003cbr\u003eGPS antenna: 28±2dB gain, IP65~IP67 waterproof\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eResources\u003c\/h2\u003e\n\u003cbr\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-13.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eIndicators and button\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\u003cspan style=\"color: rgb(194, 0, 0);\" data-mce-style=\"color: rgb(194, 0, 0);\"\u003emonitoring the connection and signal status in real time\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.gif\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-15.gif\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cdiv class=\"bgGrey alignl subBlock mgnTB\"\u003e\n\u003col\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003ePWR:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003elights up red when power-on\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eTXD:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eblinking blue when transmitting data\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eRXD:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eblinking blue when receiving data\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eNET:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eblinking green when network connection is established\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eLINK:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ea user-defined LED\u003c\/li\u003e\n\u003cli style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\n\u003cstrong\u003eRESET:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ereset button\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg class=\"mgnTB\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-size.jpg\" data-mce-style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/SIM7600G-H_4G_DTU\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/SIM7600G-H_4G_DTU\" target=\"_blank\"\u003eSIM7600G-H_4G_DTU\u003c\/a\u003e\u003c\/p\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003ePackage Contains:\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003cmeta charset=\"utf-8\"\u003e\n\u003col\u003e\n\u003cli\u003eSIM7600G-H 4G DTU main unit x1\u003c\/li\u003e\n\u003cli\u003eHigh gain LTE MAIN antenna (~ 3m) x1\u003c\/li\u003e\n\u003cli\u003eHigh gain LTE AUX antenna x1\u003c\/li\u003e\n\u003cli\u003eGPS antenna x1\u003c\/li\u003e\n\u003cli\u003eSerial cable male to female (~ 1.5m) x1\u003c\/li\u003e\n\u003cli\u003eUSB-A to micro-B cable (~ 1.2m) x1\u003c\/li\u003e\n\u003cli\u003e12V 1.0A power adapter x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cimg class=\"mgnTB\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-pack.jpg\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIM7600G-H-4G-DTU\/SIM7600G-H-4G-DTU-details-pack.jpg\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c!----\u003e"}

Frequency band
4G	LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE-TDD: B34, B38, B39, B40, B41
3G	UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
2G	GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS	GPS, Beidou, GLONASS, GALILEO, QZSS
Applicable regions	Global support
Data rate
4G (LTE Cat-4)	150Mbps(DL) / 50Mbps(UL)
3G (HSPA+)	42Mbps(DL) / 5.76Mbps(UL)
2G (EDGE)	236.8Kbps(DL) / 236.8Kbps(UL)
2G (GPRS)	85.6Kbps(DL) / 85.6Kbps(UL)
Software features
Communication protocol	TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS (controlled via AT commands, with module Open Linux SDK for secondary development)
OS support	Windows/Linux etc.
Hardware description

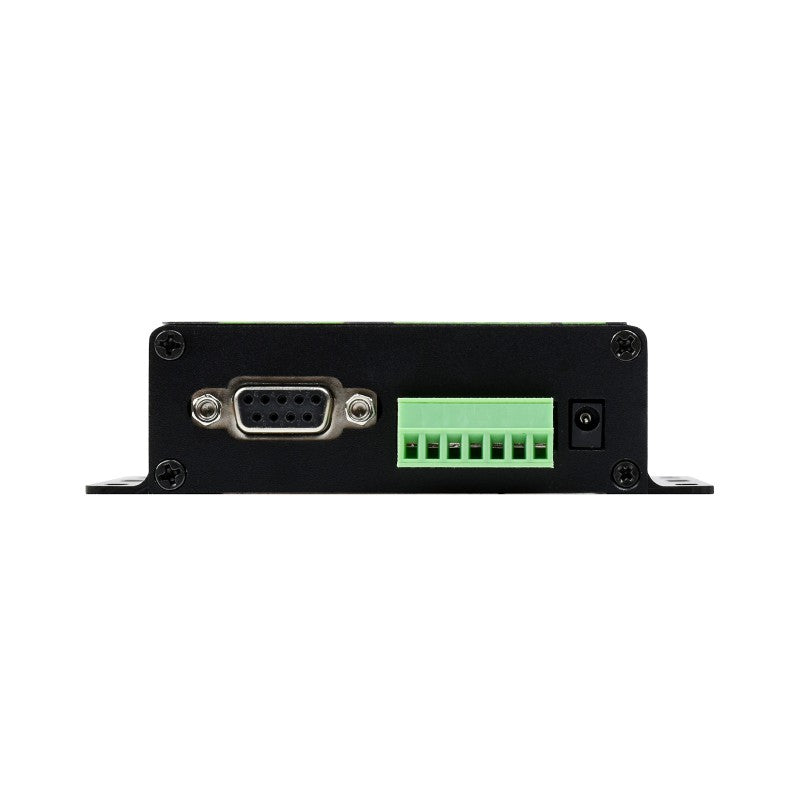

Serial port	RS232: connector: DB9 female protection: TVS protection, anti-surge, ESD protection
	RS485: connector: screw terminals (A, B) protection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)
	TTL(UART): operating voltage: 3.3V or 5V connector: screw terminals (TXD, RXD, GND)
Serial port baudrate	supports 300bps ~ 921600bps, 115200bps by default
USB port	operating voltage: 5V connector: Micro USB protection: ESD protection diode usage: parameter configuration, dial-up, firmware upgrade
Power input	connector: 7~36V screw terminals or DC 12V jack protection: Schottky diode protection, reverse-proof

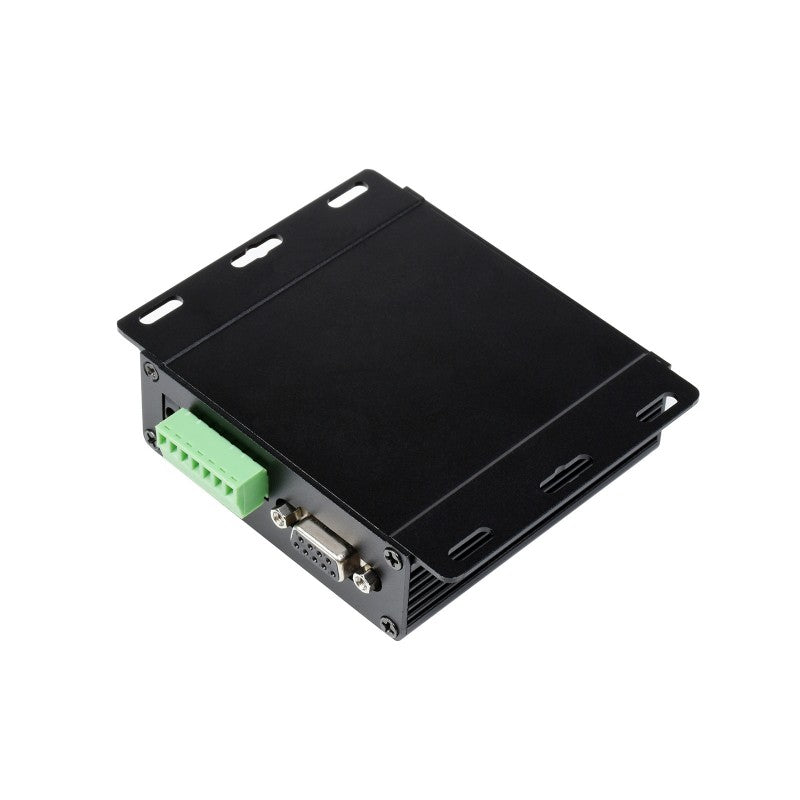

Hardware protection	embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case
Operating voltage	7 ~ 36V DC
Operating current	idle: 10~30mA @12V
Operating current	transmit: 80~450mA @12V (depending on the network condition)

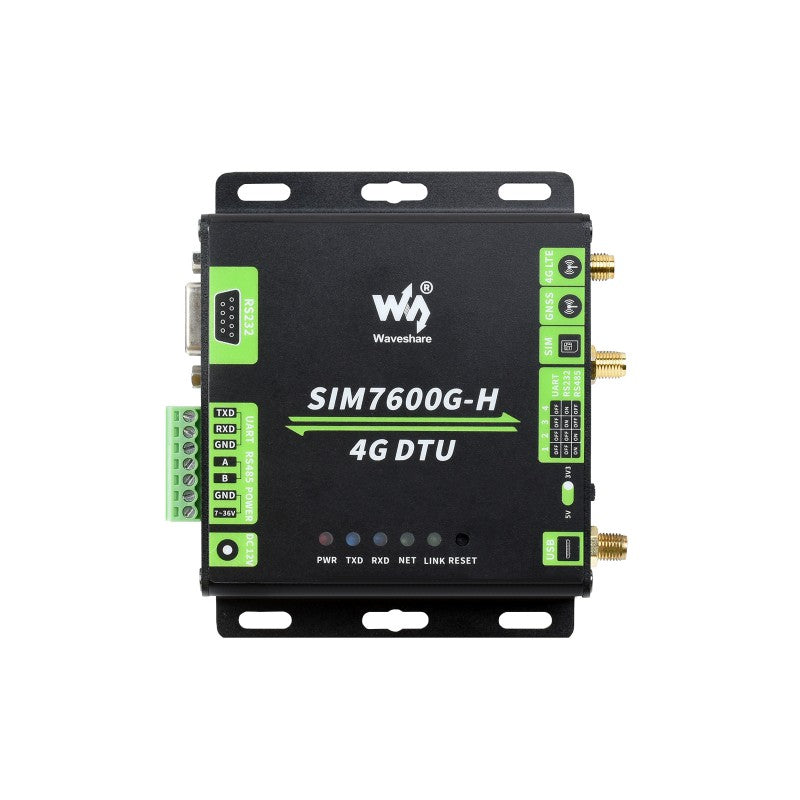

Indicator	PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (user-defined)
Button	reset button
SIM card	standard SIM card (1.8V / 3V)

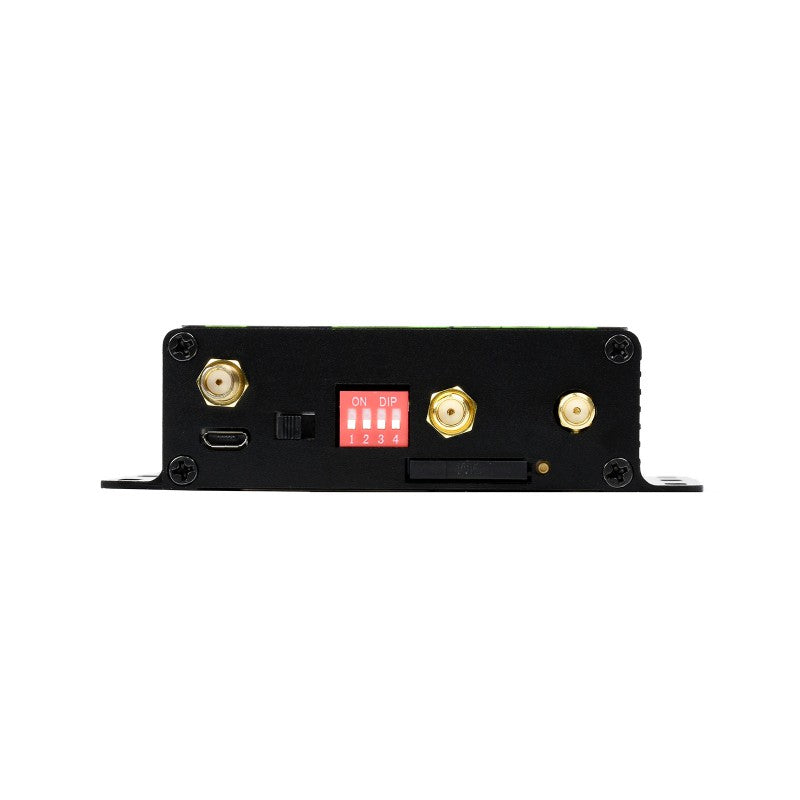

Antenna connector	MAIN LTE, AUX LTE, GNSS
Operating temperature	-40℃ ~ 80℃

Industrial Grade SIM7600G-H 4G DTU, USB UART/RS232/RS485

SIM7600G-H 4G DTU

supports USB, UART/RS232/RS485 communication
4G/3G/2G dial-up & GNSS positioning, global band support

Features

Specifications

Global band 4G/3G/2G support

Windows/Linux support

connect to the host via USB, install driver, the high speed 4G connection will be ready to use

GNSS positioning

supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station

Cloud Communication

Secondary development support

the module comes with SIMCom AT firmware by default,
while Open Linux SDK is also available for developing your own software function

Multiple antennas

Resources

Indicators and button

monitoring the connection and signal status in real time

Outline Dimensions

Resources

Package Contains:
