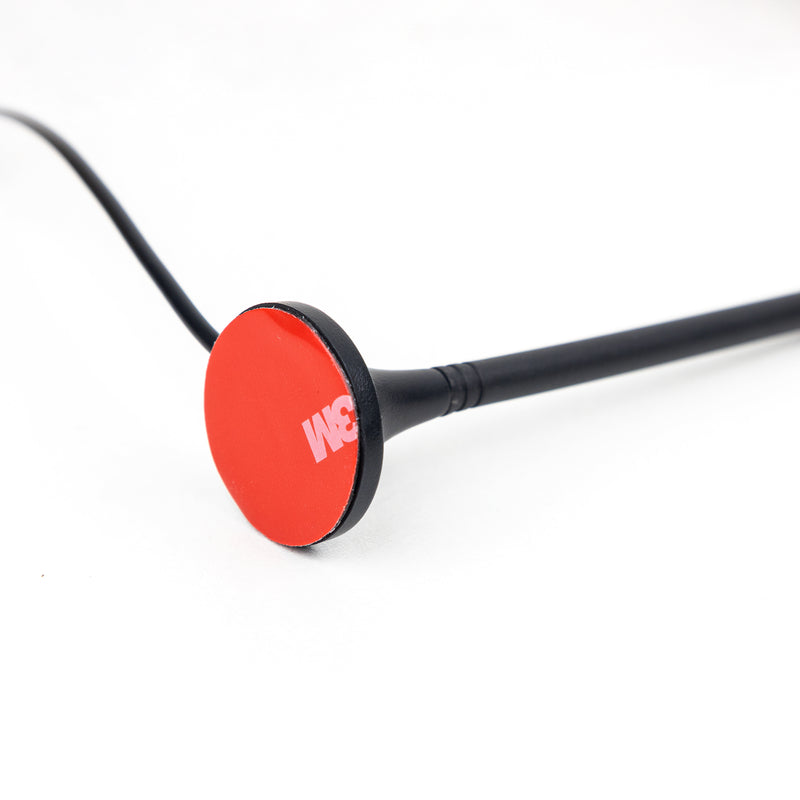

JCG016L LTE Antenna
Dimensions
Specifications
Item
Specifications
Antenna
Frequency Range
698~868/1850~2690MHz
Polarization
Linear
Gain
2.0dBic（Zenith）
V.S.W.R
≤2.0
Impedance
50Ω
Mechanical
Cable
RG174
Connerctor
MCX or others
Mounting Method
Magnet
Environmental
Operating Temperature
-40℃~+85℃
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmenttally Friendly
ROHS Compliant
