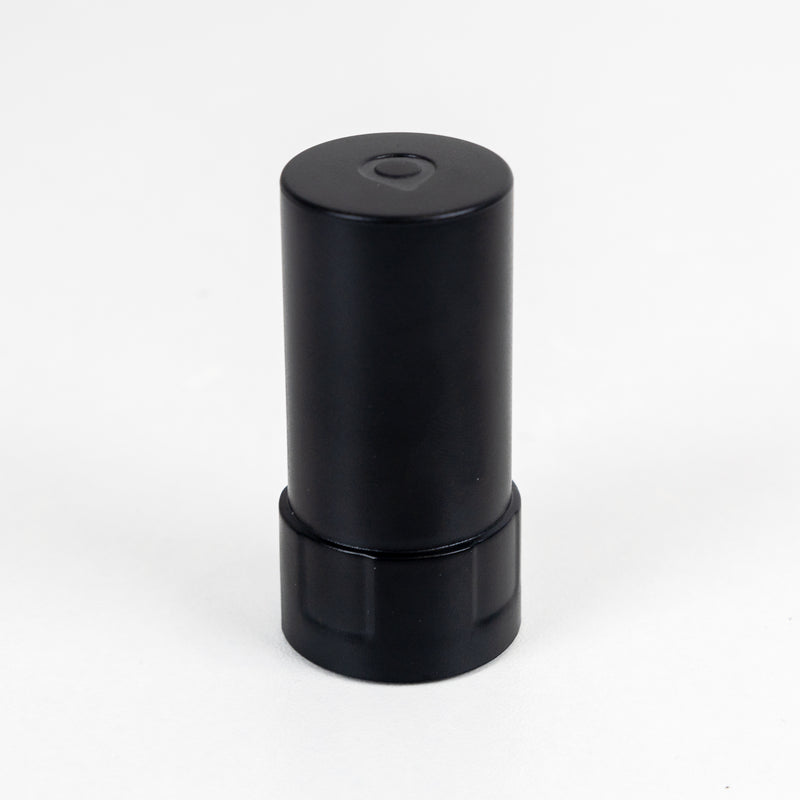

SY301 Helix GNSS Antenna – High-Performance L1/L2 GPS/GLONASS RTK Antenna
The SY301 is a high-gain helix GNSS antenna engineered for superior multi-band satellite signal reception. Designed to support L1/L2 GPS, GLONASS, and BeiDou , the SY301 offers enhanced signal stability, fast acquisition, and excellent multipath mitigation—making it ideal for UAVs , RTK surveying , precision agriculture , and GIS data collection .
Featuring a precision-wound helical element , the antenna delivers consistent radiation patterns and gain across GNSS frequencies, even during motion or tilting. Its compact and lightweight build, combined with rugged IP-rated construction, ensures reliable performance in challenging outdoor conditions .
Key Features:
Helix antenna design for wide-angle, high-accuracy GNSS reception
Supports L1/L2 GPS, GLONASS, BeiDou signals
Lightweight and compact—ideal for UAVs, drones, and mobile platforms
High gain and low noise figure for RTK and dual-frequency receivers
Durable housing with environmental sealing for field deployments
Compatible with standard GNSS receivers via SMA connector
Whether for airborne mapping or mobile GNSS tracking, the SY301 Helix Antenna delivers dependable, high-precision results when it matters most.
Specifications:
Item
Specifications
Antenna
Frequency Range
Compass：B1/B2/B3； GPS：L1/L2； GLONASS：G1/G2；
Galileo：El/E5b
Impendance
50Ω
Polarization
RHCP
Gain
2dBi（Zenith）
Axial Ratio
≤ 3dB
Horizontal coverage angle
360°
V.S.W.R
< 2.0
LNA
Gain
33±2dB
Noise Figure
≤ 1.5dB
V.S.W.R
< 2.0
Passband fluctuation
±2dB
Supply Voltage
3.0~16V DC
Current Consumption
≤ 35mA
Mechanical
Connector
SMA
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Ingress Protection
IP67
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
