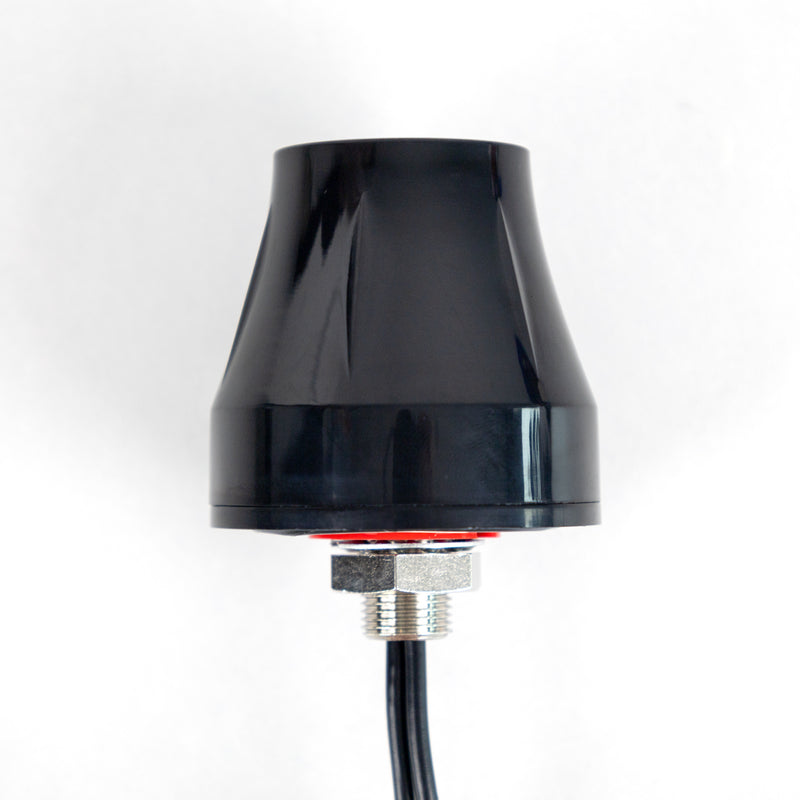

JCB062L Active GPS and LTE combined antenna simplifies your AVL application with a work voltage from 2.2 to 5.0 V, max current 15mA, cable length upto 5m. Different connector types and cable length are available according to users' specifications.
Specifications:
GPS Dielectric Antenna
Center Frequency 1575.42±1MHz
V.S.W.R < 1.5
Band Width CF±5MHz
Impedance 50ohm
Polarization RHCP
Gain 2dBic (Zenith)
Axial Ratio 3dB (max)
GPS Antenna LNA
LNA Gain(Without cable) 28±2dB Typical
Noise Figure < 1.5 dB
Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R < 2.0
Supply DC Voltage 2.2~5V
DC Current 5~15 mA
LTE Antenna
Frequency Range 698~960MHz/1710~2655MHz
V.S.W.R < 2.0
Impedance 50 ohm
Polarization: Linear
Typical Gain 2dBi;
Mechanical

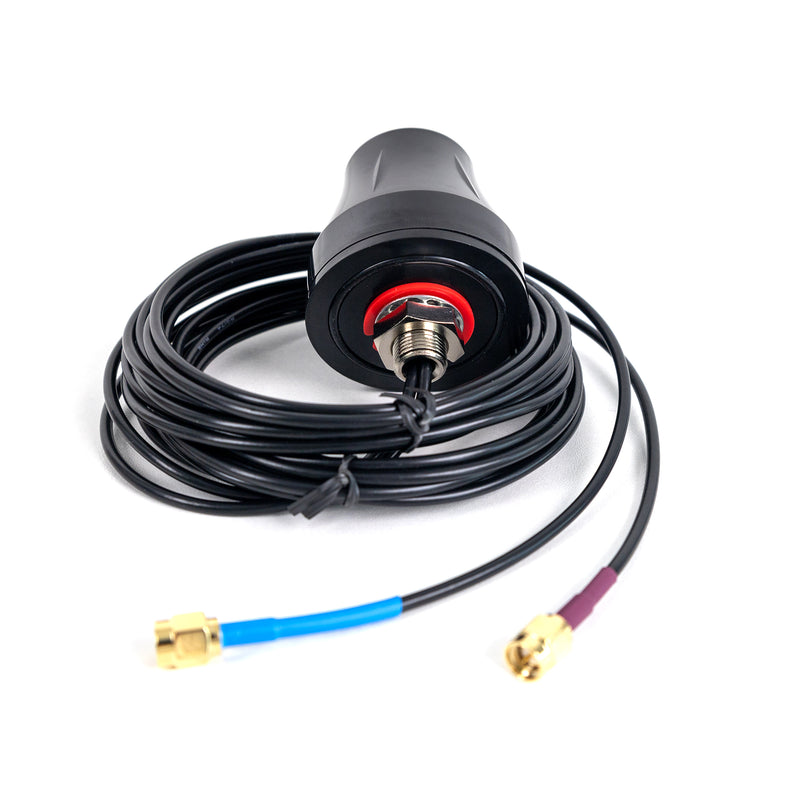

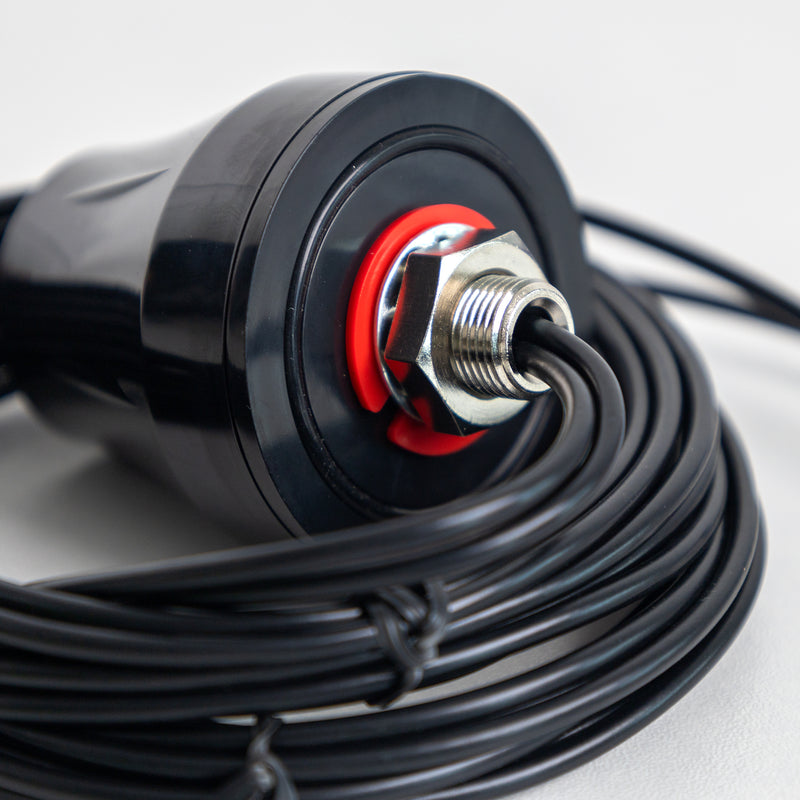

Cable: RG174 3m, 5m long or other

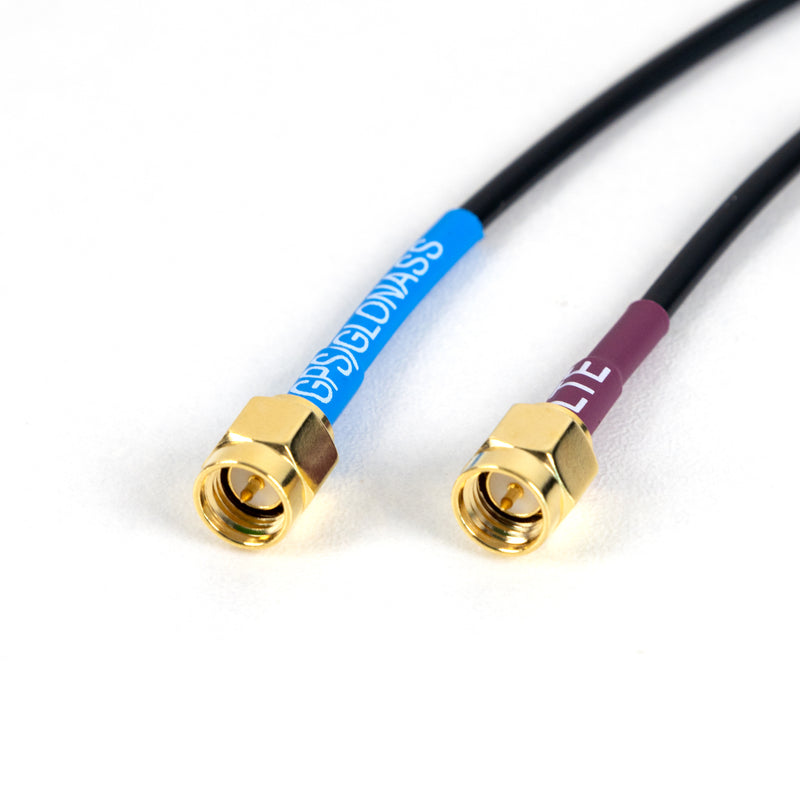

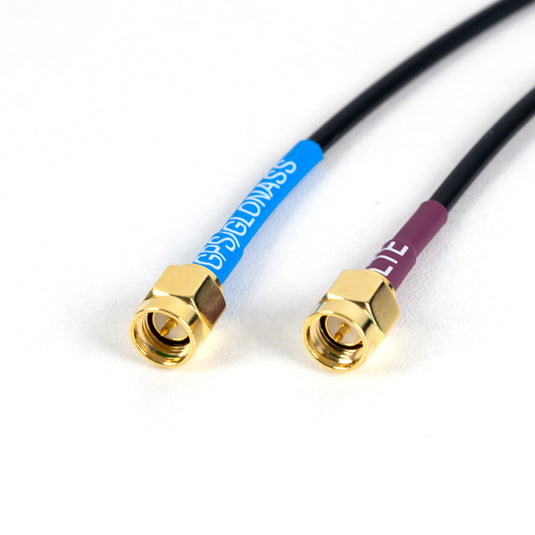

Connector: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or others
