Equipped with high-current relay 7250VAC@10A / 30VDC@10A
It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
Screw terminals (Terminal Block) provided (C, NC , NO) for quick and easy connection
Flyback diode to protect your microcontroller
Input Signal Pin connected to Burg stick for easy accessibility
LED Status indicators to indicate the relay ON/OFF status.
This single channel Relay Module operates at 5V TTL signal and is perfect for common Arduino/Raspberry Pi control applications.

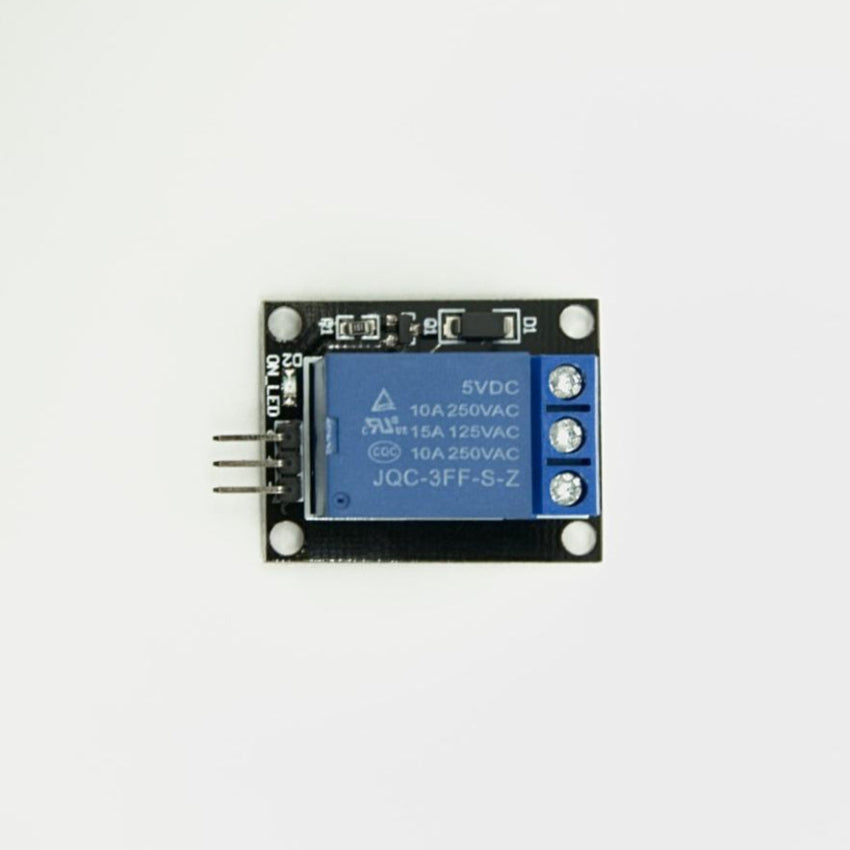

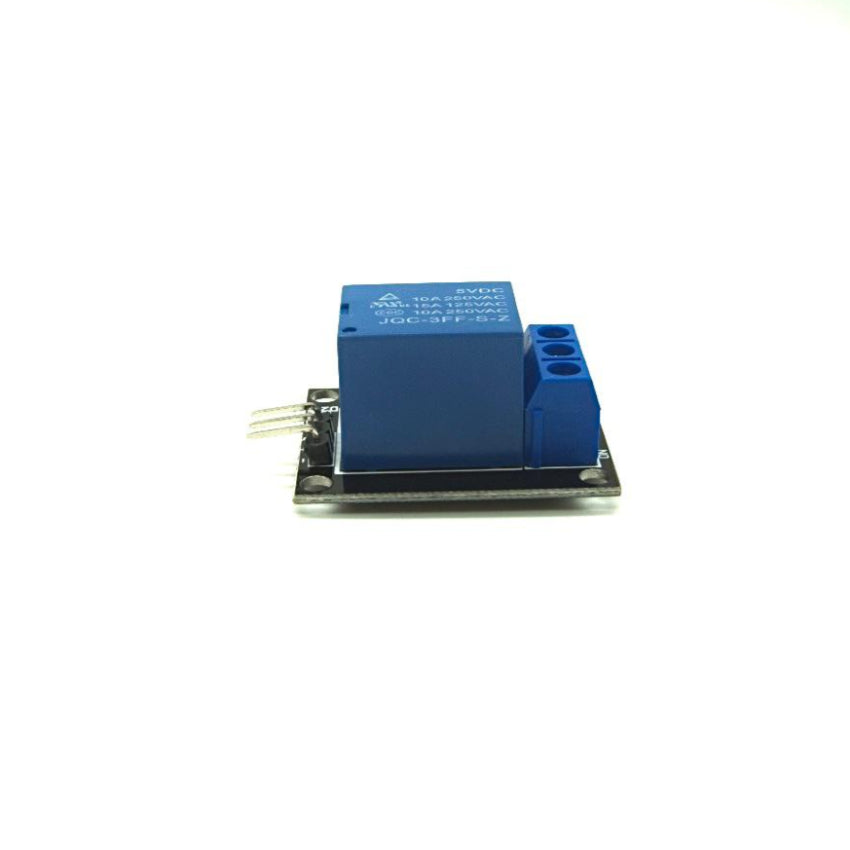

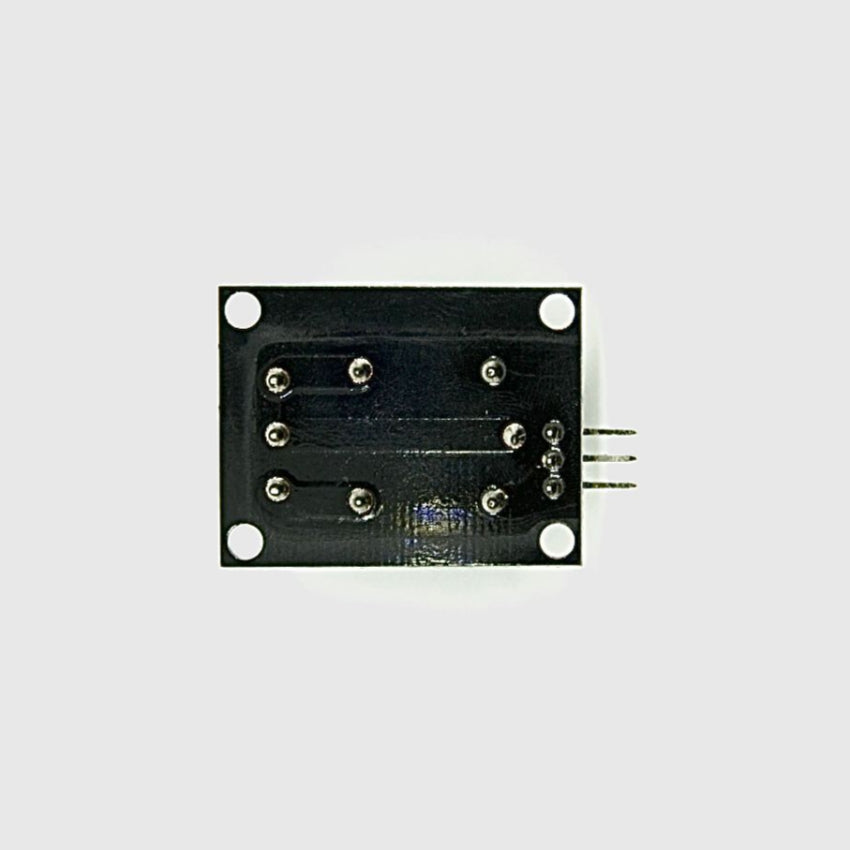

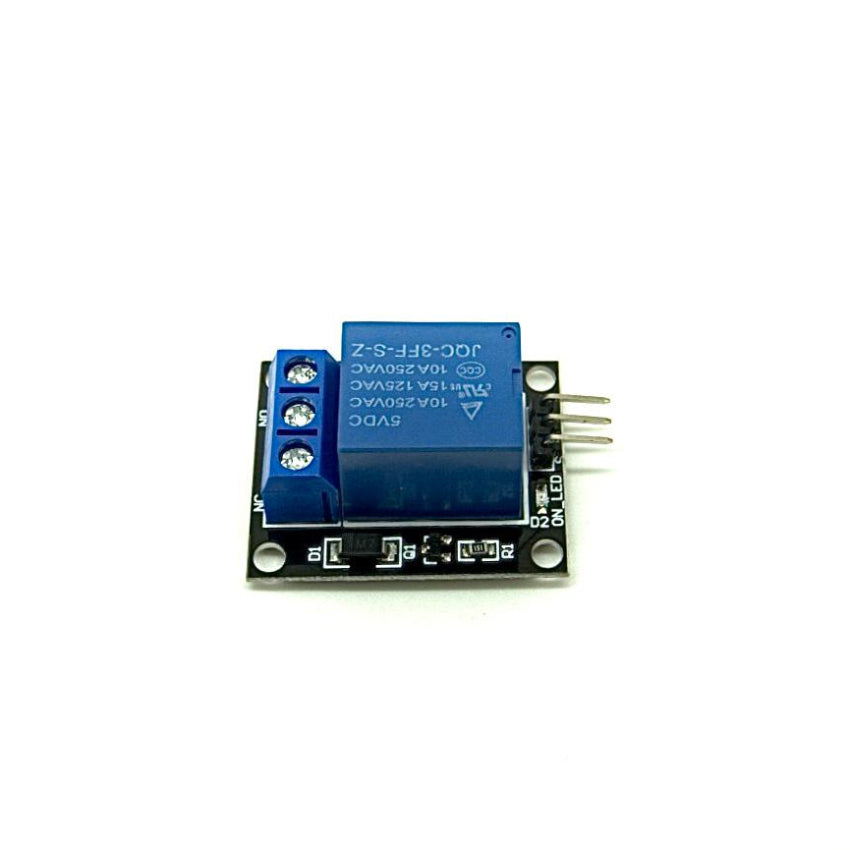

This board has one (1) on-board relay which can switch up to 10Amps. Relays terminals (COMMON, Normally Closed [NC], Normally Open [NO]) are accessible through screw terminals which makes wiring up the board very easy. The relay is safely driven by transistor BC547 hence your input device, such as Arduino, is protected from relay circuit. There is flyback diode which will further protect your microcontroller from relay kick back.
