Product Overview
The MOLEX / WOODHEAD WOD PRC part number 1201088435 is a high-quality, industrial-grade circular cordset designed for reliable data and power transmission in demanding environments. This double-ended cordset features a 4-pole, D-coded configuration with male-to-male connectors, ensuring secure and stable connections for industrial Ethernet applications.
Key Features
Part Number: 1201088435
Manufacturer: MOLEX / WOODHEAD
Country of Origin: COO not specified
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: Black (BLK)
RoHS Compliant: Yes, with EU exemption 6(c)
Product Specifications
Product Category: Wire & Cable | Sensor Cables/Actuator Cables
Series: 120108
Description: Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (Straight) to Male (Straight)
Performance Category: 5e
IP Rating: IP67
Connector Type: Micro-Change (M12), D-Coded
Gender: Male to Male
Number of Poles: 4
Wire Size: 24 AWG
Cable Length: 30.0 meters (98.40 feet)
Cable Diameter: 6.50mm (.256")
Cable Material: Shielded TPU (Teal)
Connector Material: Copper Alloy contacts, Nickel-plated Brass coupling nut, Gold plating on contacts
Operating Temperature Range: -20°C to +75°C
Maximum Current per Contact: 1.5A
Maximum Voltage: 30V
Additional Details
Product Environment Compliance: EU RoHS, REACH SVHC (contains Lead), Low-Halogen (not low-halogen per IEC 61249-2-21)
Product Type: Wire & Cable
Business Unit: Industrial Solution
Package: Black (BLK)
Datasheet: Download Datasheet

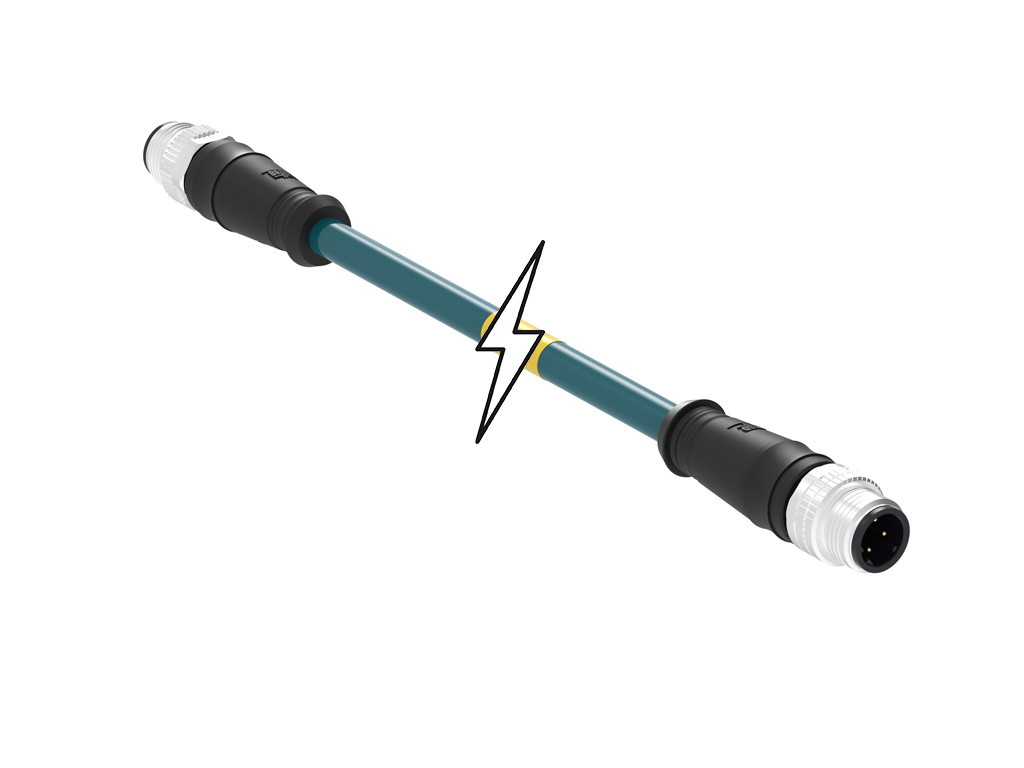

Visual Reference
Compliance & Certifications
Compliance
Status
GADSL/IMDS
Not Relevant
China RoHS
EU ELV
Not Relevant
Low-Halogen Status
Not Low-Halogen per IEC 61249-2-21
REACH SVHC
Contains Lead per D(2024)6225-DC (07 Nov 2024)
EU RoHS
Compliant with Exemption 6(c) per EU 2015/863
For more detailed specifications and compliance information, please refer to the product datasheet .
Note: Datasheet was not processed, please search the internet for the part number 1201088435 for more details.
