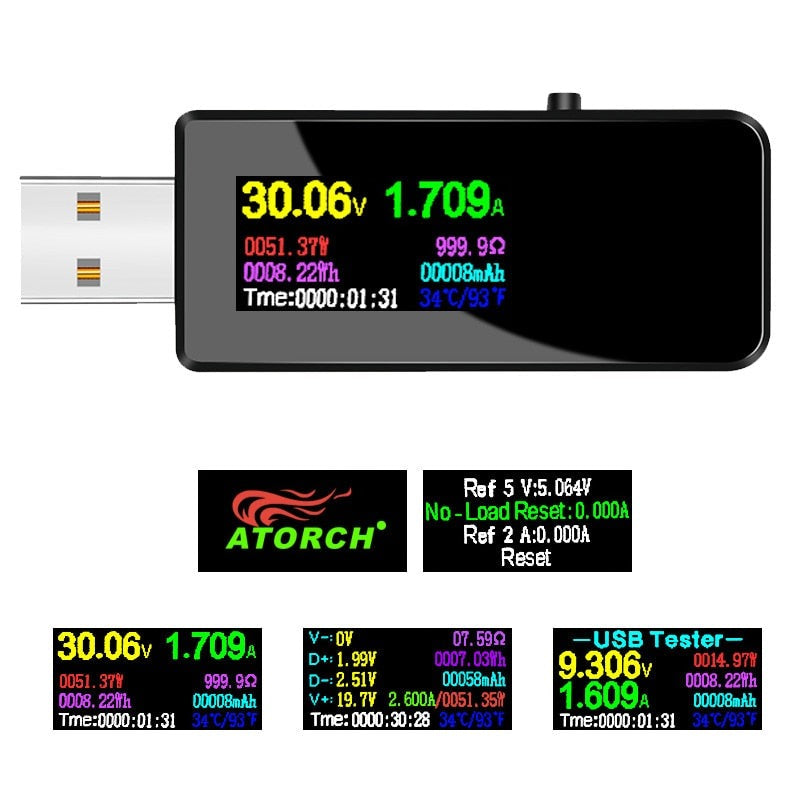

13-in-1 USB Tester - Voltmeter, Ammeter, Multimeter

SKU: TOL3001

ā‚¹ 1,349.99 ā‚¹ 1,599.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
13-in-1 USB Tester - Voltmeter, Ammeter, Multimeterā‚¹ 1,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

13 in 1 measurement: voltage, current, power, battery capacity, impedance, parameters such as temperature, energy and time, etc.Ā

It is the perfect device forĀ measuring power flow through a USB port or equivalent setup.

  • Voltage measuring range:Ā  4V ~ 30 V; precision: 0.01 V Ā
  • Current measuring range: 0.00A ~ 5.00 A; precision: 0.01 A
  • Power cumulative range: 0 ~ 999999 Wh; precision: 0.001 Wh
  • Capacity range : 0 ~ 999999 mAh, precision: 0.001 Ah
  • Temperature:0Ā°C ~ +80 Ā°C; precision: 1 Ā°C
  • D+ Voltage: 0.000V ~ 2.999 V; precision: 0.001 V
  • D- Voltage:Ā  0.000V ~ 2.999 V; precision: 0.001 V
  • Load impedance: 0 ~ 999 Ī©; precision: 1 Ī©
  • Power metering range: 0 ~ 299.999 W;Ā precision: 0.001 W
  • Maximum time recorded: 999 H 59 M 59 S;Ā precision: 1 second
  • Product size: 66 x 24 x 15 mm
  • Since the power flow: < 0.003 A (<Ā  3mAĀ  )
  • Working temperature:Ā  -10 Ā°CĀ to +60 Ā°C
  • Measurement rate: 0.5 hertz
  • Weight: 16 gramsĀ

NOTE: ColourĀ of the product may differ.

What measurements does the USB tester provide
It provides 13 measurements including voltage 4 to 30 V, current 0 to 5 A, power 0 to 299.999 W, energy, capacity, temperature 0 to 80 C, time, impedance, load impedance 0 to 999 ohms, D plus voltage 0.000 to 2.999 V, and D minus voltage 0.000 to 2.999 V.
Is this compatible with USB ports and how often are readings updated
Yes it is designed for measuring power flow through a USB port or equivalent setup. Readings update at 0.5 hertz.
How do I use it and what are its physical specifications
Connect it in series with the USB circuit to monitor the parameters. The unit measures 66 x 24 x 15 mm and weighs 16 grams.
What are the operating conditions and any notes about color
The device operates from minus ten C to plus sixty C. Color may differ from product images.
Is there warranty information or other support details
Warranty information is not provided in the description. Please contact the seller for warranty and support options.
