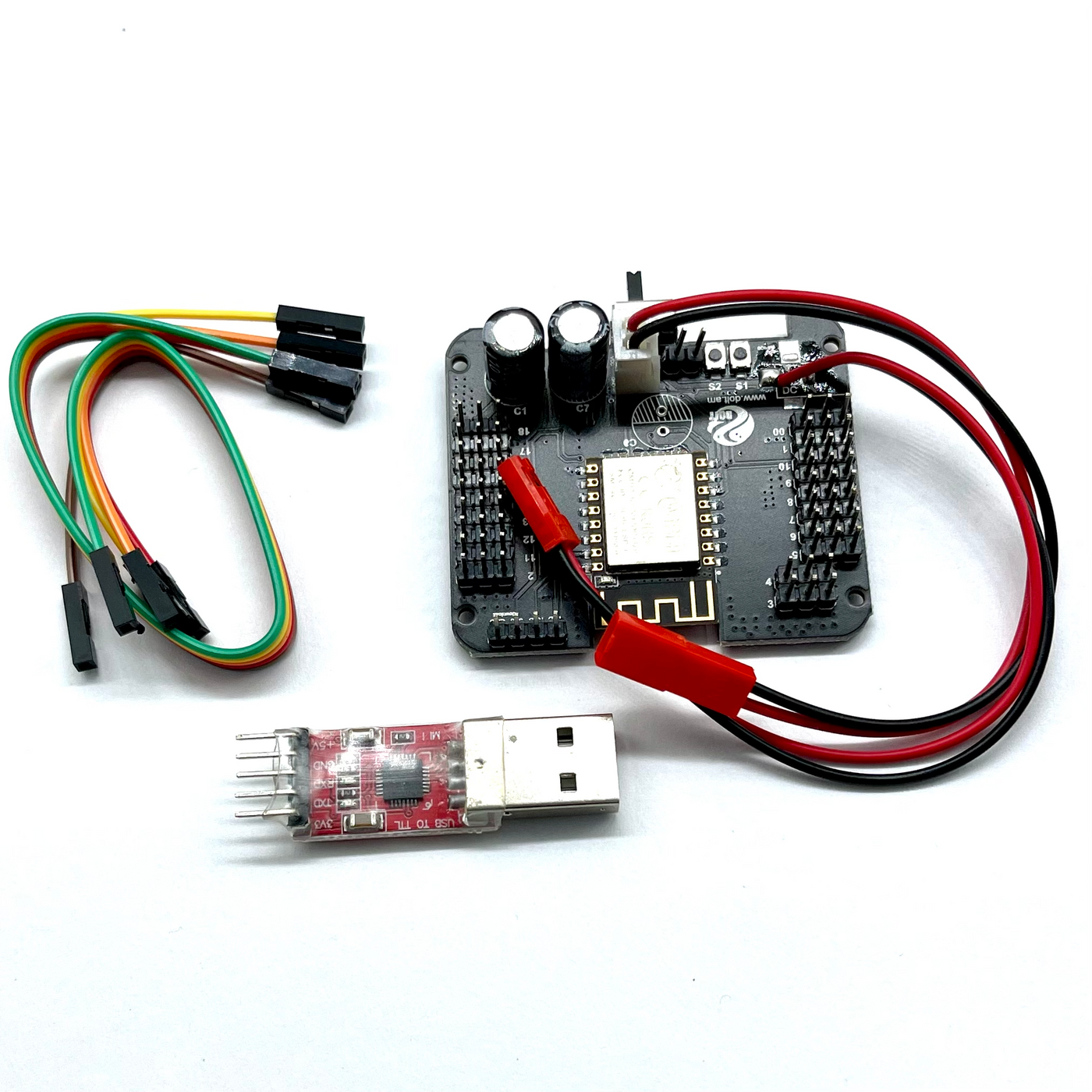

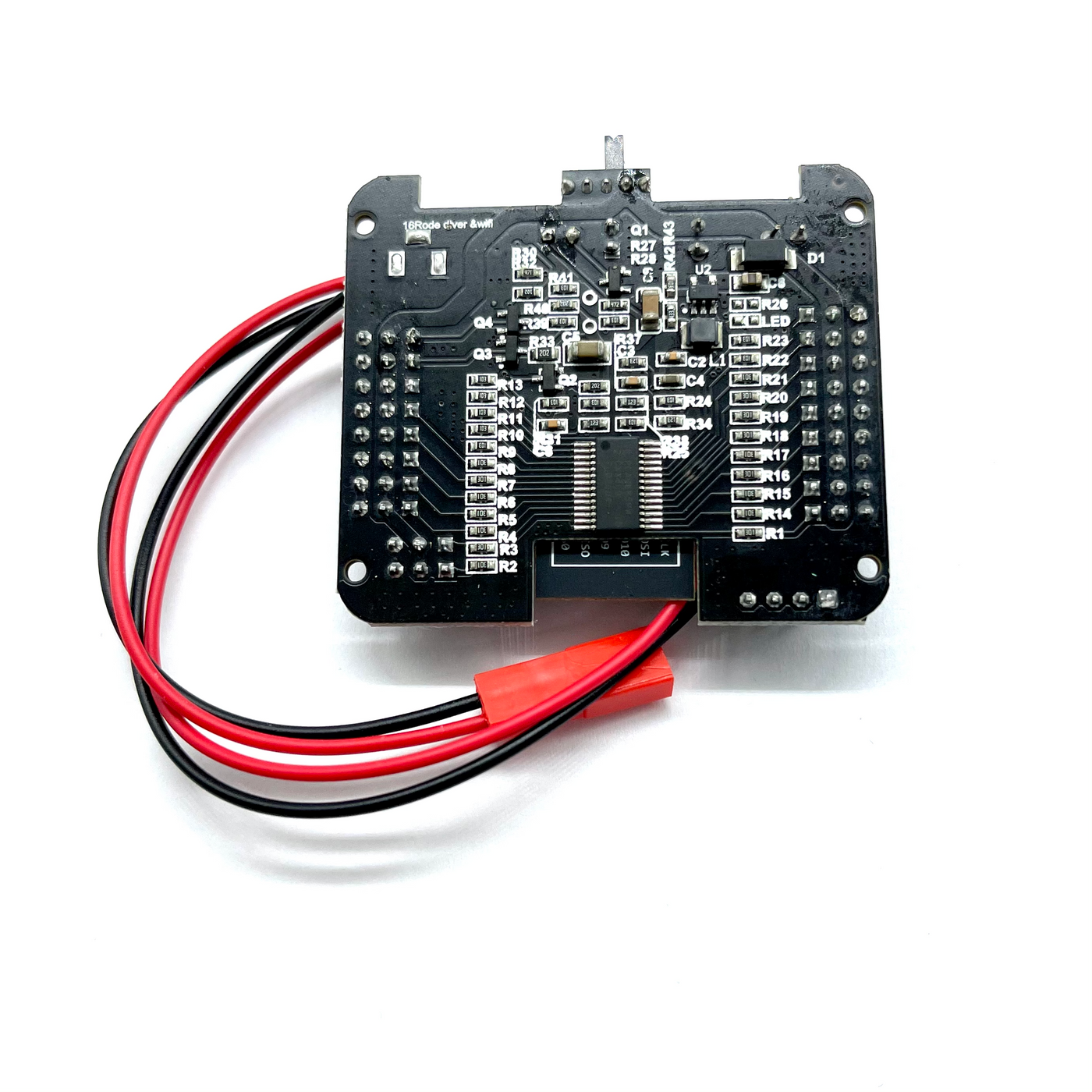

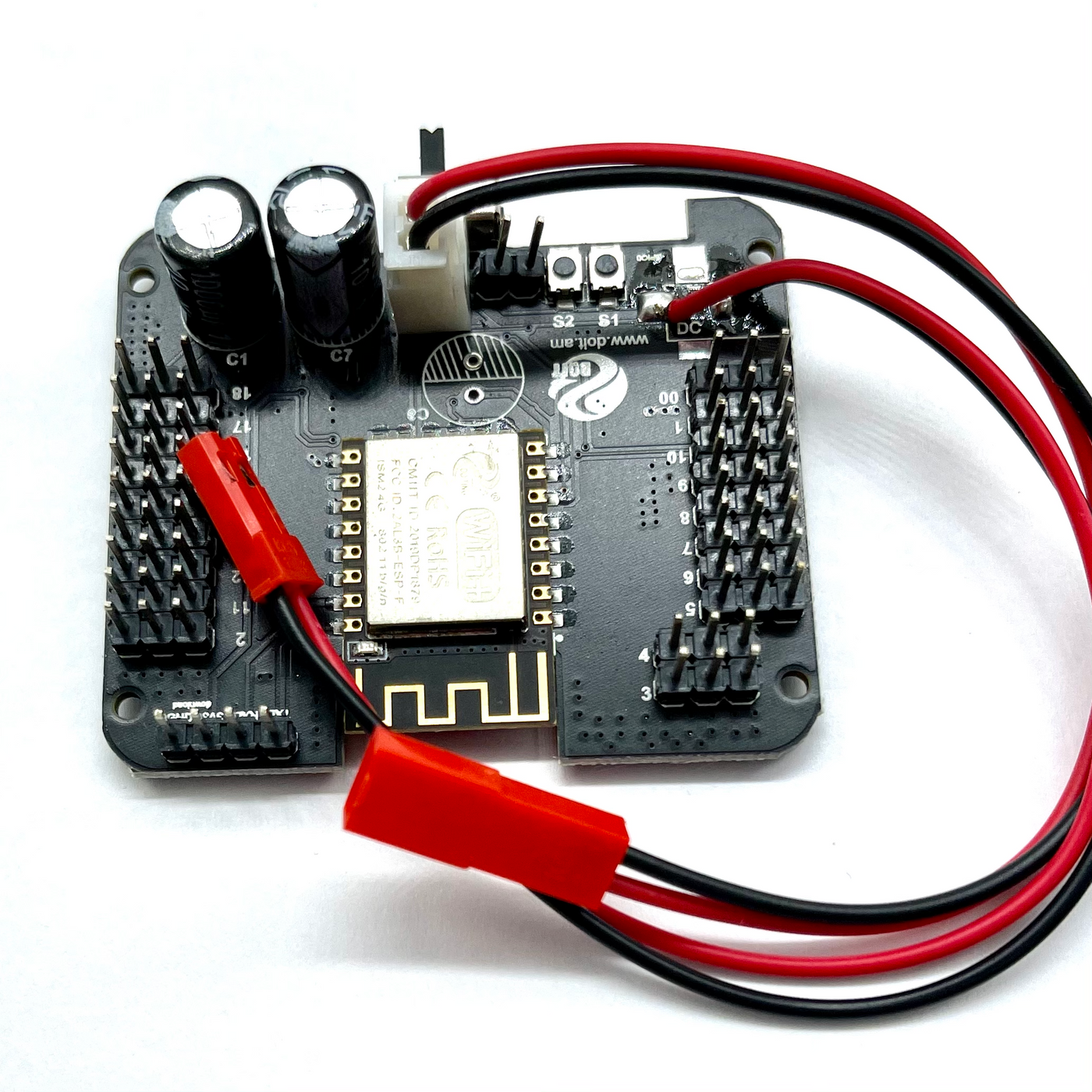

ViVi Humanoid Robot Control Panel ESP-F WiFi Module R & D leads the serial TTL pin to set the EN, STATE button.
The product can complete the device TTL port to WiFi/cloud data real-time transparent transmission, with low power control, power status indication, and other functions.
The module can directly replace the original wired serial port, to achieve embedded data transmission and control equipment.
It's Based on ESP-F high-performance WiFi module
Features
Compatible with the original wifi transparent transmission module electrical interface and physical interface
Robot firmware is reliable and stable, support WEB interface configuration download, graphics action download programming
Support serial AT command
Support reprogrammable, OTA firmware upgrade
Serial and WiFi data in real-time seamless transmission
Built-in HTTP Web Server, support web configuration parameters
Serial port support set baud rate, data bits, parity, stop bit, Subcontract time
Supports reconnection in WiFi STA mode, reconnection in TCP client mode
WiFi support AP, STA, AP + STA three modes
Specifications
Specification
The overall size
24*16*3mm
Supply Voltage
4.5V ~ 6.4V, TTL Voltage: 3.3V
Leadout
3.3V,TXD,RXD,GND
Average Current
80mA, WiFi data transmission maximum operating current 3000mA
