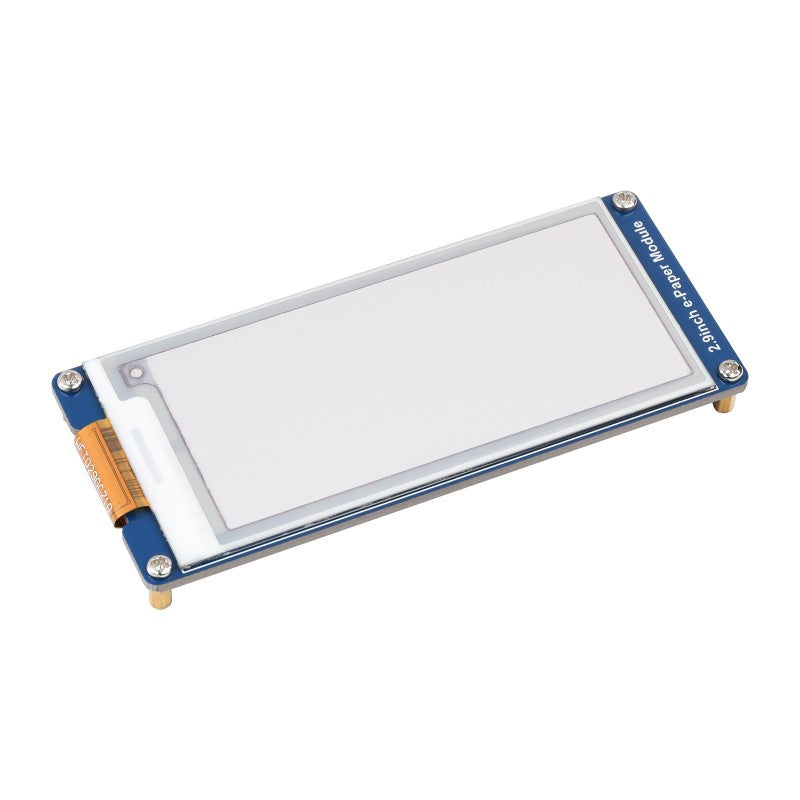

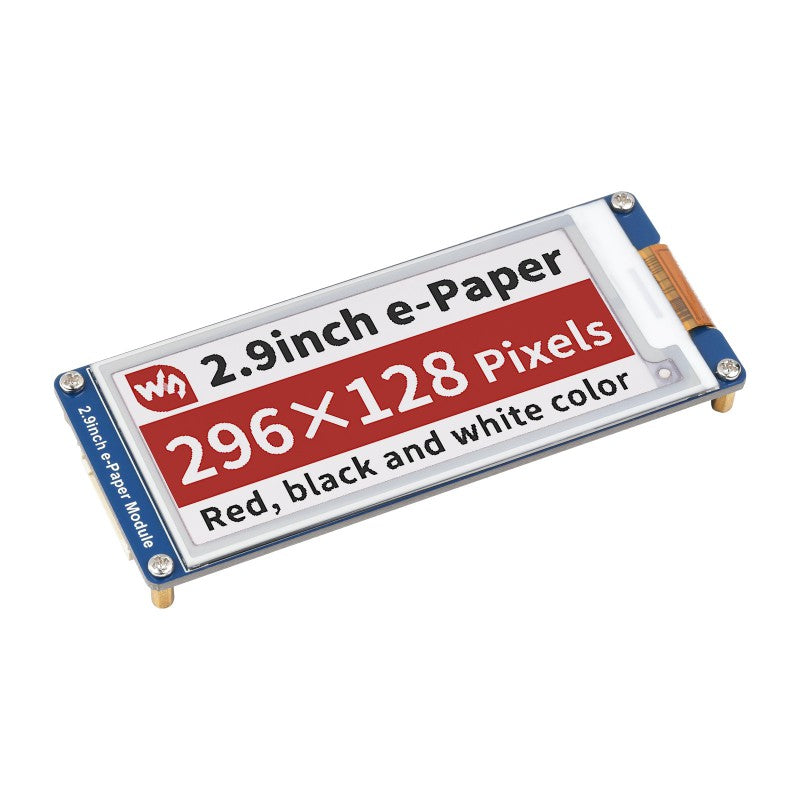

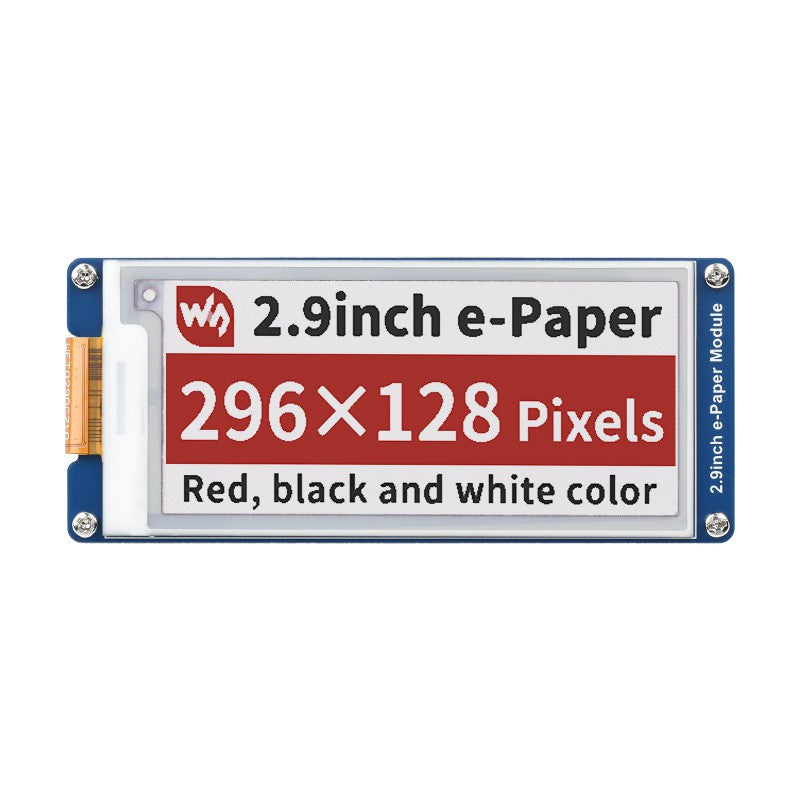

2.9inch E-Paper E-Ink Display Module
2.9" E-PAPER MODULE (B)
Low Power, Wide Viewing Angle, Paper-Like Displaying Without Electricity
Size
Resolution
Viewing Angle
Display ColorRed / Black / White
Grey Scale
CommunicationSPI
Display PanelE-paper
Experience Paper-like
Environment Ambient Light Required
Display Type Passively Reflective
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE
3.3V/5V
DISPLAY COLOR
red, black, white
INTERFACE
3-wire SPI, 4-wire SPI
GREY SCALE
2
OUTLINE DIMENSIONS
89.5 × 38mm
FULL REFRESH TIME
15s
DISPLAY SIZE
66.90 × 29.06mm
REFRESH POWER
30mW(typ.)
DOT PITCH
0.227 × 0.226mm
STANDBY CURRENT
<0.01uA (almost none)
RESOLUTION
296×128 pixels
VIEWING ANGLE
>170°
Advantages Of E-INK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

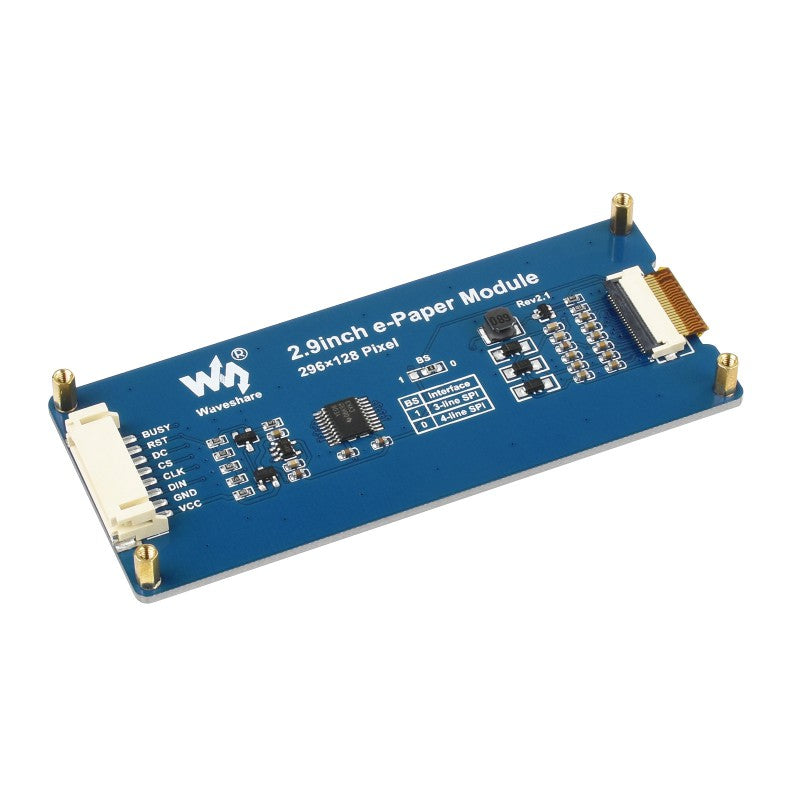

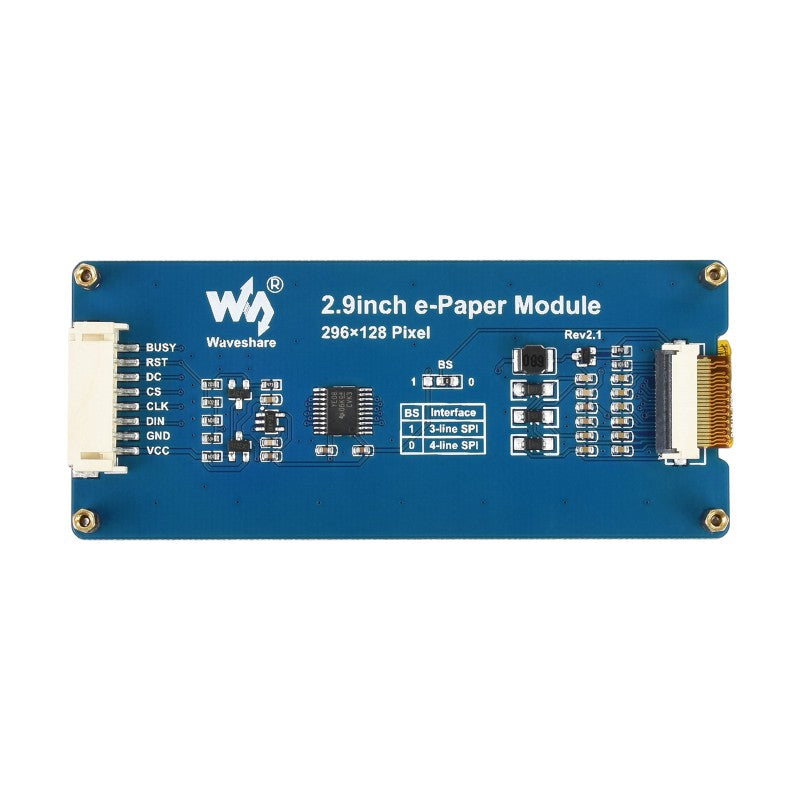

Onboard SPI Control Interface
For Connecting With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32
VCC
3.3V/5V
GND
Ground
DIN
SPI MOSI pin
CLK
SPI SCK pin
CS
SPI chip selection, low active
DC
Data / Command selection (high for data, low for command)
RST
External reset, low active
BUSY
Busy status output, low active
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Dimensions
