TE CONNECTIVITY/AMP BRAND - 225791-2

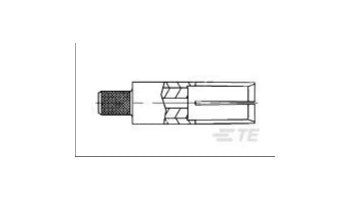

TE CONNECTIVITY/AMP BRAND Rack & Panel Coaxial RF Socket - Part Number 225791-2
Enhance your aerospace, defense, and marine applications with the TE CONNECTIVITY/AMP BRAND Rack & Panel Coaxial RF Socket (Part Number: 225791-2). Designed for high reliability and performance, this connector is compliant with industry standards and RoHS certified, ensuring environmentally responsible manufacturing.
Product Features
Product Type: Connector | Rack & Panel Connectors
Manufacturer: TE CONNECTIVITY/AMP BRAND
Country of Origin: MX
Unit of Measure: EA
ECCN: EAR99
Package Type: PKG
RoHS Compliant: Yes
Key Specifications
Connector Type: Coaxial RF Socket (S)
Application: Suitable for aerospace, defense, and marine environments requiring high-performance RF connections
Environmental & Mechanical:
Temperature Range: -65°C to +125°C
Durability: 500 mating cycles
Vibration & Shock Resistance: EIA-364 standards
Salt Spray Tolerance: MIL-STD-1344, Method 1001, Condition B
Humidity Tolerance: Min. 1 megohm insulation resistance after exposure
Electrical Ratings:
Current: 5.0 A (Size 22)
Dielectric Withstanding Voltage: 1500 VAC rms at sea level
Additional Details
Complete datasheet available here
Designed for aerospace, defense, and marine applications requiring reliable RF connectivity
Compatible with ARINC 600 standards, offering backward compatibility and high performance
Eliminates soldering with press-fit options, reducing weight and manufacturing costs
Note
Datasheet was not processed please search the internet for the part number 225791-2 for more details.
