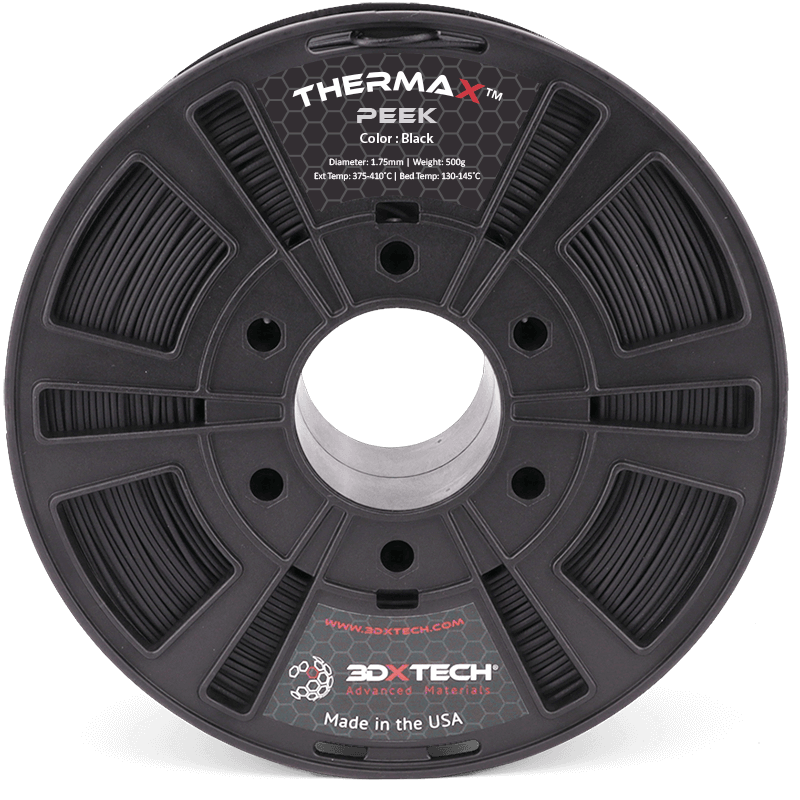

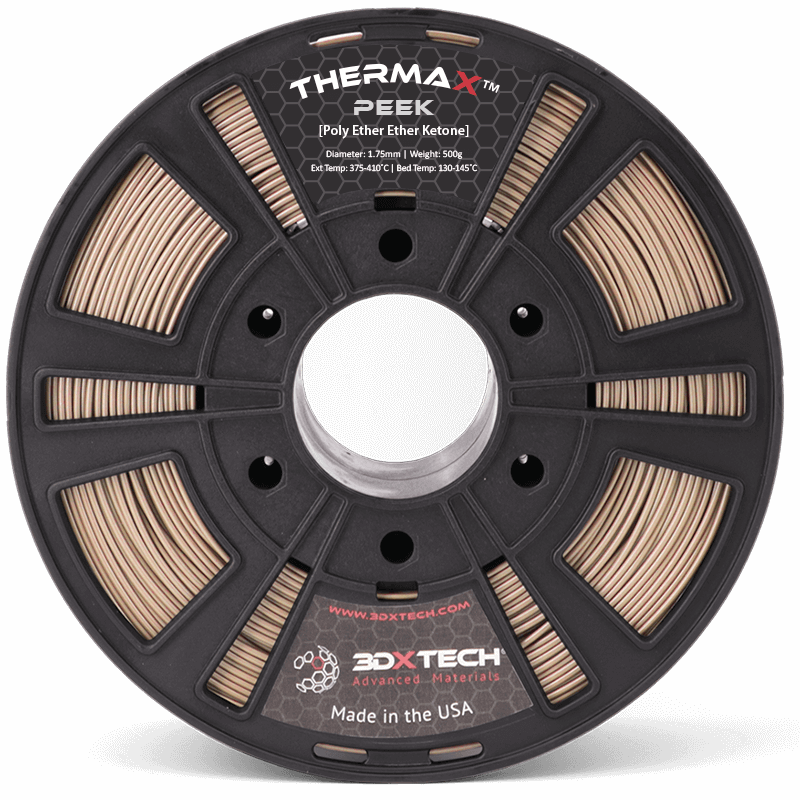

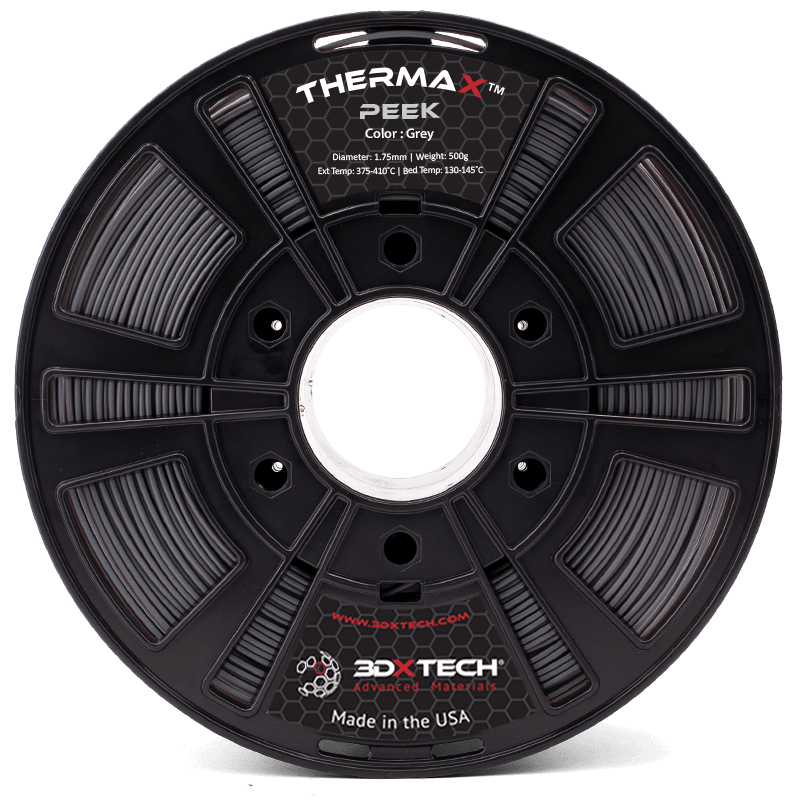

ThermaX™ PEEK (PolyEtherEtherKetone) is one of the highest-performance polymers in the world. PEEK has exceptional mechanical, thermal, and chemical resistance properties making it a go-to material in some of the most demanding applications where failure is not an option.
Benefits of PEEK Include:
Inherently flame-resistant and self-extinguishing
Long-term hydrolytic stability even above 250°C
Outstanding resistance to a broad range of chemicals, including automotive fluids, fully halogenated hydrocarbons, alcohols, and aqueous solutions
Low smoke and toxic gas emissions
Excellent dimensional stability with low heat creep, low and uniform coefficient of thermal expansion, giving PEEK highly reproducible part-to-part dimensions
High thermal properties with a Tg of 143°C, CUT of 240-260°C, and Tm of 343°
This product contains 250 grams of Natural Color filament.
Typical PEEK Applications Include:
Seals, Gears, Bushings, Bearings, Pump and Compressor Components
Industries Served: Auto, Aerospace, Defense, Semiconductor, Oil & Gas
Specifications
1.75mm and 2.85mm +/- 0.05mm in diameter
Recommended Print Settings:
Extruder: 375-410°C
Bed Temp: 130-145°C
Bed Prep:Nano Polymer Adhesivegives us the best results
Heated Chamber: Recommended, an enclosure helps reduce warping and improves print success. 70-140°C if at all possible
Supports: ThermaX™HTS High-Temp Support is designed to work with complex, high-temp materials just like this
