THERMAX PPSU (250g)

SKU: 3D3029

Regular price ₹ 8,499.99
Sale price ₹ 8,499.99 Regular price ₹ 11,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

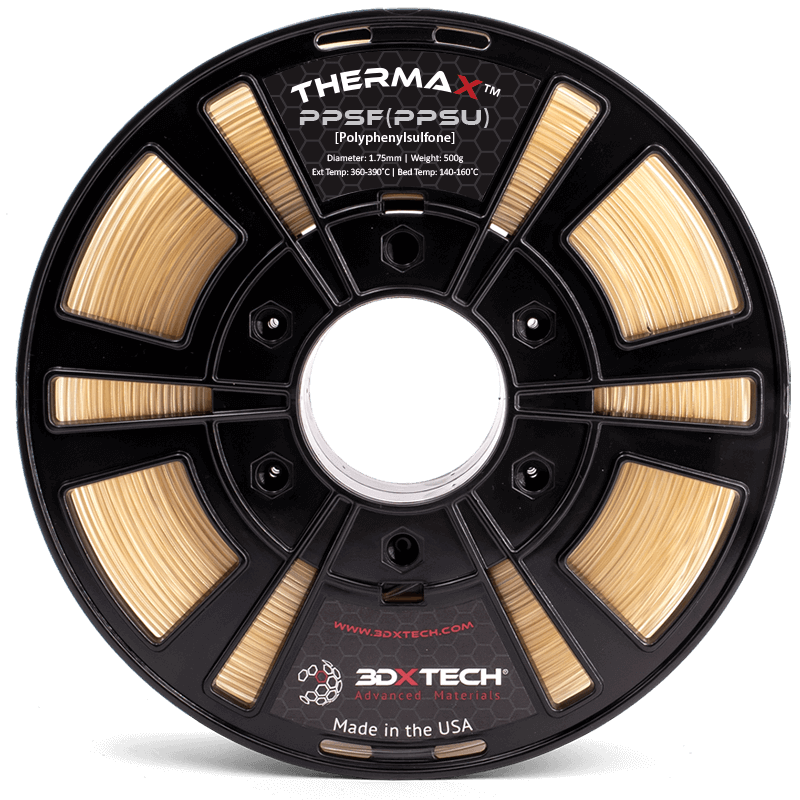

ThermaX™ PPSU 3D Printing Filament

ThermaX™ PPSU [Polyphenyl Sulfone] is considered one of the highest performance plastics in the industry. This high-temperature amorphous polymer that offers excellent mechanical, thermal, and chemical resistance properties.

Polyphenylsulfone (PPSF or PPSU) is a high-temperature aromatic sulfone polymer. Long considered to be one of the highest performance polymers in the plastics world. PPSU has excellent thermal and chemical resistance, making it well suited for demanding applications in automotive, aerospace, electronics, defense, industrial, medical, semi-con applications. Previously only available to Stratasys® customers – now you can print with this ultra performance polymer.


Extruder Temp: 360-390°C Bed Temp: 140-160°C Heated Chamber: Recommended Nozzle Specs: No special concerns

 Supports: Works best with HTS break-away support

Drying Specs: 120°C for 4+ hours Layer Height: No concern

Bed Adhesion

Nano Polymer Adhesive


Benefits of ThermaX™ PPSU:

  • Very high thermal properties superior to Ultem™ 1010
  • Tg of 220°C and HDT of 205°C
  • High Environmental Stress Crack Resistance (ESCR)
  • Sterilization capable, including EtO gas, radiation, steam autoclaving, plasma, dry heat and cold sterilization
  • Exceptional strength and modulus, even at elevated temperatures
  • Outstanding impact resistance
  • Highly resistant to even large (10 Mrd) doses of gamma radiation
  • Resists most common automotive fluids including gasoline, antifreeze, transmission fluids, motor oils, power steering fluid, windshield washer fluid (ESCR, 24 hrs, 100°C)
  • Inherently flame retardant with low smoke evolution and low smoke toxicity
  • Excellent dimensional stability with low creep sensitivity, low and uniform coefficient of thermal expansion, and highly reproducible part-to-part dimensions.

    Benefits of 3DXSTAT™ Include:

    • Consistent surface resistivity
    • Improved retention of impact & elongation
    • Low particulate contamination
    • Minimal contribution to outgassing and ionic contamination

    Filament Specifications:

    1.75mm and 2.85mm +/- 0.05mm in diameter

    1.37g/cm3 density

    Recommended PPSU Print Settings:

    • Extruder: 340-390°C
    • Bed Temp: 140-160°C
    • Bed Prep: Nano Polymer Adhesive and 3DXTECH Polyimide Tape work best for us.
    • Heated Chamber: Recommended
    • Supports: ThermaX™ HTS High-Temp Support is designed specifically to work with high-temp materials like this one.
    • Other: No cooling fan and print speeds of 16 mm/s as a starting point.
    • Drying Instructions: 120°C for 4 hours.
