Best seller

Waveshare

4-ch USB 3.2 Gen1 HUB

SKU: WVSH0600

₹ 2,099.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
4-ch USB 3.2 Gen1 HUB₹ 2,099.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

USB3.2-Gen1-HUB-4U

Extending 4x USB 3.2 Gen1 Ports

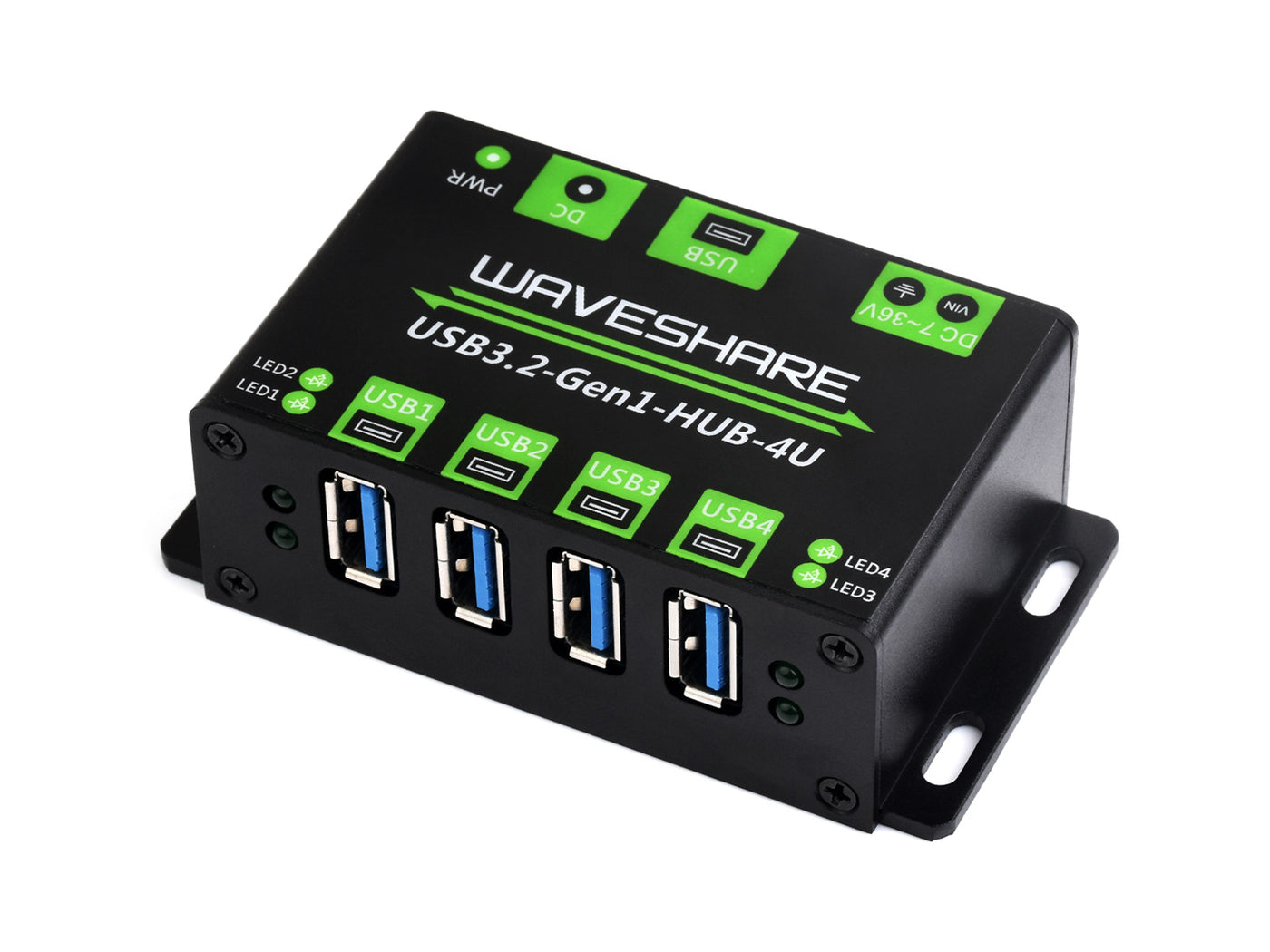

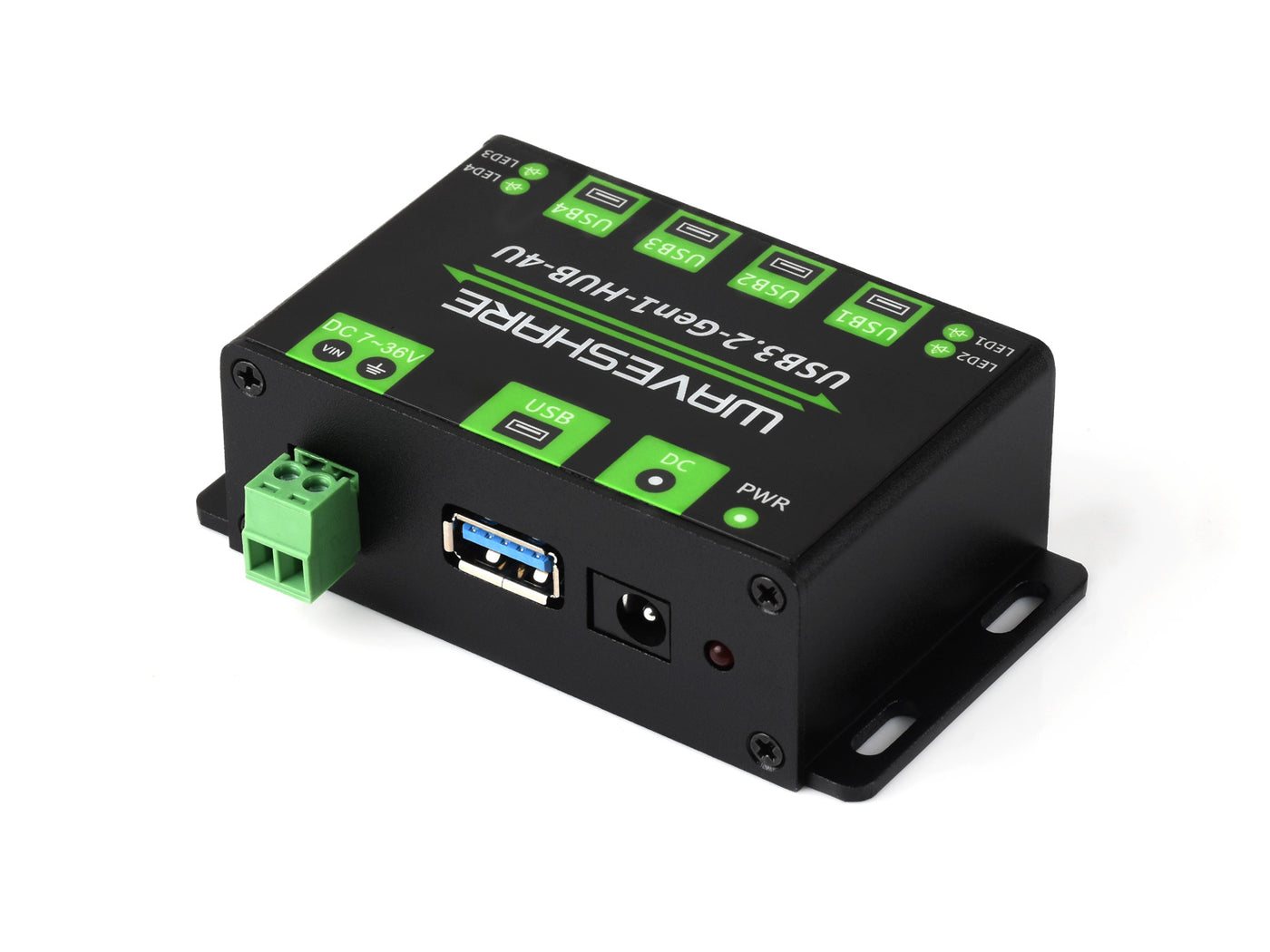

4-ch USB3.2 HUB, front view and features



Features at a glance

  • 4x extended USB 3.2 Gen1 ports, compatible with USB 3.2 / 2.0 / 1.1
  • Onboard 7~36V DC power port to ensure more stable power supply for connected devices
  • Up to 2A Max output current for each USB port, effectively preventing USB current backflow
  • Multiple LED indicators for monitoring operating status of power supply and USB ports
  • Metal case, rugged & durable, with mounting holes for easy installation
  • Driver-free, plug-and-play, compatible with Windows, macOS, Linux and Android, etc.
4-ch USB3.2 HUB, front view


USB 3.2 Gen 1 OR USB 3.0

They're totally equivalent in fact, indicating the transition of technical naming specification

The word USB 3.0 on this page exactly means USB 3.2 Gen 1

Data rate used name current name
5 Gbps USB 3.0 / USB 3.1 Gen 1 USB 3.2 Gen 1




Specifications

Standard USB 3.2 Gen1 5Gbps
USB 2.0 480Mbps
USB HUB input operating voltage: 5V
connector: USB-A
USB output operating voltage: 5V@Imax: 2A (up to 2A Max output current for each USB port when there's enough power input; 5A total peak current for 4-ch USB ports )
connector: USB-A
External power input power supply voltage: DC 7~36V
connector: screw terminal, DC jack
Operating environment 0℃ ~ 75℃
OS support Windows, macOS, Linux and Android, etc.


5Gbps Ultra-fast Transmission

Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission

4-ch USB3.2 HUB up to 500MB/s transmission speed

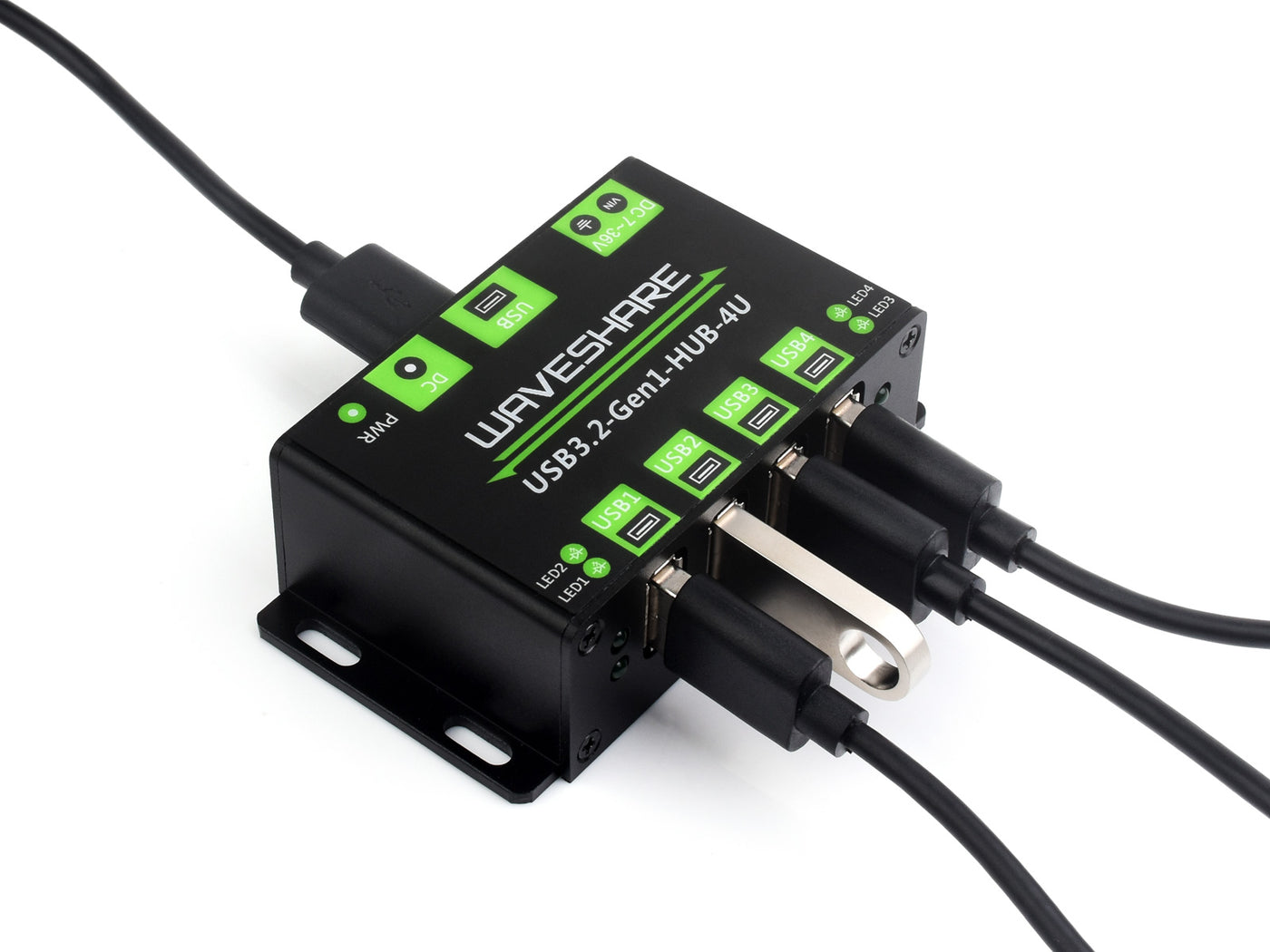

Connecting to various USB devices

1 to 4-ch USB 3.2 Gen 1 High-speed ports For Connecting More Peripherals

4-ch USB3.2 HUB, supports connecting to various USB devices


Multiple OS support

Compatible with Windows, macOS, Linux and Android systems

4-ch USB3.2 HUB, supports multiple OS


Application Environments


4-ch USB3.2 HUB, 1 in 4 out

1 in 4 out

4-ch USB3.2 HUB, small body for desktop use

small body for desktop use

4-ch USB3.2 HUB, wall-mount support

wall-mount support

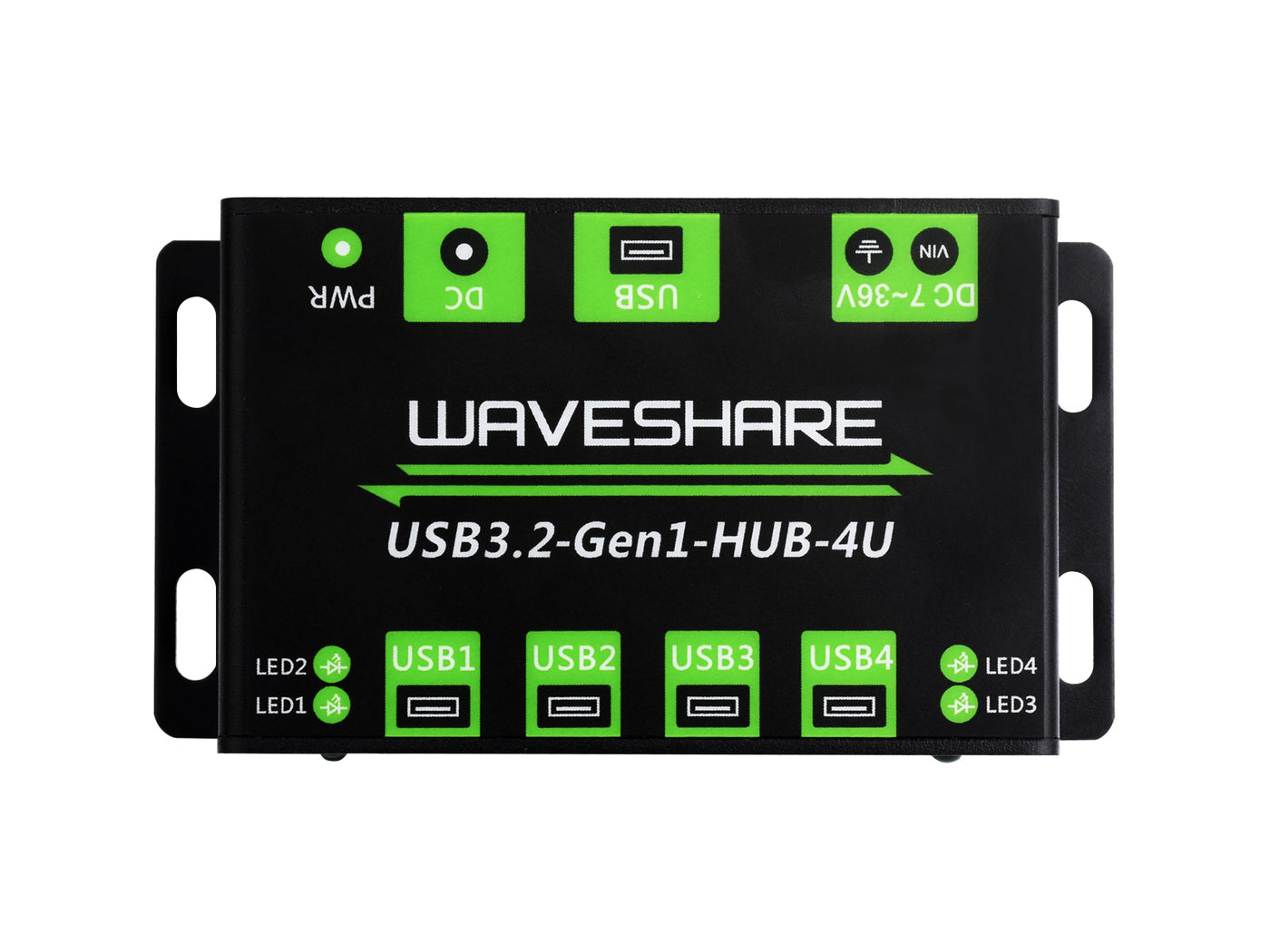

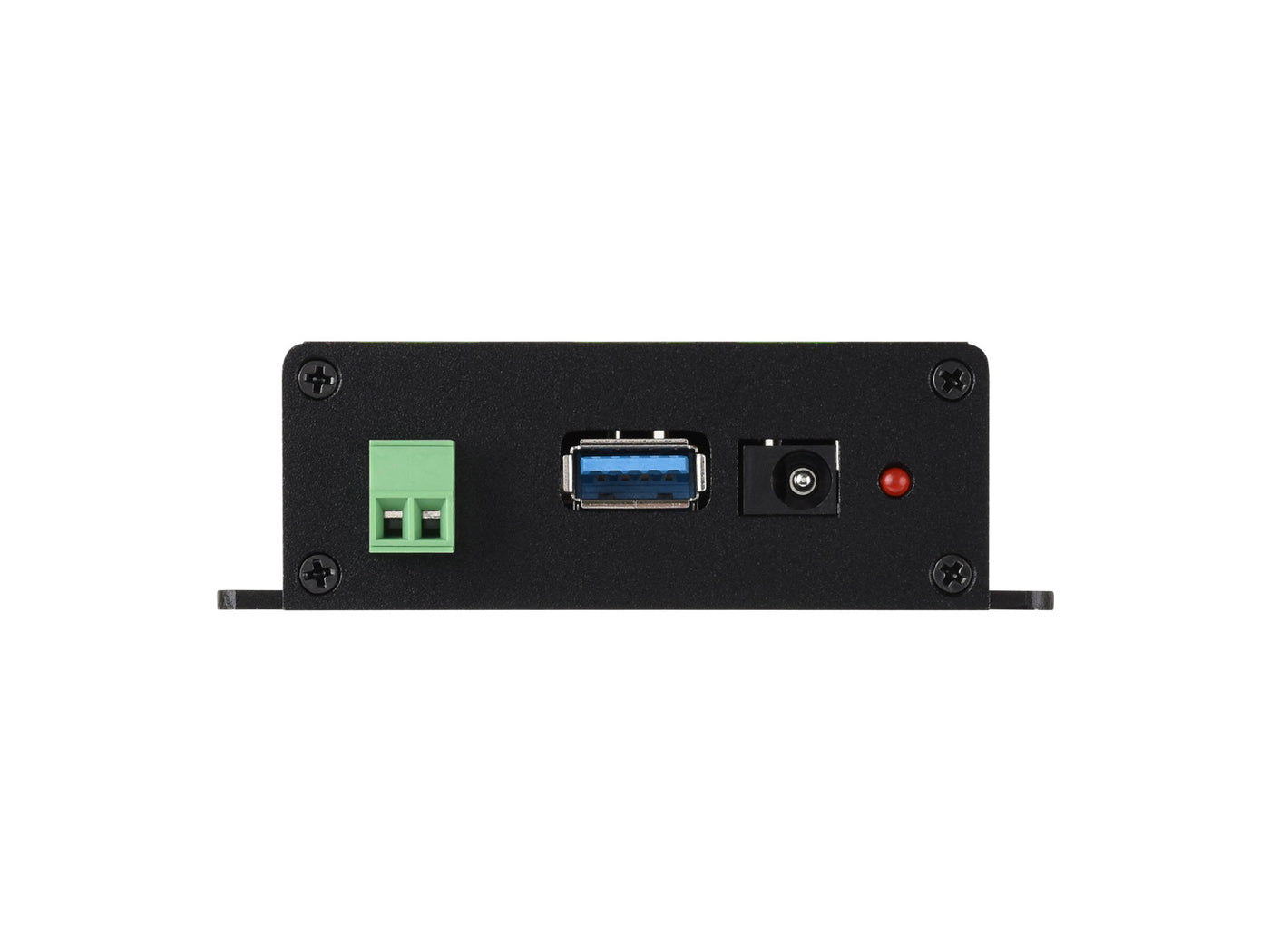

Interface Introduction

4-ch USB3.2 HUB, interface introduction


Outline Dimensions

4-ch USB3.2 HUB, outline dimensions


Resources & Services

Wiki: www.waveshare.com/wiki/USB3.2-Gen1-HUB-4U





Package Content

Weight: 0.1561 kg

USB3.2-Gen1-HUB-4U x1
USB 3.2 dual plug cable x1

1USB3.2-Gen1-HUB-4U
2
How many ports are available and which USB standard does it support?
It provides 4 USB 3.2 Gen1 ports and is compatible with USB 3.2, 2.0 and 1.1 devices. The page notes that USB 3.0 is the same as USB 3.2 Gen1.
Do I need to install any drivers to use this hub?
No. It is driver-free and plug-and-play on Windows, macOS, Linux and Android.
Can I mount the hub on a wall or in a chassis?
Yes. The metal case includes mounting holes for wall-mount installation.
What power options are available and how much current can the ports provide?
The unit includes a 7-36V DC power port for stable supply and each USB port can deliver up to 2A.
Are there indicators to monitor status and power?
Yes, there are multiple LED indicators to monitor power supply and USB port status.
