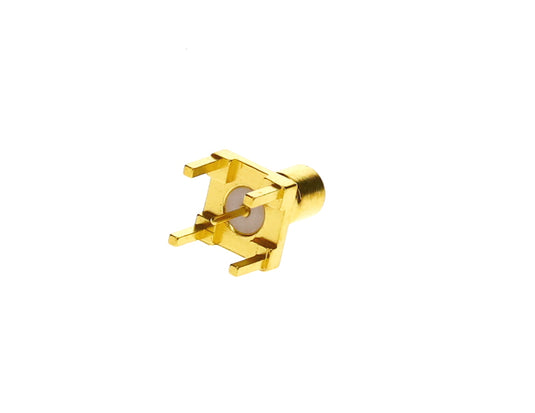

TE CONNECTIVITY/AMP BRAND SMB Mini Connector Jack Male Pin 75 Ohms Through (Part Number: 415504-3)
Enhance your RF connectivity solutions with the TE CONNECTIVITY/AMP BRAND SMB Mini Connector Jack, designed for reliable performance in high-frequency applications. This PCB mount connector features a compact vertical design with a 75 Ohm impedance, suitable for coaxial signal transmission up to 3 GHz.
Product Features
Connector Type: SMB Mini Connector Jack (PCB Mount, Vertical Orientation)
RF Interface: SMB RF Connector Style: Jack
Impedance: 75 Ω
RF Connector Mated Outer Diameter: Approx. 4.75 mm (.187 in)
Coupling Mechanism: Snap-Fit
Electrical Characteristics: Impedance 75 Ω, Operating Frequency up to 3 GHz
Body Features: Brass body with Nickel underplating and Gold plating (30 µin Nickel, Gold)
Contact Features: Brass center contact with Nickel underplating and Gold plating
Termination: Solder to PCB through hole with a post & tail length of 3.05 mm (.12 in)
Mounting: Vertical PCB mount with mechanical detent for secure connection
Dielectric Material: PTFE
Solder Process Capability: Wave solder capable up to 265°C
Compliance: RoHS compliant, with detailed standards available in datasheets
Specifications
RF Interface
SMB
Connector Style
Jack
Impedance
75 Ω
Outer Diameter (Approximate)
4.75 mm (.187 in)
Frequency Range
Up to 3 GHz
Body Material
Brass with Nickel and Gold plating
Center Contact Material
Brass with Nickel and Gold plating
Termination Method
Solder to PCB
Post & Tail Length
3.05 mm (.12 in)
Additional Information
Package Type: BOX
UOM: EA
ECCN: EAR99
Country of Origin: MX
Product Category: RF Connectors
Product Type: Connector
For detailed technical specifications and datasheets, please visit the product page on TE.com. The datasheet can be accessed directly here.
Note: Datasheet was not processed; please search the internet for the part number 415504-3 for more details.
