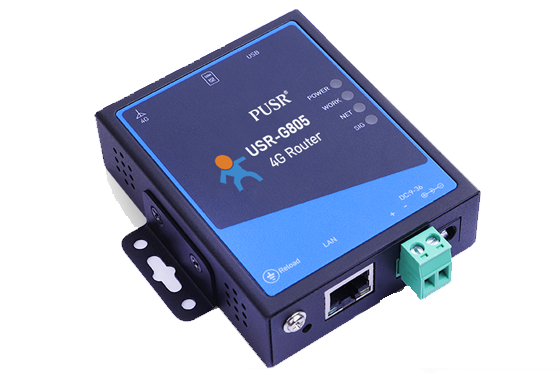

USR-G805 is a very small and economical 4G industrial cellular router. It integrates 4G LTE, Ethernet port and VPN technology.
It adopts 4G Cat 4 Qualcomm solution module and is equipped with a CPU with working frequency up to 1GHz.
Excellent processing capability can easily support fast data transmission and enjoy a smoother Internet experience.
Your device can be in normal operation after 30s of power-on, which is obviously about 20s earlier than that of ordinary routers.
High speed 4G LTE access, up to 150Mbps download rate and 50Mbps upload rate.
Strong Security ProtectionSupport VPN (PPTP and L2TP) virtual private network tunnels,
and support APN/VPDN card private network access to provide protection for your data security.
Using PUSR cloud service, you only need a computer or a mobile phone to monitor
and control thousands of mission-critical devices through very simple operations.
Dimensions: 70.0mm*86.0mm*25.0mm.
Compatible with a variety of installation methods, making it easy to deploy and implement in various scenarios.

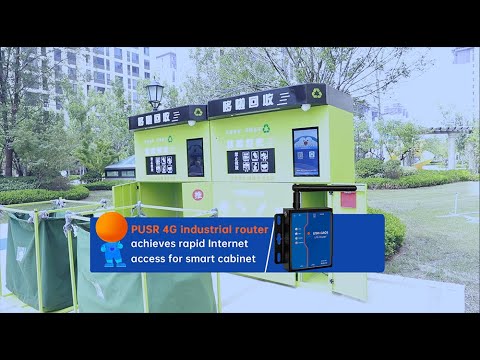

G805 is widely used on the Internet of Things industry by virtue of its advantages of economy, compact size and comprehensive functions, such as: intelligent express cabinets, self-service ticket vending machines, charging piles, battery exchange cabinets, finance, intelligent transportation, industrial robot networking, fire monitoring, security monitoring, water conservancy engineering, electric power, photovoltaic, environmental protection, coal mine, CNC networking, shopping mall navigation terminal, smart parking lot, digital signage and retail.
Video surveillance scenarios have high requirements for the real-time and
stability of networked transmission.
G805 can provide a stable and reliable network for monitoring equipment and
realize online transmission of large amounts of data.
Kiosks are used for a wide variety of applications such as pay stations, self-service for ordering, vending, wayfinding, digital signage, and more. They are expected to perform automated functions and offer an enhanced experience. The self-service terminal is connected to the network through a 4G wireless router and transmits all terminal business data and equipment operating status to the business center in real time, reducing the operating cost of the business center.
Hardware Specifications |
|
| Cellular Interface | |
| Antenna | 1 × SMA-K |

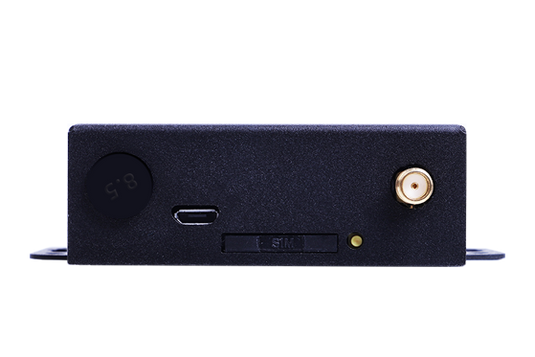

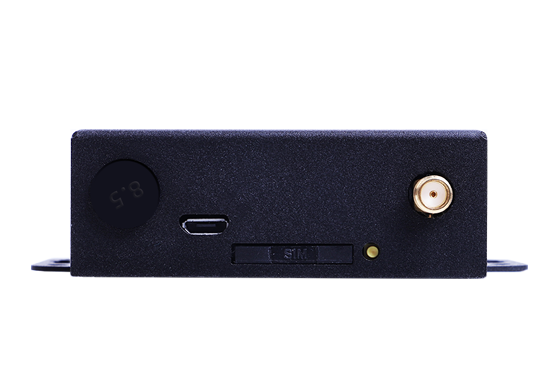

| SIM Card | 1 x (3 V/1.8 V) Standard 2FF SIM, drawer-type SIM card slots |
| Cellular Interface | |
| NO. | 1 × LAN |
| Spec. | RJ45 connector: 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |

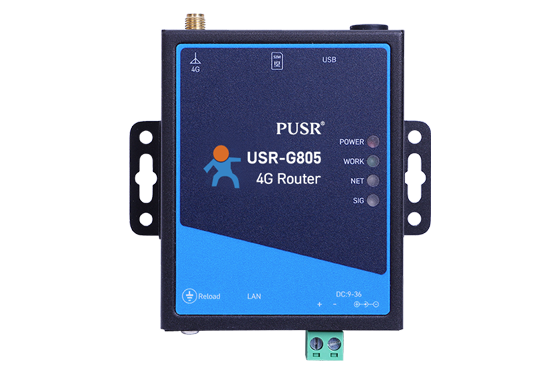

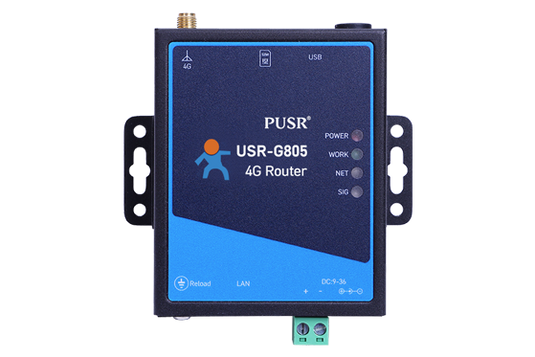

| Indicators | |
| POWER | always on after powered on |
| WORK | blinking when the router is ready and working properly |
| NET | 2/3/4G mode indicator (2G - red, 3G - blue, 4G - purple) |
| SIG | Signal strength (weak - red, medium - blue, strong - purple) |
| Power Supply | |
| Adaptor | DC 12V/1A |

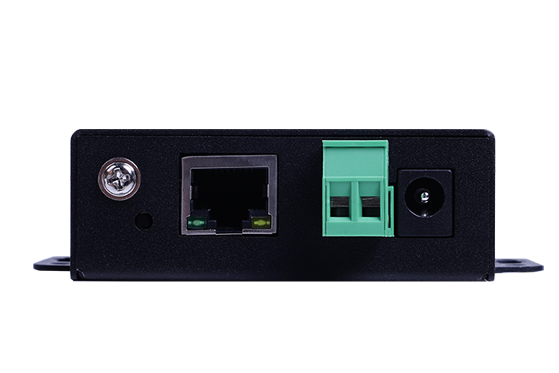

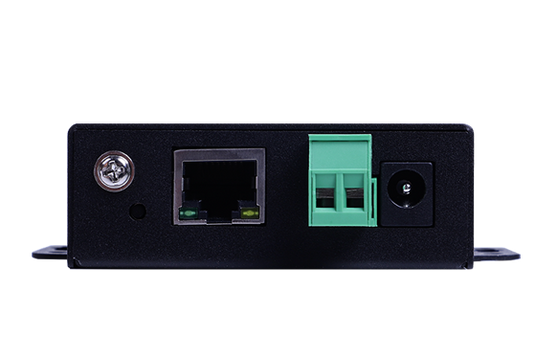

| Connector | DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection |
| Input Voltage | DC 9-36V |
| Rated Power Consumption | 3.5W |
| Physical | |
| Housing | Metal shell, IP30 |
| Dimensions | 86.0mm * 70.0mm * 25.0mm |
| Installation Method | Panel mounting, DIN-Rail mounting, desktop |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ +125℃ |
| Operating Humidity | 5% ~ 95% RH (non-condensing) |
| Others | |
| Reload | Pinhole reset button |
| USB | Firmware upgrading |
| Certification | CE, RoHS |
| [User Manual] USR-G805-User-Manual |
Download >> |
| [Specification] Specification of Cellular Routers USR-G805 |
Download >> |
| [Certificate] RoHS Certificate 4G Router |
Download >> |
| [Certificate] PTCRB Certificate USR-G806 |
Download >> |
| [Certificate] IC Certificate USR-G806 | Download >> |
| [Certificate] CE-RED Certificate 4G Router | Download >> |
USR-G805 x1
Ethernet Cable x1

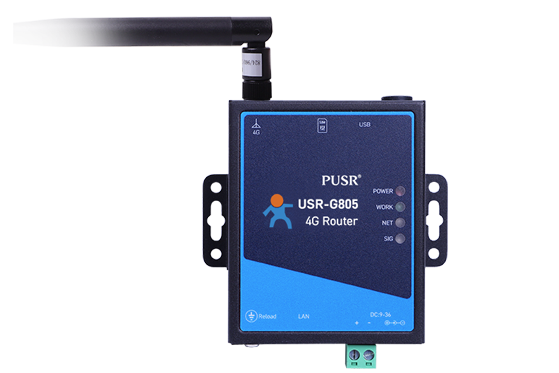

4G 3M SMA-K Antenna x1
