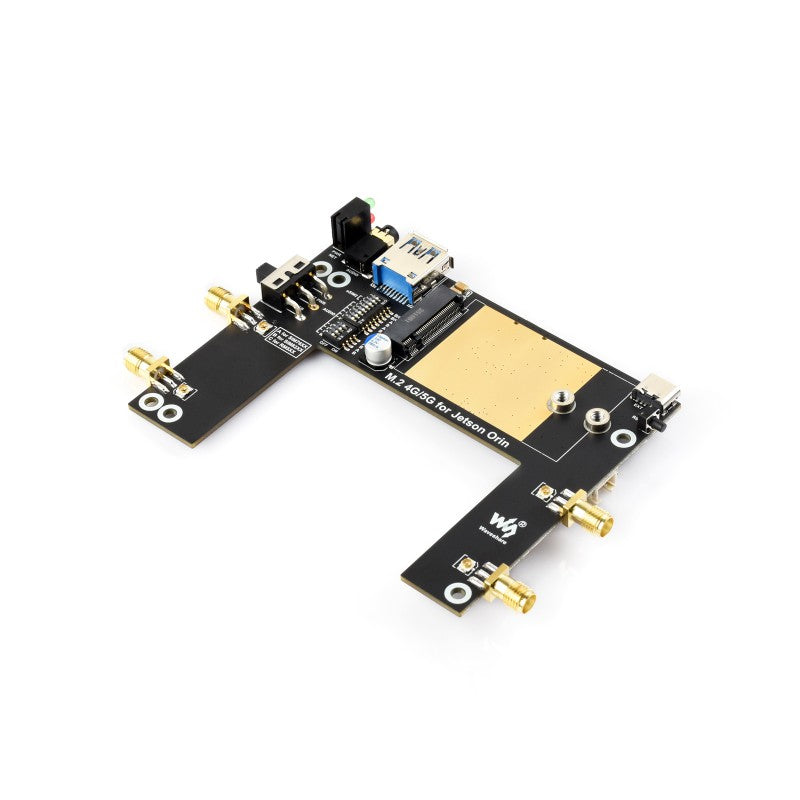

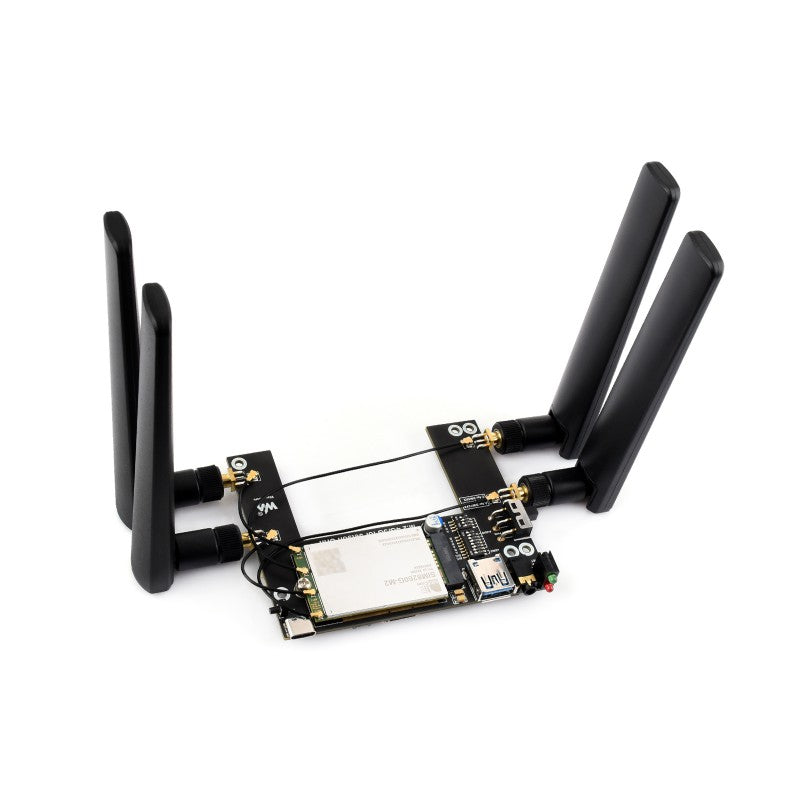

Equipped with a high-performance 5G Sub-6G module
supports 5G NSA and SA networking, GNSS Positioning
Ā
| Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode multi-band support |
| Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS |
| USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 5G network |
| Onboard standard M.2 B KEY slot and module selection switches, compatible with SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules |
| 4 x SMA antenna connectors, easy to install the antennas |
| Reserved UART solder pads for convenient data transmission and other functions with certain modules |
| Onboard 1-ch Nano SIM card slot and 1-ch eSIM slot in QFN-8 (5 Ć 6) package, supporting dual SIM single standby, switchable via AT command |
| Onboard audio interface and audio decoding chip, enabling voice operations such as making calls by using SIMXXX series modules |
| Onboard power switch, reset button, and LED indicator for convenient power control and status monitoring |
| Onboard high-efficiency power supply circuit, up to 3A output current |
Ā
| 5G / 4G Module | SIM8260G-M2 | SIM8262E-M2 | RM520N-GL | SIM7600G-H-M.2 |
|---|---|---|---|---|
| Images |  |
 |
 |
 |
| 5G Standard | 3GPP R16 | 3GPP R16 | 3GPP R16 | - |
| Chip Solution | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X62 | Qualcomm MDM9607 |
| Applicable Regions | Global | Except Americas | Global | Global |
| Dimensions (mm) | 30.0 Ć 52.0 Ć 2.3 | 30.0 Ć 42.0 Ć 2.3 | 30.0 Ć 52.0 Ć 2.3 | 42.0 Ć 31.4 Ć 3.8 |
| Frequency Band | ||||
| 5G SA | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | n1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | - |
| 5G NSA | n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | - |
| LTE-FDD | B1āB5, B7, B8, B12āB14, B17āB20, B25āB30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B1āB5, B7, B8, B12āB14, B17āB20, B25, B26, B28āB30, B32, B66, B71 | B1āB5, B7, B8, B12, B13, B18āB20, B25, B26, B28, B66 |
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B46, B48 Ā Ā | B38, B39, B40, B41, B42, B43 Ā Ā | B34, B38, B39, B40, B41, B42, B43, B48 Ā Ā | B34, B38, B39, B40, B41 |
| WCDMA | B1, B2, B4, B5, B8, B19 Ā Ā | B1, B5, B8 | B1, B2, B4, B5, B8, B19 | B1, B2, B4, B5, B6, B8, B19 |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS | |||
| Data Rate (SA) | 2.5Gbps / 0.9Gbps | 2.4Gbps / 1Gbps | 2.4Gbps / 900Mbps | - |
| Data Rate (NSA) | 3.47Gbps / 460Mbps | 3.4Gbps / 600Mbps | 3.4Gbps / 550Mbps | - |
| LTE | 1.6Gbps / 200Mbps | 1.6Gbps / 200Mbps | 1.6Gbps / 200Mbps | 150Mbps / 50Mbps |
| HSPA+ | 42Mbps / 5.76Mbps | 42Mbps / 5.76Mbps | 42Mbps / 5.76Mbps | 42Mbps / 5.76Mbps |
Ā
based on the Qualcomm platform, supports 5G NSA and SA networking and multi-mode multi-band capabilities, suitable for a wide range of application scenarios
* the frequency band diagram above is for reference only,
please confirm the supported bands according to your local service provider.
Ā
Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use
Ā
Enabling 5G high speed connection for Jetson Orin / PC / Raspberry Pi
Connecting Jetson Orin to Internet
Ā
Connecting Windows to Internet
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.
Ā
Supported Communication Protocols:
TCP / IP / IPv4 / IPv6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0
Ā
Allows using AT commands to make phone call via Audio jack or send SMS
Ā
Ā
|

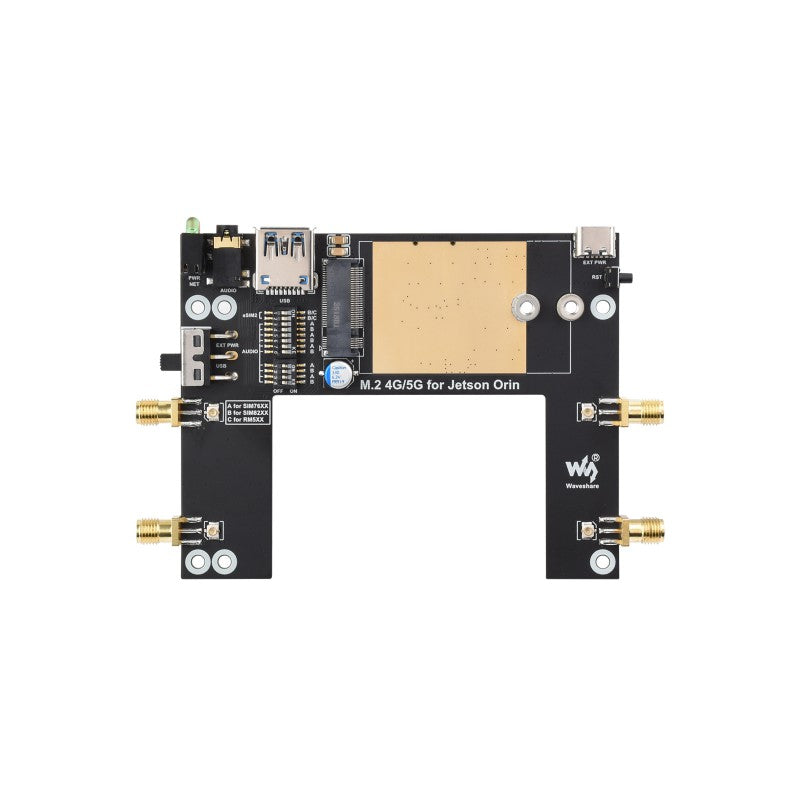

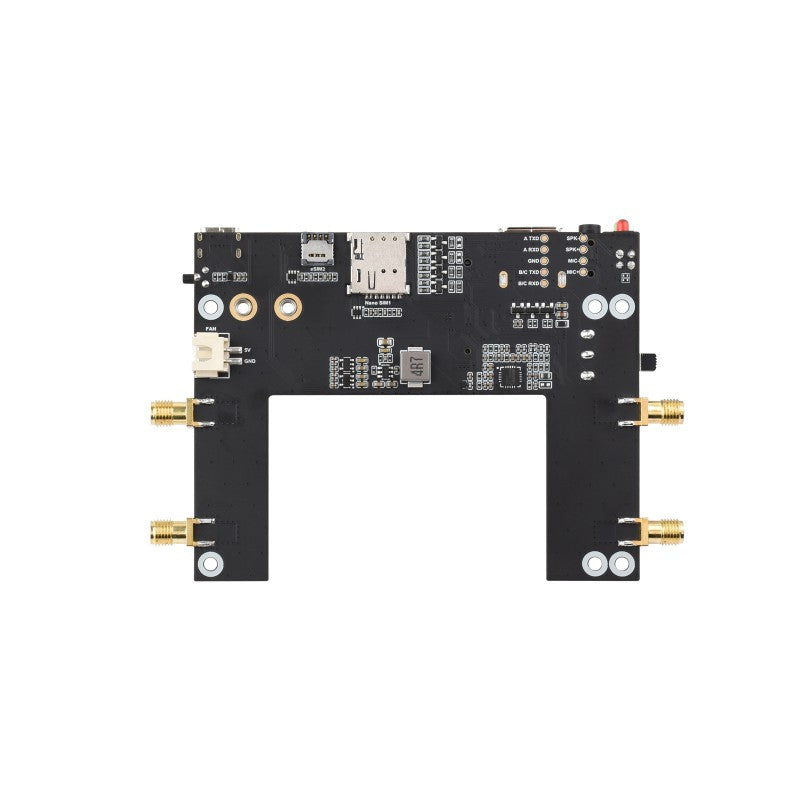

1. USB3.1 port USB 2.0 compatible, for connecting with different hosts |
11. eSIM card slot QFN-8 (5 Ć 6) package, configurable via AT commands |
|
2. M.2 slot compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor |
12. Nano SIM card slot onboard dual SIM card slots, dual card single standby |
|
3. USB Type-C port 5V 3A power input, stable and flexible power supply |
13. Level conversion circuit |
| 4. Reset button | 14. Reserved UART and audio interface pads |
|
5. Module fixing holes supports 3042 / 3052 package modules |
15. Mounting holes for installing this module onto the Jetson Orin board via screws |
|
6. Antenna connectors Supports quad antennas |
16. Audio drive circuit |
|
7. Module settings switch Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules |
17. Power supply circuit |
|
8. Power supply switch Switch the power supply mode: When set to USB ā powered via "1. USB3.1 port" When set to EXT PWR ā powered via "3. USB Type-C port" |
18. Fan header for 5V cooling fan |
|
9. Indicator Easy to monitor the operating status of module |
|
|
10. Audio jack SIM82XX / SIM7600X series supports audio function, but RM5XX series does not support this |
Ā
* for reference only, please refer to the package content for detailed part list
Ā
Ā
Wiki:Ā www.waveshare.com/wiki/SIM8260G-M2_5G_for_Jetson_Orin
Ā

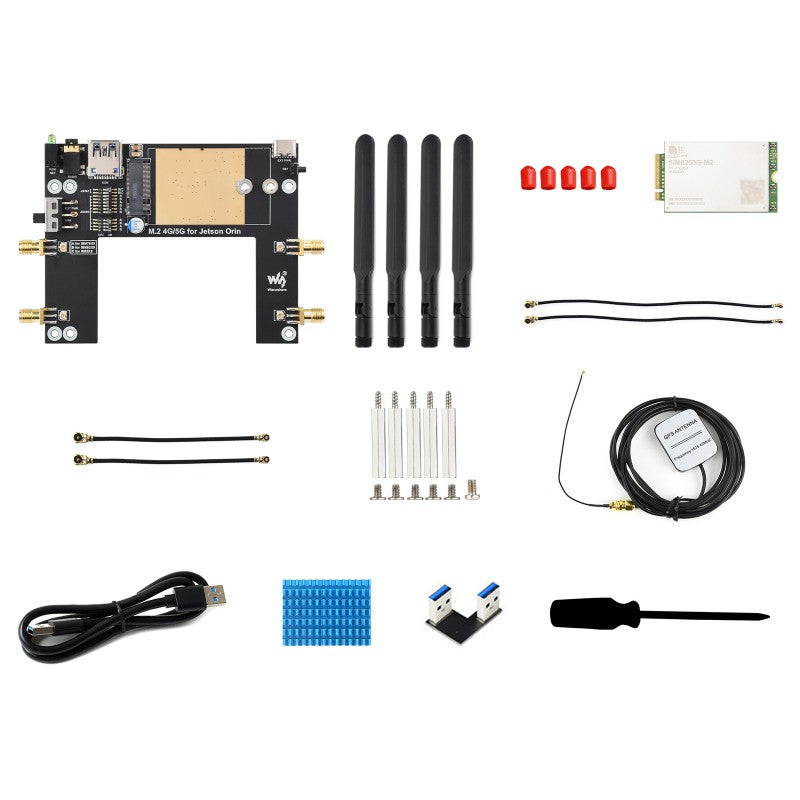

1. Jetson Orin M.2 4G / 5G expansion board x1
2. 5G antenna x4
3. SMA protective cap (5PCS) x1
4. SIM8262E-M2 x1
5. IPEX1 to IPEX4 adapter cable ~13cm x2
6. IPEX1 to IPEX4 adapter cable ~5cm x2
7. Screws pack x1
8. GPS External Antenna (C) x1
9. Dual plug USB3.0 Type-A cable x1
10. Heatsink x1
11. USB 3.0 Adapter (C) x1
12. Screwdriver x1
