5G DONGLE Expansion Board

5G M.2 to USB 3.2 Port

Supports SIMCom / Quectel / Fibocom Mainstream 5G M.2 Modules
Compatible With 3042 / 3052 Packages

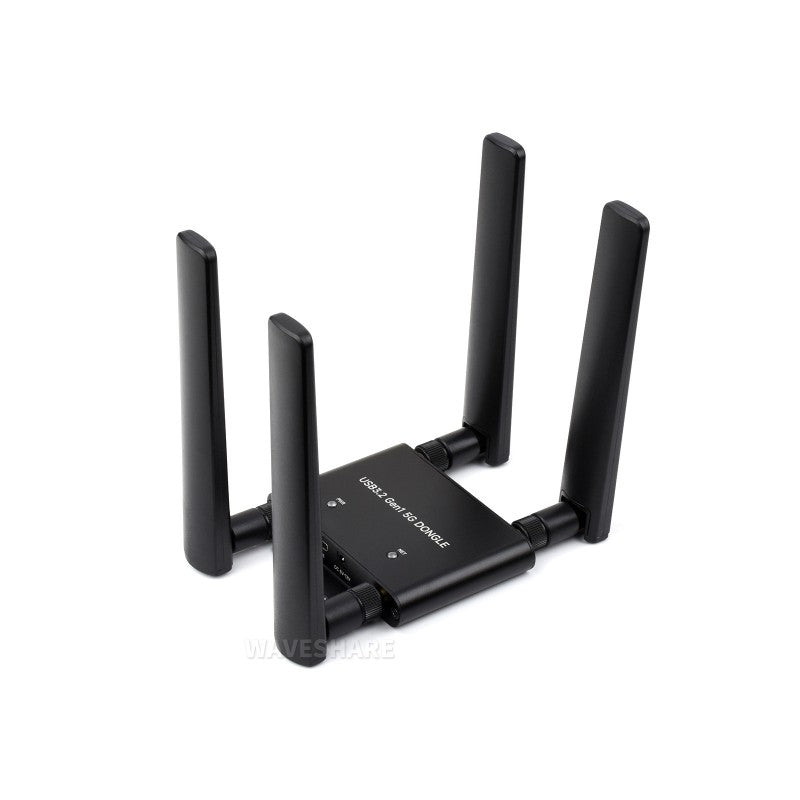

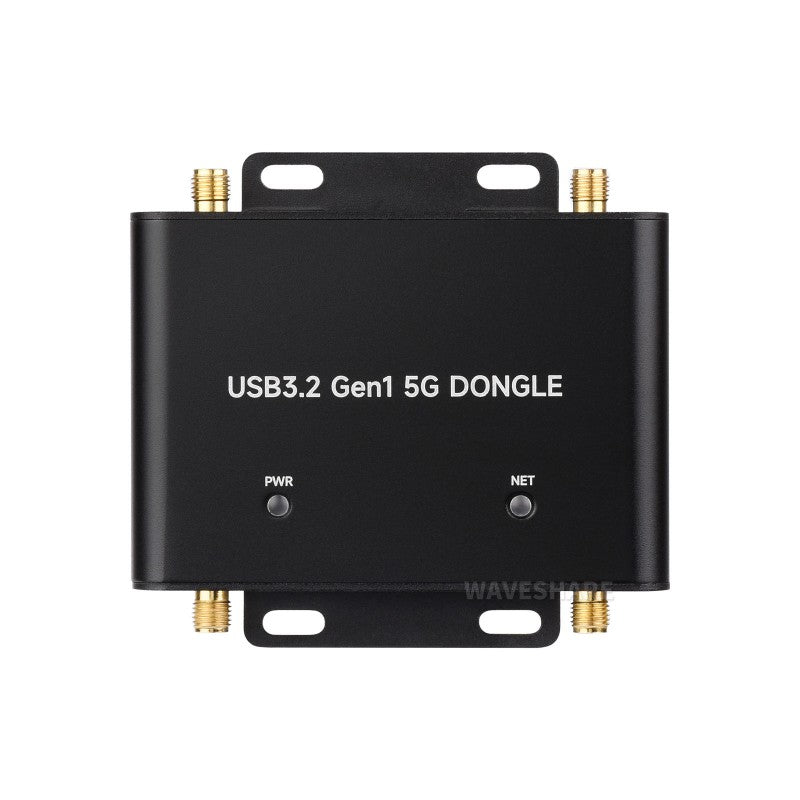

5G DONGLE Expansion Board, front view

Ā

Features

  • Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from brands such as SIMCom, Quectel, and Fibocom
  • Supports 5G modules in 3042 / 3052 packages such as SIM82XX, RM5XX and FM650XX series
  • Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input
  • Built-in UART communication interface for data transmission and other functions with some modules
  • Onboard 4-ch IPEX 4 to SMA antenna connector for direct mounting of antennas
  • Onboard voltage translator circuit, supports 5 ~ 12V power supply via DC 3.5mm jack, or 5V / 2A power supply via USB 3.2 port
  • Onboard 1-ch standard SIM card slot, 1-ch eSIM card slot in QFN-8 (5x6) package, dual card single standby, switchable via AT command
  • Onboard power supply and network indicators for checking working status of the module and 5G debugging
  • Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support

Ā Ā

Compatible 5G Modules

MODEL SIM8202G-M2 SIM8262E-M2 SIM8262A-M2 RM520N-GL RM530N-GL
5G STANDARD 3GPP R15 3GPP R16
APPLICABLE REGIONS except Americas Americas Global
CHIP Qualcomm Snapdragon X55 Qualcomm Snapdragon X62
FREQUENCY BAND
SUB-6G n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48 B38, B39, B40, B41, B42, B43 B41, B46, B48 B34, B38, B39, B40, B41, B42, B43, B48
LAA - B46
WCDMA B1, B2, B3, B4, B5, B8 B1, B5, B8 B2, B4, B5 B1, B2, B4, B5, B8, B19
GNSS Supports GPS / GLONASS / BeiDou(Compass) / Galileo / QZSS
DATA RATE
SUB-6G 2.4Gbps (DL) / 500Mbps (UL) 5G NR SA: 2.4Gbps (DL) / 900Mbps (UL)
5G NR NSA: 3.4Gbps (DL) / 550Mbps (UL)
LTE 1.0Gbps (DL) / 200Mbps (UL) 1.6Gbps (DL) / 200Mbps (UL)
UMTS 42Mbps (DL) / 5.76Mbps (UL)
DIMENSIONS 42.0 Ɨ 30.0 Ɨ 2.3mm 52.0 Ɨ 30.0 Ɨ 2.3mm
Note: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.


Ā

Multiple Size Compatible

Supports 3042 / 3052 Packages

5G DONGLE Expansion Board, multiple size compatible<

Ā

Connection Examples

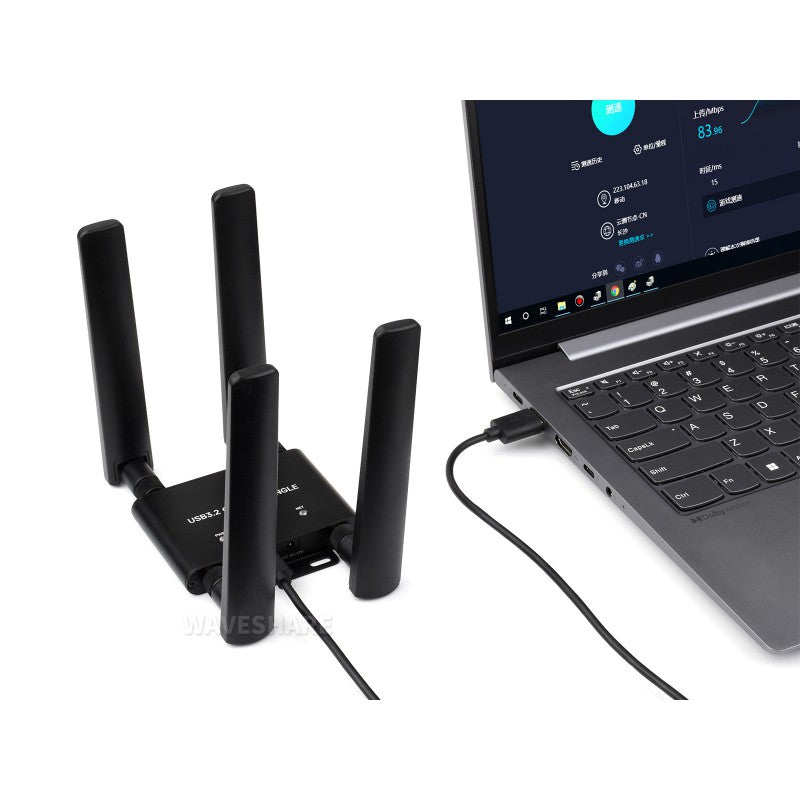

Connect To Windows PCs, Raspberry Pi Motherboards
And Jetson Nano Series Motherboards Via USB Port For 5G Networking

5G DONGLE Expansion Board connecting to Raspberry Pi 5

Connect to Raspberry Pi 5

 5G DONGLE Expansion Board connecting to CM5-PoE-BASE-A

Connect to CM5-PoE-BASE-A

 5G DONGLE Expansion Board connecting to Jetson Nano

Connect to Jetson Nano

* for reference only, please refer to the Package Content for the detailed part list.

Ā

Multi System Support, Easy To Use

Supports Windows / Linux...

Just plug it into USB port, go through some simple configuration,
the high speed 5G network connection will be ready to use

5G DONGLE Expansion Board, multi system support

Ā

Application Scenarios

5G DONGLE Expansion Board, application scenarios

Ā

Interface Introduction

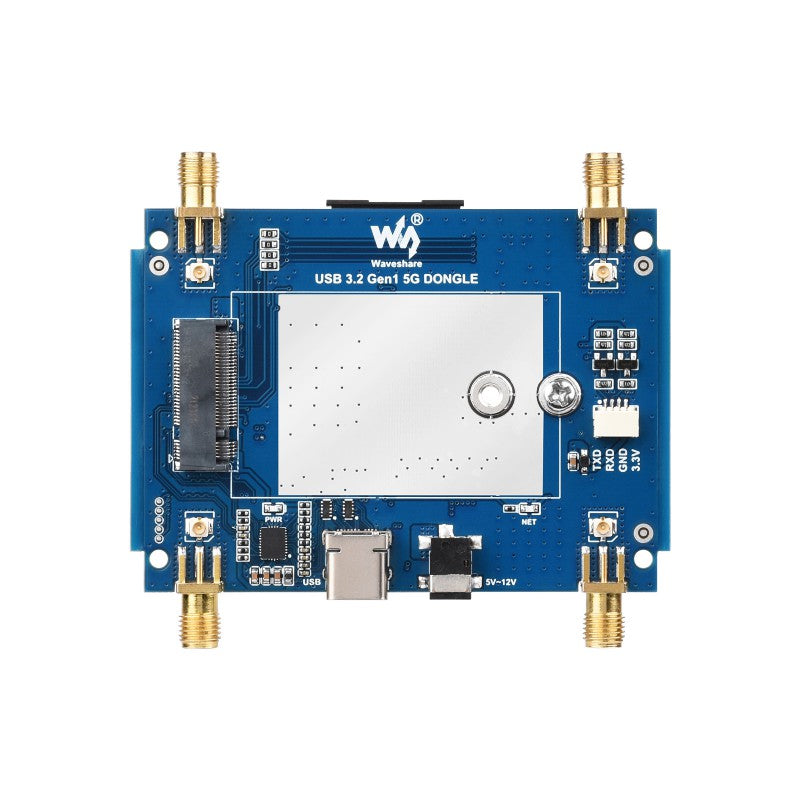

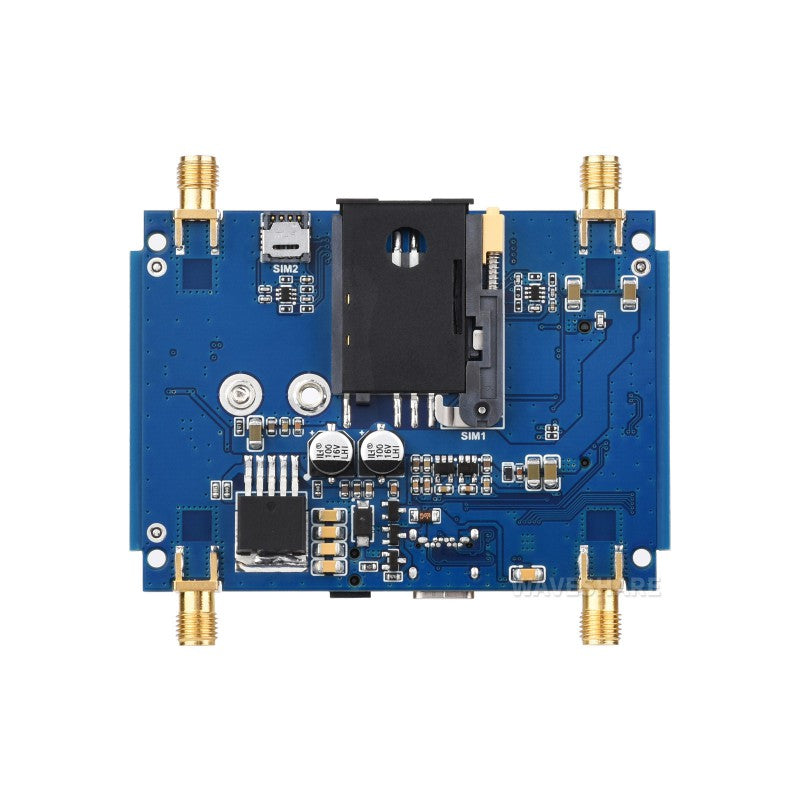

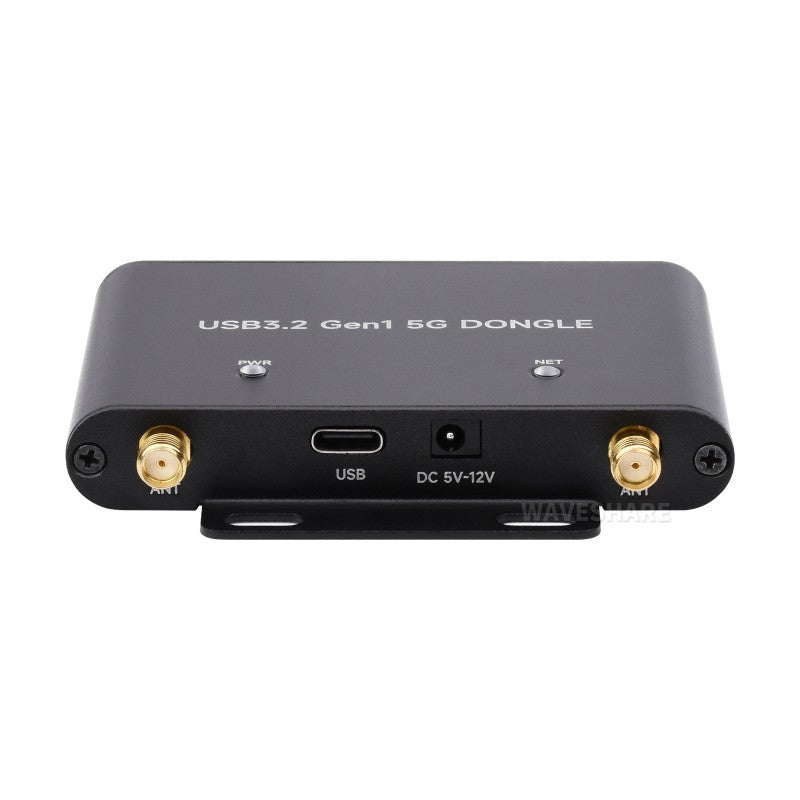

5G DONGLE Expansion Board, interface introduction

Ā

Industrial Grade Aluminium Alloy Enclosure

Aluminum Alloy Enclosure With Oxidation Dull-Polish Surface,
Solid And Durable, Compact Size, Desktop Or Wall-Mount Support

5G DONGLE Expansion Board, desktop mount support 5G DONGLE Expansion Board, wall-mount support


Outline Dimensions
5G DONGLE Expansion Board, outline dimensions
Note: The above dimensions are measured manually, there is a certain error

Ā

5G Module Installation Introduction

5G DONGLE Expansion Board, installation Introduction

Ā

Ā

Resources

Wiki:Ā www.waveshare.com/wiki/USB_3.2_Gen1_5G_DONGLE

Ā

Ā

Kit Selection

MODEL APPLICATION

USB 3.2 Gen1 5G DONGLE		 The 5G module needs to be purchased separately. Compatible with SIMCom / Quectel / Fibocom 5G M.2 modules in the table above

SIM8202G-M2 5G DONGLE (B)		 Comes with the SIM8202G-M2 5G module, applicable for countries or regions except the Americas. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.

SIM8262E-M2 5G DONGLE (B)		 Comes with the SIM8262E-M2 5G module, applicable for countries or regions except the Americas. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.

SIM8262A-M2 5G DONGLE (B)		 Comes with the SIM8262A-M2 5G module, applicable for the Americas. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.

RM520N-GL 5G DONGLE (B)		 Comes with the Qualcomm RM520N-GL 5G Sub-6G module, global applicable. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.

RM530N-GL 5G DONGLE (B) 		Comes with the Qualcomm RM530N-GL 5G Sub-6G & mmWave module, global applicable. Onboard USB 3.2 Type-C port for fast 5G networking access and module evaluation.

Ā

Package Contents:

Weight: 0.118 kg

USB 3.2 Gen1 5G DONGLE with Optional 5G Module

  1. USB 3.2 Gen1 5G DONGLE x1
  2. Optional 5G Module
  3. 5G antenna x4
  4. USB Type-A to Type-C cable ~1m x1
  5. IPEX adapter cable ~6cm (4pcs) x1
  6. IPEX adapter cable ~13cm x1
  7. Thermal pad x1
  8. SMA protective cap (4pcs) x1

What modules and package sizes are supported by this 5G DONGLE expansion board?
It supports 5G modules with M.2 NGFF Key B interface in 3042 and 3052 packages from SIMCom, Quectel and Fibocom. Examples include SIM82XX, RM520N-GL, RM530N-GL and FM650XX series. The exact module compatibility should be tested for models not listed.
How do I connect to a host and how is the device powered?
The board uses a USB 3.2 Gen1 Type-C port for connection to Windows PCs, Raspberry Pi and other hosts. Power can be supplied via the USB port (5V 2A) or via the DC 3.5 mm jack (5 to 12 V) using the onboard voltage translator.
How many SIM options are available and how do I switch between SIM and eSIM?
There is one standard SIM card slot and one eSIM slot in the QFN-8 package, enabling dual card single standby. The active SIM can be switched via AT command.
What is included in the package and is the 5G module included?
The kit includes the USB 3.2 Gen1 5G DONGLE, an optional 5G module, 5G antennas, a USB Type-A to Type-C cable, IPEX adapter cables, a thermal pad and SMA protective caps. The 5G module is optional and must be purchased separately.
What are the physical features and mounting options of the enclosure?
The enclosure is made of aluminum alloy with an oxidation dull polish finish, compact in size, and supports desktop or wall mounting. It also provides onboard 4 to SMA IPEX antenna connectors and status indicators for power and network.
