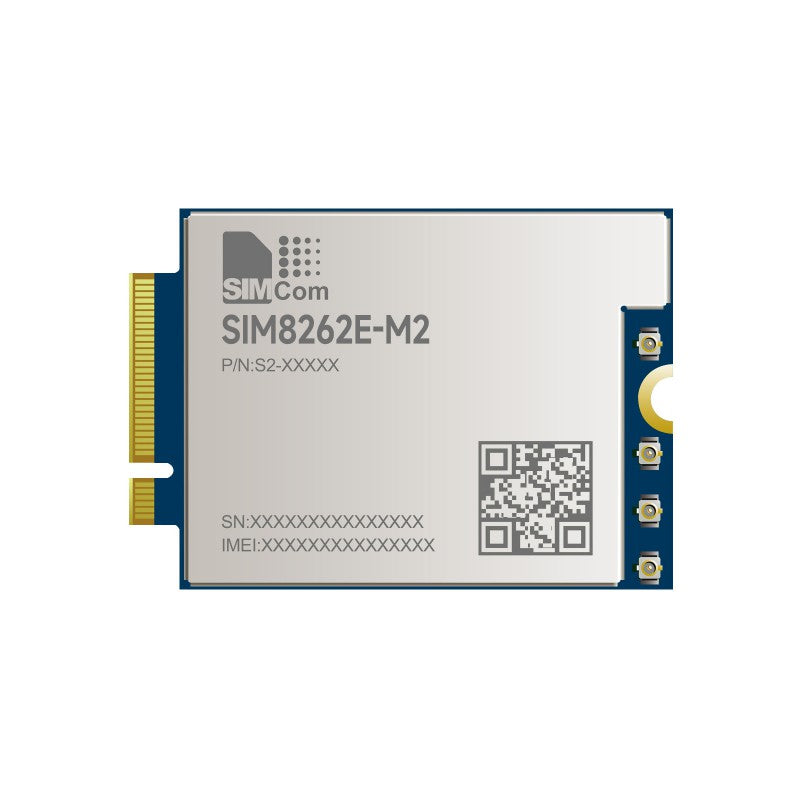

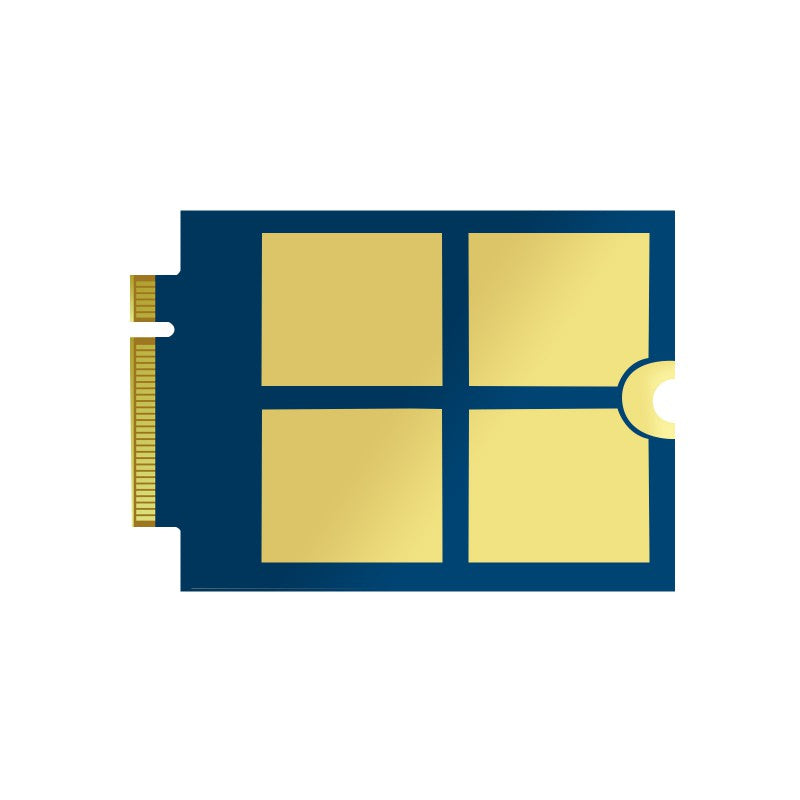

Name: SIM8262E-M2 SIMCom original M.2 5G module
Brand: Waveshare
SKU: ELC8069
Price: 20799.99 INR
Availability: InStock

{"id":8084170867005,"title":"SIM8262E-M2 SIMCom original M.2 5G module","handle":"sim8262e-m2-simcom-original-m-2-5g-module","description":"\u003ch2 style=\"text-align: center;\" data-mce-fragment=\"1\" data-mce-style=\"text-align: center;\"\u003eSIM8262E-M2\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cdiv class=\"bgImg pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch3 class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eSIMCom 5G Module Sub-6G Module Based On Qualcomm Snapdragon X62\u003cbr\u003eAdopt 3GPP 5G Release 16\u003c\/h3\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIMCOM-Series\/SIM8262E-M2-details-1.png\" class=\"mgnTB\" style=\"float: none;\" data-mce-style=\"float: none;\"\u003e\n\u003cdiv class=\"alignl subBlock pdTRBL2\"\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eThe SIM8262E-M2 is the Multi-Band 5G NR\/LTE-FDD\/LTE-TDD\/HSPA+ module which supports R16 5G NSA\/SA up to 2.4Gbps data transfer.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eIt has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eThe SIM8262E-M2 adopts M.2 form factor, and AT commands are compatible with the SIM7912G\/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eIt is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\u003ca href=\"https:\/\/drive.google.com\/drive\/folders\/1Ha2-fP3HoJa_0GnW-bnakgmZaGKgtmXy?usp=sharing\" rel=\"noopener noreferrer\" target=\"_blank\"\u003eDocumentation to make it work with Jio 5G SIM (India)\u003c\/a\u003e . \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch3 class=\"richTitle\"\u003e \u003c\/h3\u003e\n\u003ch3 class=\"richTitle\"\u003eProduct Advantages\u003c\/h3\u003e\n\u003cdiv class=\"bgGrey alignl subBlock mgnTB\"\u003e\n\u003cul\u003e\n\u003cli\u003eStandard M.2 interface.\u003c\/li\u003e\n\u003cli\u003eHigh throughput data communication.\u003c\/li\u003e\n\u003cli\u003eAT commands of the SIM8262E-M2 are compatible with SIM7912G\/SIM8200X-M2 series modules\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch3 class=\"richTitle\"\u003e \u003c\/h3\u003e\n\u003ch3 class=\"richTitle\"\u003eSpecifications\u003c\/h3\u003e\n\u003ctable class=\"tabSty-2 mgnTB subBlock alignl\" style=\"width: 564.734px;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 105px;\"\u003e \u003c\/th\u003e\n\u003cth style=\"width: 110px;\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8200-m2.htm\" target=\"_blank\"\u003eSIM8200EA-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth style=\"width: 104px;\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8202x-m2.htm\" target=\"_blank\"\u003eSIM8202G-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth style=\"width: 108px;\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/SIM8262E-M2.htm\" target=\"_blank\"\u003eSIM8262E-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth style=\"width: 101.734px;\"\u003eSIM8262A-M2\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 105px;\"\u003e5G STANDARD\u003c\/th\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003e3GPP R15\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 209.734px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 105px;\"\u003eCHIP\u003c\/th\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eQualcomm Snapdragon X55\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 209.734px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eFREQUENCY BAND\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd style=\"width: 110px;\"\u003en1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78\u003c\/td\u003e\n\u003ctd style=\"width: 104px;\"\u003en1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003en2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eLTE-FDD\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eB1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eB2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eLTE-TDD\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eB34, B38, B39, B40, B41, B42, B43, B48\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eB38, B39, B40, B41, B42, B43\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eB41, B46, B48\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eWCDMA\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eB1, B2, B3, B4, B5, B8\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eB2, B4, B5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eGNSS\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eGPS, GLONASS, Beidou, Galileo, and QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eDATA RATE\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e2.4 Gbps (DL) \/ 500 Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eLTE\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e1 Gbps (DL) \/ 200 Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eHSPA+\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e42 Mbps (DL) \/ 5.76 Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eSOFTWARE FUNCTIONS\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eOperating systems\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eWindows\/Linux\/Android\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eCommunication protocols\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eTCP\/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eDial Up\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eRNDIS、NDIS、PPP、MBIM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSMS\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eSupports MT, MO, CB, Text, PDU\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eFirmware upgrade\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eSupports firmware upgrade via USB port\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eHARDWARE SPECIFICATIONS\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSIM Card\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e1.8V\/2.95V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" style=\"width: 105px;\"\u003eAntenna\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eFor 3G\/4G\/5G\/GNSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 110px;\"\u003e6 × IPEX-4 connectors\u003c\/td\u003e\n\u003ctd colspan=\"3\" style=\"width: 313.734px;\"\u003e4 × IPEX-4 connectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e3.135~4.4V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eForm Factor\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eM.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eDimensions\u003c\/td\u003e\n\u003ctd style=\"width: 110px;\"\u003e52.0 × 30.0 × 2.3 mm\u003c\/td\u003e\n\u003ctd colspan=\"3\" style=\"width: 313.734px;\"\u003e42.0 × 30.0 × 2.3 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e-30℃ ~ +70℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eAPPLICATIONS\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" style=\"width: 105px;\"\u003eApplicable regions\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eChina, US, Japan, South Korea, Europe, the Middle East, Latin America\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eexcept Americas\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eAmericas\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eThe applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eApplication examples\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eCPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv class=\"richTitle\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cbr\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/SIM8262E-M2_5G_HAT\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/SIM8262E-M2_5G_HAT\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2023-01-19T22:53:13+05:30","created_at":"2023-01-19T22:53:11+05:30","vendor":"Waveshare","type":"","tags":["23145","3GPP R15","4G","4G module","5g","5G module","5G-MOD","GPRS","GPS-MOD","HSPA","IOT-MOD","LTE","M.2","M2","Qualcomm","sim","SIM7600G-H","sim800 core","SIM8200EA","SIM8200EA-M2","SIM8202G","SIM8202G-M2","SIM8262A","SIM8262A-M2","SIM8262E","SIM8262E-M2","SIMCom","Snapdragon","Waveshare","WVSH","X55"],"price":2079999,"price_min":2079999,"price_max":2079999,"available":true,"price_varies":false,"compare_at_price":2499999,"compare_at_price_min":2499999,"compare_at_price_max":2499999,"compare_at_price_varies":false,"variants":[{"id":44395458822461,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC8069","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SIM8262E-M2 SIMCom original M.2 5G module","public_title":null,"options":["Default Title"],"price":2079999,"weight":50,"compare_at_price":2499999,"inventory_management":"shopify","barcode":"44395458822461","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/products\/sim8262e-m2-1.jpg?v=1674148994","\/\/thinkrobotics.com\/cdn\/shop\/products\/sim8262e-m2-2.jpg?v=1674148994"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/products\/sim8262e-m2-1.jpg?v=1674148994","options":["Title"],"media":[{"alt":null,"id":32582134432061,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/sim8262e-m2-1.jpg?v=1674148994"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/sim8262e-m2-1.jpg?v=1674148994","width":800},{"alt":null,"id":32582134464829,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/sim8262e-m2-2.jpg?v=1674148994"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/sim8262e-m2-2.jpg?v=1674148994","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2 style=\"text-align: center;\" data-mce-fragment=\"1\" data-mce-style=\"text-align: center;\"\u003eSIM8262E-M2\u003cbr\u003e\n\u003c\/h2\u003e\n\u003cdiv class=\"bgImg pdT\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003e\n\u003ch3 class=\"richDesc\" style=\"text-align: center;\" data-mce-style=\"text-align: center;\"\u003eSIMCom 5G Module Sub-6G Module Based On Qualcomm Snapdragon X62\u003cbr\u003eAdopt 3GPP 5G Release 16\u003c\/h3\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/SIMCOM-Series\/SIM8262E-M2-details-1.png\" class=\"mgnTB\" style=\"float: none;\" data-mce-style=\"float: none;\"\u003e\n\u003cdiv class=\"alignl subBlock pdTRBL2\"\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eThe SIM8262E-M2 is the Multi-Band 5G NR\/LTE-FDD\/LTE-TDD\/HSPA+ module which supports R16 5G NSA\/SA up to 2.4Gbps data transfer.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eIt has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eThe SIM8262E-M2 adopts M.2 form factor, and AT commands are compatible with the SIM7912G\/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003eIt is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.\u003c\/p\u003e\n\u003cp style=\"text-align: left;\" data-mce-style=\"text-align: left;\"\u003e\u003ca href=\"https:\/\/drive.google.com\/drive\/folders\/1Ha2-fP3HoJa_0GnW-bnakgmZaGKgtmXy?usp=sharing\" rel=\"noopener noreferrer\" target=\"_blank\"\u003eDocumentation to make it work with Jio 5G SIM (India)\u003c\/a\u003e . \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch3 class=\"richTitle\"\u003e \u003c\/h3\u003e\n\u003ch3 class=\"richTitle\"\u003eProduct Advantages\u003c\/h3\u003e\n\u003cdiv class=\"bgGrey alignl subBlock mgnTB\"\u003e\n\u003cul\u003e\n\u003cli\u003eStandard M.2 interface.\u003c\/li\u003e\n\u003cli\u003eHigh throughput data communication.\u003c\/li\u003e\n\u003cli\u003eAT commands of the SIM8262E-M2 are compatible with SIM7912G\/SIM8200X-M2 series modules\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch3 class=\"richTitle\"\u003e \u003c\/h3\u003e\n\u003ch3 class=\"richTitle\"\u003eSpecifications\u003c\/h3\u003e\n\u003ctable class=\"tabSty-2 mgnTB subBlock alignl\" style=\"width: 564.734px;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 105px;\"\u003e \u003c\/th\u003e\n\u003cth style=\"width: 110px;\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8200-m2.htm\" target=\"_blank\"\u003eSIM8200EA-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth style=\"width: 104px;\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/sim8202x-m2.htm\" target=\"_blank\"\u003eSIM8202G-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth style=\"width: 108px;\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/SIM8262E-M2.htm\" target=\"_blank\"\u003eSIM8262E-M2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth style=\"width: 101.734px;\"\u003eSIM8262A-M2\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 105px;\"\u003e5G STANDARD\u003c\/th\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003e3GPP R15\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 209.734px;\"\u003e3GPP R16\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 105px;\"\u003eCHIP\u003c\/th\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eQualcomm Snapdragon X55\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 209.734px;\"\u003eQualcomm Snapdragon X62\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eFREQUENCY BAND\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd style=\"width: 110px;\"\u003en1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78\u003c\/td\u003e\n\u003ctd style=\"width: 104px;\"\u003en1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003en1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003en2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eLTE-FDD\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eB1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eB2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eLTE-TDD\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eB34, B38, B39, B40, B41, B42, B43, B48\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eB38, B39, B40, B41, B42, B43\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eB41, B46, B48\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eWCDMA\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eB1, B2, B3, B4, B5, B8\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eB1, B5, B8\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eB2, B4, B5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eGNSS\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eGPS, GLONASS, Beidou, Galileo, and QZSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eDATA RATE\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSub-6G\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e2.4 Gbps (DL) \/ 500 Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eLTE\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e1 Gbps (DL) \/ 200 Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eHSPA+\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e42 Mbps (DL) \/ 5.76 Mbps (UL)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eSOFTWARE FUNCTIONS\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eOperating systems\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eWindows\/Linux\/Android\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eCommunication protocols\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eTCP\/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eDial Up\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eRNDIS、NDIS、PPP、MBIM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSMS\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eSupports MT, MO, CB, Text, PDU\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eFirmware upgrade\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eSupports firmware upgrade via USB port\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eHARDWARE SPECIFICATIONS\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eSIM Card\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e1.8V\/2.95V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" style=\"width: 105px;\"\u003eAntenna\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eFor 3G\/4G\/5G\/GNSS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 110px;\"\u003e6 × IPEX-4 connectors\u003c\/td\u003e\n\u003ctd colspan=\"3\" style=\"width: 313.734px;\"\u003e4 × IPEX-4 connectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e3.135~4.4V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eForm Factor\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eM.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eDimensions\u003c\/td\u003e\n\u003ctd style=\"width: 110px;\"\u003e52.0 × 30.0 × 2.3 mm\u003c\/td\u003e\n\u003ctd colspan=\"3\" style=\"width: 313.734px;\"\u003e42.0 × 30.0 × 2.3 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003e-30℃ ~ +70℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth colspan=\"5\" style=\"width: 528.734px;\"\u003e\u003cstrong\u003eAPPLICATIONS\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" style=\"width: 105px;\"\u003eApplicable regions\u003c\/td\u003e\n\u003ctd colspan=\"2\" style=\"width: 214px;\"\u003eChina, US, Japan, South Korea, Europe, the Middle East, Latin America\u003c\/td\u003e\n\u003ctd style=\"width: 108px;\"\u003eexcept Americas\u003c\/td\u003e\n\u003ctd style=\"width: 101.734px;\"\u003eAmericas\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eThe applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 105px;\"\u003eApplication examples\u003c\/td\u003e\n\u003ctd colspan=\"4\" style=\"width: 423.734px;\"\u003eCPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv class=\"richTitle\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cbr\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003cstrong\u003eWiki:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/SIM8262E-M2_5G_HAT\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/SIM8262E-M2_5G_HAT\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

SIM8262E-M2 SIMCom original M.2 5G module

SIM8262E-M2

SIMCom 5G Module Sub-6G Module Based On Qualcomm Snapdragon X62
Adopt 3GPP 5G Release 16

Product Advantages

Specifications

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

	SIM8200EA-M2	SIM8202G-M2	SIM8262E-M2	SIM8262A-M2
5G STANDARD	3GPP R15		3GPP R16
CHIP	Qualcomm Snapdragon X55		Qualcomm Snapdragon X62
FREQUENCY BAND
Sub-6G	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71		B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48		B38, B39, B40, B41, B42, B43	B41, B46, B48
WCDMA	B1, B2, B3, B4, B5, B8		B1, B5, B8	B2, B4, B5
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
DATA RATE
Sub-6G	2.4 Gbps (DL) / 500 Mbps (UL)
LTE	1 Gbps (DL) / 200 Mbps (UL)
HSPA+	42 Mbps (DL) / 5.76 Mbps (UL)
SOFTWARE FUNCTIONS
Operating systems	Windows/Linux/Android
Communication protocols	TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
Dial Up	RNDIS、NDIS、PPP、MBIM
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	Supports firmware upgrade via USB port
HARDWARE SPECIFICATIONS
SIM Card	1.8V/2.95V
Antenna	For 3G/4G/5G/GNSS
Antenna	6 × IPEX-4 connectors	4 × IPEX-4 connectors
Power Supply	3.135~4.4V
Form Factor	M.2
Dimensions	52.0 × 30.0 × 2.3 mm	42.0 × 30.0 × 2.3 mm
Operating Temperature	-30℃ ~ +70℃
APPLICATIONS
Applicable regions	China, US, Japan, South Korea, Europe, the Middle East, Latin America		except Americas	Americas
Applicable regions	The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands
Application examples	CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
