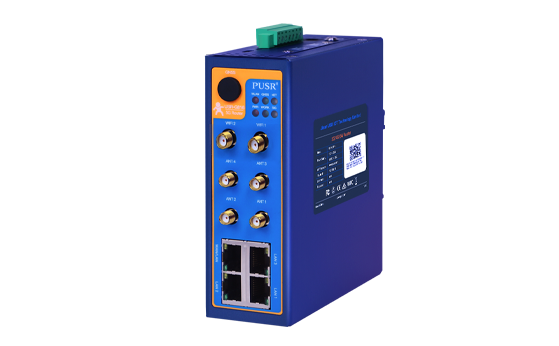

USR-G816 is a 5G multi-port industrial router with high speed, large bandwidth, and low latency features. It adopts industrial-grade design standards and supports wide-temperature and wide-voltage terminal power supply, industrial EMC protection, and hardware watchdog.
Ā
Ā
Ā
Cellular wired and Wi-Fi internet access modes can be switched freely. Service can be recovered in time when a network exception occurs. Ethernet & Wi-Fi & serial terminalĀ can connect to the router for data transmission.
Ā
Ā
ā¢ Support SA/NSA 5G Network
ā¢ Support APN & VPDN & IoT SIM Card
ā¢ Support Global Mainstream 5G/4G Frequency Bands
Ā
Ā
Equipped with Qualcomm's high-performance 4-core processor and X62
5G Modem, it supports both SA+NSA networks and global mainstream
frequency bands, providing an ultra-fast 5G internet experience.
Ā
Ā
Ā
Ā
Metal housing, industrial-grade electronic components,
efficient heat dissipation design, all of these are designed to ensure
stable operation in harsh environments ranging from -35ĀŗC to 75ĀŗC.
Ā
Ā
Comprehensive VPN protocols support ensures your data security,
including OpenVPN, IPsec, PPTP, L2TP and GRE.
Multiple encryption method makes financial-grade data transmission.
Ā
Ā
Easy to use, but also professional
ā¢ Allows to connect to three different OpenVPN servers as
a client and also function as an OpenVPN server.
Ā
Ā
USR Remote Management platform is an all-in-one user-friendly loT platform
providing a smart way to manage your device remotely, securely and reliably.
Ā
Ā
1. Device offline alarm, weak signal alarm, network traffic overrun.
All of this can be alarmed in real time.
2. Multiple alarm push ways such as E-mail, SMS. Repeated push supported.
Ā
Ā
Ā
Ā
**Power Adapter is not included in the box.
Please use this link to add it to your cart: 12V 1A (12W) Power Adapter
Ā
Ā
Ā
Ā
| USR-G816 Specifications | |
|---|---|
| Cellular Interface | |
| Frequency |
5G NR sub-6 GHz (3GPP Rel-16) Band (NA/NSA):Ā n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/ 4G LTE (CAT19 DL / CAT 18 UL) LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/ LTE-TDD: B34/38/39/40/41/42/43/48; LAA: B46; 3GWCDMA: B1/2/4/5/8/19 |
| Maximum Transmission Data Rate |
5G SA Sub-6: Max. 2.4Gbps (DL)/Max. 900Mbps (UL); 5G NSA Sub-6: Max. 3.4Gbps (DL)/Max. 550Mbps (UL); LTE-FDD: Max. 1.6Gbps (DL)/Max. 200Mbps (UL); WCDMA: Max. 42 (DL)/Max. 5.76 (UL) |

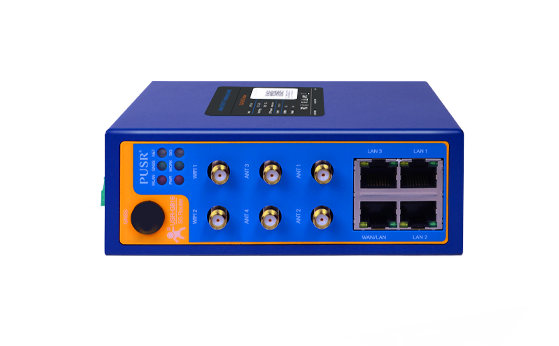

| Antennas | 4 Ć SMA-K Connectors (Center Pin: SMA Female) |
| SIM Slot | 2 x (3 V/1.8 V) mini-SIM (2FF) Push-push type slot (SIM Card 2 can be configured with built-in eSIM) |
| Ethernet Interface | |
| WAN | 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5KV RMS |
| LAN | 3 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5KV RMS |
| Indicators | |
| PWR | Red, always on after powered on |
| WORK | Green, blinking every 1 second when the router is ready and working properly |
| NET | Mobile network type LEDs (Green for 5G, Green and Red for 4G, Red for 3G) |
| SIG | Mobile signal strength indication LED (Green for excellent signal, two-color light for good signal, Red for poor signal) |
| WLAN | Always solid on when Wi-Fi is enabled and working properly |
| WAN | LED blinking when connection is established, and data is being transferred over this port |
| LAN | LED blinking when connection is established, and data is being transferred over this port |
| Wi-Fi Interface | |
| Antennas | 2 Ć SMA-K Connectors (Center Pin: SMA Female) |
| MIMO | 2Ć2 |
| Standards | Concurrent dual-band 802.11a/n/ac (5.8GHz) and 802.11b/g/n (2.4GHz) |
| Modes | AP/AP+STA/AP+WDS repeater |
| Data speed | Up to 1733Mbps wireless operation rate at 5.8GHz |
| Security | Wi-Fi security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA2-PSK+CCMP |
| Transmission distance | 200 meters by line of sight. Actual transmission distance depends on environment of the site |
| GNSS (Optional) | |
| Antenna | 1 Ć SMA-K Connector (Center Pin: SMA Female) |
| Technology | GPS, GLONASS, BeiDou, Galileo |
| Protocol | NMEA 0183 |
| Power Supply | |
| Adapter | DC 12V/2A |

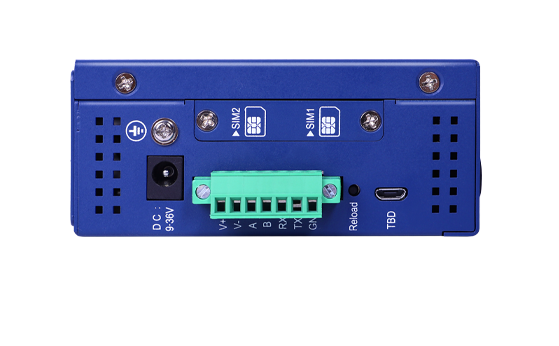

| Connector | DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block (V+, V-), reverse polarity protection |
| Input voltage range | DC9-36V |
| Power consumption | Average current 630mA@12V and maximum current 1.6A@12V |
| Serial Interface | |
| Numbers | 1 Ć RS485/RS232 |
| Connector | Terminal block |
| Baud Rate (bps) | 1200,2400,4800,9600,19200,38400,57600,115200,230400,460800 (only 485) |
| Signal definition | RS232: TXD, RXD, GND; RS485: A, B, GND |
| Data bits | 7,8 |
| Stop bits | 1,2 |
| Parity | NONE, ODD, EVEN |
| Physical Characteristics | |
| Casing material | Metal shell, ingress protection IP30 |
| Dimensions | 125.0*103.0*45.0mm (L*W*H, antenna pedestal, terminal block and DIN Rail are not included) |

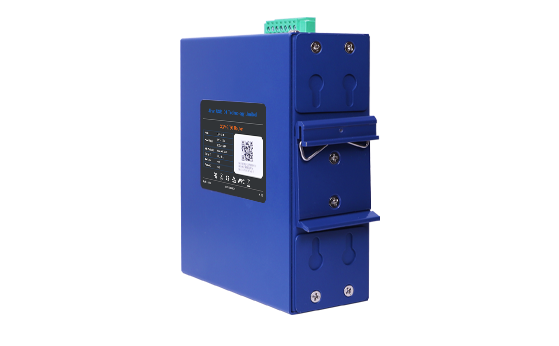

| Installation | Desktop, wall mounting and DIN-rail mounting |
| EMC |
Static IEC61000-4-2, level 3. Pulsed Electric Field IEC61000-4-4, level 3. Surge IEC61000-4-5, level 3. |
| Operating Temperature | -35ā ~ +75ā |
| Storage Temperature | -40ā ~ +125ā (non-condensing) |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Others | |
| Reload button | 1 Ć Reload |
| TBD | Debug interface (TTL Level) |
| Ground protectionĀ | Screw |
| Built-inĀ | Watchdog |
| Software | |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| VPN | LT2P, PPTP |
| Security | Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP& MAC & Domain) |
| Management | Web UI, PUSR cloud |
| Reliability | WAN Failover, Dual SIM Backup |
| Serial port | Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP) |
| Certificate | In progress (CE, *FCC, *WEEE, RoHS, *RCM, *WPC) |
Ā
Ā
Documents
| [User Manual]USR-G816w-G_User-Manual | Download >> |
| [Specification] USR-G816-Specification | Download >> |
| [AT Command]AT Command of USR-G816-V1.0.0-EN | Download >> |
