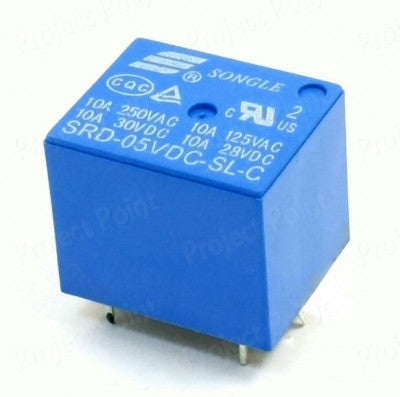

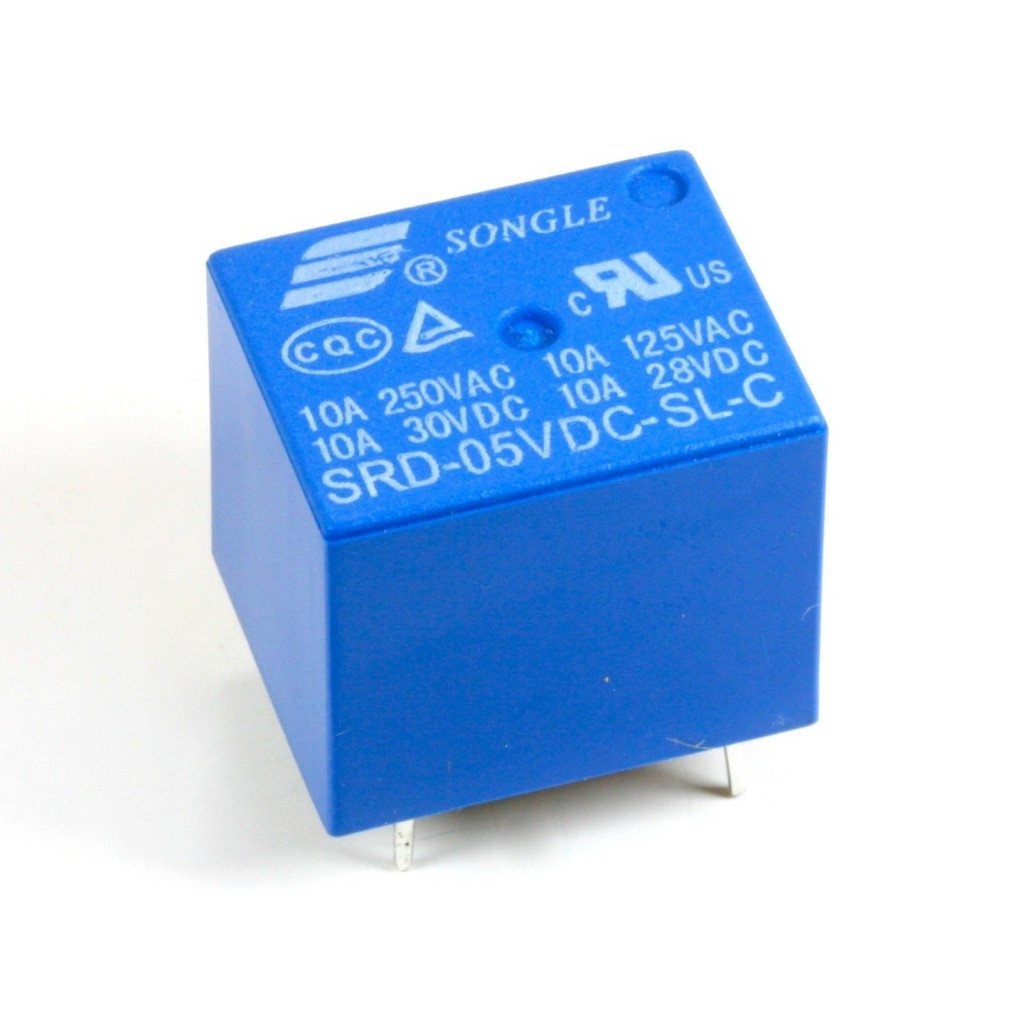

An electromechanical relay is basically designed using few mechanical parts like Electromagnet, a movable armature, contacts, yoke, and a spring/frame/stand, these parts. All these are arranged logically to form into a relay.
Specifications:
Trigger Voltage (Voltage across coil): DC 5V / 9V / 12V / 24V
Trigger Current (Nominal current): 70mA
Maximum AC load current: 10A @ 250/125V AC
Maximum DC load current: 10A @ 30/28V DC
Compact 5-pin configuration with plastic moulding
Operating time: 10msec Release time: 5msec
Maximum switching: 300 operating/minute (mechanically)
Contact Arrangement: SPDT
Contact resistance: <=100m (ohm)
Electrical life: 100,000
Mechanical life: 10,000,000
Coil rated voltage: 3-48VDC
Coil power: 0.36W
Coil pick-up voltage: <=75%
Coil drop-out voltage: >=10%
Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
