7.3inch 6-Color E-Paper Display, Low Power Consumption, 800×480 pixel

SKU: WVSH0103

₹ 10,499.99 ~~₹ 10,599.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

7.3inch 6-Color E-Paper Display, Low Power Consumption, 800×480 pixel₹ 10,499.99

Ask AI about this product

Open in ChatGPT Open in Claude

7.3″ 6-Color e-Paper Display

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

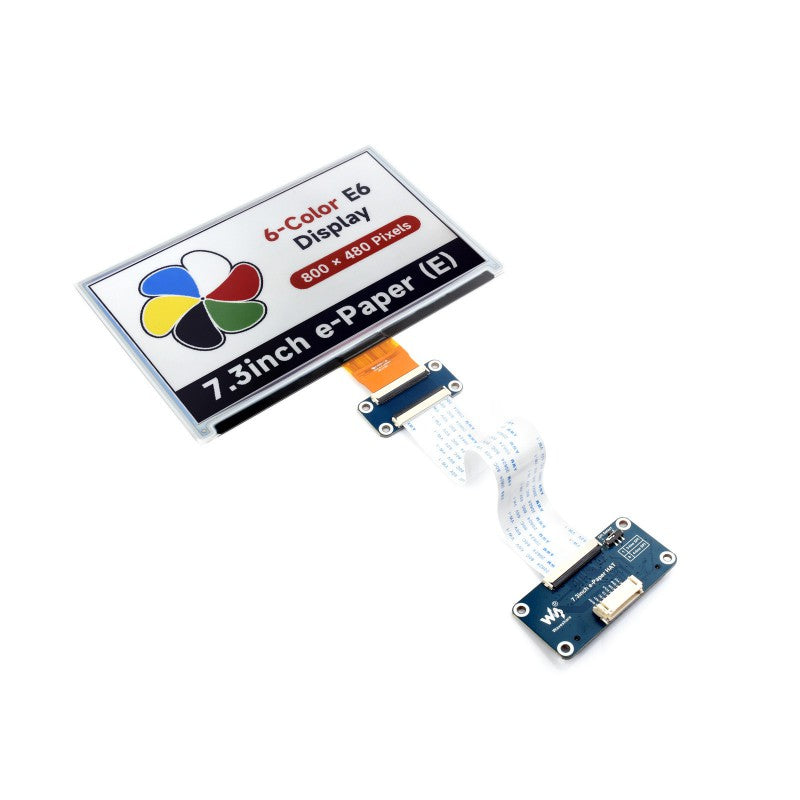

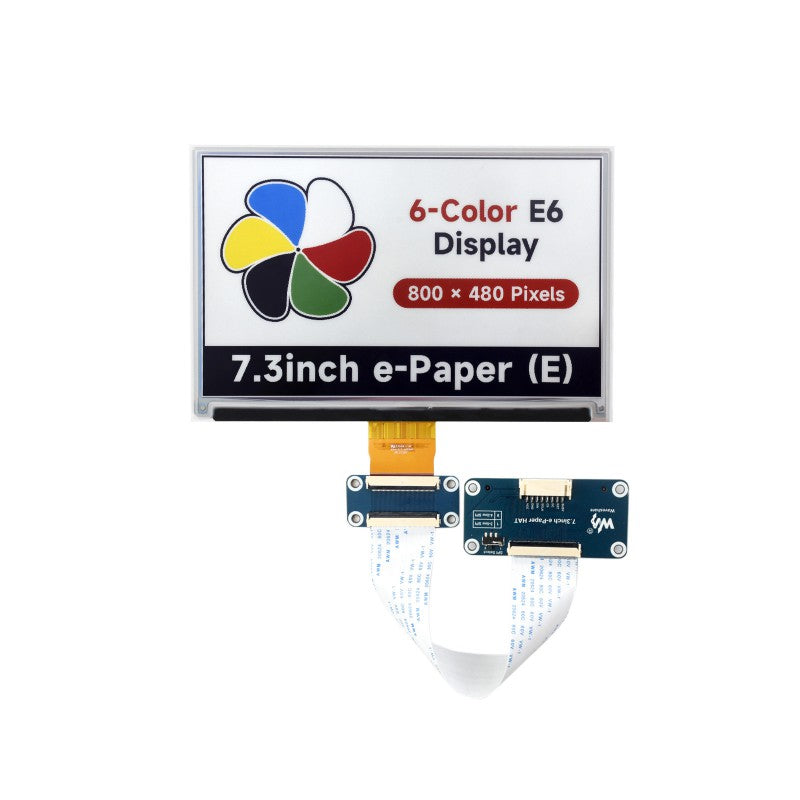

7.3inch 6-Color E-Paper Display Module, front view

Size

7.3"

Resolution

800 × 480

Viewing Angle

>170°

Display Color

6-Color

Grey Scale

2

Communication

SPI

Display Panel

E-paper

Experience

Paper-like

Environment

Ambient Light Required

Display Type

Passively Reflective

Features

Adopts E_Ink Spectra 6(E6) technology, supports 6-Color display
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Optional for e-Paper Driver HAT:
- With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage	Raw display: 3.3V	display color	6-Color
operating voltage	e-Paper Driver HAT: 3.3V/5V	display color	6-Color
interface	3-wire SPI, 4-wire SPI	grey scale	2
display dimensions	170.20 × 111.20 × 0.91mm	full refresh time	12s
display area	160 × 96mm	refresh power	<70mW(typ.)
dot pitch	0.2 × 0.2mm	standby current	<0.01uA (almost none)
resolution	800 × 480 pixels	viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO header,
compatible with Raspberry Pi series boards / Jetson Nano

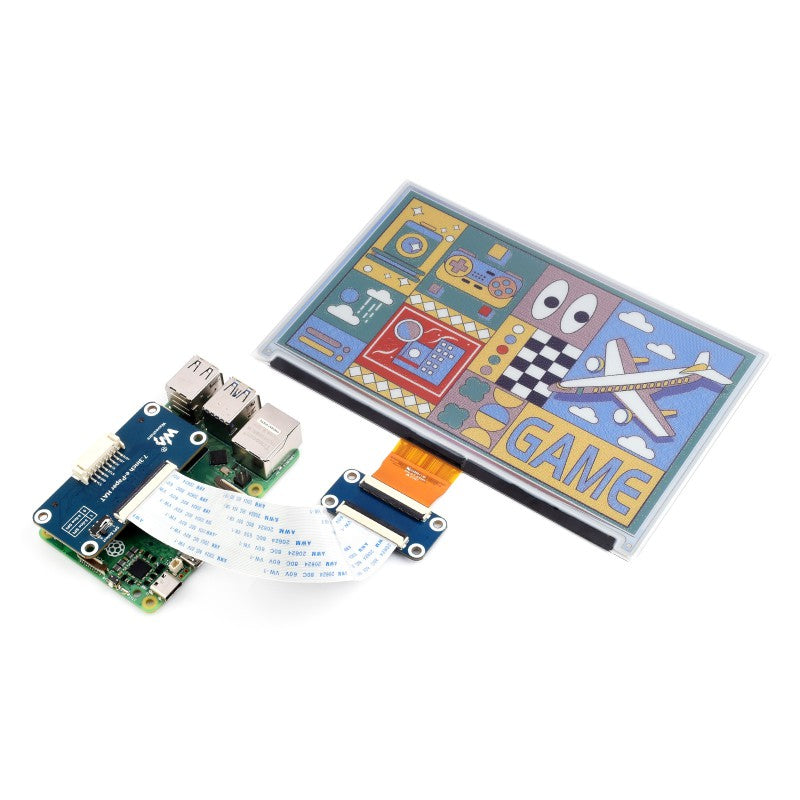

7.3inch 6-Color E-Paper Display Module, connecting with Raspberry Pi boards and Jetson Nano

* for reference only, the controller boards above are NOT included.

Onboard SPI control interface
on e-Paper Driver HAT

for use with controller boards like
Raspberry Pi/Jetson Nano/Arduino/STM32

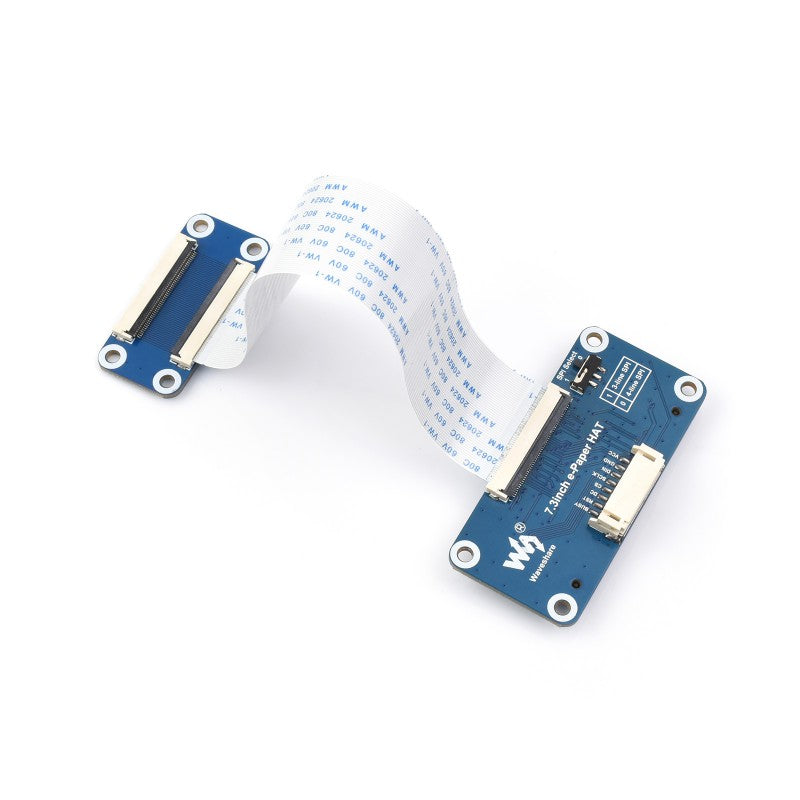

e-Paper Driver HAT front view, interface introduction

VCC	3.3V/5V
GND	Ground
DIN	SPI MOSI pin
SCLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data / Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output

Outline Dimensions

Resources

WIKI: www.waveshare.com/wiki/7.3inch_e-Paper_HAT_(E)

Package Contains:

Weight: 0.094 kg

7.3inch e-Paper HAT (E)

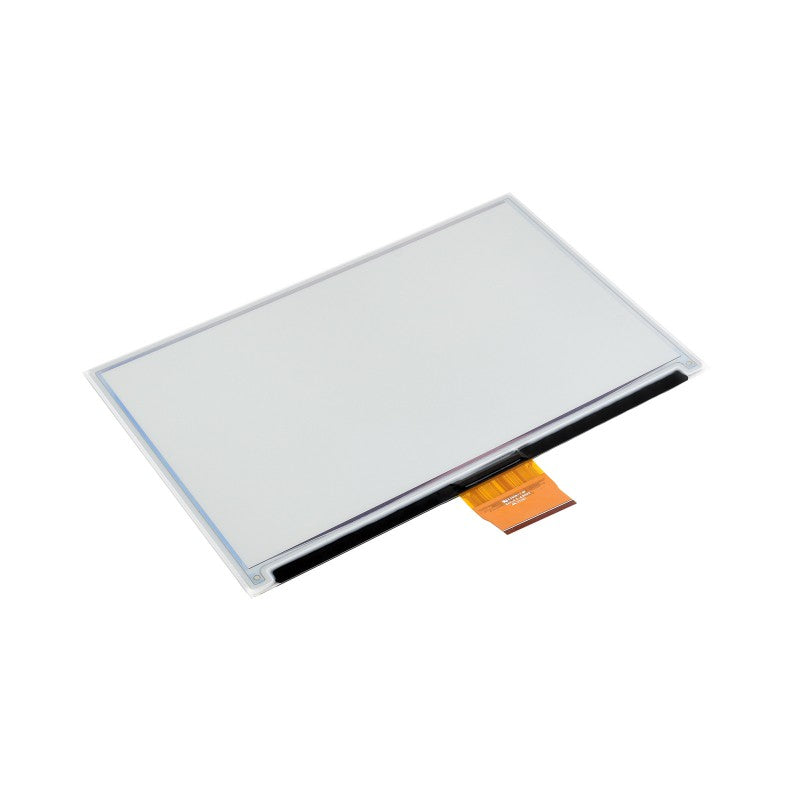

7.3inch e-Paper (E) x1
e-Paper Driver HAT + Adapter board + FFC cable x1
PH2.0 8PIN cable x1
RPi screws pack (2pcs) x1

1

2

3

4

How does the display work and what about power usage?

It uses E Ink Spectra 6 technology and requires power only when refreshing. It has no backlight, and standby current is almost zero.

What interfaces and compatible boards are supported?

It connects via SPI and includes an e-Paper Driver HAT with a 3V and 5V interface. It is compatible with Raspberry Pi, Jetson Nano, Arduino, and STM32.

What are the size resolution color and viewing specifications?

The panel is 7.3 inches diagonal with 800 x 480 pixels, a viewing angle greater than 170 degrees, and 6 color support with grey scale 2. The display area is 160 x 96 mm.

How long does a full refresh take and what about idle power?

Full refresh time is 12 seconds. Standby current is below 0.01 microamps, and no power is used when content is not refreshing.

What resources come with the product to start development?

Includes development resources and a manual with driver board circuit diagrams and examples for Raspberry Pi, Jetson Nano, Arduino, and STM32. Also includes a 7.3 inch e-Paper Driver HAT, adapter board, FFC cable, and screws.
