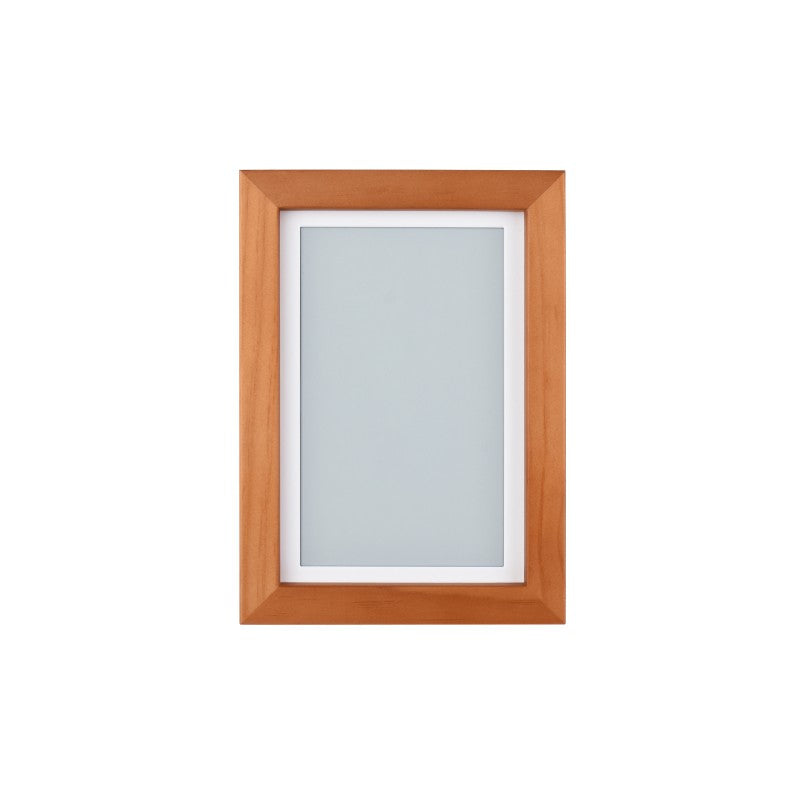

7.3″ Full Color E-Paper Display with Solid Wood Photo Frame for Raspberry Pi
|
RPi-Zero-PhotoPainter-ACCE |
RPi-Zero2W-PhotoPainter |
| Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation. |
| Supports six primary colors and employs dithering technology to create vivid and saturated full-color images. |
| No backlight, retains the last displayed content for a long time even when powered off. |
| Onboard high-precision RTC chip for accurate time control. |
| Simple solid wood photo frame design, elegant and aesthetically pleasing. |

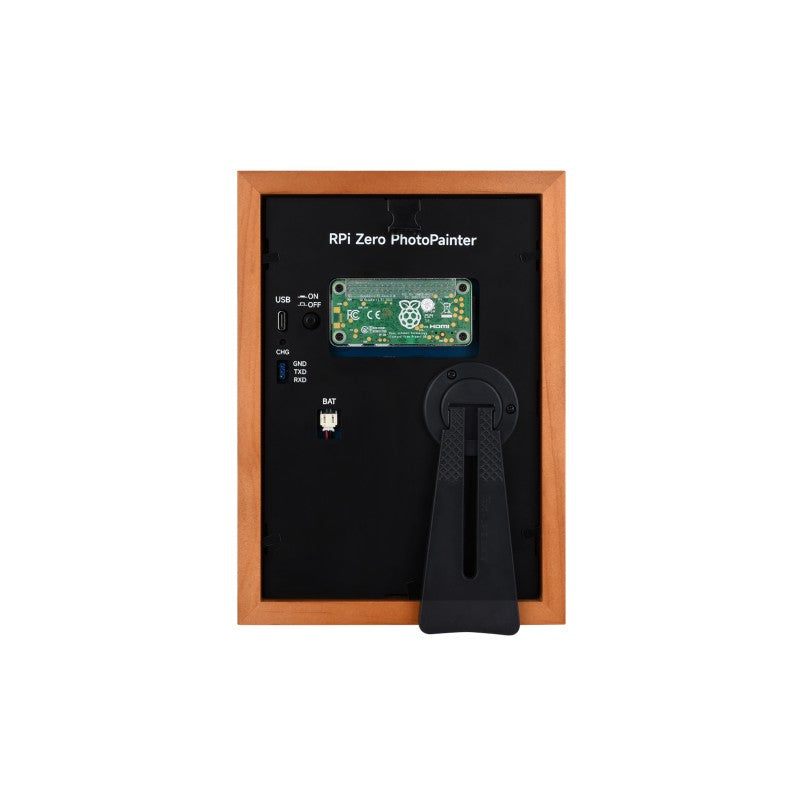

| Rotatable stand and hook hanger on the back, not limited to usage scenarios |
| Open source code, more freedom to customize functions |
|
Adopts Raspberry Pi HAT+ standard - Improves interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi |
|
Onboard UPS circuit - I2C bus communication, supports real time monitoring of Batt. voltage, current, power, and remaining capacity, etc. |

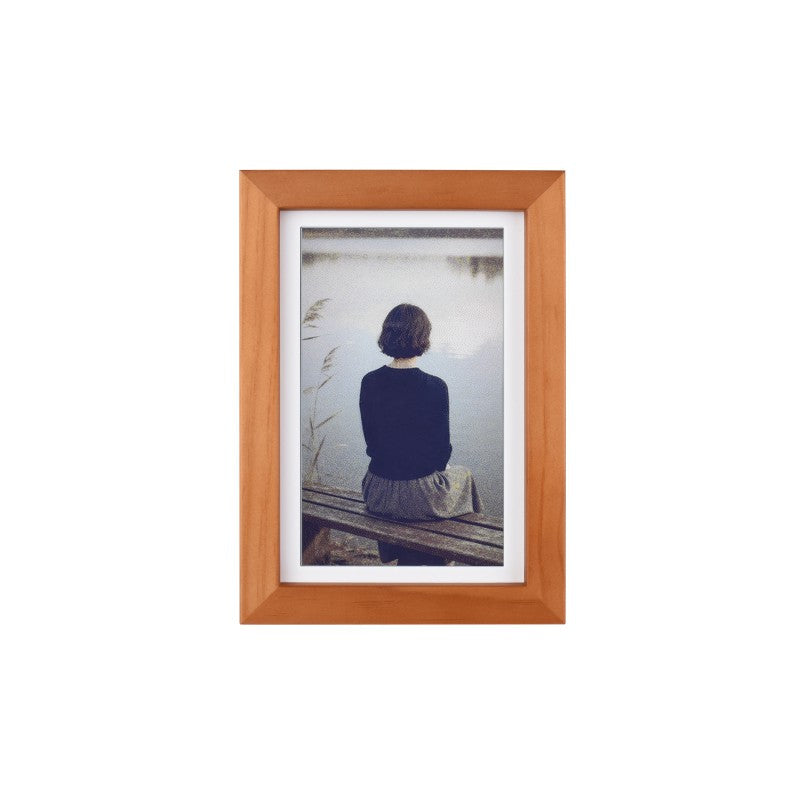

High-quality solid wood frame and white edge, simple and elegant

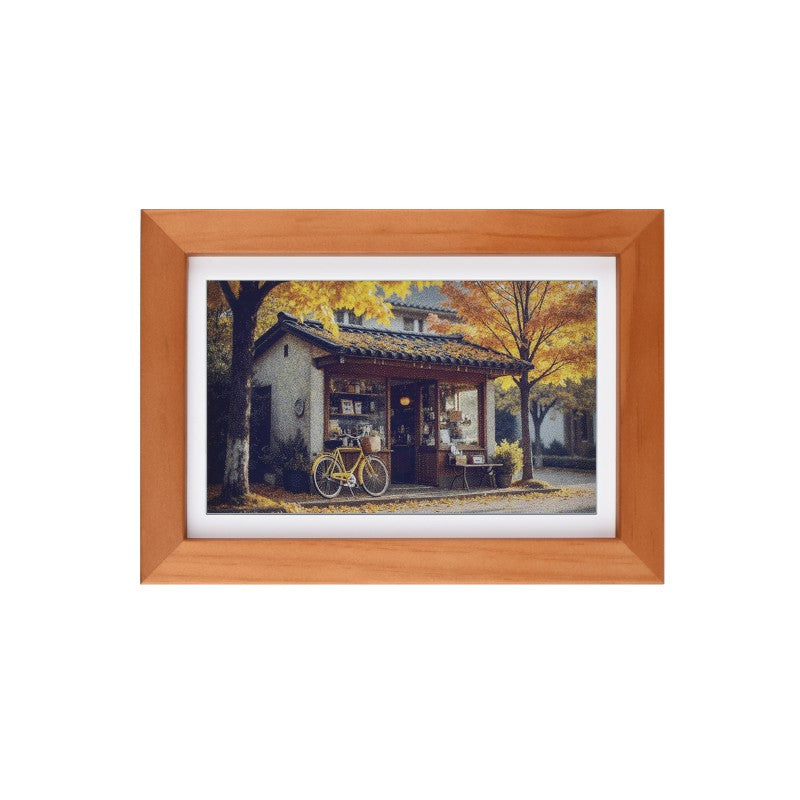

Stable placement, suitable for multiple scenarios
 |
 |
Supports Loading Offline AI Large Models, Enabling Text-to-Image Generation Without Network Access, Provides Pre-built Image, Execution Scripts, and AI Model Setup Steps
With Script Execution
Send Keywords
Note: To use local text-to-image generation, the device must be connected to the mainboard.

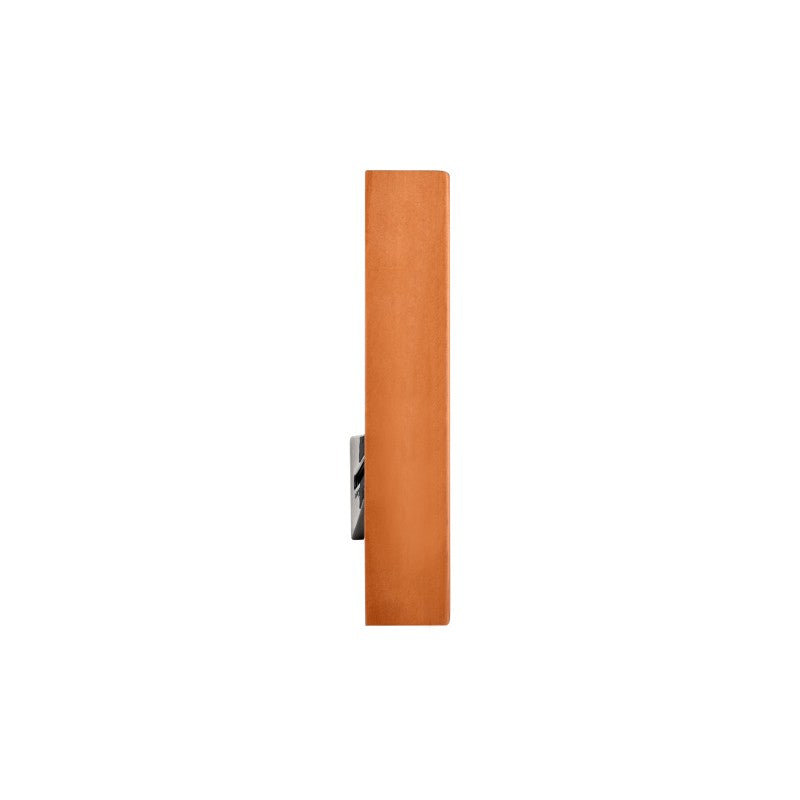

Easy to hang on the wall, more efficient use of space
 |
 |
It is able to charge the batt. and provide power output at the same time from external power supply. Automatically switch over to batt. output if external power supply is unavailable, keeps the system running without any trouble
Monitoring the batt. voltage, current, power, and remaining capacity via I2C. When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
|
1. Raspberry Pi 40PIN Header For connecting to Raspberry Pi Zero series boards. |
7. INA219 Voltage/current monitor. |
|
2. USB Type-C Port For entire circuit power supply and battery charging. |
8. RTC Chip DS3231 high-precision RTC chip. |
|
3. Power Button For entire circuit power ON/OFF (excluding battery charging). |
9. RTC Lithium Battery Port For rechargeable lithium battery with JST SH1.0 2PIN header (3V). |
|
4. Charging Indicator Indicates battery charging status. |
10. E-Paper Display Interface |
|
5. Serial Port Debugging Header Adapts Raspberry Pi UART pin header for controlling the Raspberry Pi without an internet connection. |
11. EEPROM |
|
6. Lithium Battery Header PH2.0 connector for 3.7V lithium battery, supports charging and discharging. |
12. ETA6003 Battery charge/discharge chip. |
|
13. SCT12A0DHKR Voltage boost chip. |
 |
 |
Weight: 0.432 kg
RPi-Zero-PhotoPainter-ACCE
* the RTC batt. and 3.7V Lithium batt. are optional.
| Item | Quantity |
|---|---|
| RPi Zero PhotoPainter | 1 |
| Optional RTC Battery (2PIN JST Connector) and 3.7V 1500mAh Lithium Battery | 1 |
| Acrylic Plate | 1 |
| Screen Protective Film | 1 |
| 3PIN Squid Cable | 1 |
| CH343 USB UART Board (Type-C) | 1 |
| Hook Hanger (Total 2PCS, 1PCS Assembled) | 1 |
| Triangle Opening Tool | 1 |
| Screws and Copper Standoffs Pack | 1 |
