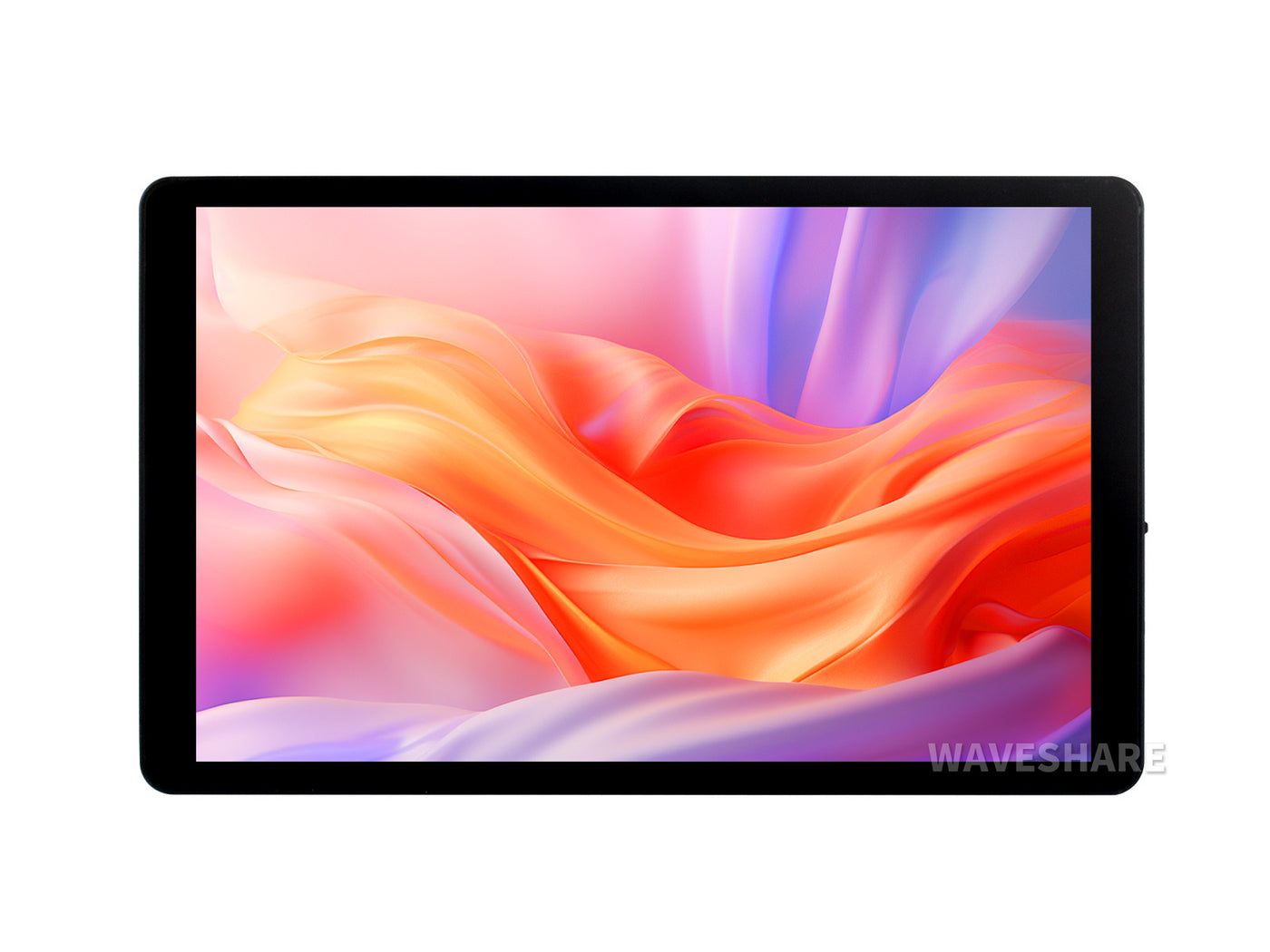

Product image 1

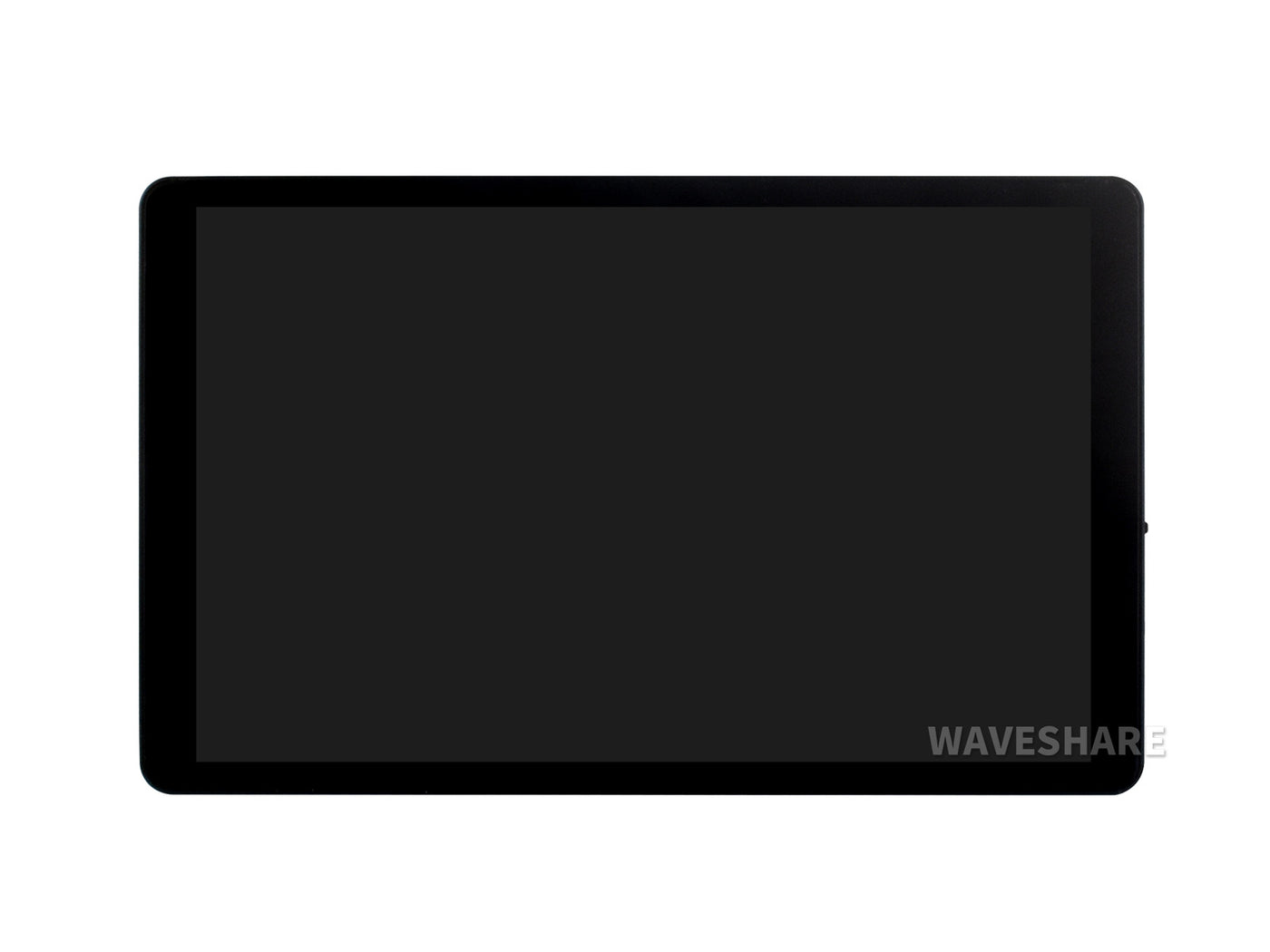

Product image 2

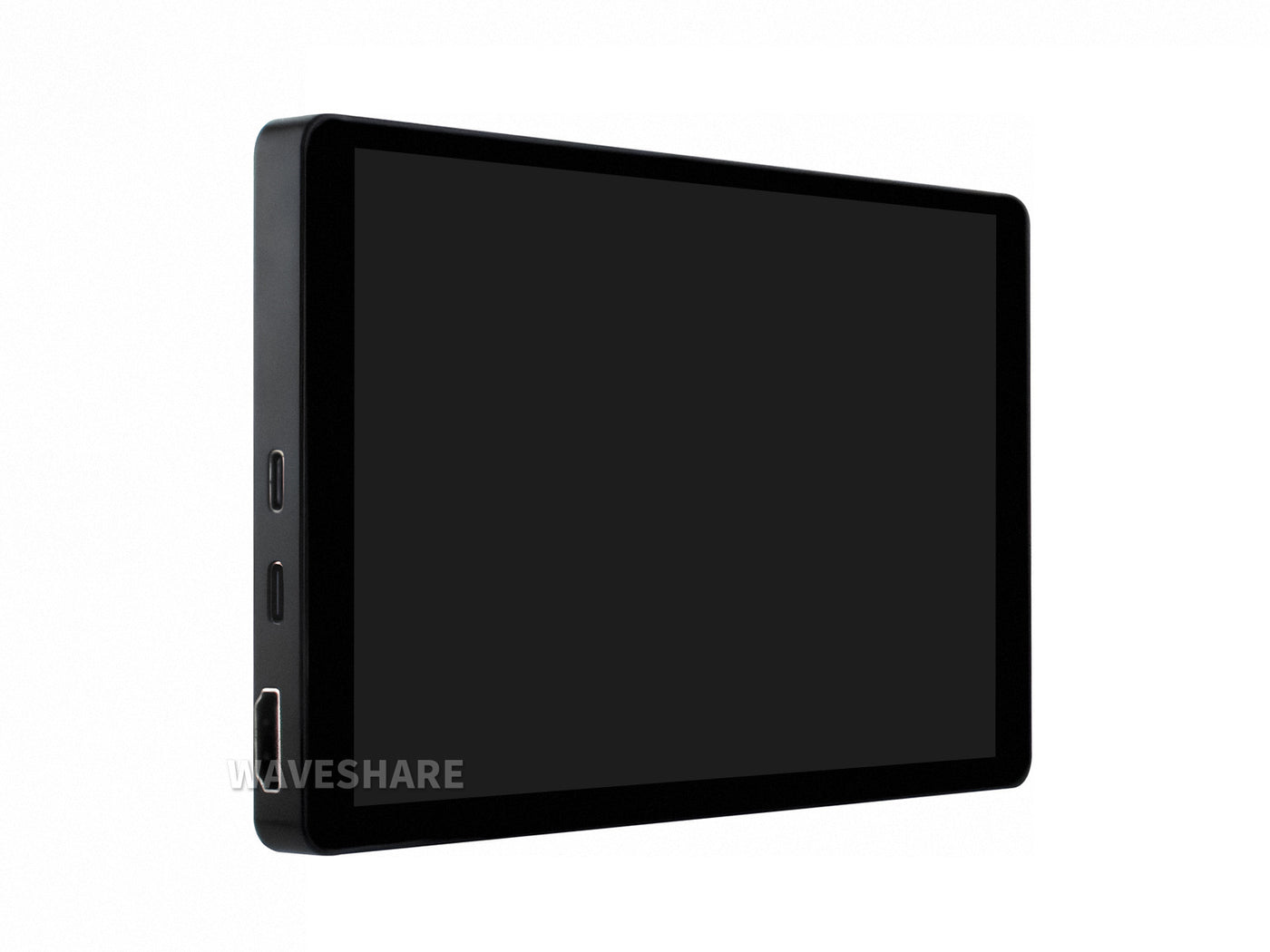

Product image 3

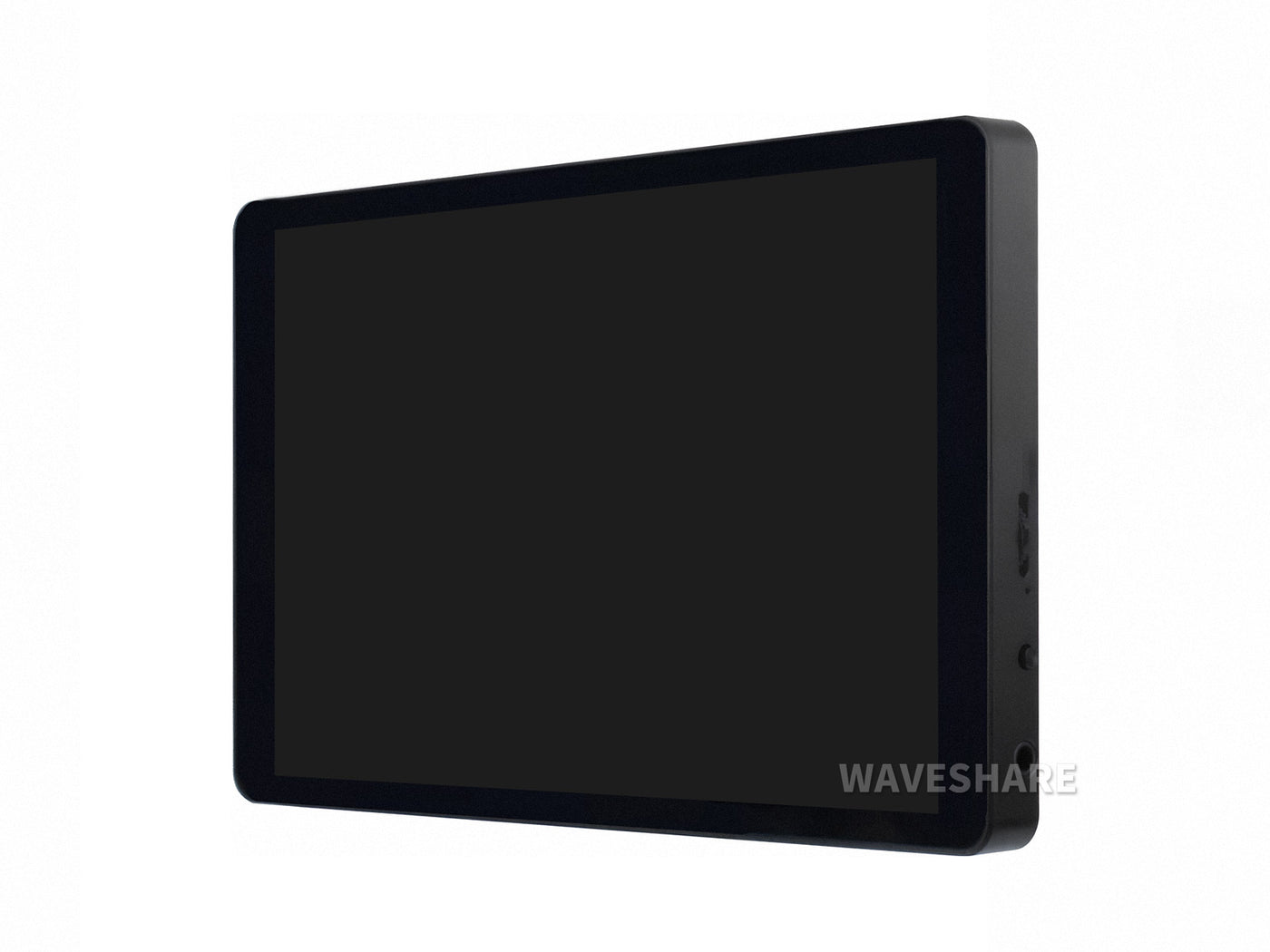

Product image 4

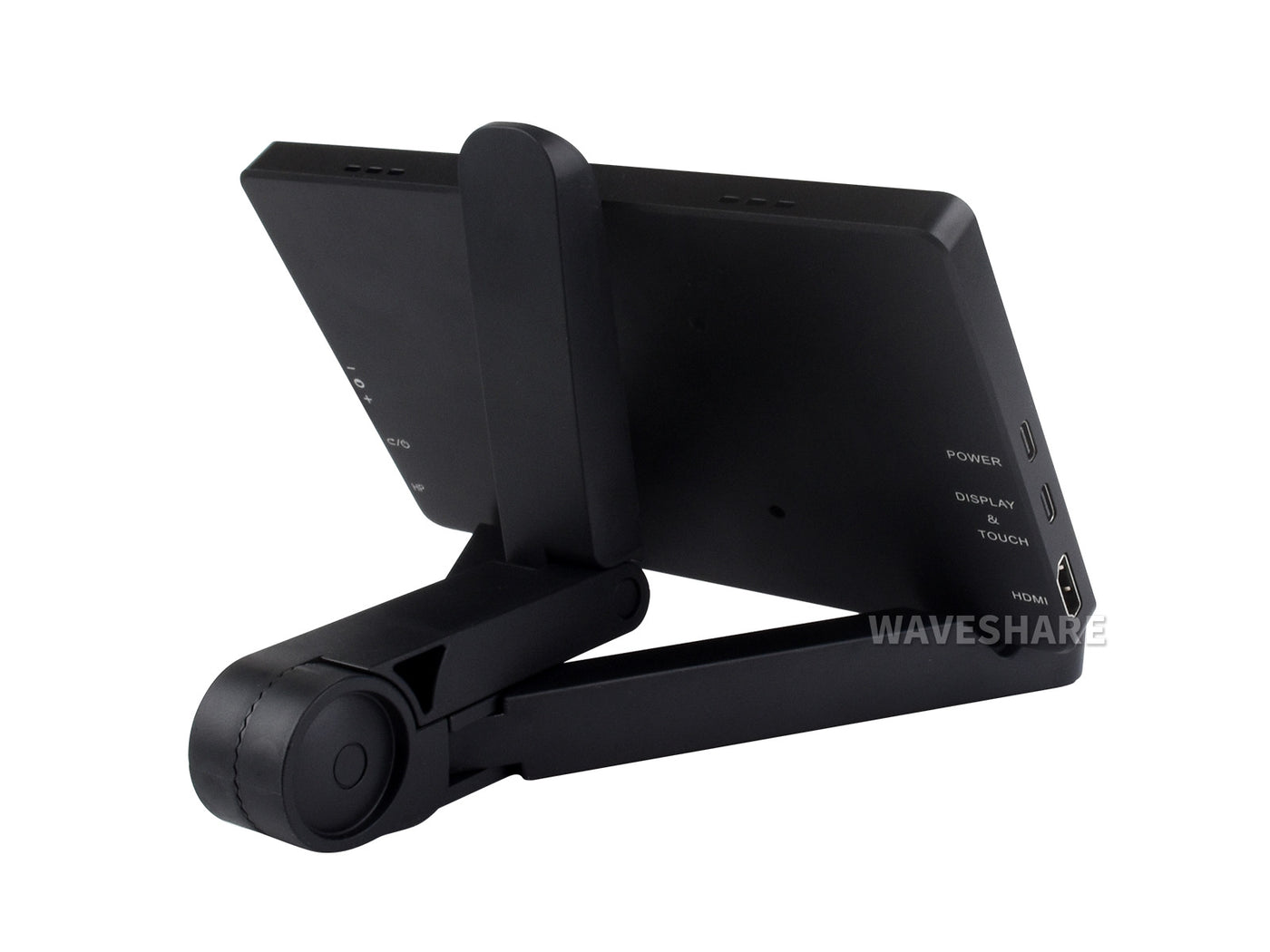

Product image 5
Need Support? Click Here
Free Delivery Above ₹999

Best seller

Waveshare

7-Inch Capacitive Touch Display with 1280x800, HDMI/Type-C, 10-Point Touch

SKU: WVSH0643

₹ 10,649.99

Out of stock · Available in 2 weeks

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
7-Inch Capacitive Touch Display with 1280x800, HDMI/Type-C, 10-Point Touch₹ 10,649.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

7″ Wide Color Gamut Touch Display


High Resolution | Multi-Point Touch | Full Color

7inch Capacitive Touch Display, front and back view

  • Size7″
  • Resolution1280×800
  • Display InterfaceHDMI/Type-C
  • Display PanelIPS
  • Viewing Angle178°

  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PortUSB Type-C
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding

  • OSD MenuBrightness/Contrast
  • BrightnessSupports DDC/CI control
  • Audio Output3.5mm Jack
  • SoundHi-Fi Speaker
  • EnclosureAluminum Alloy

  • SmartphoneHuawei/Samsung...
  • VESA Wall Mount50 × 50mm


Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
Supports Ubuntu, single point touch, driver free
RDK X3
Supports Ubuntu, single point touch, driver free
VisionFive2
Supports Debian, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
Huawei, Samsung...(wired projection)


Connection Examples

Working with Raspberry Pi 5

7inch Capacitive Touch Display, working with Raspberry Pi 5

Working with Jetson Series Board

7inch Capacitive Touch Display, working with Jetson Nano

Working with Mini PC

7inch Capacitive Touch Display, working with Mini PC

Working with laptop *

7inch Capacitive Touch Display, working with laptop

Working with Smartphone *

7inch Capacitive Touch Display, working with Smartphone

  • Please make sure that the smartphone or laptop itself features full-featured Type-C interface
  • For reference only, the above controller boards or hosts are NOT included



IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

7inch Capacitive Touch Display, wide viewing angle IPS display panel

Wide Color Gamut LED technology

Wider Color Gamut, More Pure Chroma

Color Gamut Of This Display Is Up To NTSC 68%, Chroma Increases 58.3%, Makes The Color More Pure, More Vivid

7inch Capacitive Touch Display, wide color gamut LED technology

Capacitive 10-Point Touch

7inch Capacitive Touch Display, 10-Point capacitive touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof


Supports DDC/CI brightness adjustment


Full-featured Type-C interface

Audio And Video Transmission In One Connection, plug and play,
instantly zoom in the smartphone screen
(For supported mobile phone models, please contact customer service)

7inch Capacitive Touch Display, supports full-featured Type-C interface

Computer Dual Screen For Collaborative Processing

One screen for work, one screen for entertainment, without interfering with each other

7inch Capacitive Touch Display, supports dual screen for collaborative processing

Dual-Track Speaker

Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality


Comes with Triangular stand

7inch Capacitive Touch Display, supports dual screen for collaborative processing


VESA Mounting Support

7inch Capacitive Touch Display with VESA mounting holes



Interface Introduction

7inch Capacitive Touch Display, interface introduction

Product Show

7inch Capacitive Touch Display, product show

* for reference only, the Raspberry Pi 5 is NOT included.


Dimensions

7inch Capacitive Touch Display, outline dimensions


Support touch screen customization

Support the following ways to customize the touch screen display in bulk order




Resources & Services

Wiki: www.waveshare.com/wiki/7EP-CAPLCD_Monitor



Weight: 0.6 kg



Package Content

  1. 7EP-CAPLCD Monitor ×1
  2. HDMI flat cable ~1m ×1
  3. HDMI to Micro HDMI Adapter ~1m ×1
  4. USB-A to USB-C cable ~1m ×1
  5. USB-C to USB-C cable ×1
  6. Triangular stand ×1
7EP-CAPLCD Monitor
What interfaces does this display support?
It supports HDMI and USB Type-C display interfaces.
How many touch points does the screen support?
The display is a capacitive touch screen with 10 point touch.
What is the screen size and resolution?
The display is 7 inches with a resolution of 1280 x 800.
What type of panel and viewing angle does it offer?
It uses an IPS panel with a 178 degree viewing angle.
What is the build like?
It has an aluminum alloy case with optical bonding and a toughened glass panel.
