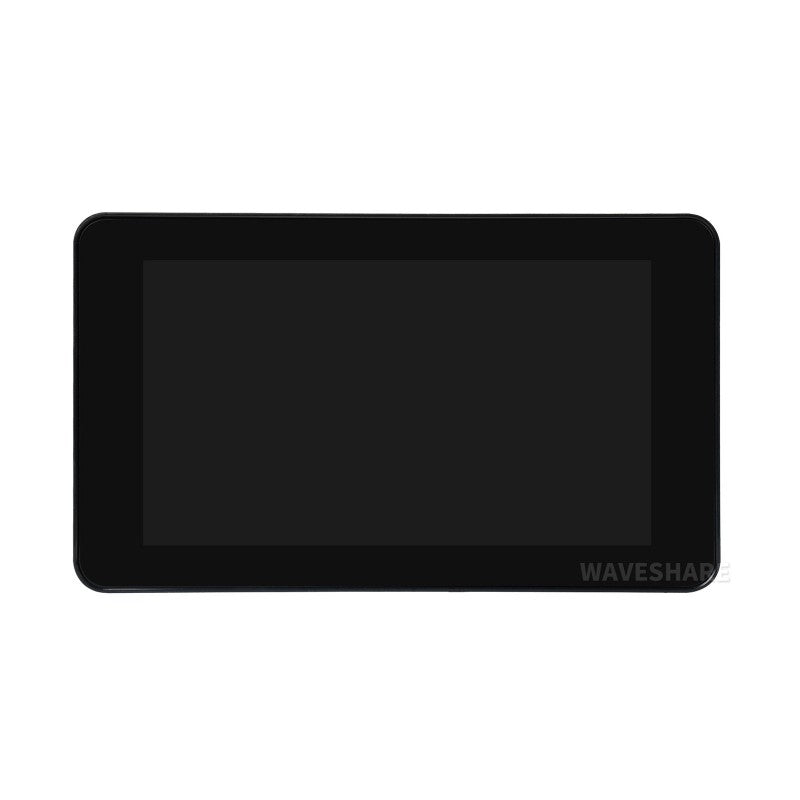

7″ DSI Touch Display
Multi-Touch | With Case
Size
7″
|
Resolution
800×480
|
Display Interface
DSI
|
Display Panel
IPS
|
Viewing Angle
170°
|
Touch Type
Capacitive
|
Touch Points
5-Point
|
Touch Port
I2C
|
Touch Panel
Toughened Glass
|
Consumption
Low Power
|
|
Certification 1
RoHS2.0
|
Certification 2
CE
|

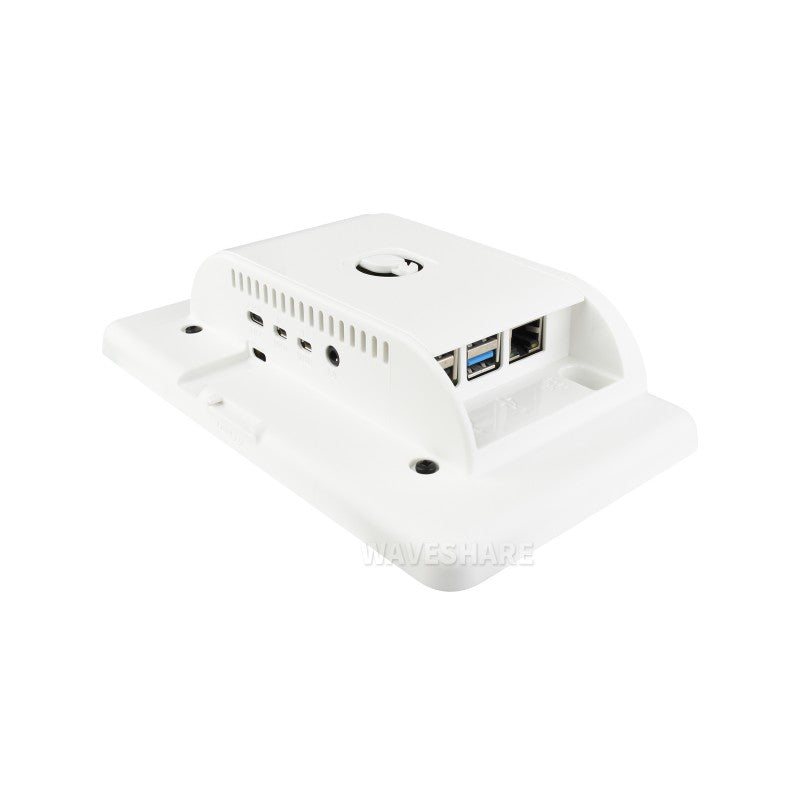

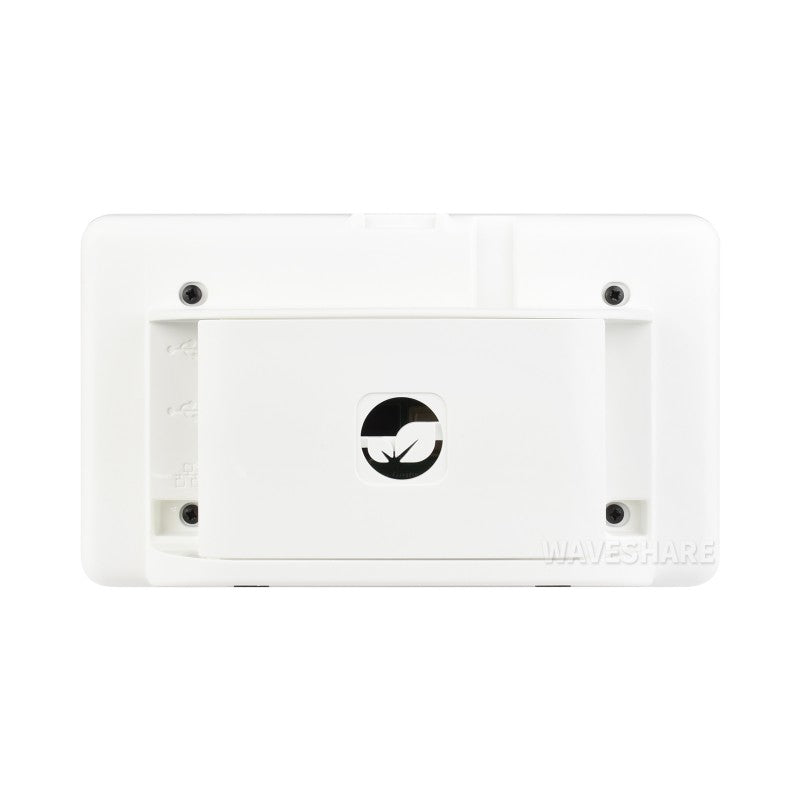

Enclosure
ABS
|
|
Device & System Support
 |
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4* (the case supports Pi 4B only, due to connector layout)
* some CM3/3+/4 base boards require extra adapter cable
VisionFive2
Supports Debian, single point touch, driver free
Core3566
Supports Debian / Ubuntu, 5-point touch, driver free
|
Connection Examples
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Core3566 To Pi 4B Kit
Working With VisionFive2
for reference only, the above controller boards are NOT included

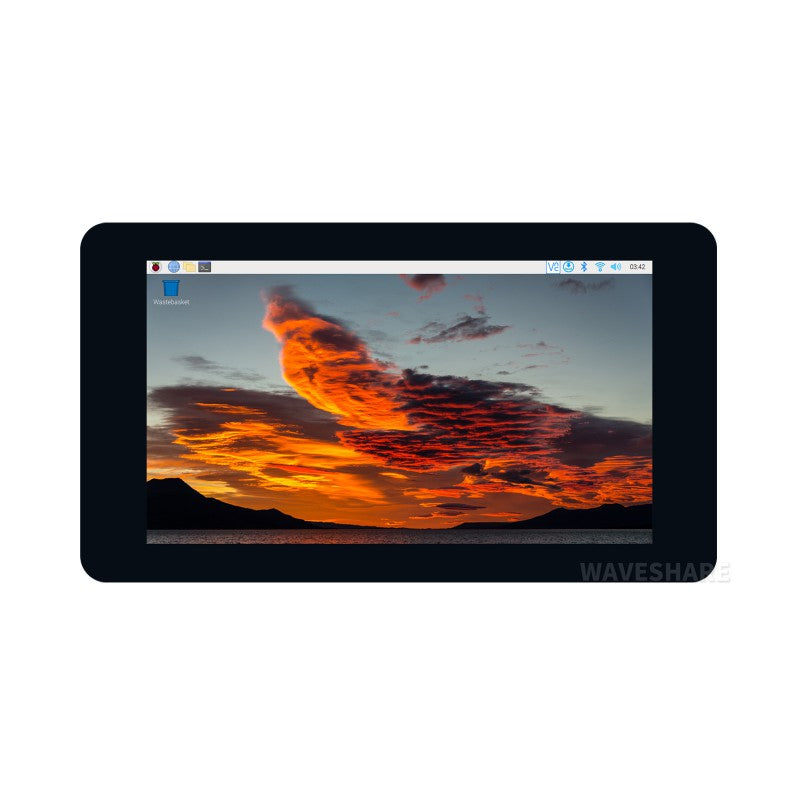

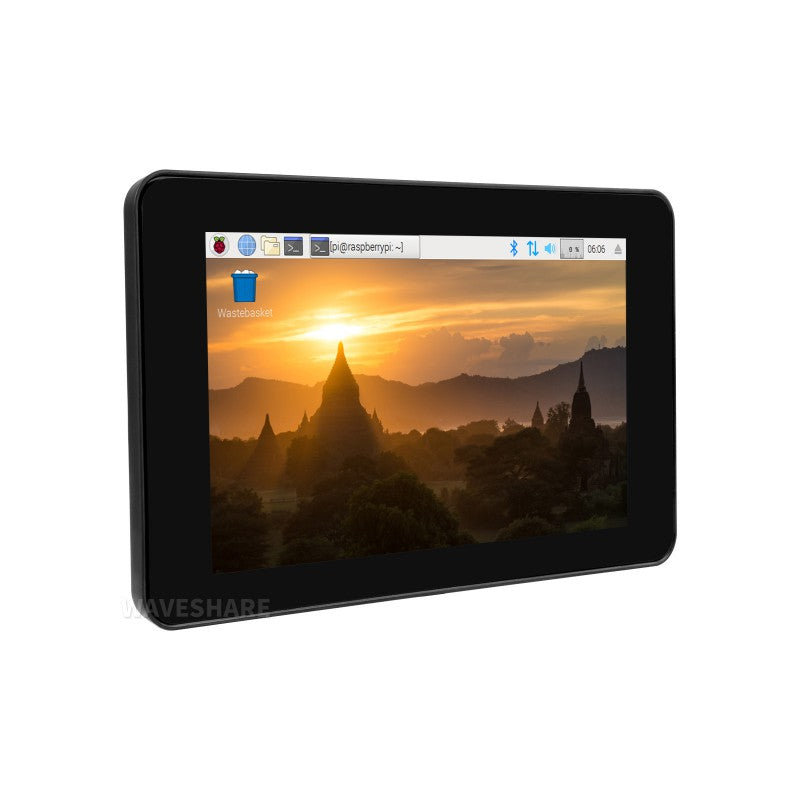

IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
High Quality Picture , Clear And Bright
New Generation IPS LCD Screen With More Natural Gradual Color Change
Display Color Is More Vivid
Better Visual Experience With More Color Details On The Screen
Capacitive 5-Point Touch
- up to 5-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
Adjustable Brightness Via Software
Interface Introduction
How To Install
Dimensions
Resources
Wiki: www.waveshare.com/wiki/7inch_DSI_LCD_(B)
