AiNex ROS Education AI Vision Humanoid Robot Powered by Raspberry Pi

SKU: RBC1059R - SBC1011

Regular price ₹ 90,999.99
Sale price ₹ 90,999.99 Regular price ₹ 119,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
Option:
Variant:
This is a pre order item. We will ship it when it comes in stock.

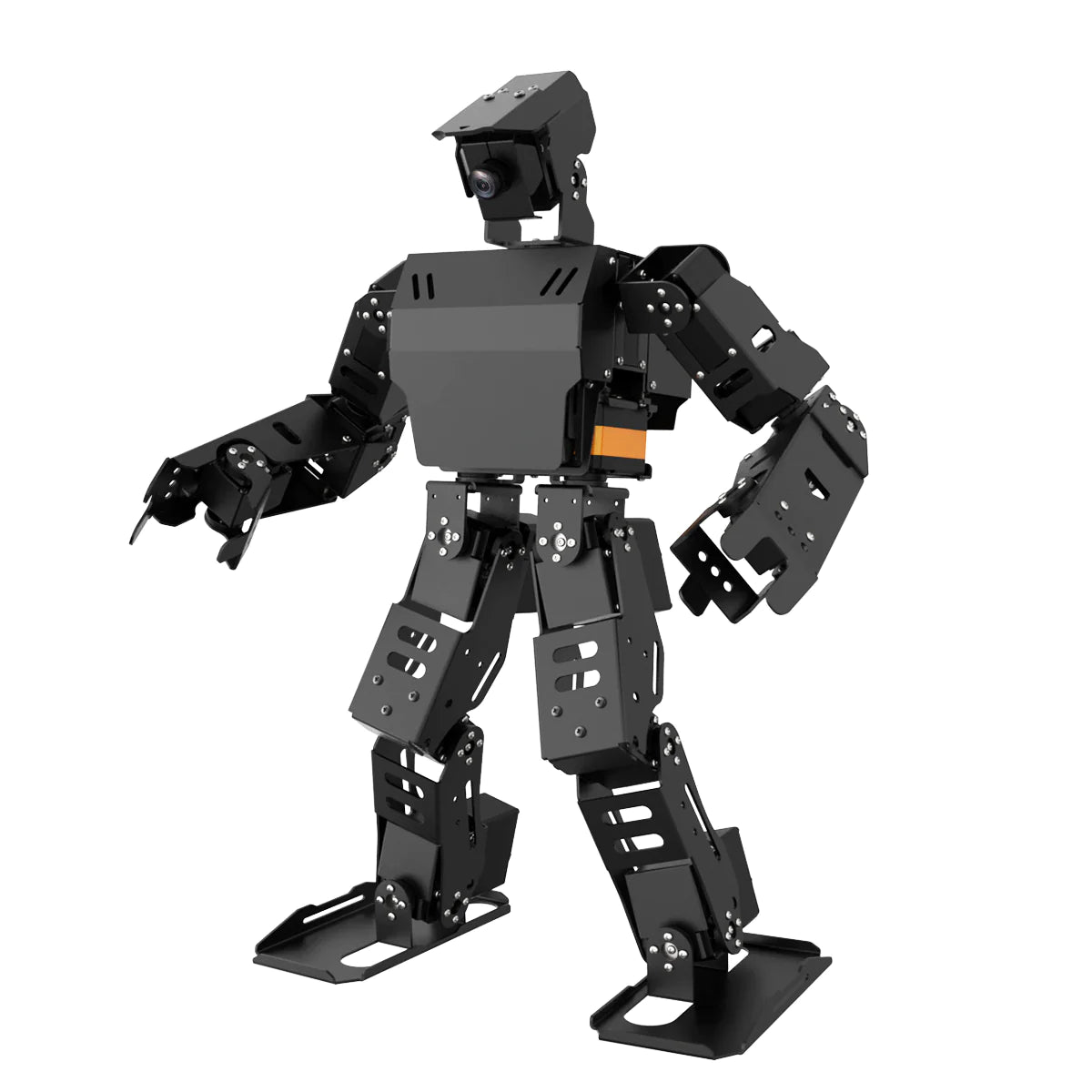

AiNex standard is an intelligent humanoid robot built on the Robot Operating System (ROS). It boasts 24 degrees of freedom (DOF) and is powered by a Raspberry Pi. With self-stabilizing inverse kinematics, AiNex excels in walking, climbing, hurdling, grasping, and performing complex movements. Furthermore, its height, turning radius, and speed can be adjusted!

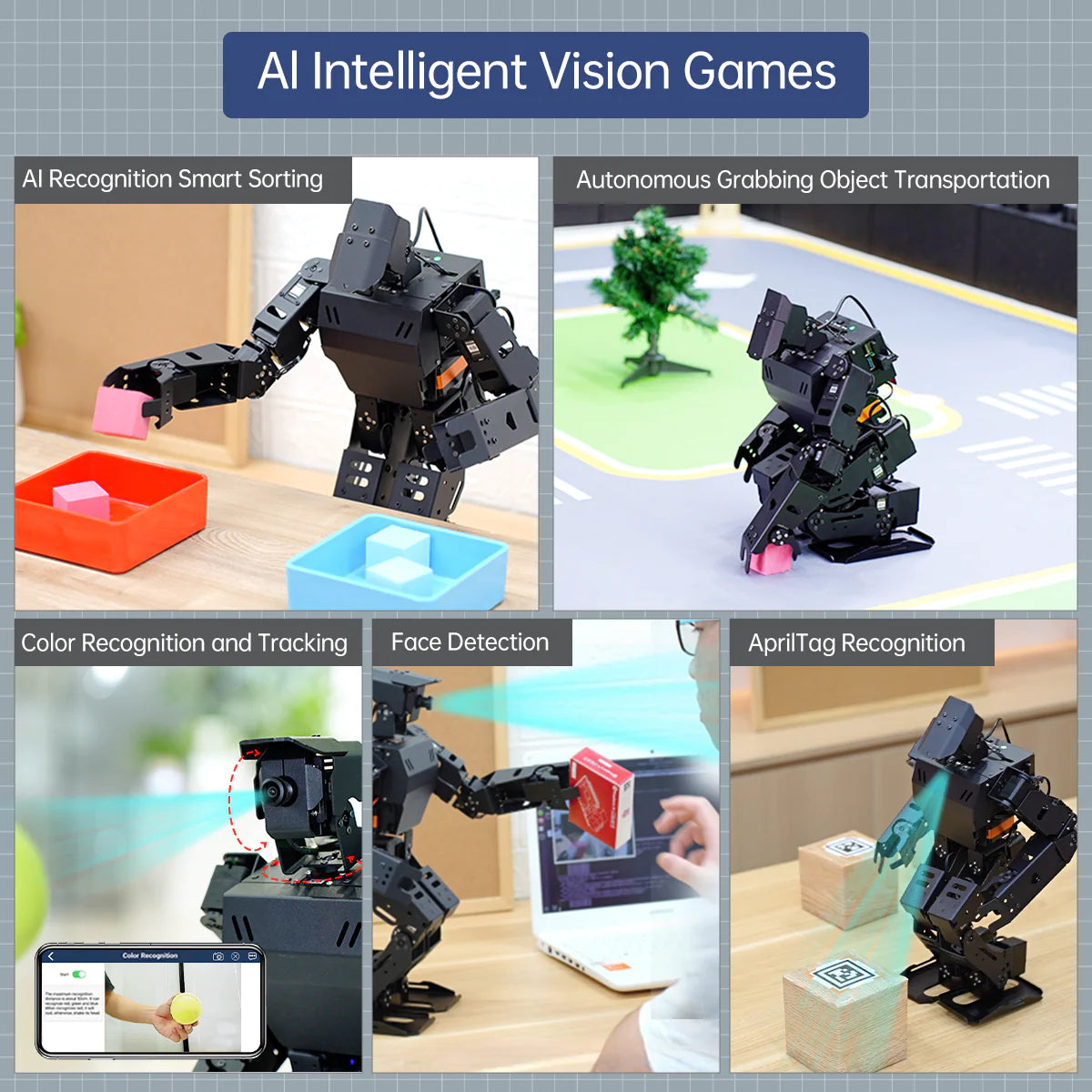

Equipped with a 2DOF AI vision camera and robotic hands that can open or close, AiNex can accomplish tasks like line following, target tracking, ball shooting, intelligent picking and sorting, transportation, stair climbing, and more, using AI vision and advanced kinematics. We offer comprehensive ROS source code and detailed tutorials to bring your AI scenarios to life.

2 DOF HD Wide-angle Camera

The head of AiNex is equipped with a 120° high-definition wide-angle camera, which can effectively identify and locate target objects by utilizing OpenCV image processing.

Powered by Raspberry Pi

AiNex is controlled by a Raspberry Pi and is equipped with intelligent high-voltage bus servos. It is programmed in Python and can complete a variety of AI intelligent applications such as color tracking and face detection.

Movable Hand Anti-blocking Protection

AiNex standard can be expanded by mechanical hands, which can flexibly grab and carry small items. The hand servos provide angle and temperature feedback, effectively preventing damage caused by obstructions.

Dual Hip Joints Original Structure

AiNex is equipped with two hip joints to support the rotation of the legs on the Z-axis, making the robot more flexible in turning. The hip joint is equipped with a magnetic encoder bus servo, which provides high accuracy and stability.



24 DOF Aluminium Alloy Structure

AiNex standard is constructed from aluminum alloy and features up to 24 degrees of freedom (DOF), empowering the robot to execute a wide range of actions and ensuring its flexibility in movement.



X, Y, Z Axis Coincident Design

AiNex is equipped with two hip joints to support the rotation of the legs on the X-axis,Y-axis and Z-axis,making the robot more flexible in turning. The structural design incorporates overlapping X-axis,Y-axis and Z-axis, ensuring orthogonal alignment. This integration not only enhances AiNex's bionic qualities but also significantly improves the robot's flexibility in movement.

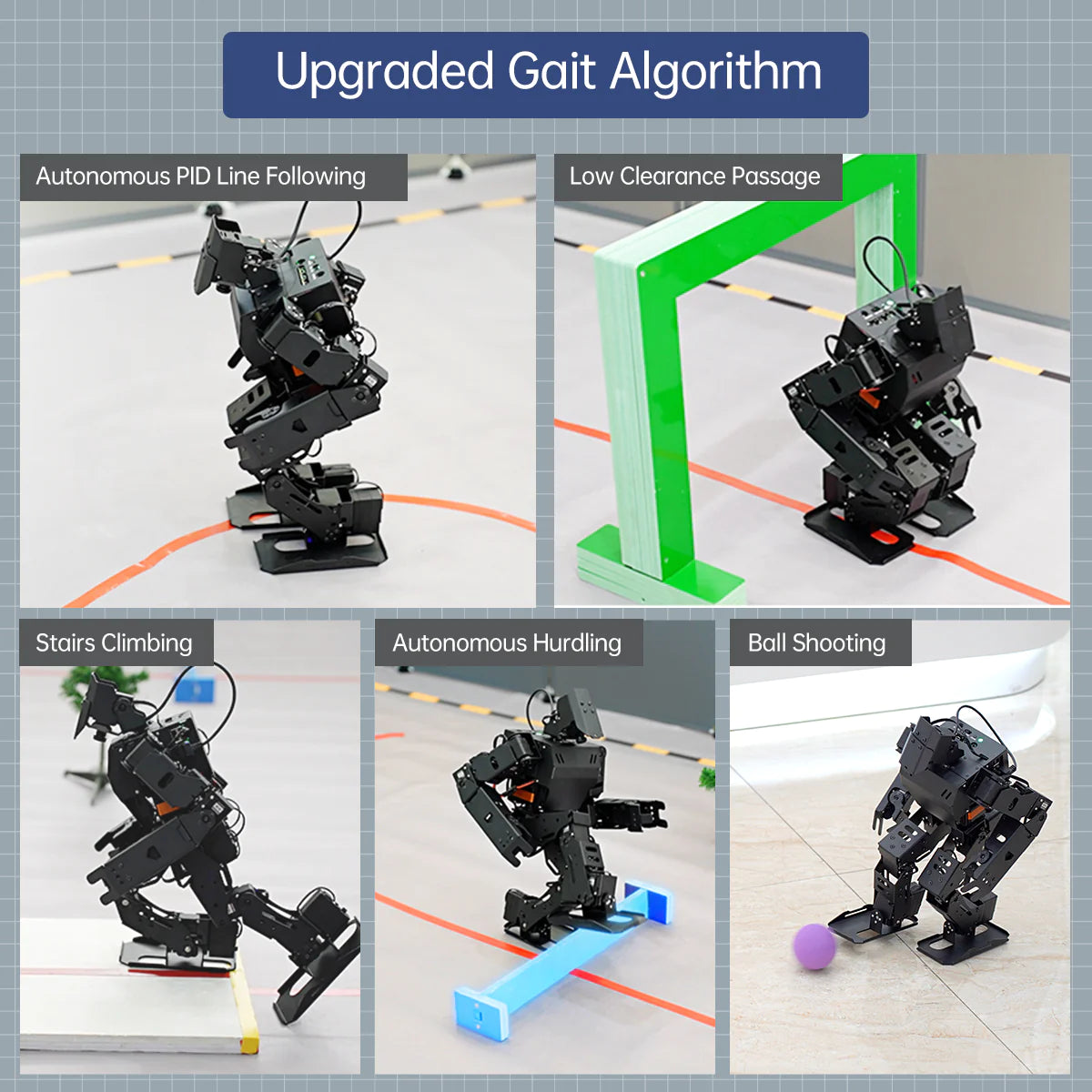

Upgraded Gait Algorithm,Revolutionary Breakthrough

Autonomous PID Line Following

Low Clearance Passage

Up and Down Steps

Autonomous Hurdling



ROS Robot Operating System

Global Popular Robotic Communication Framework

ROS is an open-source meta operating system for robots. It provides some basic services, such as hardware abstraction, low-level device control, implementation of commonly used functionality, message-passing between processes, and package management. And it also offers the tools and library functions needed to obtain, compile, write, and run code across computers. It aims at providing code reuse support for robotics research and development.



Action Group Editing Software

Debug action on PC software -> Save it to control panel -> Control terminal configures control command. Using graphical PC software, you can effortlessly control servos and customize actions by simply dragging sliders, without the need for programming.

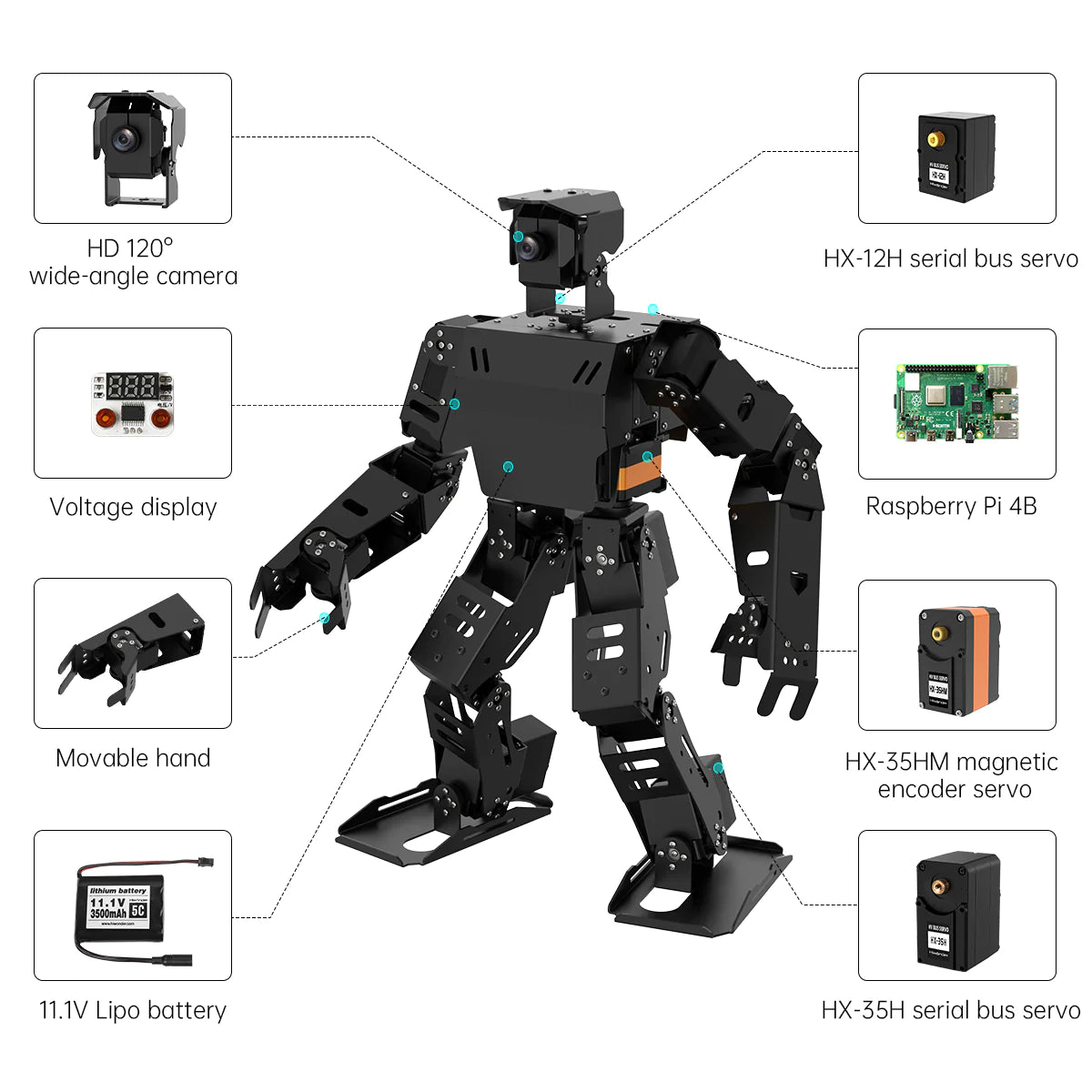

Hardware Highlight



Magnetic Encoder Servo on Hip Joint

The servo incorporates a 12-bit high-precision magnetic encoder angle sensor, providing non-contact feedback. It boasts a long service life, compact size, and resistance to vibrations.

Non-contact Magnetic Encoder Feedback

Unlike the traditional position feedback mechanism using a potentiometer, the HX-35HM servo employs non-contact magnetic feedback. This feature enhances service life, reduces size, and improves shock resistance.

High Precision Magnetic Encoder

Compared with potentiometer, the 12-bit high-precision angle magnetic encoder sensor extends its angle range to 360 degrees while maintaining a 4096-bit absolute position accuracy.

35KG Strong Torque

The stall torque of the HX-35HM servo reaches 35kg.cm under 12V voltage, giving your robot more power.

CNC Metal Shell

The HX-35HM servo boasts high accuracy and excellent heat-conducting properties with its aluminum alloy shell. Through anodic oxidation processing, it exhibits robust resistance to corrosion.



2DOF HD Wide-angle Camera

AiNex's head can rotate in all directions—up, down, left, and right-and is equipped with a 120° HD wide-angle camera. This empowers the robot with a broad field of view. The camera also supports manual focus.

Raspberry Pi 4B board

Raspberry Pi Expansion Board

Voltage Display Module

11.1V 3500mAh Lipo Battery

Different Version Descriptions



ROS/ SDK Deep Development

AiNex is built on Robot Operating System (ROS), enabling flexible deployment and expansion of robot's functionalities. Furthermore, we offer comprehensive source code and ROS simulation models to facilitate convenient ROS algorithm research and secondary development.



Gazebo Simulation

AiNex standard utilizes the ROS framework and offers Gazebo simulation support. Gazebo provides a novel approach for controlling AiNex and validating algorithms within a simulated environment, reducing the need for physical experiments and enhancing efficiency.



Abundant Learning Materials

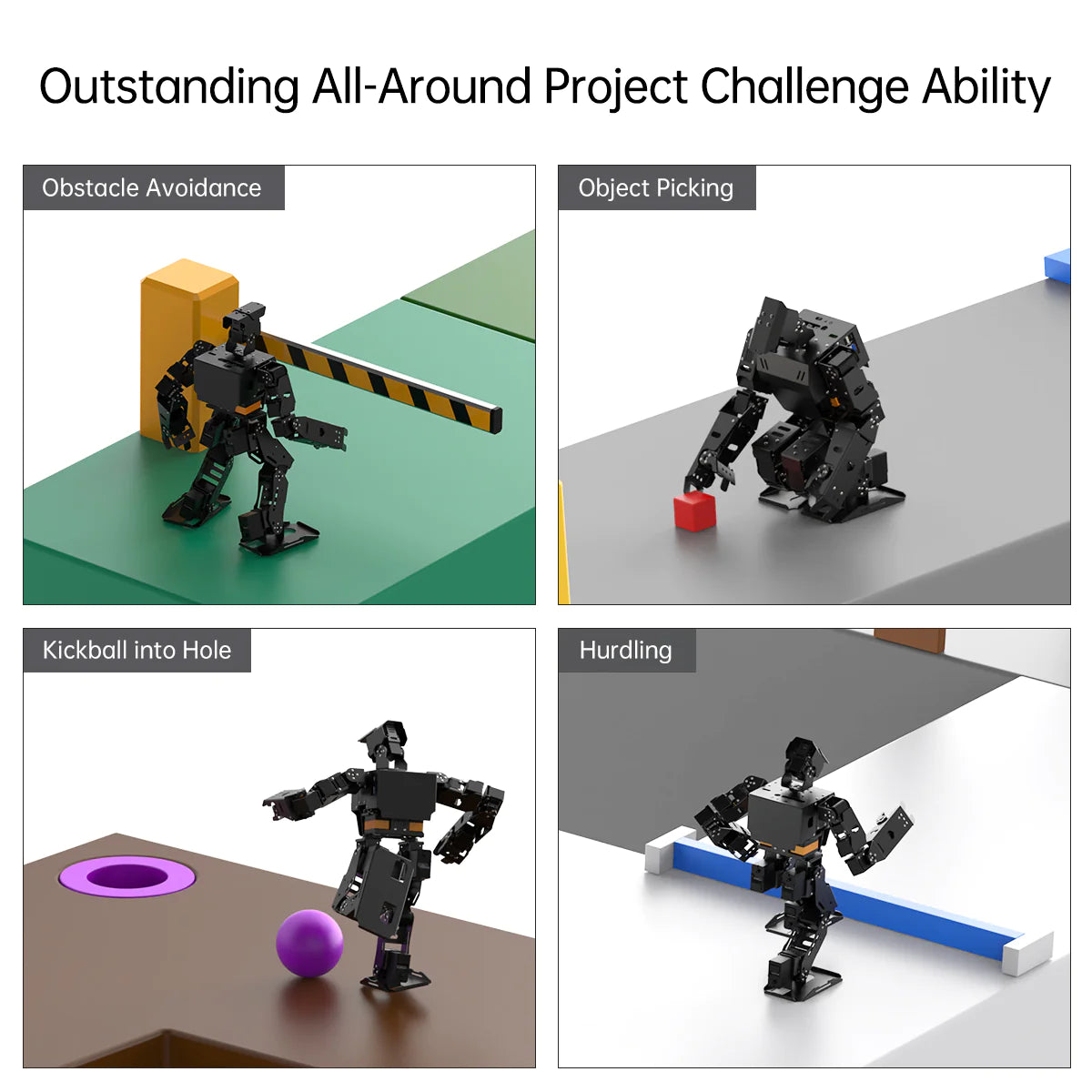

Application Scenarios



Specification Parameters

Product size: 193 * 135 * 415mm(Standard Kit)
DOF: 20DOF(Starter Kit); 24DOF(Standard Kit)
Speed: 21cm/s
App: WonderROS, Android/ iOS
Joint feedback: voltage, position and temperature
Camera: 120° wide-angle, 1 megapixel, manual focus
Controller: Raspberry Pi 4B
Intelligent servo: HX-35H serial bus servo; HX-35HM magnetic encoder serial bus servo; HX-12H serial bus servo
IMU module: 3-axis gyroscope, 3-axis accelerator and 3-axis compass
CPU: Broadcom BCM2711 Quad core Cortex-A72
Storage: 32GB SD card
Operating system: ROS
Product weight: 2.25kg(Starter); 2.45kg(Standard)
Power supply: 11.1V 3500mAh 5C LiPo battery
PC software: AiNex visual action editor
Package size: 50*29*23cm
Package weight: 3.7kg

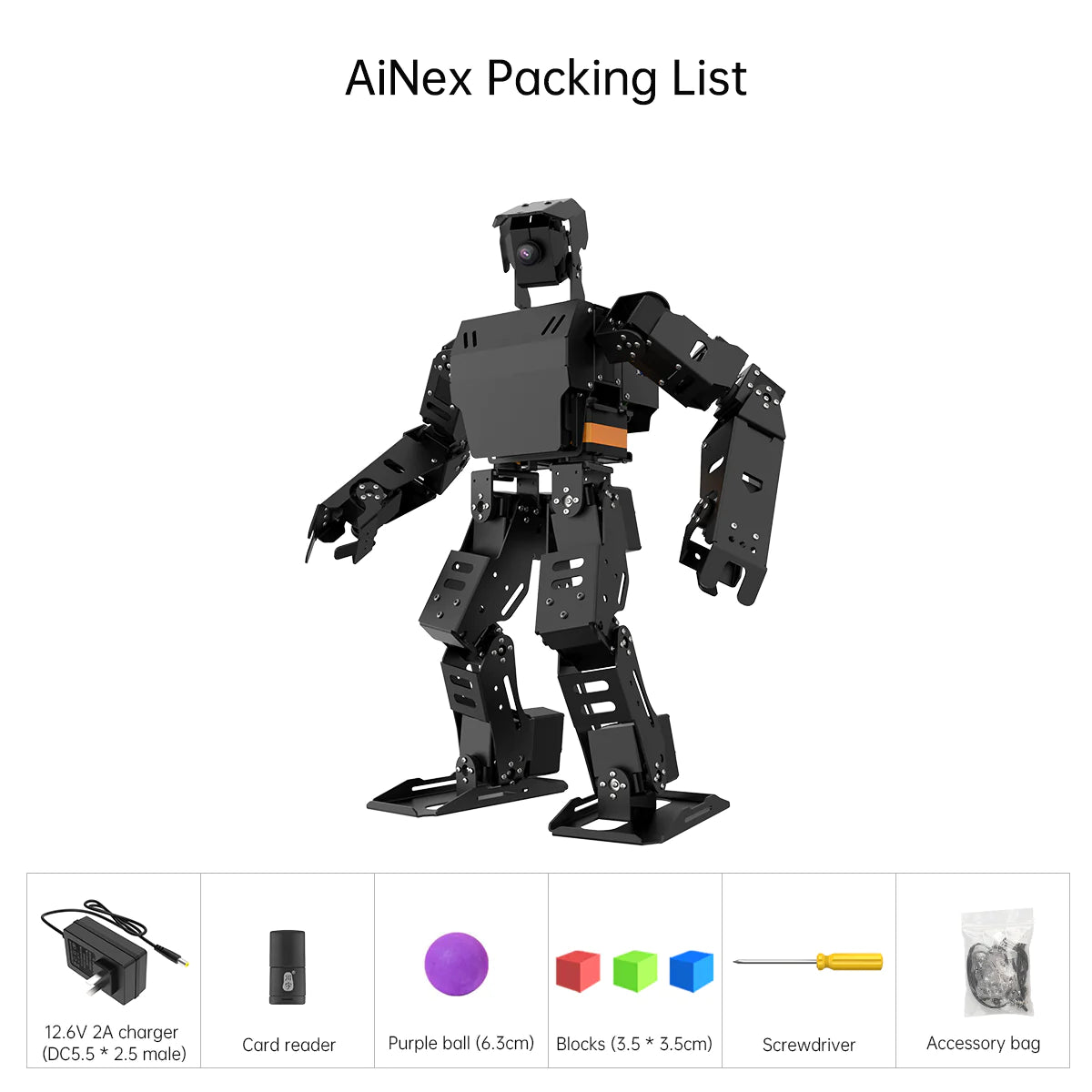

AiNex Starter Kit Packing List



AiNex Standard Kit Packing List
