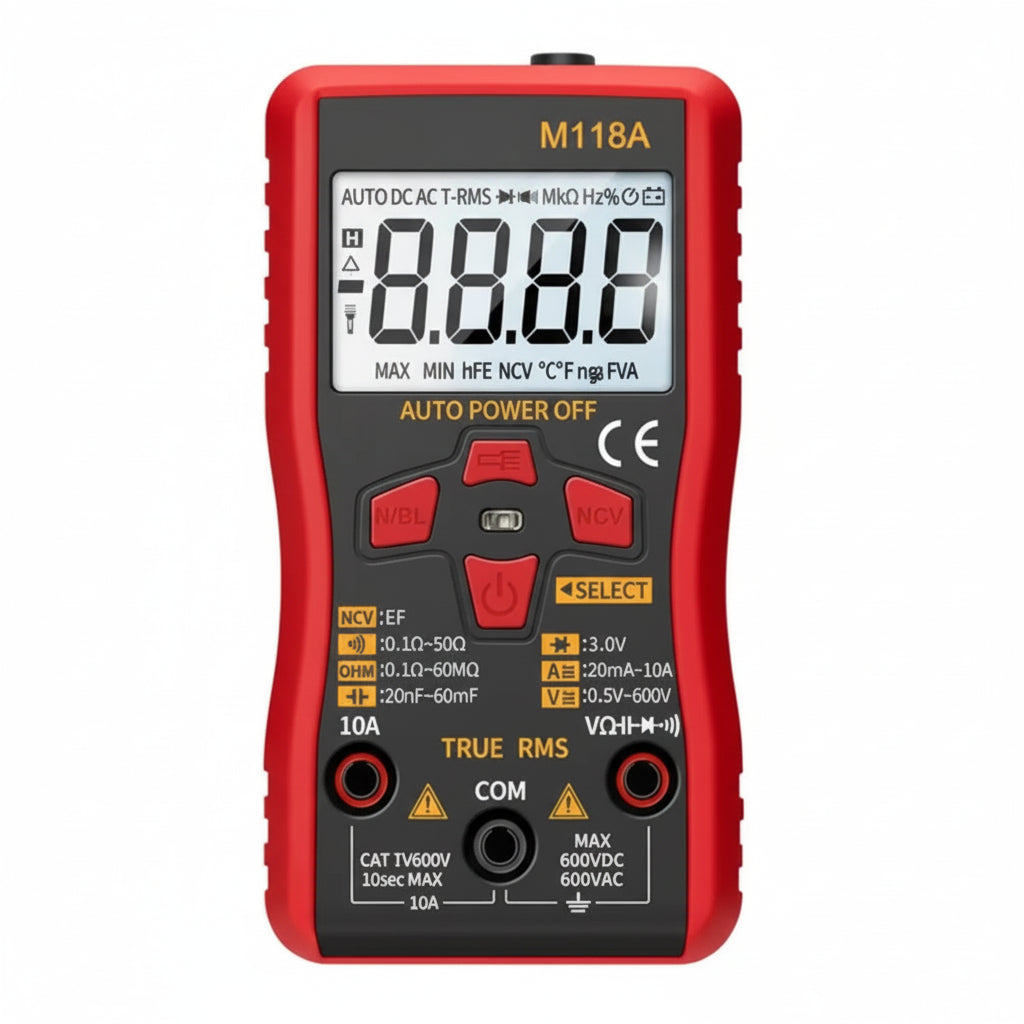

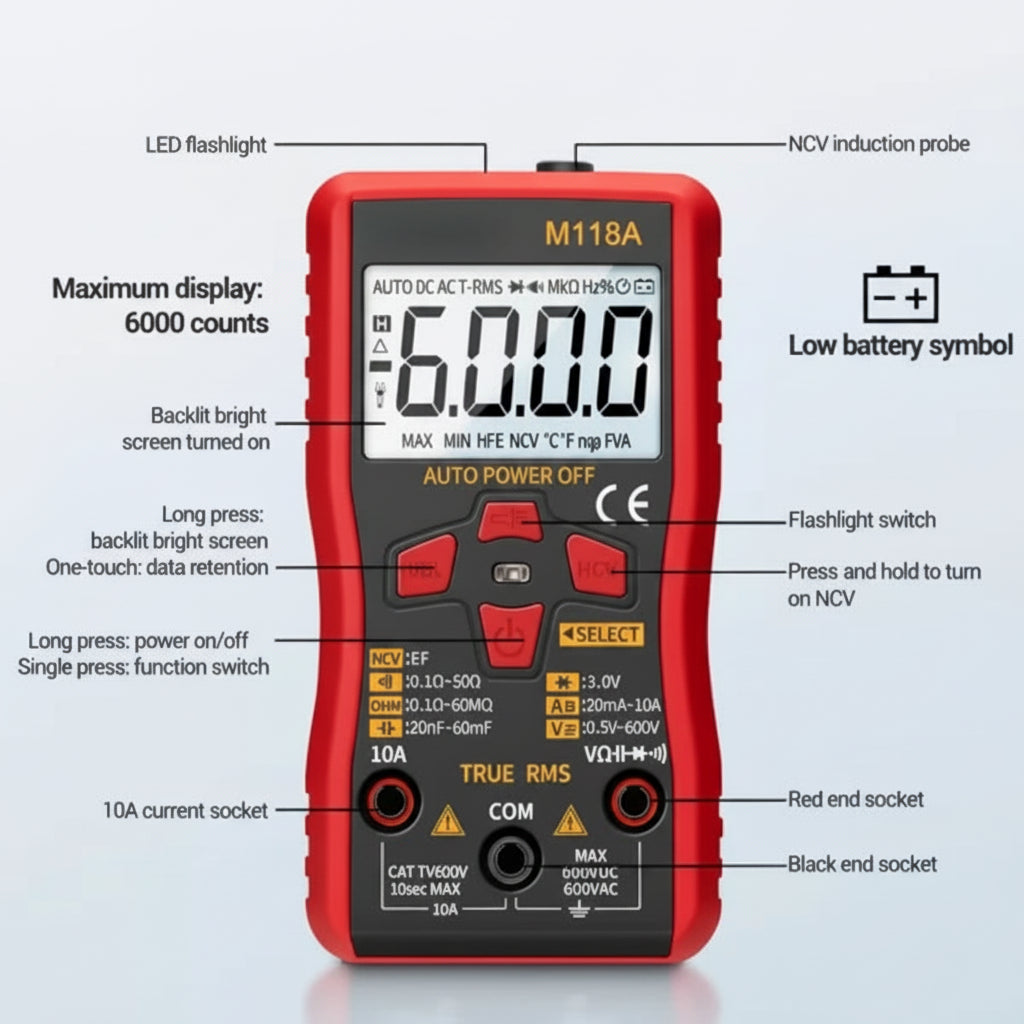

M118A is a 6000 count pocket type 3 5/6 digit real effective value automatic scanning digital meter. M118A has different input voltage/current/resistance/etc. It automatically recognizes and measures according to Signals. M118A features stable performance, high sensitivity and clear reading. The M118A also has additional useful functions of flashlight and non-contact voltage test. M118A is an ideal tool and tool suitable for factories, teaching and electronics enthusiasts.
| Parameter | Details | |
|---|---|---|
| Brand | ANENG | |
| Model | M118A | |
| Display | 6000 counts | |
| Power Supply | 2 × 1.5V AAA | |
| Functions & Features | ||
| Resistance | Yes | |
| Capacitance | Yes | |
| Continuity Test | Yes | |
| NCV | Yes | |
| Zero Line / Fire Line Test | Yes | |
| All Unit Symbol | Yes | |
| Backlight Manual | Yes | |
| True RMS | Yes | |
| Automatic Shutdown | Yes | |
| Flashlight Lighting | Yes | |
| Diode | Yes | |
| Sampling Rate | Yes | |
| Function | Range | Accuracy |
| DC / AC Voltage | 6V / 60V / 600V | ±(0.5% + 3) |
| Resistance | 600Ω | ±(0.8% + 5) |
| Resistance | 6kΩ / 60kΩ / 600kΩ / 6MΩ | ±(0.8% + 3) |
| Resistance | 60MΩ | ±(2.5% + 3) |
| Capacitance | 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF | ±(3.5% + 20) |
| Capacitance | 60mF | ±(5% + 3) |
| AC / DC Current | 6A / 10A | ±(2% + 30) |

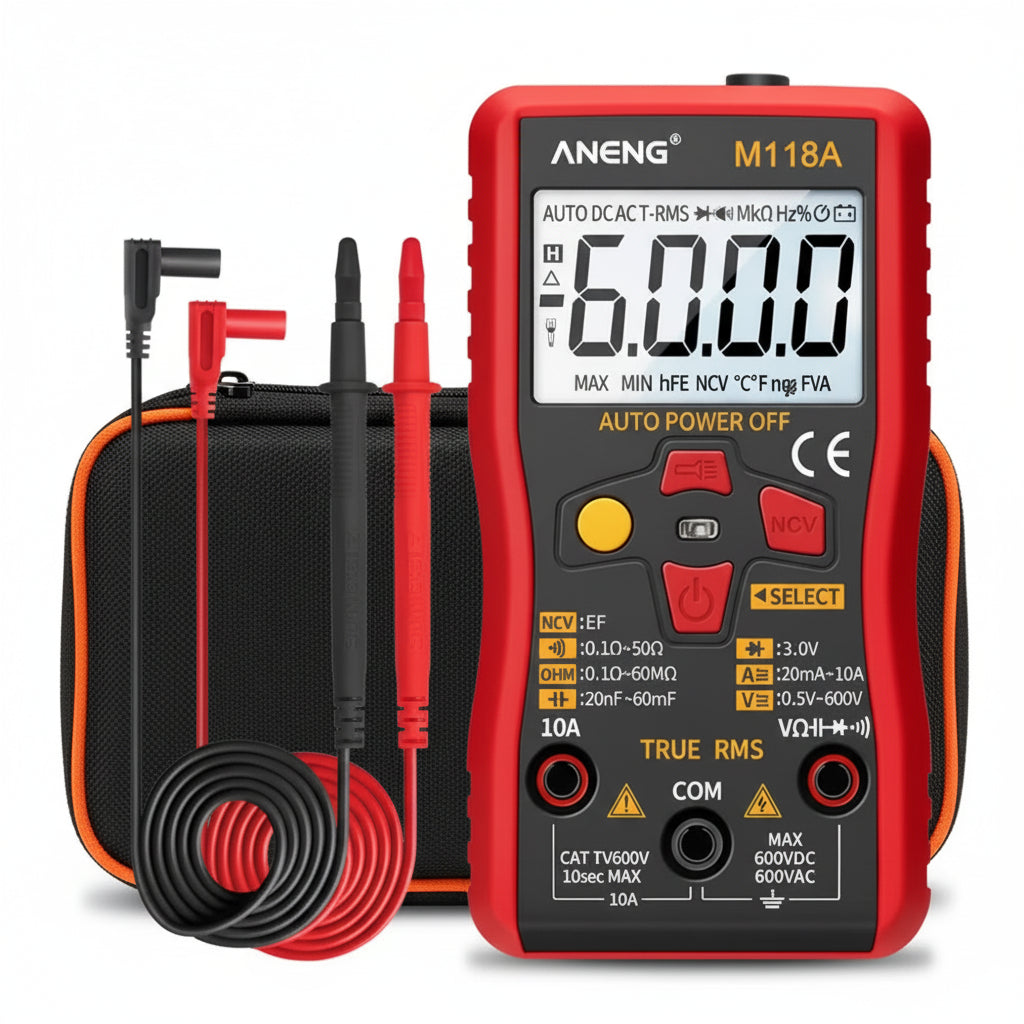

1 * digital multimeter
1 * user manual

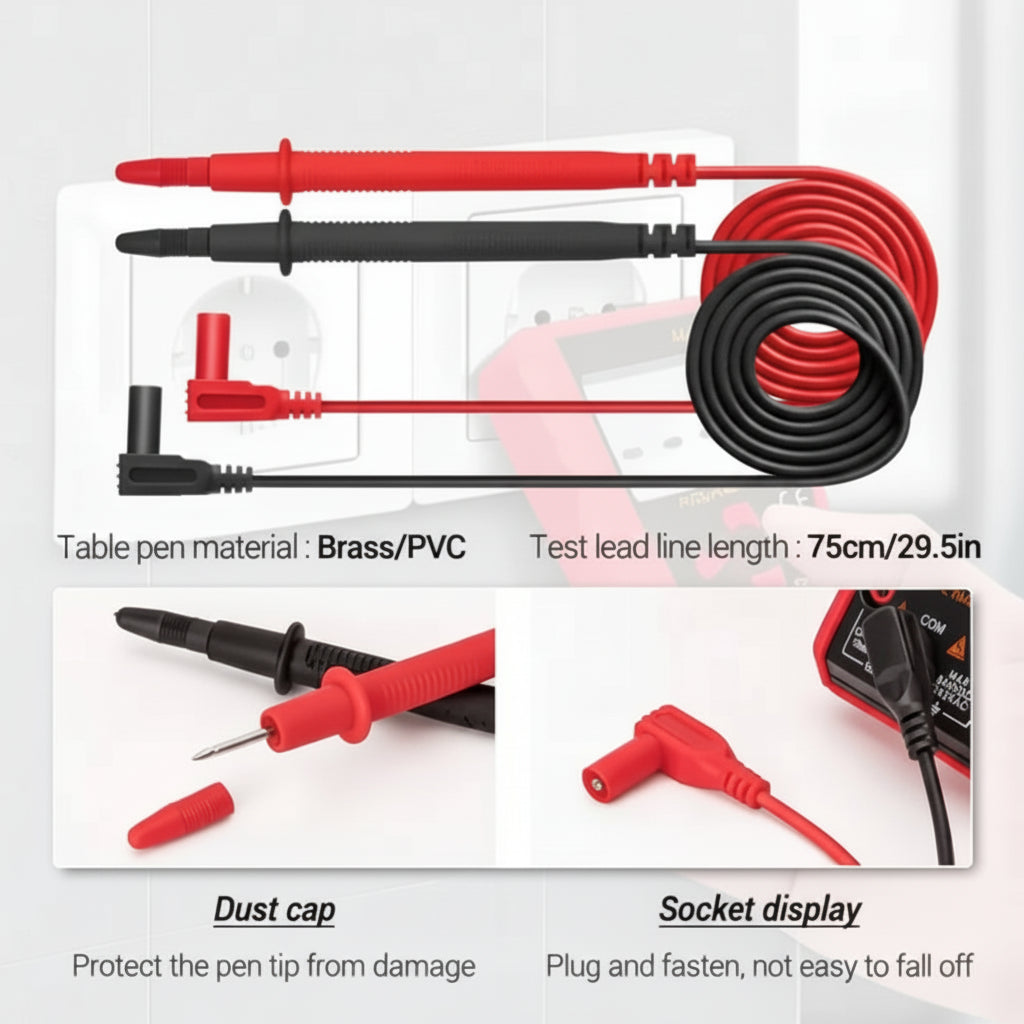

1 * test leads
Note: This device doesn't include a battery.
