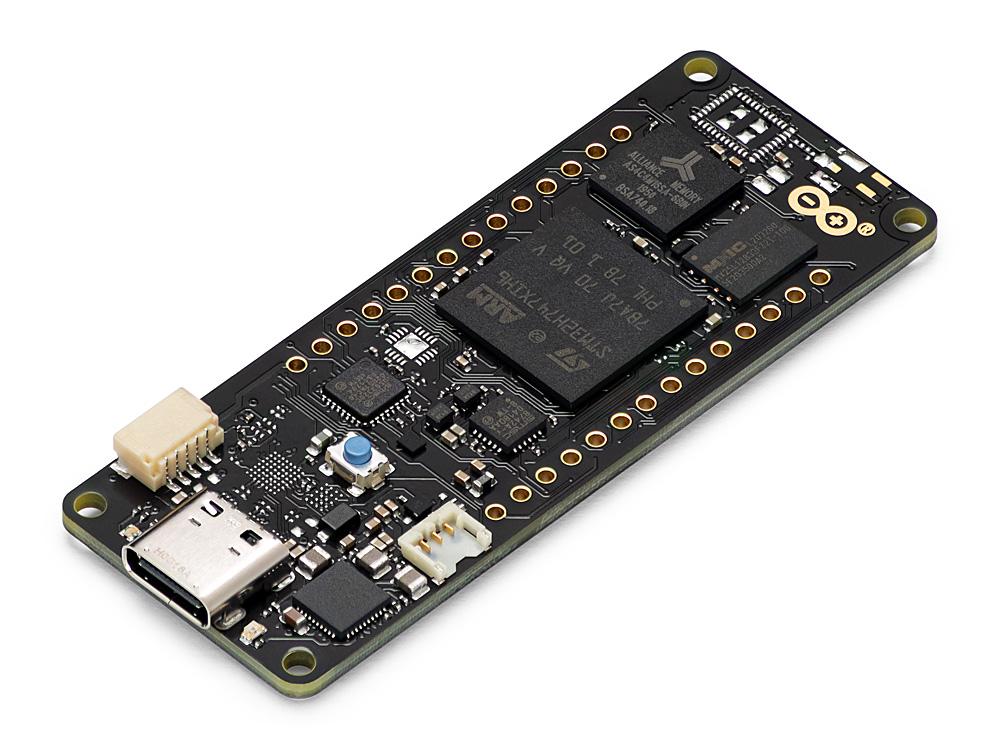

The Portenta H7 Lite is a cost-effective solution, designed for complex environments where radio communication is not suitable or possible. It is perfect for developers who want to leverage the computational power of the Portenta H7, without the need for video output or advanced security features.
The Portenta H7 Lite simultaneously runs high-level code and real-time tasks thanks to its two processors. For example, it can execute Arduino-compiled and MicroPython code at the same time, and have the two cores communicate with one another.
Key benefits include:
Dual Core - Two best-in-class processors in one, running parallel tasks
AI on the edge - So powerful it can run AI state machines
Customization - The board is highly customizable in volumes
High-level programming language support (Micropython)
The Portenta H7 Lite offers twofold functionality: it can run either like any other embedded microcontroller board, or as the main processor of an embedded computer.
For example, use the Portenta Vision Shield to transform your H7 Lite into an industrial camera capable of performing real-time machine learning algorithms on live video feeds. As the H7 Lite can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other carries out low-level operations like controlling a motor or acting as a user interface.
Portenta is the go-to family when performance is key, and the H7 Lite is no exception. We can already envision it as part of a wide range of solutions, including:
High-end industrial machinery
Laboratory equipment
Computer vision
PLCs
Robotics controllers
Mission-critical devices
High-speed booting computation (ms)
Two Parallel Cores

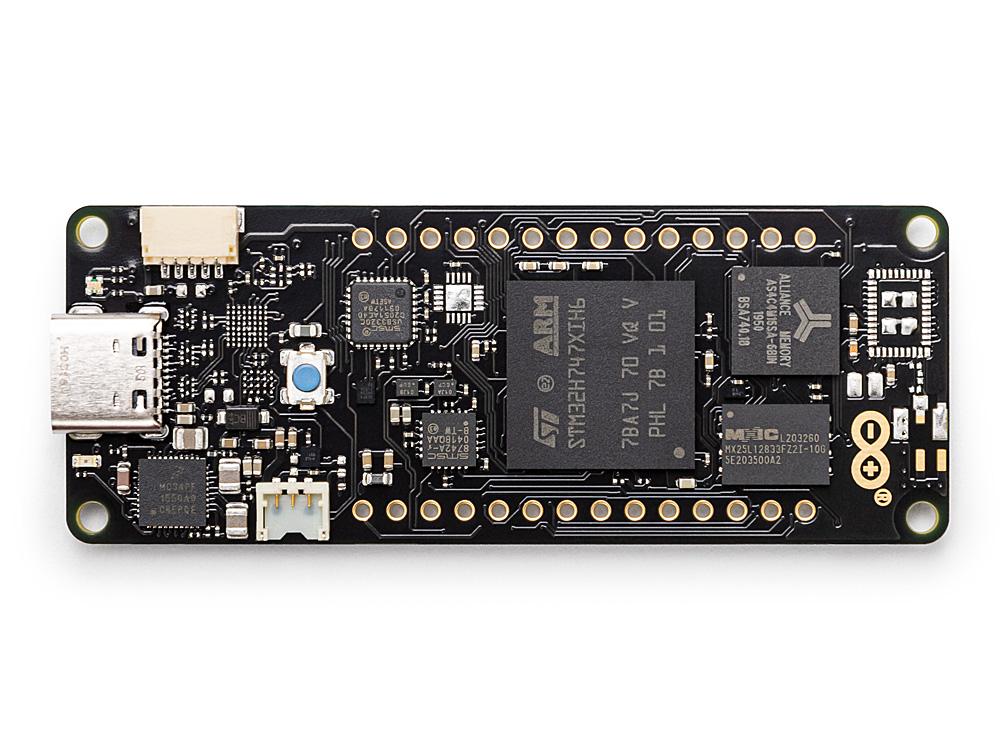

The Portenta H7 Lite’s main processor is the STM32H747 dual core including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals and can run:
Arduino sketches on top of the Arm® Mbed™ OS
Native Mbed™ applications
MicroPython / JavaScript via an interpreter
TensorFlow™ Lite
A New Standard for Pinouts

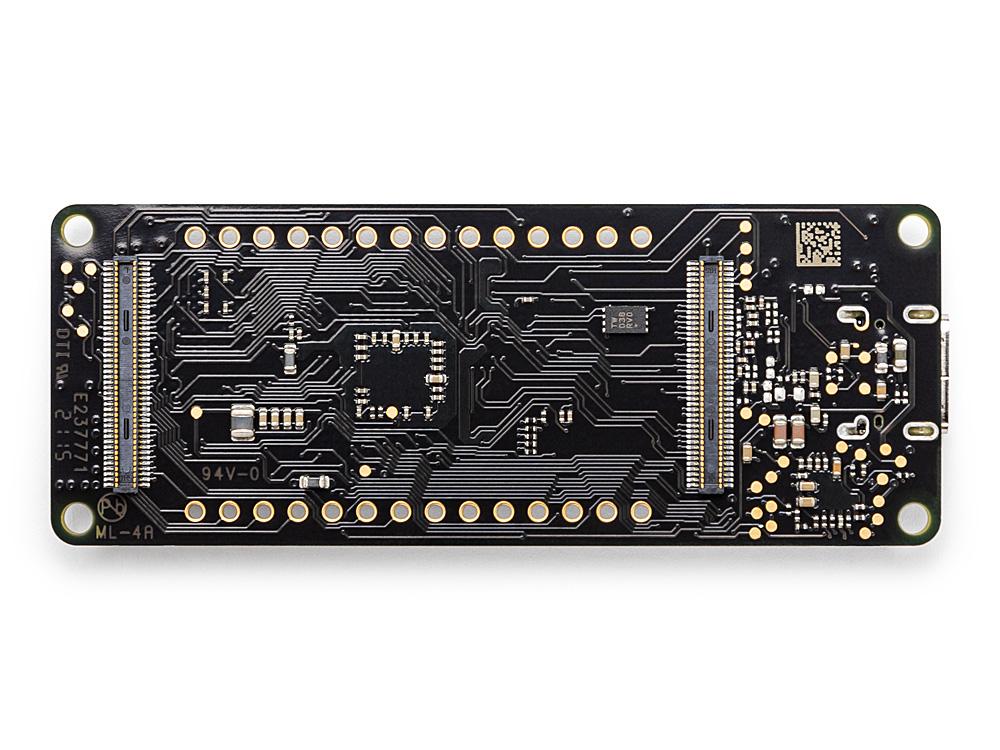

The Portenta family adds two 80-pin high-density connectors at the bottom of the board. This ensures scalability for a wide range of applications: simply upgrade your Portenta board to the one suiting your needs.
USB-C Multipurpose Connector
The board’s programming connector is a USB-C port that can also be used to power the board, as a USB Hub, or to deliver power to OTG connected devices.
Arduino IoT Cloud
Use your Portenta board on Arduino’s IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. If you need any help with your board, please get in touch with the official Arduino User Support as explained in Arduino's Contact Us page.
Warranty
You can find your board warranty information here.
Technical Specifications
Microcontroller
STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)
Secure Element (default)
Microchip ATECC608
Board Power Supply (USB/VIN)
5V
Supported Battery
Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
Circuit Operating Voltage
3.3V
Current Consumption
2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
Timers
22x timers and watchdogs
UART
4x ports (2 with flow control)
Ethernet PHY
10 / 100 Mbps (through expansion port only)
SD Card
Interface for SD Card connector (through expansion port only)
Operational Temperature
-40 °C to +85 °C
MKR Headers
Use any of the existing industrial MKR shields on it
High-density Connectors
Two 80 pin connectors will expose all of the board's peripherals to other devices
Camera Interface
8-bit, up to 80 MHz
ADC
3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
