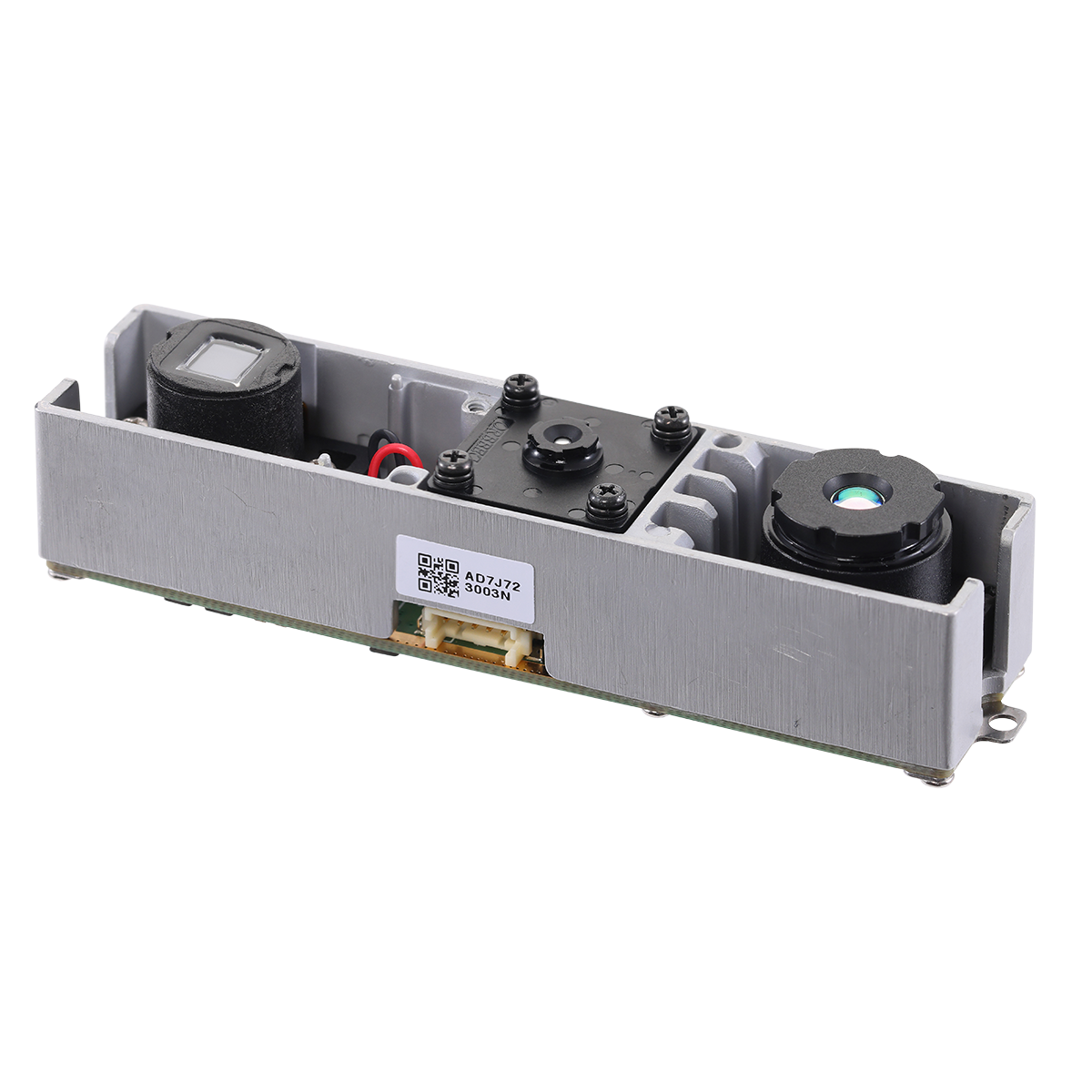

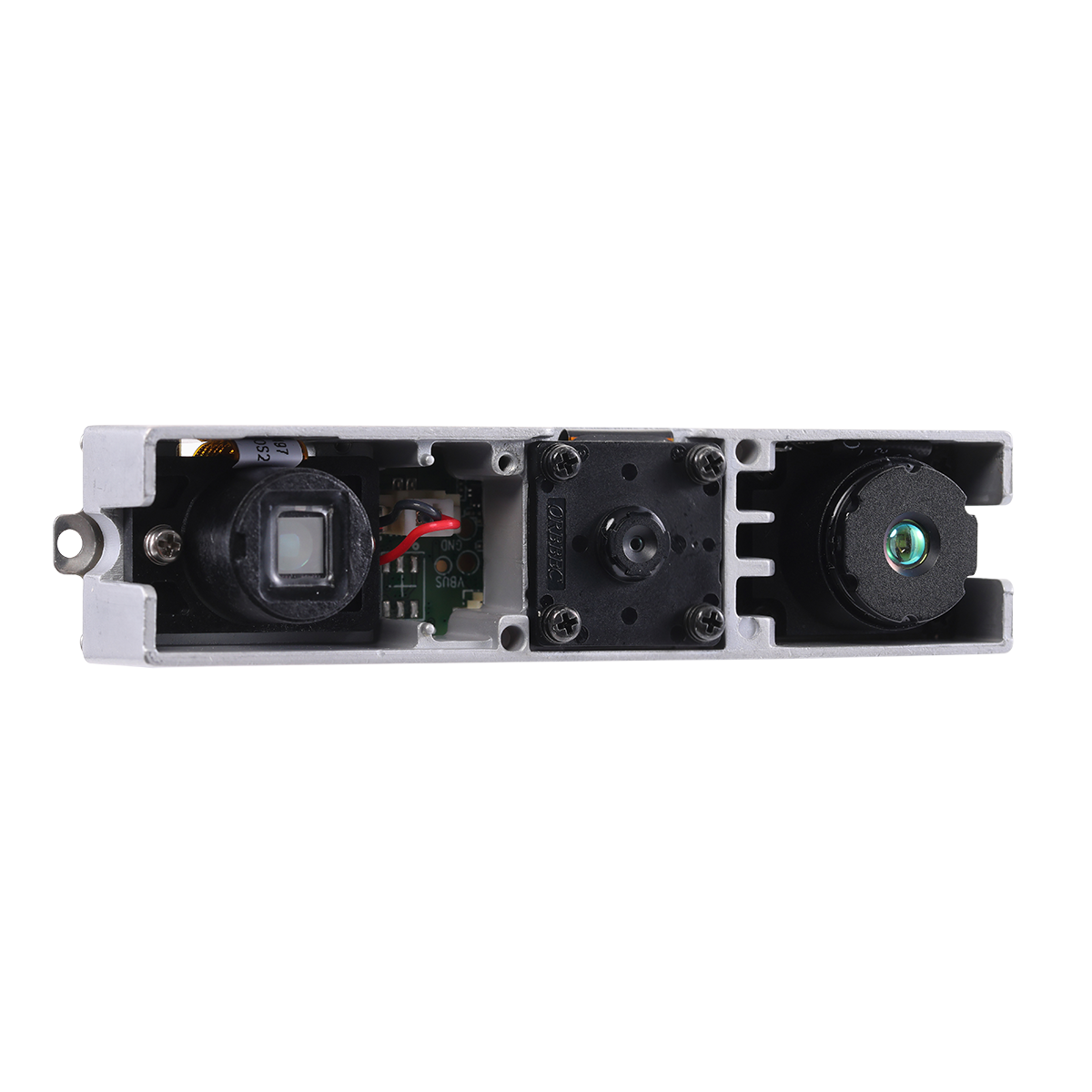

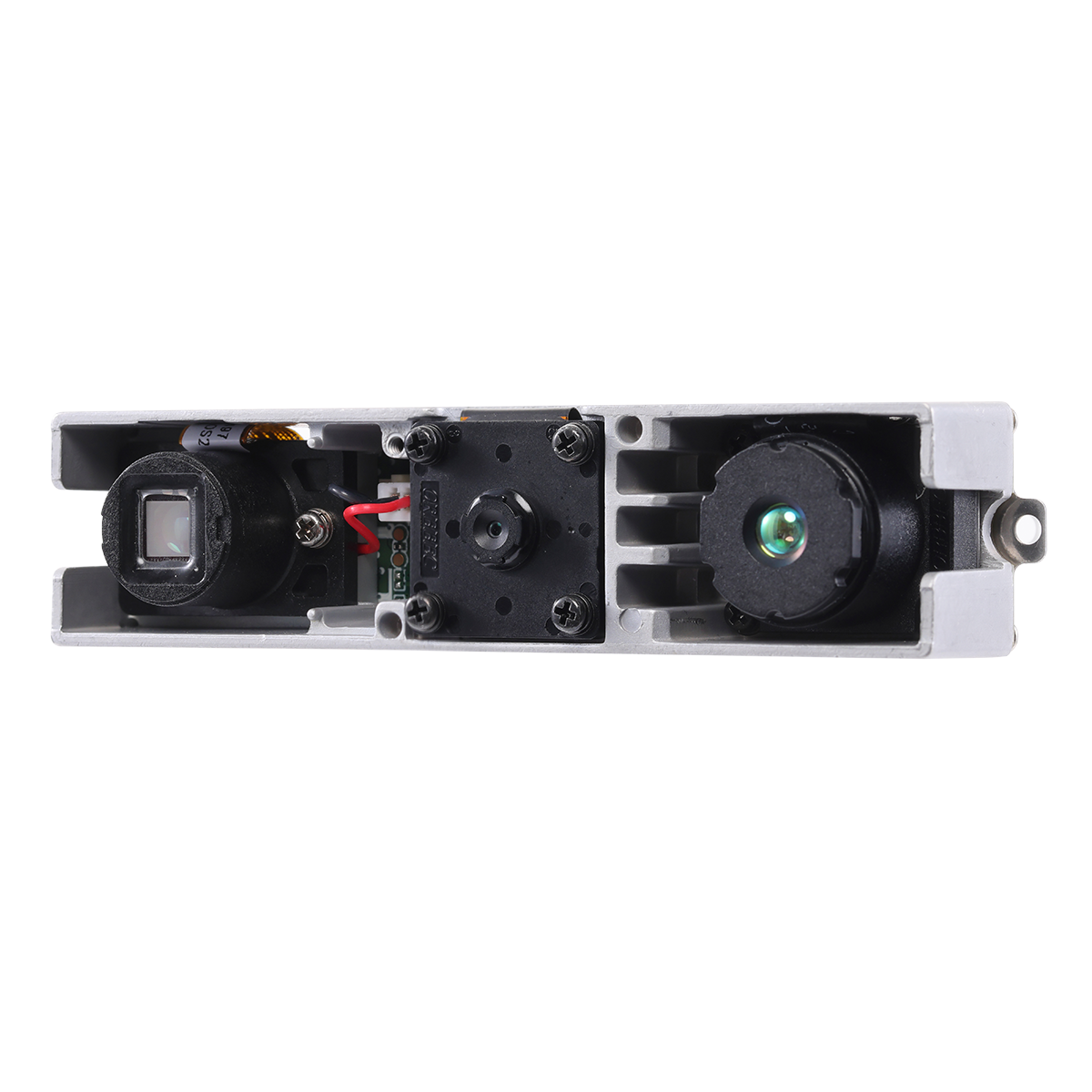

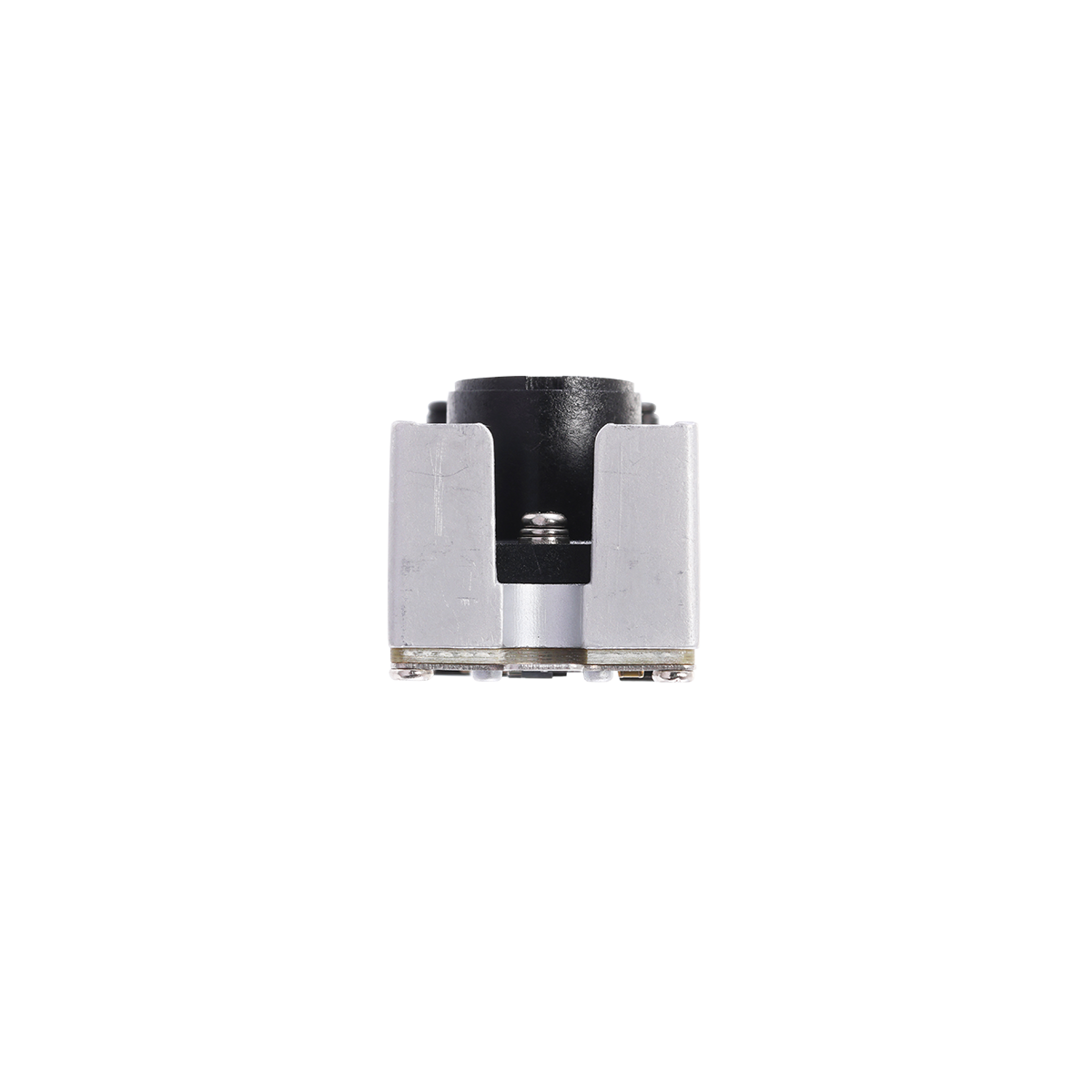

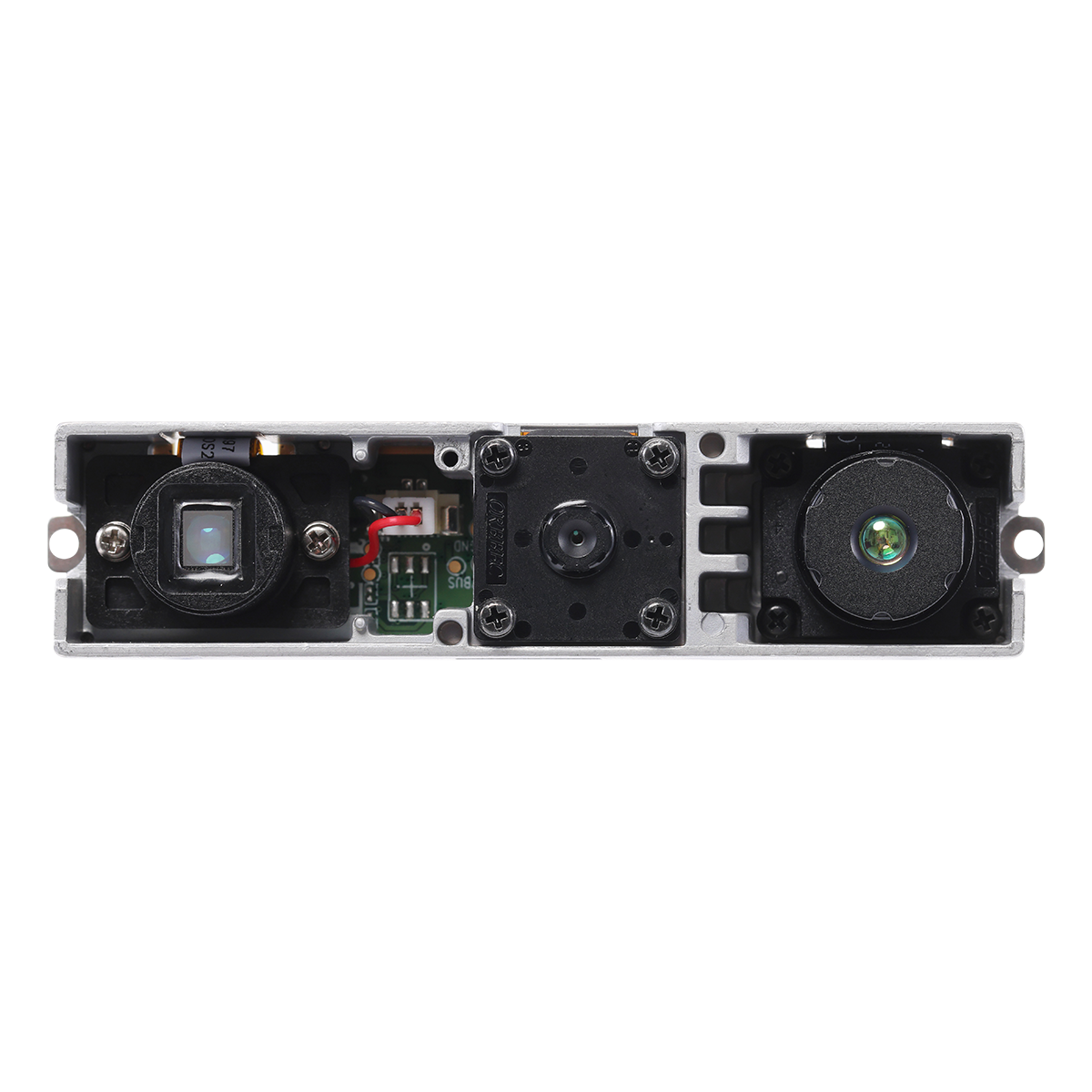

Astra Mini S Pro - bare 3D Scanning & Imaging Module

SKU: SBC4005

ā‚¹ 21,749.99 ā‚¹ 29,999.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Astra Mini S Pro - bare 3D Scanning & Imaging Moduleā‚¹ 21,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Astra Mini S Pro

Interactive, Service robotics

Orbbec Astra Mini S Pro depth camera is based on 3D structured light imaging technology to obtain the depth image of the object, at the same time using the colour camera to capture the colour image of the object, Astra Mini S Pro is suitable for 0.4m-4m distance for 3D objects and space scanning of intelligent products, can achieve the measurement of the depth data of the object within the measuring distance.

ORBBECĀ® provides customers with high performance depth cameraĀ products, and a large number of customers around the world use our products toĀ revolutionise their solutions to provide a more competitive user experience andĀ give more value.

Salient Features:

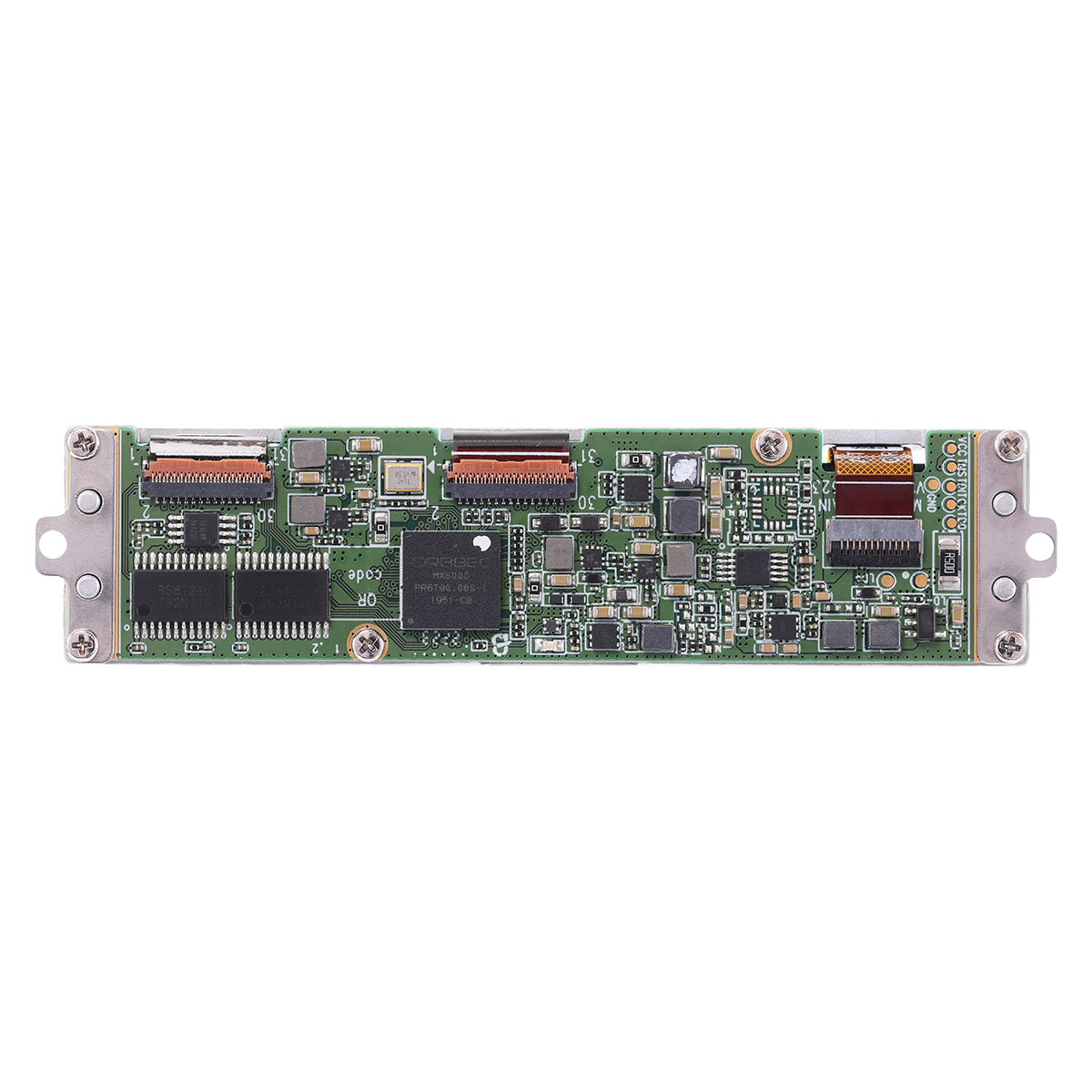

  • ORBBEC depth computing processor MX6000
  • Depth image: up to 1280 Ɨ 1024 resolution
  • Color image: up to 1280 Ɨ 960 resolution
  • Support multi resolution depth image alignment with color image
  • High quality depth output 3mm@1m Relative precision
  • Working distance: 0.4m-2m
  • Interface: USB2.0
  • Support OpenNI2 SDKĀ & Orbbec SDK


Basic Applications:

  • Robot obstacle avoidance
  • 3D measurement
  • somatosensory interaction

Ā

Technical Specs

Product Name Astra Mini S Pro
Environment Indoors
Depth Range 0.4m - 2m
Alternative Depth Default is 0.4m - 2m, to use 2m - 4m you need to set the gain to 8000 via the SDK interface
Camera Driver OpenNI
SDK OpenNI2 & Orbbec SDK
Depth
DepthĀ Technology Structured Light
Baseline 55mm
Precision 3mm @ 1m
Depth Output Resolution 1280x1024@7fps Y16
1280x960@7fps Y16
640x480@10/15/30fps Y16
320x240@10/15/30fps Y16
160x120@10/15/30fps Y16
Depth FOV H58.4Ā° V45.5Ā° D70Ā°Ā±5Ā°@1m
Shutter Type Rolling Shutter
Infrared
IR Image Output Resolution 1280x1024@7fps Y16
1280x960@7fps Y16
640x480@10/15/30fps Y16
320x240@10/15/30fps Y16
160x120@10/15/30fps Y16
IR FOV H58.4Ā° V45.5Ā° D70Ā°Ā±5Ā°@1m
RGB
Color Image Output Resolution 1280x960@7fps YUYV
640x480@10/15/30fps YUYV
320x240@10/15/30fps YUYV
RGB FOV H62.7Ā° V49Ā° D75.1Ā°Ā±5Ā°
Shutter Type Rolling Shutter
Function
D2C Depth Image FOV H58.4Ā° V45.5Ā° D70Ā°Ā±5Ā°@1m
Hardware D2C Supported
Data Connection USB2.0
What is the depth range and what depth resolutions are supported?
The default working depth range is 0.4 m to 2 m. Depth output supports multiple resolutions including 1280x1024 at 7 fps (Y16), 1280x960 at 7 fps (Y16), and 640x480 at 10/15/30 fps (Y16).
Which software development kits are supported by this module?
It supports OpenNI2 SDK and Orbbec SDK.
How can I use the 2 to 4 meter range with this module?
The default range is 0.4 to 2 meters; to use 2 to 4 meters you need to set the gain to 8000 via the SDK interface.
What is the interface and the recommended usage environment?
The module uses a USB 2.0 data connection and is intended for indoor environments.
What are the common applications supported by this depth camera?
Basic applications include robot obstacle avoidance, 3D measurement, and somatosensory interaction.
A
Admin
Welcome to the discussion thread for Astra Mini S Pro - bare 3D Scanning & Imaging Module
Feel free to ask questions, share tips or report issues.

Discover More In:

Camera Modules ā†’ Cameras & LIDARs ā†’ NVIDIA Jetson ā†’

Category: View similar items (Astra)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Astra Mini S Pro

Interactive, Service robotics

Orbbec Astra Mini S Pro depth camera is based on 3D structured light imaging technology to obtain the depth image of the object, at the same time using the colour camera to capture the colour image of the object, Astra Mini S Pro is suitable for 0.4m-4m distance for 3D objects and space scanning of intelligent products, can achieve the measurement of the depth data of the object within the measuring distance.

ORBBECĀ® provides customers with high performance depth cameraĀ products, and a large number of customers around the world use our products toĀ revolutionise their solutions to provide a more competitive user experience andĀ give more value.

Salient Features:

  • ORBBEC depth computing processor MX6000
  • Depth image: up to 1280 Ɨ 1024 resolution
  • Color image: up to 1280 Ɨ 960 resolution
  • Support multi resolution depth image alignment with color image
  • High quality depth output 3mm@1m Relative precision
  • Working distance: 0.4m-2m
  • Interface: USB2.0
  • Support OpenNI2 SDKĀ & Orbbec SDK


Basic Applications:

  • Robot obstacle avoidance
  • 3D measurement
  • somatosensory interaction

Ā

Technical Specs

Product Name Astra Mini S Pro
Environment Indoors
Depth Range 0.4m - 2m
Alternative Depth Default is 0.4m - 2m, to use 2m - 4m you need to set the gain to 8000 via the SDK interface
Camera Driver OpenNI
SDK OpenNI2 & Orbbec SDK
Depth
DepthĀ Technology Structured Light
Baseline 55mm
Precision 3mm @ 1m
Depth Output Resolution 1280x1024@7fps Y16
1280x960@7fps Y16
640x480@10/15/30fps Y16
320x240@10/15/30fps Y16
160x120@10/15/30fps Y16
Depth FOV H58.4Ā° V45.5Ā° D70Ā°Ā±5Ā°@1m
Shutter Type Rolling Shutter
Infrared
IR Image Output Resolution 1280x1024@7fps Y16
1280x960@7fps Y16
640x480@10/15/30fps Y16
320x240@10/15/30fps Y16
160x120@10/15/30fps Y16
IR FOV H58.4Ā° V45.5Ā° D70Ā°Ā±5Ā°@1m
RGB
Color Image Output Resolution 1280x960@7fps YUYV
640x480@10/15/30fps YUYV
320x240@10/15/30fps YUYV
RGB FOV H62.7Ā° V49Ā° D75.1Ā°Ā±5Ā°
Shutter Type Rolling Shutter
Function
D2C Depth Image FOV H58.4Ā° V45.5Ā° D70Ā°Ā±5Ā°@1m
Hardware D2C Supported
Data Connection USB2.0
FAQ
What is the depth range and what depth resolutions are supported?
The default working depth range is 0.4 m to 2 m. Depth output supports multiple resolutions including 1280x1024 at 7 fps (Y16), 1280x960 at 7 fps (Y16), and 640x480 at 10/15/30 fps (Y16).
Which software development kits are supported by this module?
It supports OpenNI2 SDK and Orbbec SDK.
How can I use the 2 to 4 meter range with this module?
The default range is 0.4 to 2 meters; to use 2 to 4 meters you need to set the gain to 8000 via the SDK interface.
What is the interface and the recommended usage environment?
The module uses a USB 2.0 data connection and is intended for indoor environments.
What are the common applications supported by this depth camera?
Basic applications include robot obstacle avoidance, 3D measurement, and somatosensory interaction.
