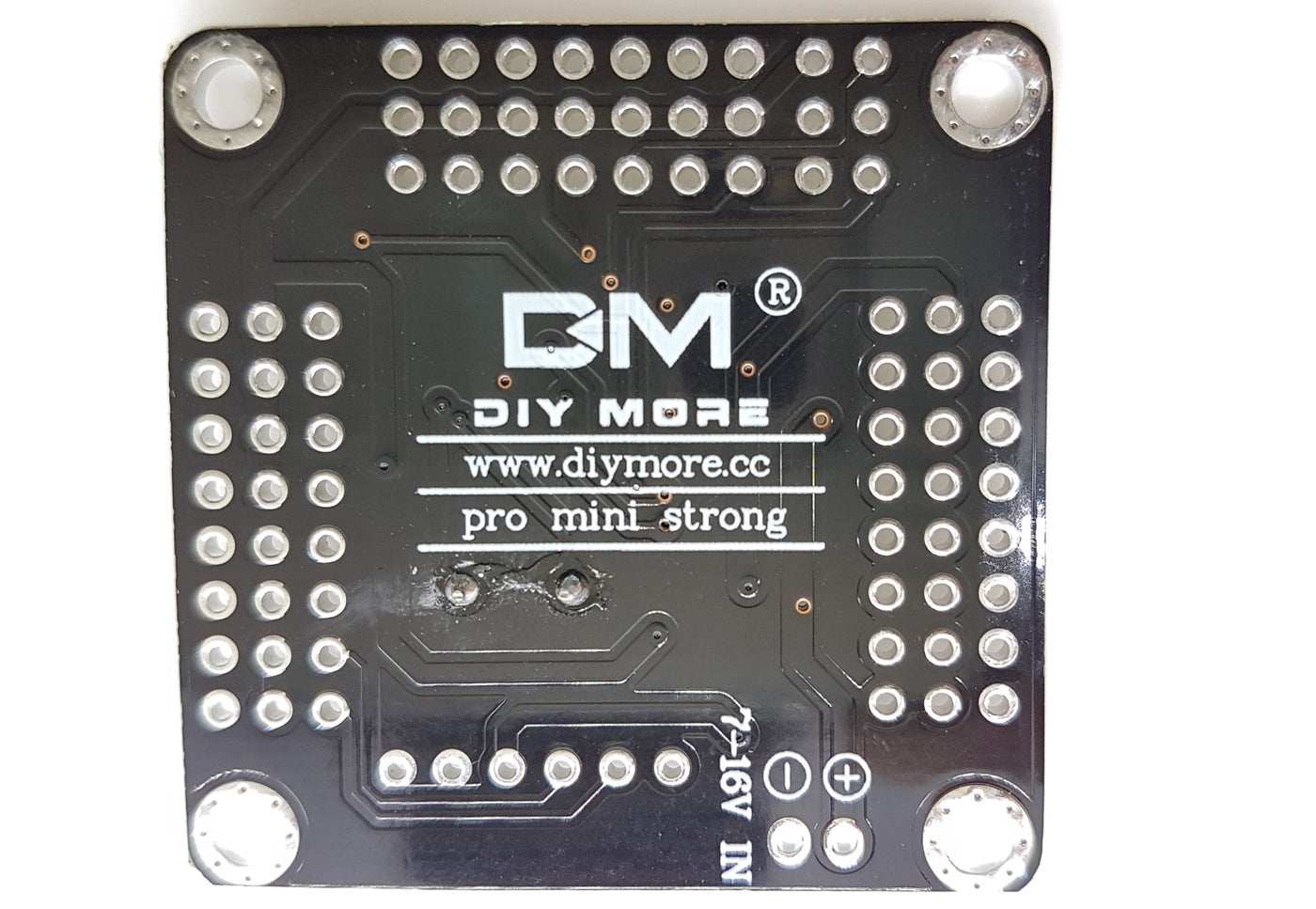

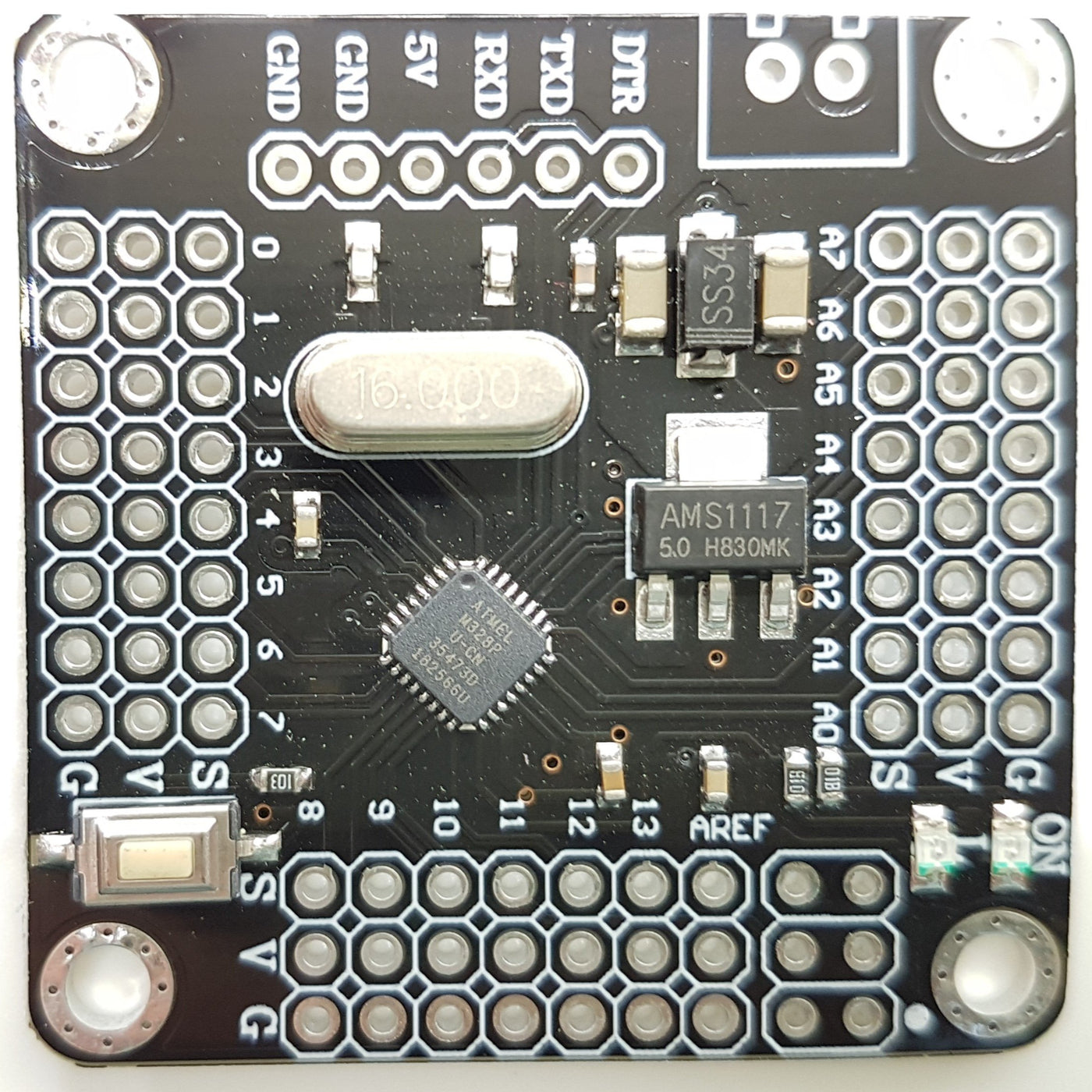

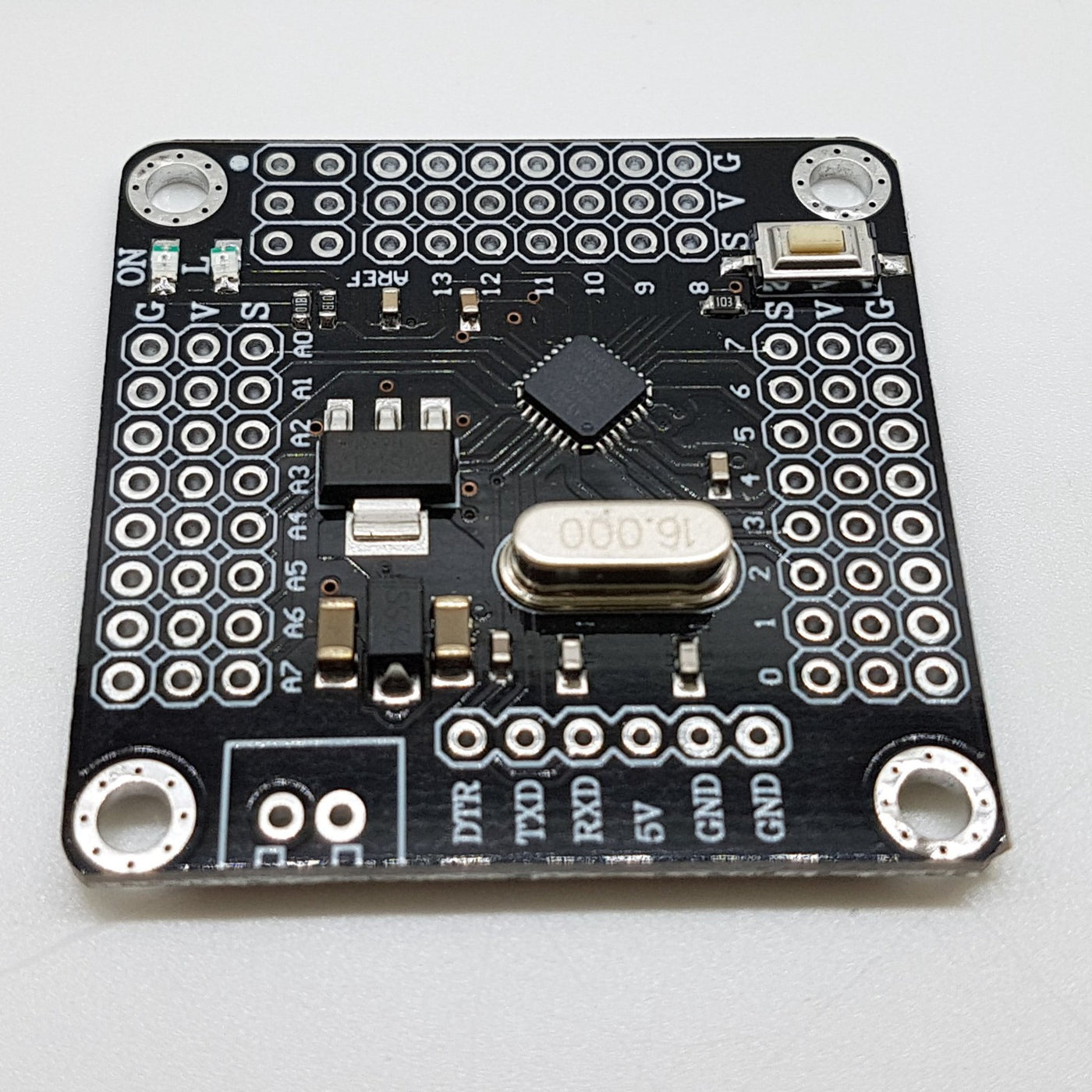

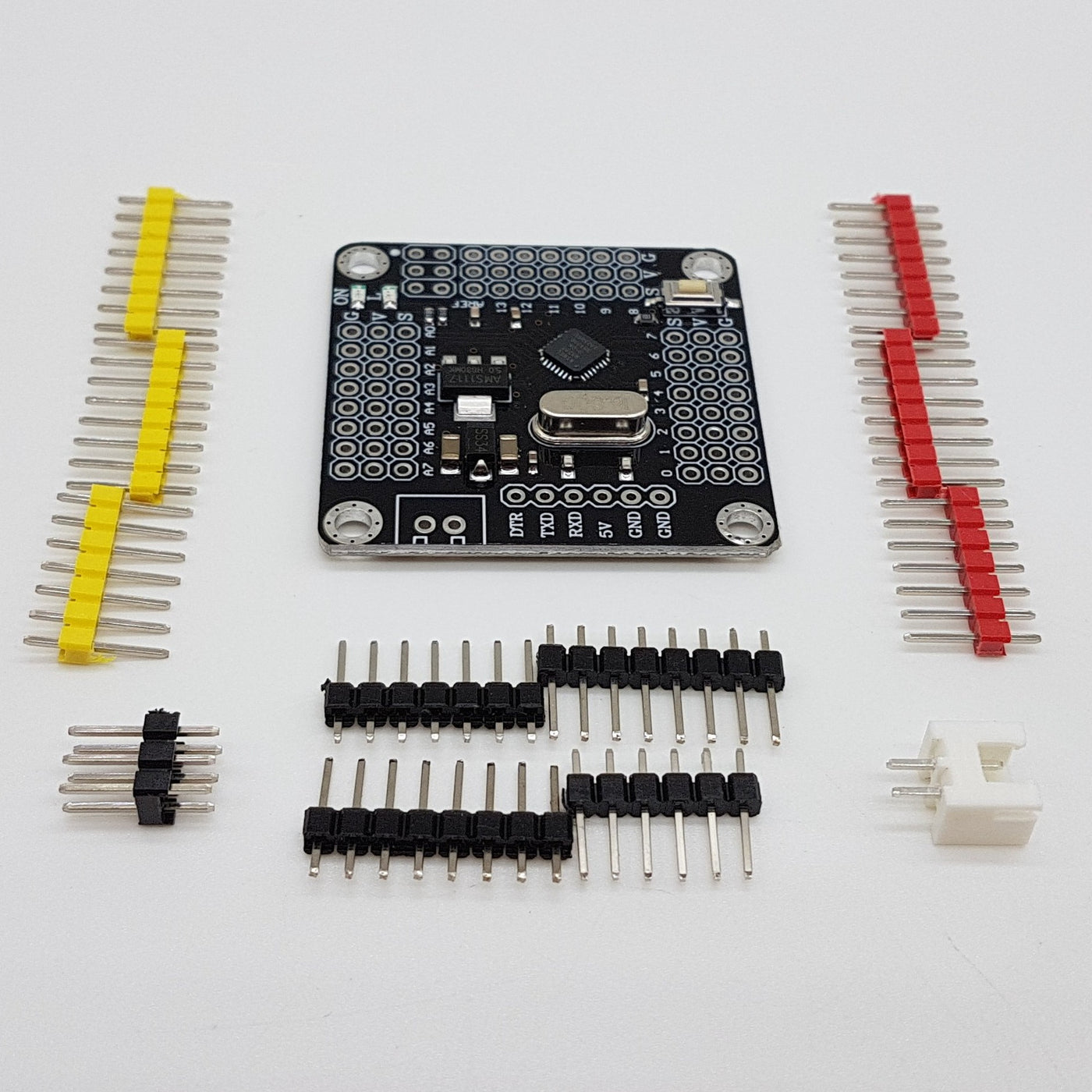

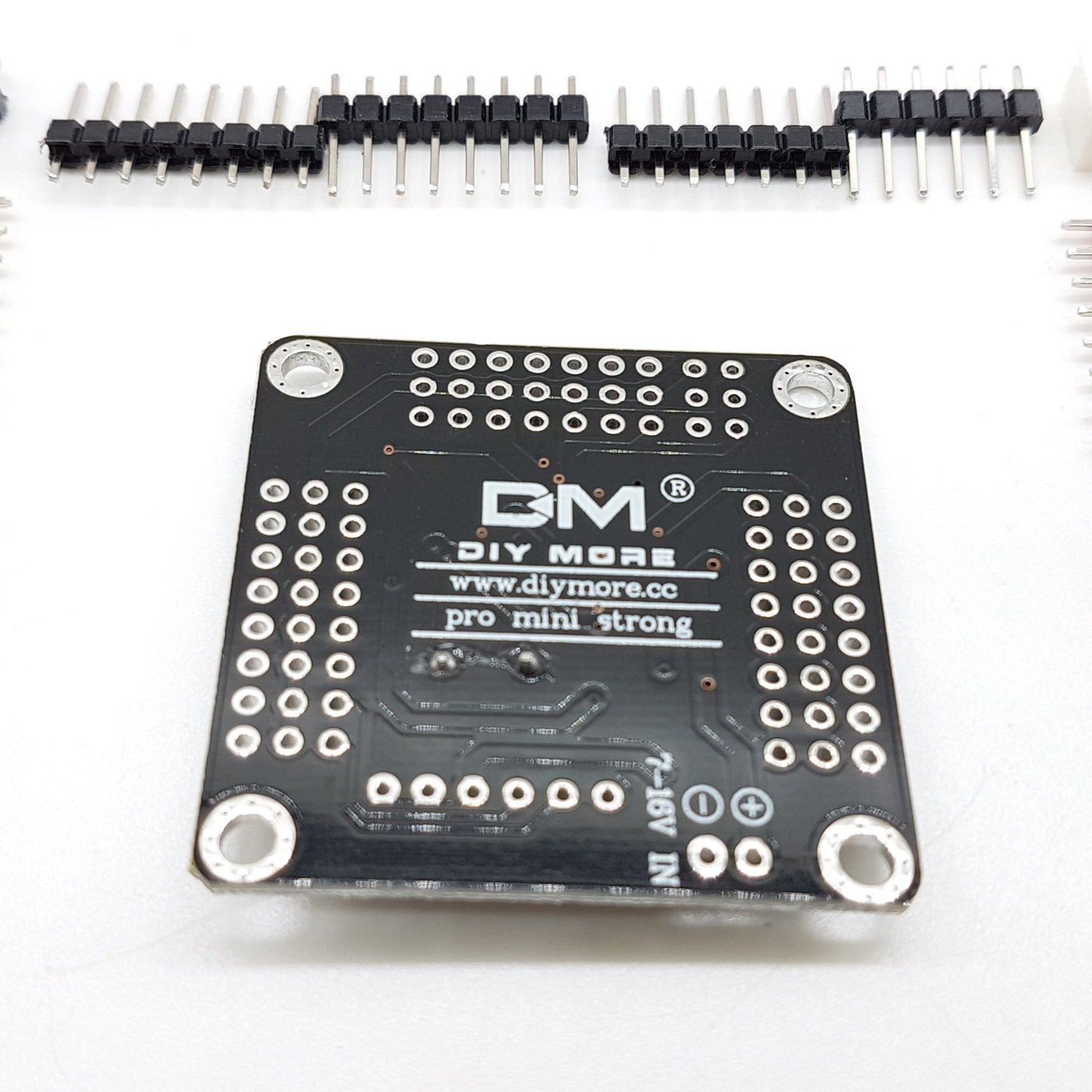

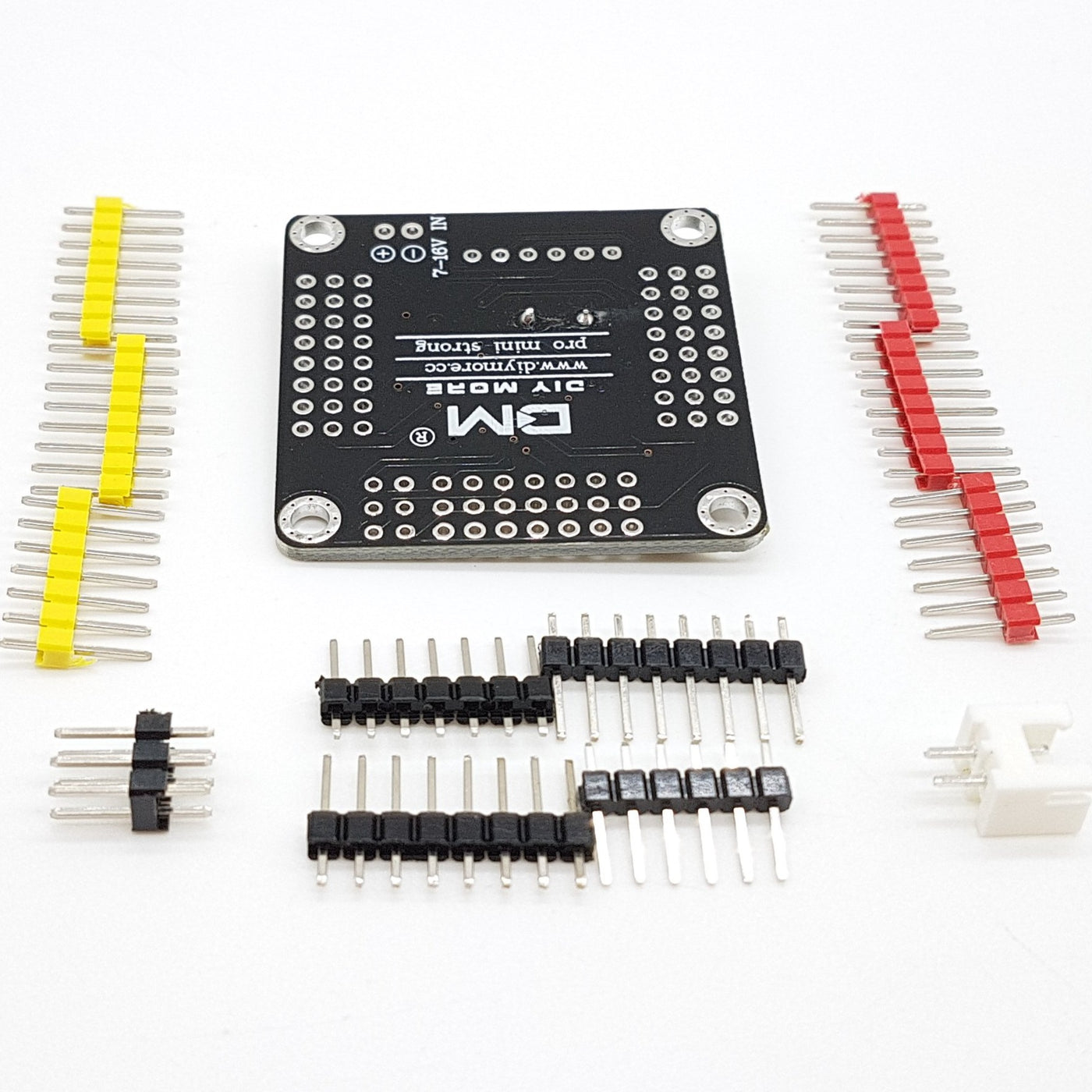

The ATmega328 board compatible For Arduino Pro Mini. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.
We increased VCC and GND leads, you can easily connect by Dupont line with other applications, it is not very convenient? A 10 pin header can be connected to an FTDI cable board to provide USB power and communication to the board.
Specifications
Microcontroller ATmega328
Operating Voltage 5V
Input Voltage 5 - 12 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
Flash Memory 32 kB (of which 0.5 kB used by bootloader)
