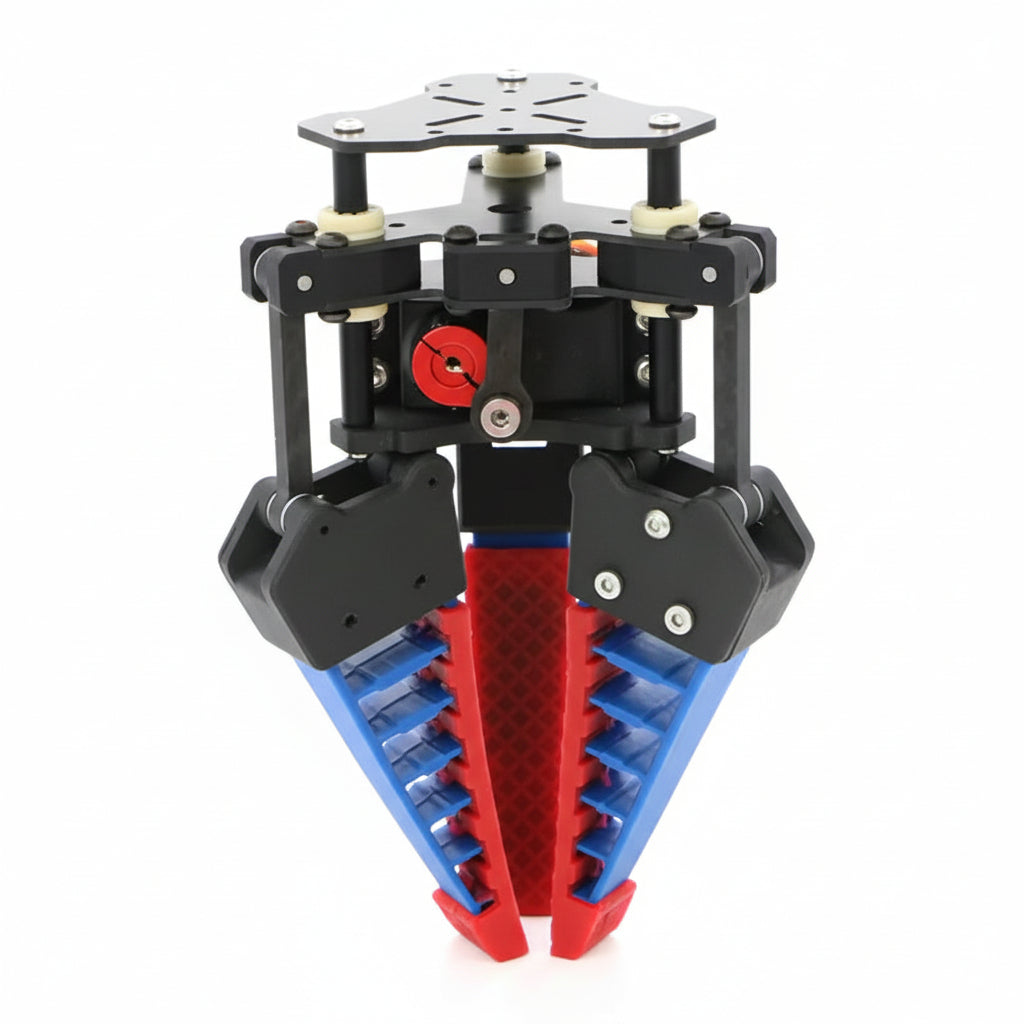

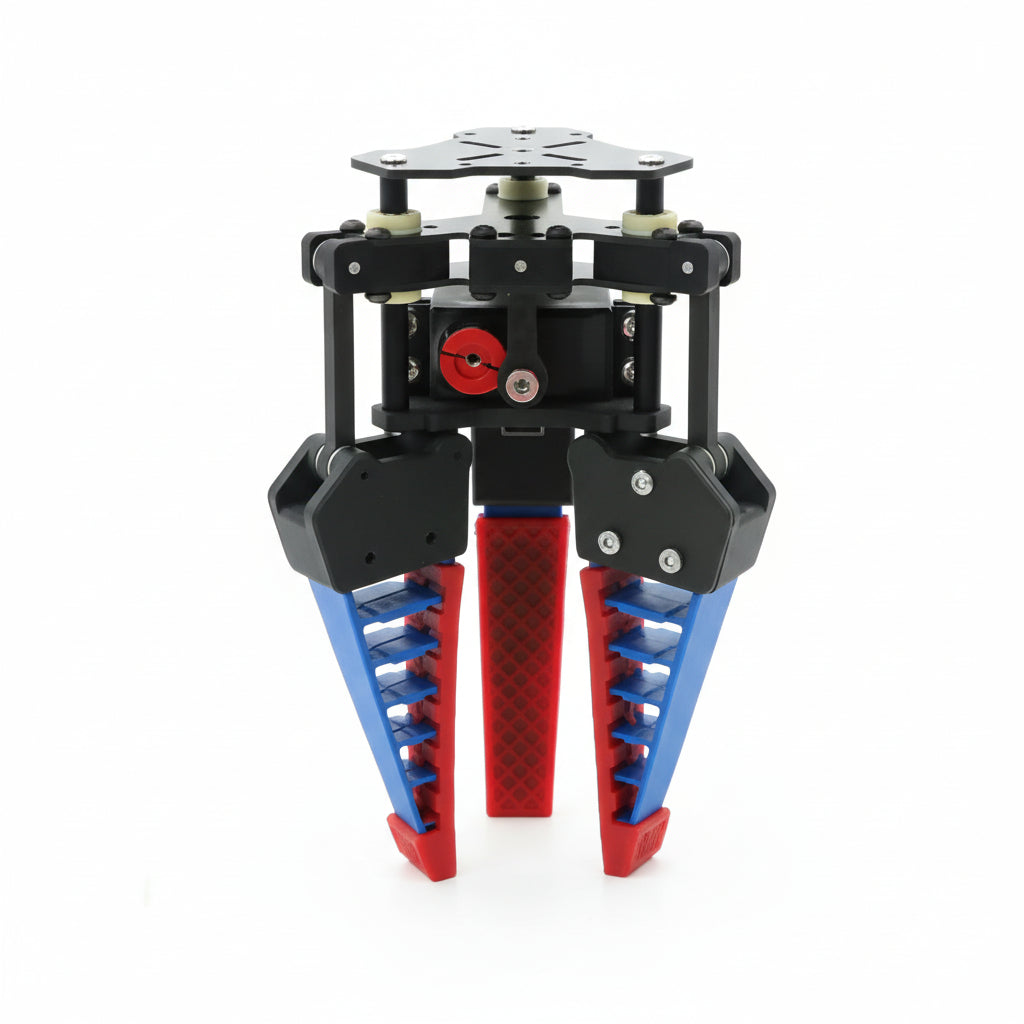

Bionic Flexible Soft Gripper for Precision Robotic Handling
The Bionic Flexible Soft Gripper Robot Claw is an advanced robotic end-effector designed for adaptive, non-destructive gripping across irregular shapes and delicate objects. Built with soft finger technology and a 3-finger adaptive structure, this manipulator mimics biological grasping mechanisms, enabling secure handling in both industrial and underwater environments.

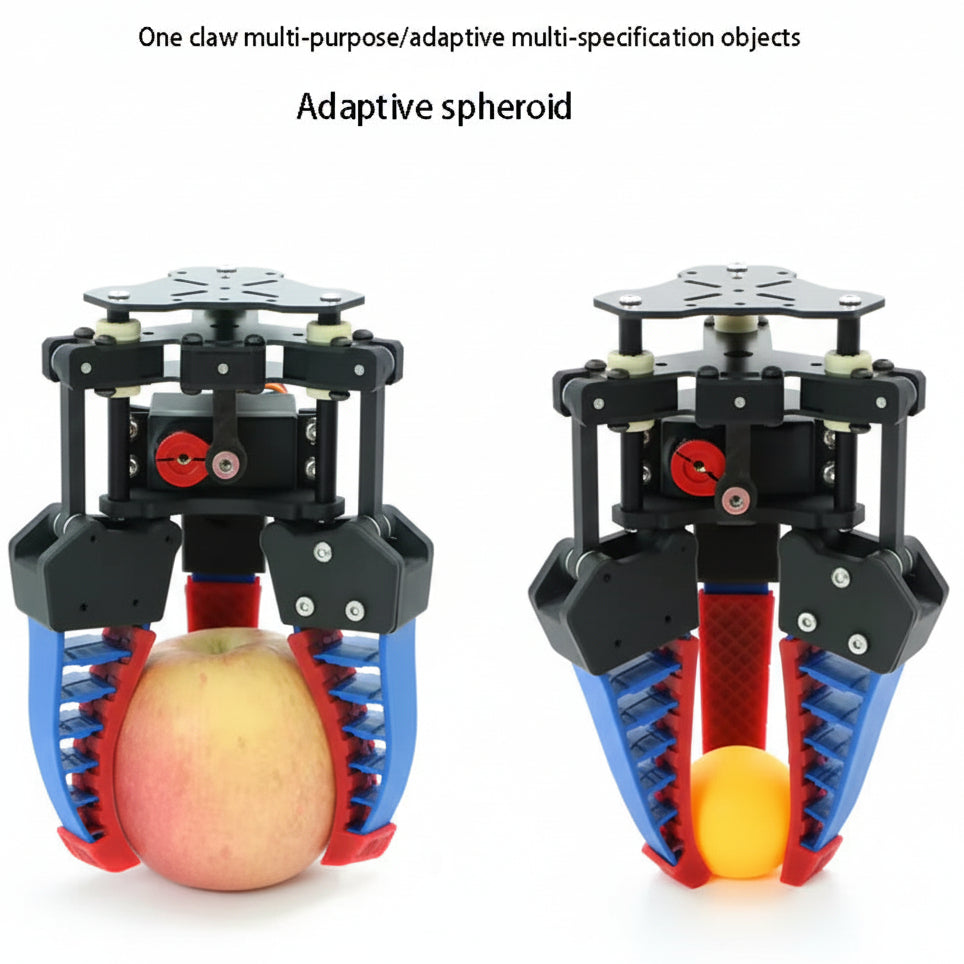

With a maximum load capacity of 900g and a gripping range of 20–100mm, this gripper is engineered for versatility—capable of handling spherical, cylindrical, and irregular objects with consistent precision.
Available in Waterproof and Standard variants, it supports deployment in controlled indoor systems as well as harsh, moisture-prone environments.
Key Features
| Bionic Soft Finger Design | Flexible material conforms to object shape, ensuring secure grip with minimal damage |
| 3-Finger Adaptive Mechanism | Automatically adjusts to object geometry for stable and balanced grasping |
| 900g Load Capacity | Suitable for medium-duty robotic handling tasks |
| Wide Gripping Range (20–100mm) | Handles diverse object sizes including round, flat, and irregular forms |
| Electro-Pneumatic / Servo Compatible | Easily integrates with robotic arms, Arduino, STM32, and ROS-based systems |
| High Torque Digital Actuator (S20F) | Ensures precise control and reliable performance |
Variant Options
| Waterproof Version |
Sealed structure for underwater and high-humidity environments Ideal for ROVs, marine robotics, drainage inspection, aquaculture Corrosion-resistant and durable construction |
| Standard Version (Non-Waterproof) |
Optimized for indoor, lab, and industrial automation setups Lightweight and cost-effective Best suited for robot arms, pick-and-place systems, STEM projects |
Technical Specifications
| Load Capacity | 900g |
| Gripping Range | 20–100mm diameter |
| Actuator Type | Digital Servo (S20F) |
| Operating Voltage | 5V – 6V |
| Torque | Up to 23kg·cm |
| Operating Angle | 180° |
| Mechanical Claw Weight | ~0.25kg (standard) / ~0.27kg (waterproof) |
| Total Weight (with controller) | ~0.72kg |
| Gear Material | Metal gears |
| Control Signal | PWM (500–2500 μs) |
Applications
| Robotic arms & automation systems |
| Underwater ROV manipulation |
| Industrial part handling & sorting |
| Delicate object gripping (glass, soft materials, food items) |
| Research, prototyping & soft robotics development |
| STEM education & DIY robotics projects |
The Bionic Flexible Soft Gripper Robot Claw is a high-performance robotic manipulator that bridges precision engineering and adaptive soft robotics. Whether deployed in industrial automation, underwater robotics, or advanced research, it delivers reliable, intelligent gripping for modern robotic systems.
Package Content
1x Robot Claw
