Camera Flange 2.0 For MyCobot/MyPalletizer/MechArm/MyBuddy

SKU: RBA1028

₹ 14,149.99 ₹ 17,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Camera Flange 2.0 For MyCobot/MyPalletizer/MechArm/MyBuddy₹ 14,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

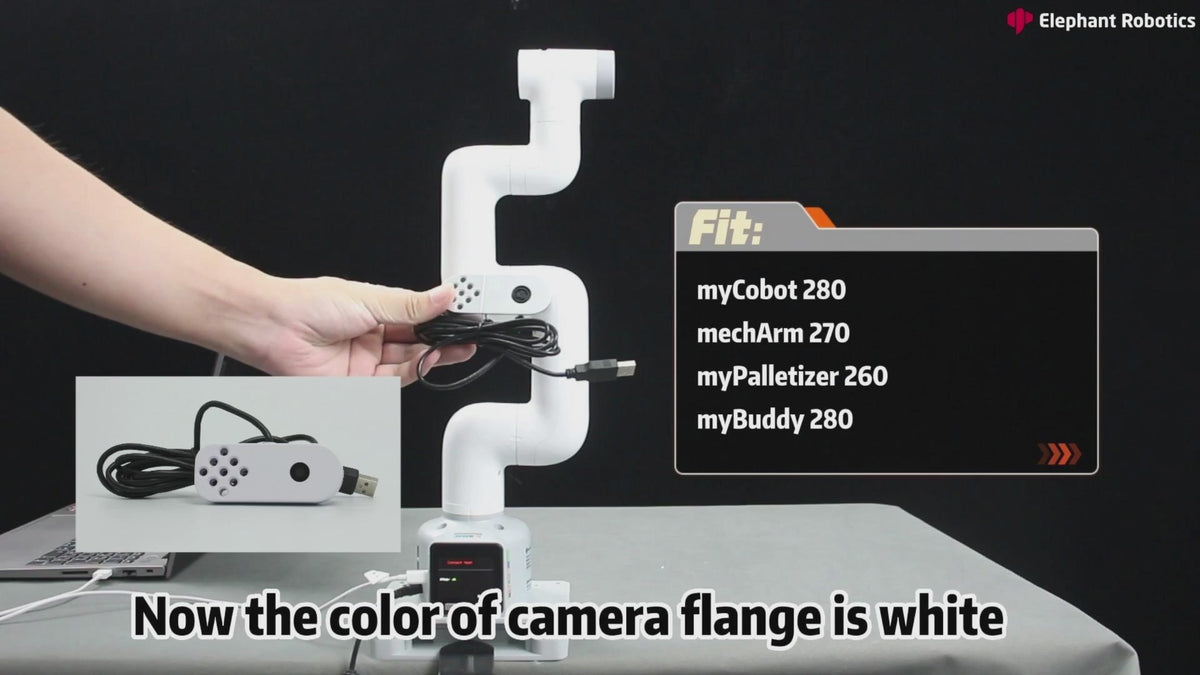

Camera Flange is the base for collaborative robots from Elephant Robotics. Camera Flange helps you complete more creative robots.

Used with myCobot 280 M5Stack、 myCobot 280 Pi、MyCobot 280 For Arduino、myCobot 280 Jetson Nano、myPalletizer 260 M5Stack、 myPalletizer 260 Pi、mechArm 270 M5、mechArm 270 Pi、myBuddy 280.



Features

Ultra Small Micro USB Camera

  • Adopt color wide-angle high-definition 720P; Support MJPEand YUV format; With standard USB2.0 high-speed interface.

Direct Plug-in Drive-free Design

  • It installs in minutes on the Robot arm. Plug-and-play. It is very convenient and fast.

Does Not Take up Space

  • The compact design and small volume let you don't worry about taking up too much space.

Lightweight and Easy to Carry

  • Lightweight and Easy to Carry

Multiple Uses

  • Wide range of uses, suitable for face recognition, smart screen, smart express delivery, automatic vending, scan code, access control, medical equipment, and so on.

Specifications

USB non-distortion lens
Size 18x18x20mm
Maximum pixels 1 million 1280X720
Support image formats YUV, MJPEG
Pixel size 3.4umX3.4um
Maximum frame rate 1280x720 @ 25fps
USB protocol USB2.0 HS/FS
Supported resolution 1280X720, 640X480, 320X240
Power supply DC5V 90mA
Lens focal length Standard 1.7mm
Field of view angle ≈60°
Supported systems Win7/8/10, Linux, MAC
End flange
Material ABS injection
Process Painting
Size 80x40x20mm
Weight 60g
What is the Camera Flange 2.0 used for and what are its main features?
It is a compact USB camera base with 720P resolution, MJPEG and YUV formats, USB2.0 HS/FS, and a plug and play drive free design for quick mounting on compatible robot arms.
Which robot models are compatible with this camera flange?
Compatible with myCobot 280 variants, myPalletizer 260 variants, mechArm 270 variants, and myBuddy 280.
How do I install and power the camera flange?
The unit installs quickly on the robot arm with a plug and play USB2.0 connection and requires DC5V 90mA power.
What are the supported image formats, resolution and frame rate?
Supports YUV and MJPEG, maximum resolution 1280x720 at up to 25 fps, and supports 1280x720, 640x480, and 320x240.
What are the physical dimensions, weight and end flange material?
Size is 18x18x20 mm, weight 60 g, and end flange material is ABS with an injection process painting finish.
