Isolated RS232 / RS485 / CAN / CAN FD Expansion Board For Raspberry Pi

SKU: WVSH0158

₹ 5,749.99 ₹ 5,999.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
Isolated RS232 / RS485 / CAN / CAN FD Expansion Board For Raspberry Pi₹ 5,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Industrial Isolated Interface Expansion Board

Suitable for Raspberry Pi 4B / 5,
expands 2x RS485 + 1x RS232 + 1x CAN FD + 1x CAN

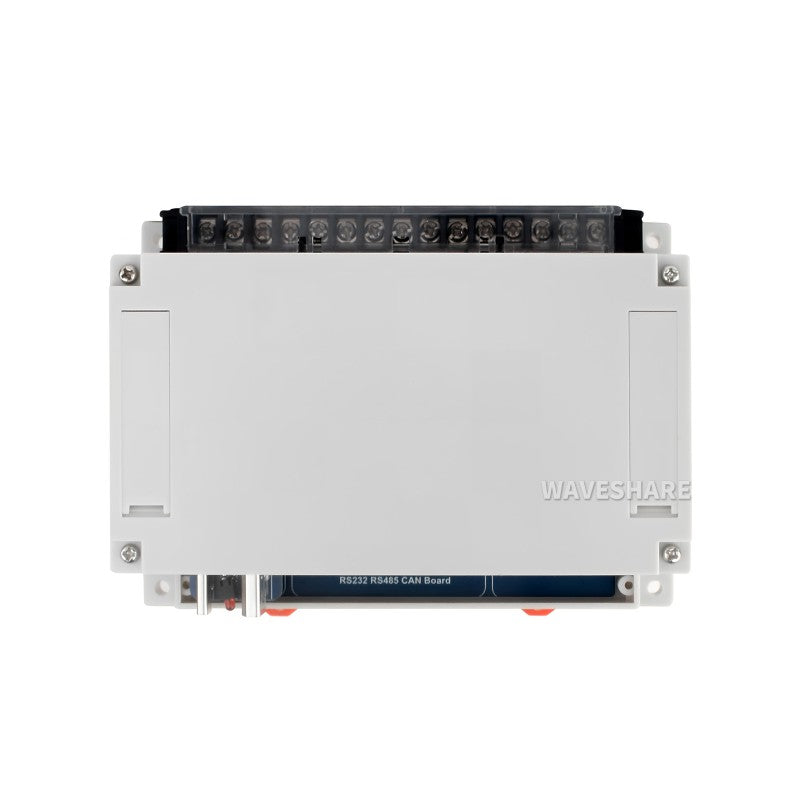

RS232 / RS485 / CAN / CAN FD expansion board, front view

Features

The RS232 RS485 CAN Board is an industrial isolated interface expansion board designed for Raspberry Pi 4B / Raspberry Pi 5, provides a variety of industrial communication interfaces: 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, each with electrical isolation. Onboard lightningproof, anti-electrostatic protection, etc. for more secure and reliable communication.

Comes with industrial rail-mount enclosure for easy integration in industrial control applications. Provides sufficient internal space for users to stack other HATs or expansion boards, and reserved installation space of PCIe adapter board for Raspberry Pi 5, which is more convenient for further expansion.

  • Based on Raspberry Pi 40PIN GPIO header, suitable for Raspberry Pi 4B and Raspberry Pi 5
  • Adopts SC16IS752 and SP485 combination scheme, expands SPI to 2x RS485 interface
  • Adopts MCP2515 and SN65HVD230 combination scheme, expands SPI to 1x CAN interface
  • Adopts MCP2518FD and MCP2562FD combination scheme, expands SPI to 1x CAN FD interface
  • Adopts Raspberry UART and SP3232EEN combination scheme, expands UART to 1x RS232 interface
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Onboard unibody power supply isolation, needs no extra power supply for the isolated terminal, provides stable current/voltage outputs of RS232, RS485, CAN, and CAN FD interfaces, and improves the anti-interference and anti-shock performance
  • Onboard digital isolation chip for safer signal isolation communication and better stability and anti-interference performance
  • Onboard external power supply screw terminal for 7~36V wide voltage power input, combines with Pi5 Connector Adapter (B) to power the Raspberry Pi and the expansion board at the same time
  • Onboard 120Ω terminal resistor, configured by jumper
  • Reserved interrupt resistor pad for flexible switching the interrupt pin if there is pin conflict when working with other HATs
  • Comes with online development resources and manual (examples for Raspberry Pi Python/C)


Specifications

PRODUCT TYPE Industrial isolated interface expansion board for Raspberry Pi
APPLICABLE BOARD Raspberry Pi 4B, Raspberry Pi 5
COMMUNICATION INTERFACE SPI + UART
EXTENDED INDUSTRIAL INTERFACES INTERFACE CHIP SCHEME BAUDRATE
1-ch isolated CAN FD MCP2518FD + MCP2562FD 5kbps ~ 8 Mbps
1-ch isolated CAN MCP2515 + SN65HVD230 5kbps ~ 1 Mbps
2-ch isolated RS485 SC16IS752 + SP485 300 bps ~ 921600 bps
1-ch isolated RS232 SP3232EEN
EXPANDABILITY Supports extending functions such as NVME, ETH, USB, 4G/5G for Raspberry Pi 5 through PCIe interface
Supports stacking with other HATs through 40PIN GPIO header for Raspberry Pi 4B/5 (make sure there are no pin conflicts and the dimension is compatible)
POWER SUPPLY METHODS (CHOOSE ONE OF TWO) 5V Type-C power port of Pi5 Connector Adapter (B)
External screw terminal for DC 7-36V wide voltage input
DIMENSIONS L × W × H: 154.6 × 83.7 × 59 mm
ENCLOSURE Eco-friendly plastic case, supports wall-mount & rail-mount installation



Suitable For Raspberry Pi 4B/5

Based On Raspberry Pi 40PIN GPIO Header

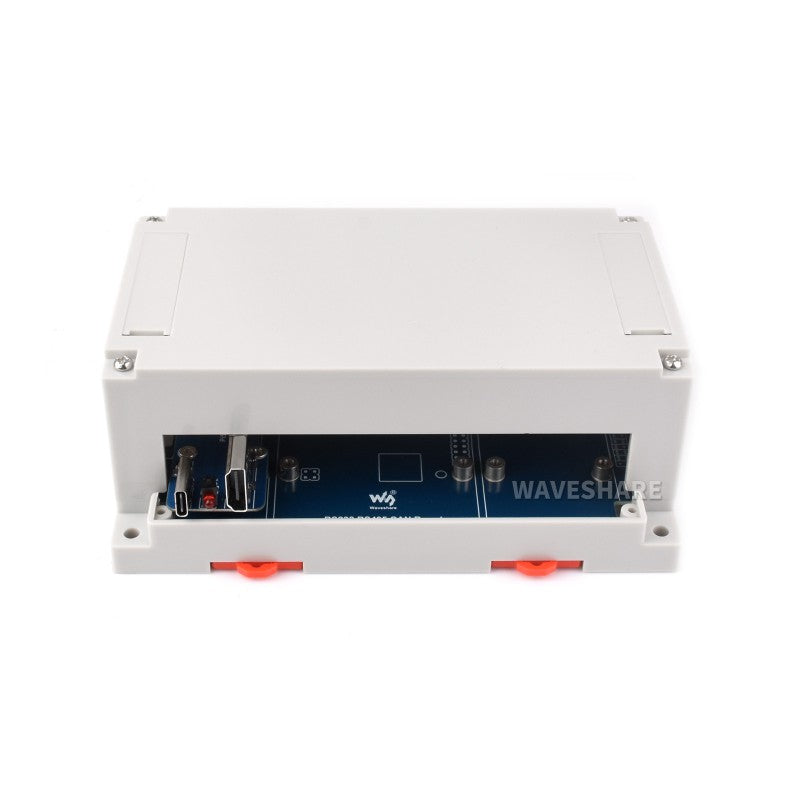

RS232 / RS485 / CAN / CAN FD expansion board, connecting with Raspberry Pi 5

* for reference only, the Raspberry Pi 5 and PCIe board are not included.



Supports Two Power Supply Methods

Onboard Type-C 5V Port And DC 7~36V Wide Voltage Screw Terminal, Can Be Powered Directly From A Raspberry Pi Power Supply, Or Used In Industrial Wide-Voltage Power Supply Scenarios

RS232 / RS485 / CAN / CAN FD expansion board, power supply via Type-C 5V

Supports Type-C 5V power supply

 RS232 / RS485 / CAN / CAN FD expansion board, power supply via screw terminal

Supports 7~36V wide range voltage input



Expands Multiple Isolated Industrial Interfaces

Supports Connecting With Multiple Peripherals Via CAN, RS485, And RS232 Interfaces

RS232 / RS485 / CAN / CAN FD expansion board, expands multiple isolated industrial interfaces



Large Internal Space, Strong Expansibility

Provides Enough Internal Space Of The Case For Users To Connect Other Modules And Expand More Functions

Extending NVME, ETH, USB, and 4G/5G, etc. for Pi 5 through PCIe or 40PIN GPIO

RS232 / RS485 / CAN / CAN FD expansion board, with large internal space

PCIe Adapter Board Compatible

PCIe to NVMe M.2 Board

PCIe TO NVMe M.2 Board

 PCIe TO Gigabit ETH Board

PCIe TO Gigabit ETH Board

 PCIe TO USB 3.2 Gen1 Board

PCIe TO USB 3.2 Gen1 Board



Supports stacking with some HATs* through 40PIN GPIO header for Pi 4B/5

* Note: make sure there are no pin conflicts and the dimension is compatible

RS232 / RS485 / CAN / CAN FD expansion board, stacking with some HATs

* for reference only, please refer to the Package Content for detailed part list



Assembly Instruction

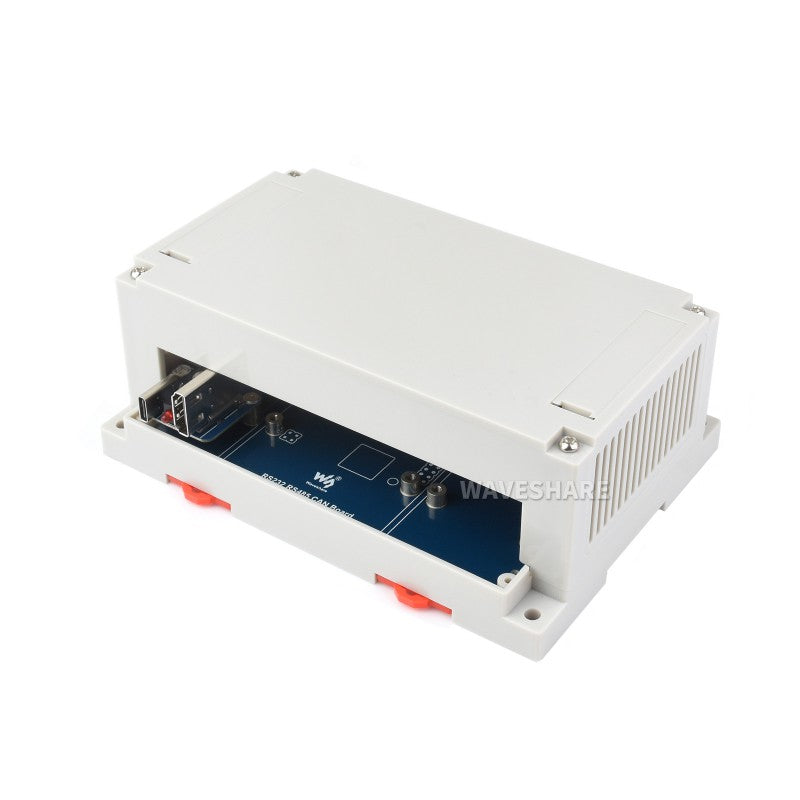

RS232 / RS485 / CAN / CAN FD expansion board, how to install

* for reference only, please refer to the Package Content for detailed part list





Enclosure Design

ABS Eco-Friendly Plastic Case, Supports Wall-Mount & Rail-Mount, Making Industrial Installation More Flexible

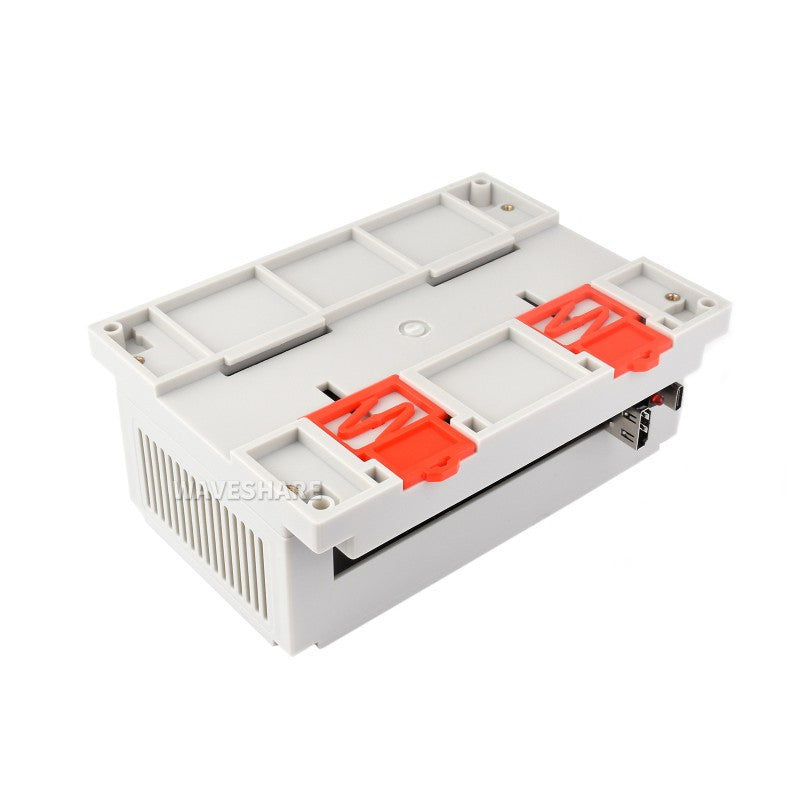

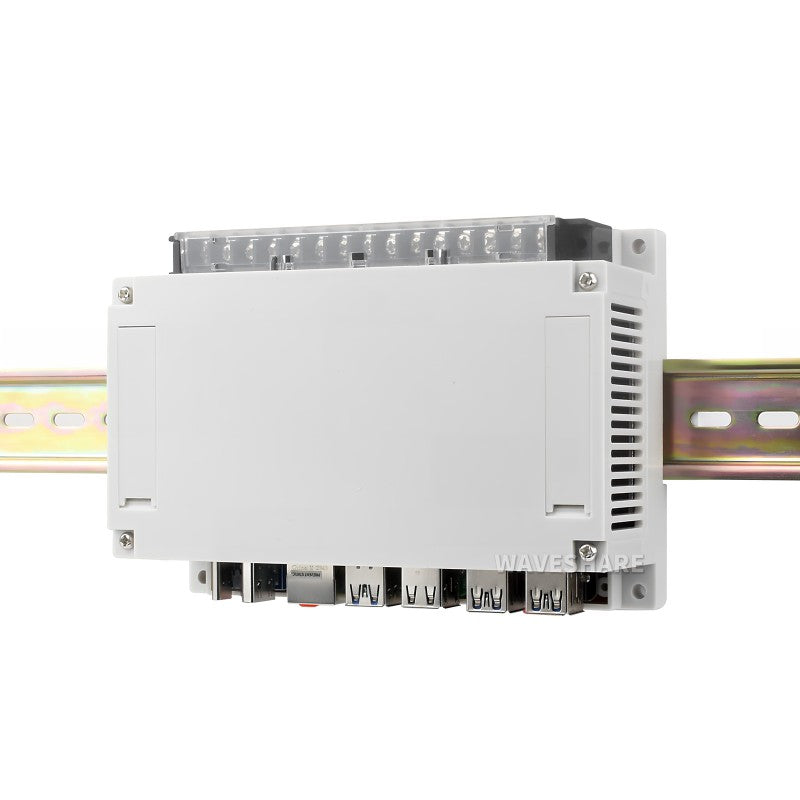

RS232 / RS485 / CAN / CAN FD expansion board, rail-mount support

With rail-mount buckle, supports 35mm standard guide rail

 RS232 / RS485 / CAN / CAN FD expansion board, wall-mount support

Wall-mount support



Interface Introduction

RS232 / RS485 / CAN / CAN FD expansion board, interface introduction



Support Batch Customization

Support Software And Hardware Customization
Including Hardware Interface, LOGO, Label, Case And Web Page, Etc.

RS232 / RS485 / CAN / CAN FD expansion board, support batch customization



Outline Dimensions

RS232 / RS485 / CAN / CAN FD expansion board, outline dimensions



Resources

Wiki: www.waveshare.com/wiki/RS232-RS485-CAN-Board



Package Contains:

Weight: 0.323 kg
  1. RS232 RS485 CAN Board (with ABS plastic case)x1
  2. 40PIN cable x1
  3. Pi5 Connector Adapter (B) x1
  4. Screws pack x1
RS232 RS485 CAN Board



Is this expansion board compatible with Raspberry Pi 4B and Raspberry Pi 5
Yes, it is designed for Raspberry Pi 4B and Raspberry Pi 5 and connects via the 40 pin GPIO header.
What power supply options are available for this board
It supports two power methods: a 5V Type C port via the Pi5 Connector Adapter and an external 7 to 36 volt screw terminal, allowing operation from a Pi power supply or an industrial wide voltage supply.
What interfaces are provided and how are they isolated
The board provides 2x isolated RS485, 1x isolated RS232, 1x isolated CAN, and 1x isolated CAN FD. It uses SC16IS752 and SP485 for RS485, SP3232EEN for RS232, MCP2515 and SN65HVD230 for CAN, and MCP2518FD and MCP2562FD for CAN FD, with onboard TVS and digital isolation for protection.
What mounting options are available and can it be used with other HATs
It comes with an industrial rail mount enclosure and supports wall mounting. There is ample internal space to stack other HATs or expansion boards, subject to pin conflicts and dimension compatibility.
Can this board be extended via PCIe for Pi 5 and what enhancements are possible
Yes, it supports extending functions such as NVME, ETH, USB, and 4G/5G for Pi 5 through PCIe interfaces via compatible PCIe adapter boards, and it can be stacked with other HATs via the 40PIN GPIO header.
A
Admin
Welcome to the discussion thread for Isolated RS232 / RS485 / CAN / CAN FD Expansion Board For Raspberry Pi
Feel free to ask questions, share tips or report issues.
