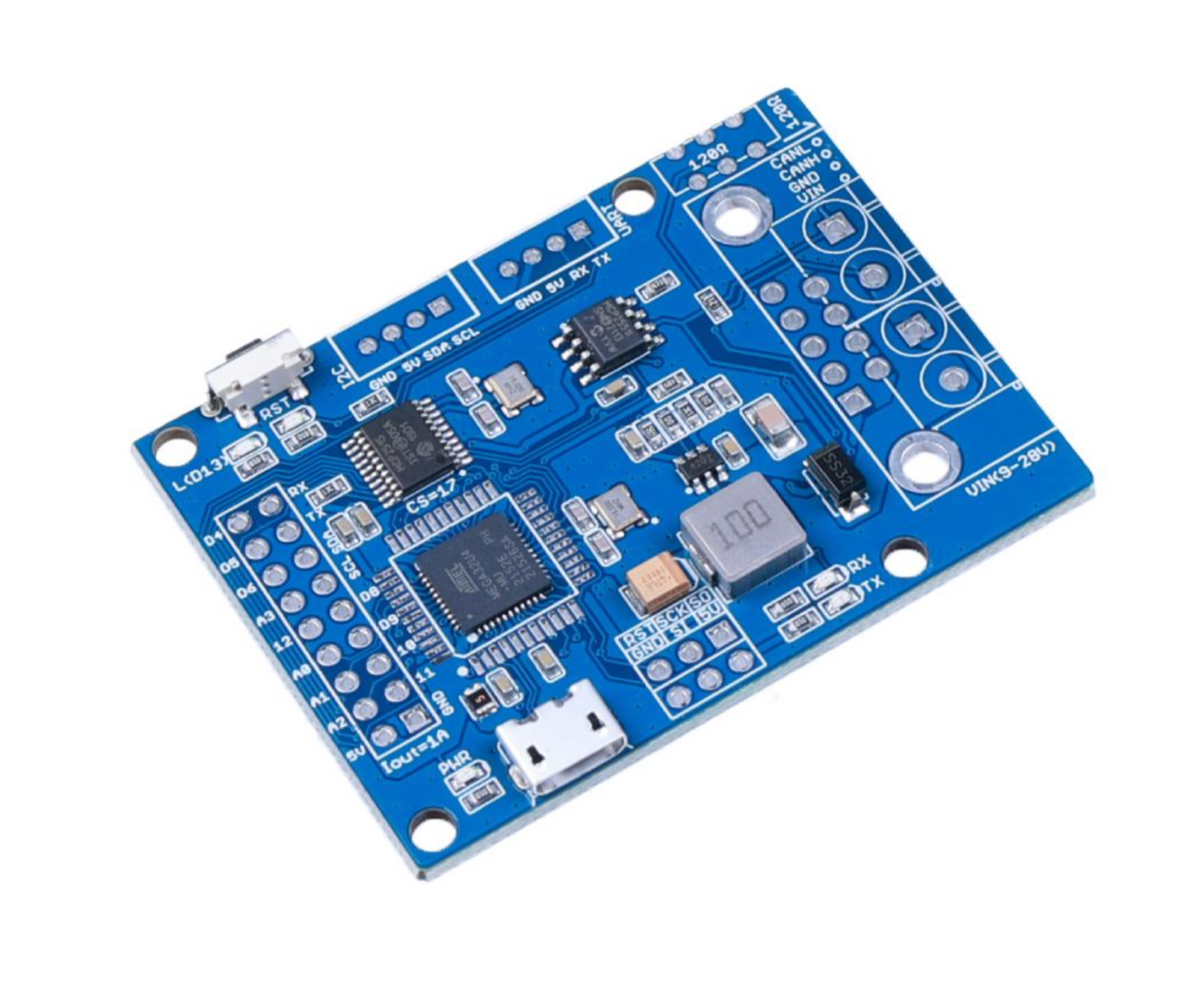

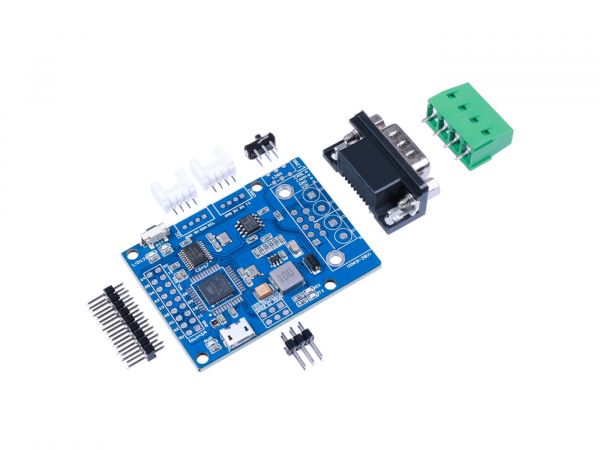

CANBed - Arduino CAN-BUS Development Kit embeds an ATmega32U4 chip, which means you don’t need to add other jump wires to another Arduino Board, it is an Arduino board itself plus MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver!
Features
Enhanced MCU Performance: ATmega32U4 with Arduino Leonardo bootloader on the board
Compatible with Arduino: Combines CAN-BUS shield and Arduino development board together on a single board
High Speed: Implements CAN V2.0B at up to 1 Mb/s
Rich Resources in Pins: 18 pins that include digital pins, analog pins, UART, and I2C interface
Easy to Use: Requires no other MCU to control and is compatible with Arduino IDE
CAN-BUS is a common protocol and widely used in industry due to its long travel distance, medium communication speed, and high reliability. Now you can realize a CAN-BUS project through this tiny little development board.
Because of the ATmega32U4 onboard chip, this board has rich resources in pins. As a matter of fact, there are 18 pins based on the core chipset up on the board, which include digital pins, analog pins, UART, and an I2C interface. Besides, this CANBed adopts the MCP2515 CAN Bus controller with SPI interface and MCP2551 to achieve the CAN-Bus capability. There are also two kinds of CAN Bus interfaces for various demands which are sub-D9 connector and terminal block interface. They would fit all your needs in the connecting method.
This CAN-Bus development board is perfectly compatible with Arduino IDE. With the help of the Arduino CAN-Bus library, you will save plenty of time for your CAN project.
What is CAN-BUS?
CAN stands for Controller Area Network, it is used toallow microcontrollers and devices to communicate with each other within a vehicle without a host computer which allows for control and data acquisition. These devices are also called Electronic Control Units (ECU) and they enable communication between all parts of a vehicle.
Today, you can find up to 70 ECUs in a modern car. CAN is a serial communication bus designed for industrial and automotive applications. For example, they are found in vehicles, farming equipment, industrial environments, etc.
How does CAN-BUS work?
The fuel level, door sensors, odometer, and many more parts of a car have to communicate with each other somehow, and CAN BUS is what they used to do. These CAN-compatible components, which are called “nodes” are connected with a 3-string copper wire, with no central router to govern the flow of data. Every node can hear the messages of every other node.
Every node has an ID, where the ones with the higher priority ID can have the priority to “talk” first while the others “listen”. This is to ensure that there are never two nodes talking at the same time. The biggest benefit of CAN-BUS is to be able to just connect components without having to worry about signal routing.
Car hacking: The user can connect the circuit board to the OBD interface through the sub-D connector to read the data of the car
Easy building prototype: ATmega32U4 chip leads out various additional functions which help especially beginners build various prototypes.
Specification
Parameter
Value
MCU
ATmega32U4(with Arduino Leonardo bootloader)
Clock Speed
16MHz
Flash Memory
32KB
SRAM
2.5KB
EEPROM
1KB
Operate Voltage（CAN-BUS）
9-28V
Operate Voltage （MicroUSB）
5V
Input Interface
sub-D

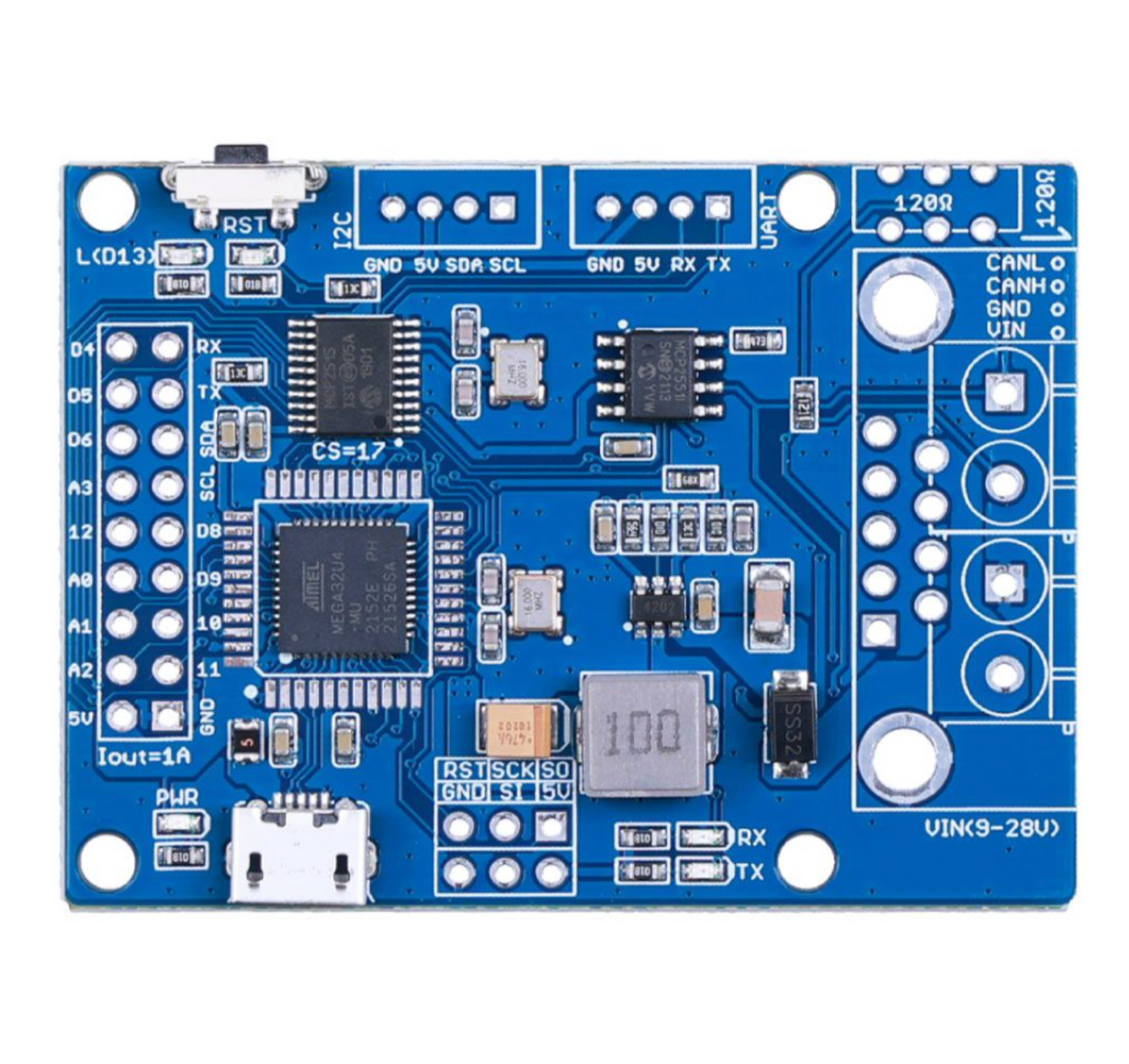

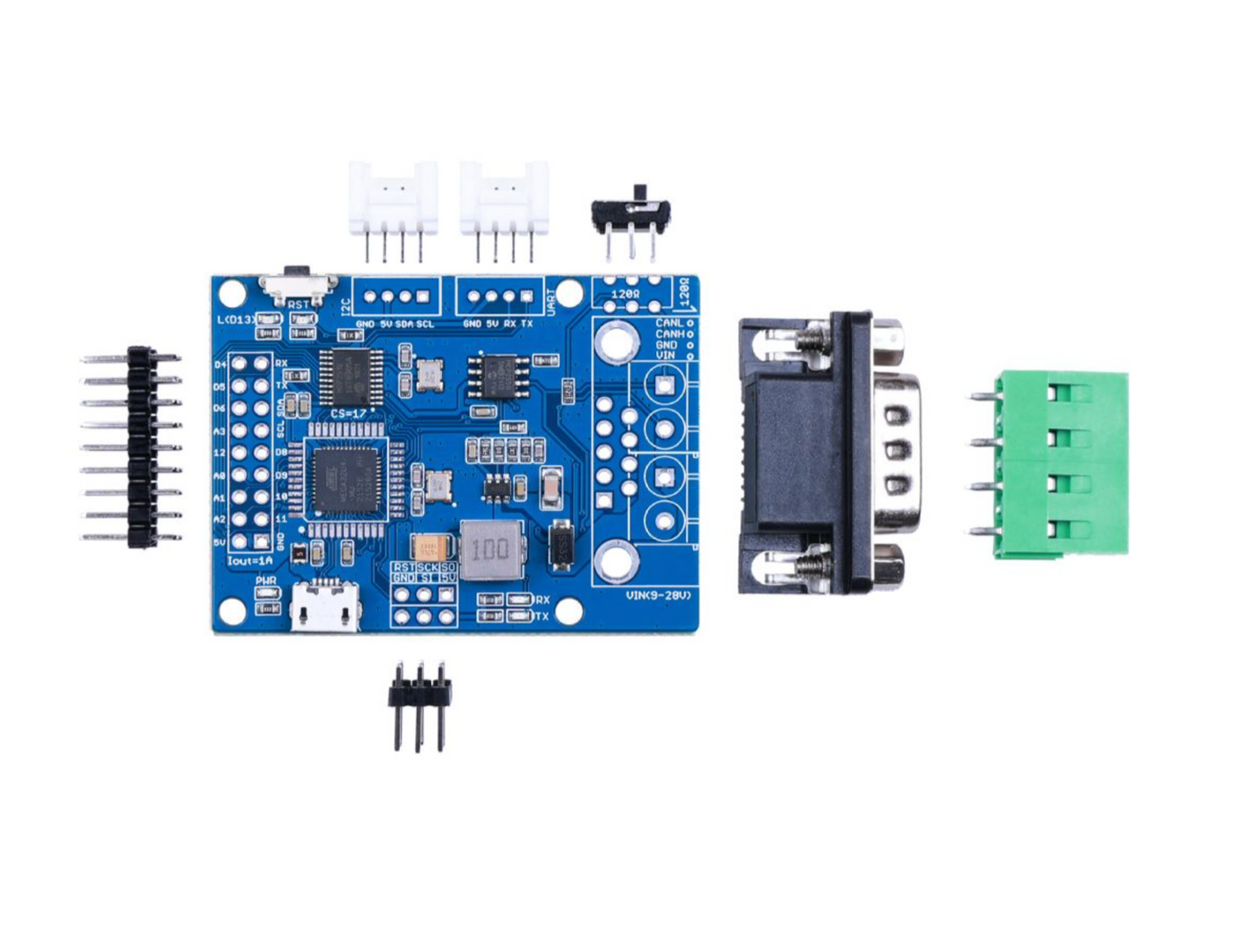

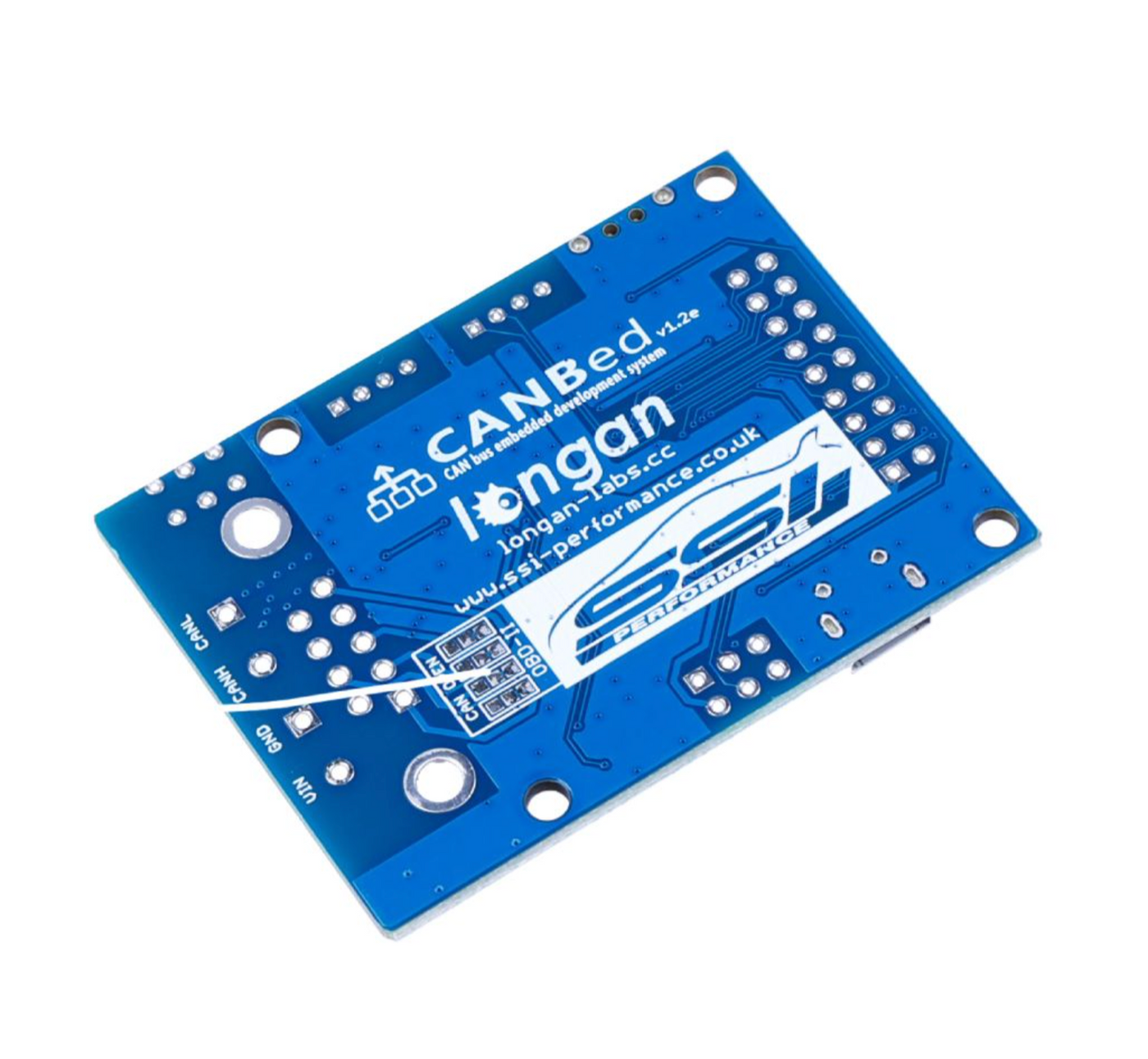

Hardware Overview
D-Sub CANbus PinOut
pin#
Signal names
Signal Description
1
Reserved
Upgrade Path
2
CAN_L
Dominant Low
3
CAN_GND
Ground
4
Reserved
Upgrade Path
5
CAN_SHLD
Shield, Optional
6
GND
Ground, Optional
7
CAN_H
Dominant High
8
Reserved
Upgrade Path
9
CAN_V+
Power, Optional
Switch for the 120Ω terminal resistor for CAN Bus
If you use this slaver at the end of the CAN bus, you need to solder a 120Ω resister between the two pads, if not just leave them alone.
CAN Bus Family in Seeed
CAN-BUS series product selection reference is provided here. The table compares NEW-Release LoRa-E5 CAN, CANBed v1, CANBed FD, CANBed M4, and CANBed RP2040 in terms of MCU, protocol, memory, interface, etc.
