Suitable For Sub-GHz And 2.4GHz Frequency Bands
Ā

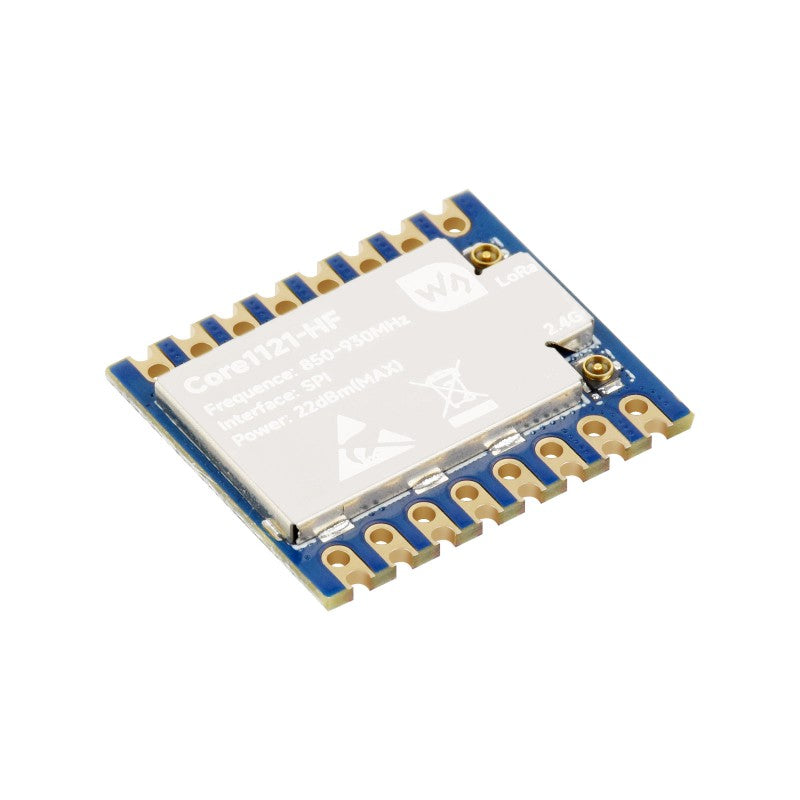

 HF version, 850 ~ 930MHz frequency |

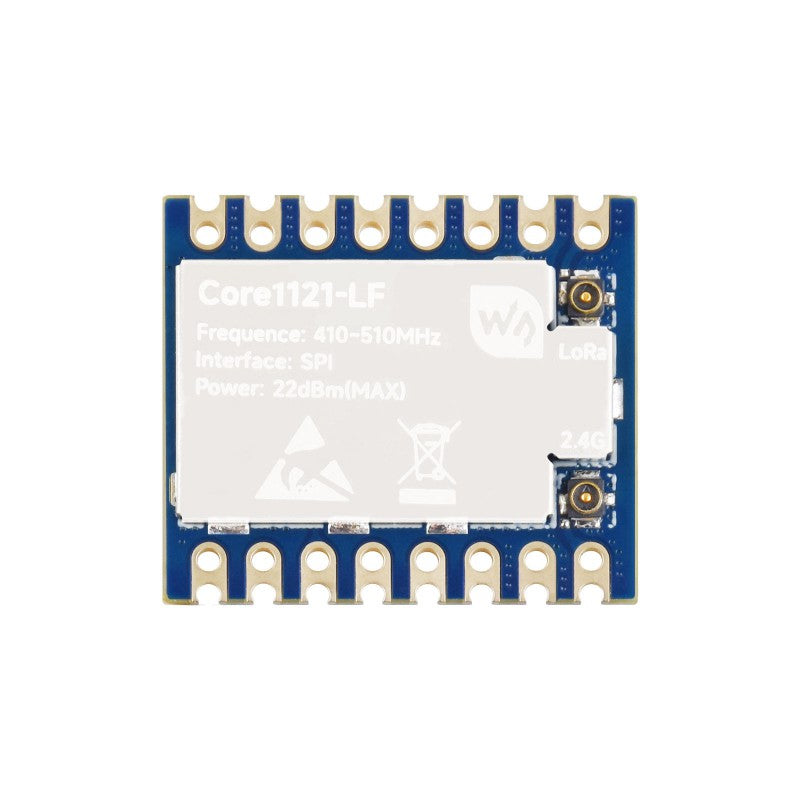

 LF version, 410 ~ 510MHz frequency |
Ā
| Based on the third-generation low-power LoRa transceiver LR1121 |
| Supports Sub-GHz (150MHz ~ 960MHz), S-band (1.9GHz ~ 2.1GHz), and 2.4GHz ISM frequency bands |
| Connects to the cloud via LoRa or LoRaWAN protocol through a gateway, enabling low-power wide-area networking (LPWAN) |
| Supports LoRa, (G)FSK, and LR-FHSS modulation schemes, compatible with SX126X/SX127X series for easy product upgrades |
| SPI communication interface, supports mainstream MCU platforms for seamless integration and migration |
| Integrates AES-128 encryption engine to enhance data security |
| Onboard TCXO crystal oscillator ensures frequency stability under extreme temperature conditions |
| Suitable for IoT applications such as industrial telemetry, smart home, environmental monitoring, and remote data acquisition |
| Comes with online development resources and manual (examples for ESP32 / Raspberry Pi / STM32 / Raspberry Pi Pico) |
Ā
| Model | Core1121-XF | Core1262-XF |
|---|---|---|
| Frequency Support | Sub-GHz (150MHz ~ 960 MHz), S-band (1.9GHz ~ 2.1GHz), 2.4GHz | Sub-GHz (150MHz ~ 960MHz) |
| Modulation | LoRa / (G)FSK / LR-FHSS | LoRa / (G)FSK |
| Sigfox Protocol Support | ā | - |
| AES-128 Encryption Engine | ā | ā |
| Secure Key Storage | ā (NwkKey, AppKey, etc.) | - |
| Device Identifier Management | ā (DevEUI / JoinEUI handling) | - |
| LoRaWAN Security Compliance | ā (Complete process: storage, authentication) | - (Basic encryption only) |
| Application Scenarios | Global deployment, multi-band applications, asset tracking, high-security scenarios | Classic Sub-GHz LoRa communication |
Ā
Ā
| Version | Core1121-HF | Core1121-LF |
|---|---|---|
| RF Specifications | ||
| RF chip | LR1121 | LR1121 |
| Frequency range | HF: 850 ~ 930MHz 1900MHz ~ 2100MHz 2400MHz ~ 2500MHz |
LF: 410 ~ 510MHz 1900MHz ~ 2100MHz 2400MHz ~ 2500MHz |
| Modulation | LoRa / (G)FSK / LR-FHSS | LoRa / (G)FSK / LR-FHSS |
| Data rate | LoRa: 0.091Kbps ~ 62.5Kbps (G)FSK: 0.6Kbps ~ 300Kbps |
LoRa: 0.091Kbps ~ 62.5Kbps (G)FSK: 0.6Kbps ~ 300Kbps |
| Emit power | -9dBm ~ 22dBm @ Sub-GHz -18dBm ~ 13dBm @ ISM band |
-9dBm ~ 22dBm @ Sub-GHz -18dBm ~ 13dBm @ ISM band |
| Receiver sensitivity | -127dBm @ Sub-GHz, SF=7, CR4_5, BWL=125KHz -111dBm @ ISM, SF=7, CR4_5, BWL=800KHz |
-127dBm @ Sub-GHz, SF=7, CR4_5, BWL=125KHz -111dBm @ ISM, SF=7, CR4_5, BWL=800KHz |
| Typical Range | Sub-GHz: 5KM ISM: 2KM |
Sub-GHz: 5KM ISM: 2KM |
| Spreading factor | SF5 ~ SF12 | SF5 ~ SF12 |
| Electrical Characteristics | ||
| Operating voltage | 3.3V (max 3.8V) | 3.3V (max 3.8V) |
| Logic voltage | 3.3V (level converter required) | 3.3V (level converter required) |
| Module power consumption | Sub-GHz: emitting: 115mA @ 22dBm receiving: 9.2mA @ 125KHz ISM: emitting: 25mA @ 13dBm receiving: 8.1mA @ 125KHz |
Sub-GHz: emitting: 115mA @ 22dBm receiving: 9.2mA @ 125KHz ISM: emitting: 25mA @ 13dBm receiving: 8.1mA @ 125KHz |
| Hardware Specifications | ||
| Communication bus | SPI | SPI |
| Crystal Oscillator | 32MHz TCXO | 32MHz TCXO |
| Antenna Interface | IPEX-4 + castellated hole | IPEX-4 + castellated hole |
| Antenna Protection | TVS protection | TVS protection |
| Operating temperature | -40ā ~ 85ā | -40ā ~ 85ā |

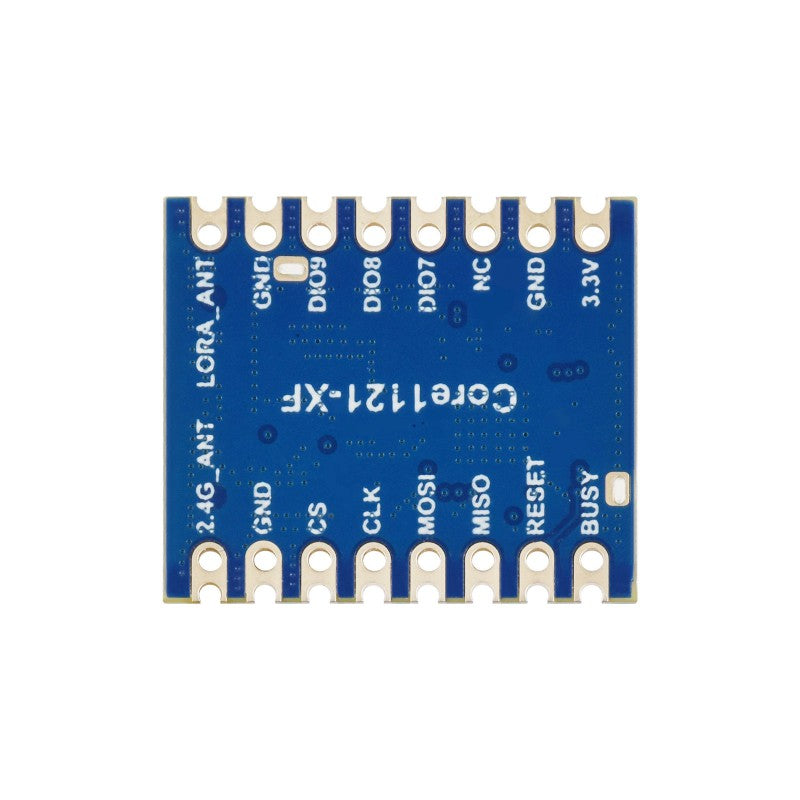

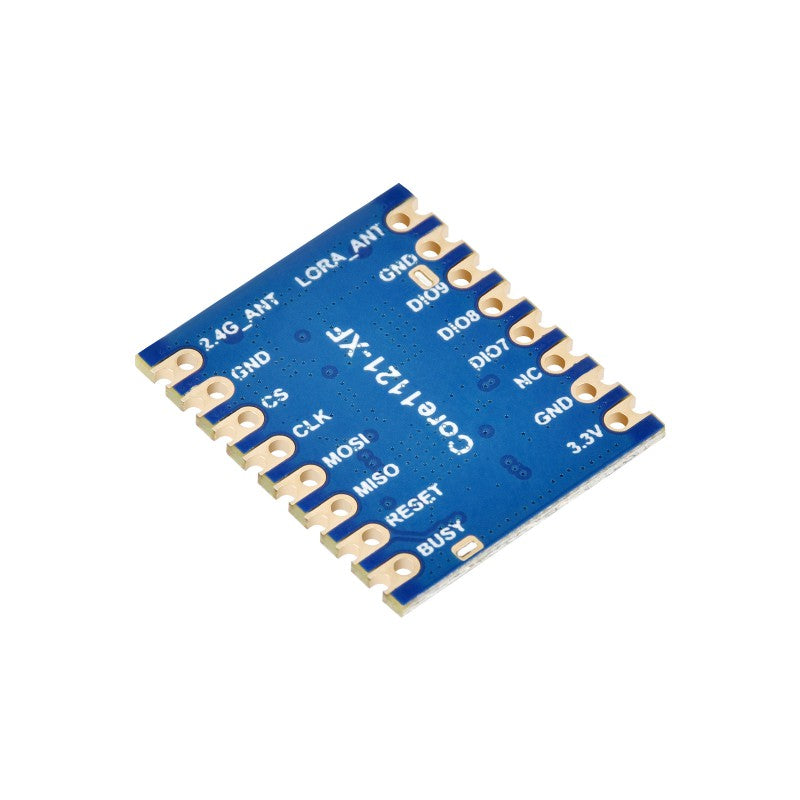

| Connector | castellated edge / solder holes, 2.54mm pitch | castellated edge / solder holes, 2.54mm pitch |
| Dimensions | 19.00 Ć 22.00mm | 19.00 Ć 22.00mm |
Ā
Industrial environment, smart home, and data acquisition...
Ā
The LR1121 can communicate with SX126X, SX127X, and SX128X series, which is still compatible with previous LoRa products after upgrading, and provides higher power efficiency and longer transmission distance.
Ā
The LR1121 supports both LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies, with modulation coverage across Sub-GHz, S-band, and 2.4GHz ISM frequency bands. Suitable for applications in industrial, agricultural, smart city, and satellite IoT scenarios.
Ā
This frequency band is globally license-free and is ideal for short-range, high-speed data transmission
Ā
Ā
For stable performance of communication module
 Original chip |
 Industrial grade crystal oscillator |
 Two connection methods for Antenna |
 Professional shield |
Ā
Ensures the long time working of the module without frequency shift in the high and low temperature environments of industry
Ā
Ā
WIKI:Ā www.waveshare.com/wiki/Core1121-XF
Ā
Weight: 0.013 kg
Core1121-HF x1
IPEX4 to SMA cable x1
2DB SMA antenna x1
2.4G antenna x1
Ā
Core1121-LF x1
IPEX4 to SMA cable x1
2DB SMA antenna x1
2.4G antenna x1
