Direct Drive Servo Motor Driver Board, Integrates ESP32 and Control Circuit
DDSM Hub Motor Driver Board
Designed for DDSM series hub motors, Integrates ESP32 and control circuit
Provides WEB application demo, JSON interaction demo and hub motor SDK for Secondary Development
Features
Suitable for DDSM series hub motors such as DDSM115 and DDSM210 , onboard 4-ch DDSM115 motor interfaces and 4-ch DDSM210 motor interfaces
Provides DDSM hub motor control demo and SDK, easy to use
Supports multiple wired and wireless communication modes, supports JSON command interaction for easier control
Supports connecting to Raspberry Pi, powering the Pi via integrated 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management
Integrated WEB application for controlling and setting the DDSM hub motors, more convenient for debugging
Supports controlling the DDSM hub motors directly via onboard Type-C port
Specifications
Controller Module
ESP32
Power supply port
XT60, DC5525
Power supply
DDSM115: 12-24V DC
Hub motor port
DDSM115, DDSM210
communication INTERFACE
Type-C × 2, UART
Wireless communication
2.4G WiFi
Mounting hole DIAMETER
3 mm
Mounting hole spacing
58×49 mm
PCB size
85×57 mm
Application Examples
Suitable for driving DDSM series hub motors and obtaining feedback information
The host controller can control the hub motors by sending JSON commands and obtain feedback information in JSON format, easy to use, more convenient for secondary development

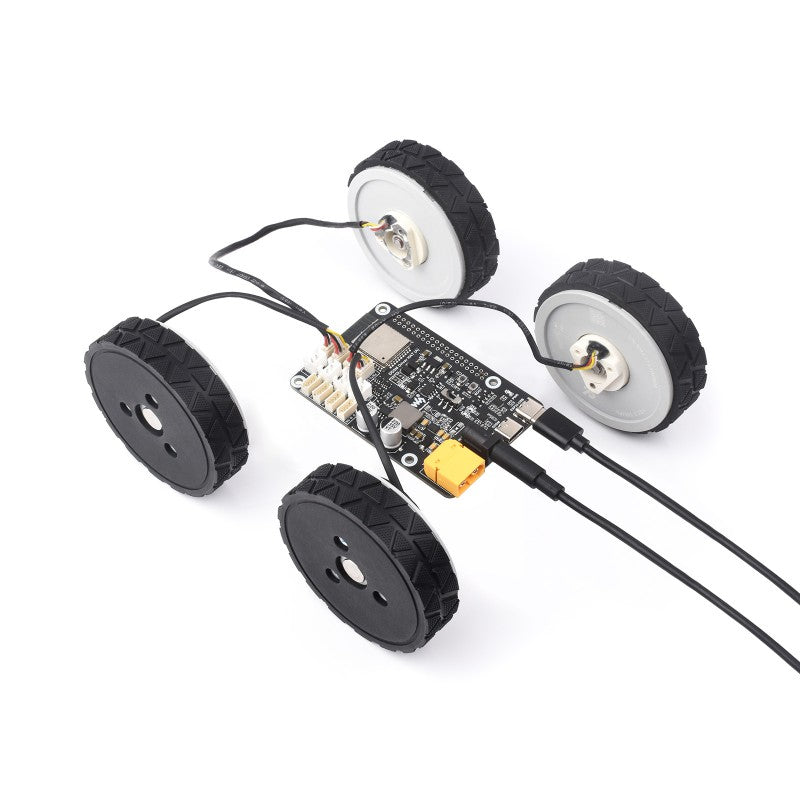

Multiple communication methods for easy integration into robotics projects
for reference only, please check the Package Content section for the detailed part list
Suitable For Raspberry P 5 / 4B
Supports Powering The Pi And Communicating Through GPIO UART Interface, Neat Cable Management
ESP32 Controller, Extensive Resources
Built-In WiFi And Bluetooth, As Well As ESP-NOW Support, For Remote Control And hub motor Debugging

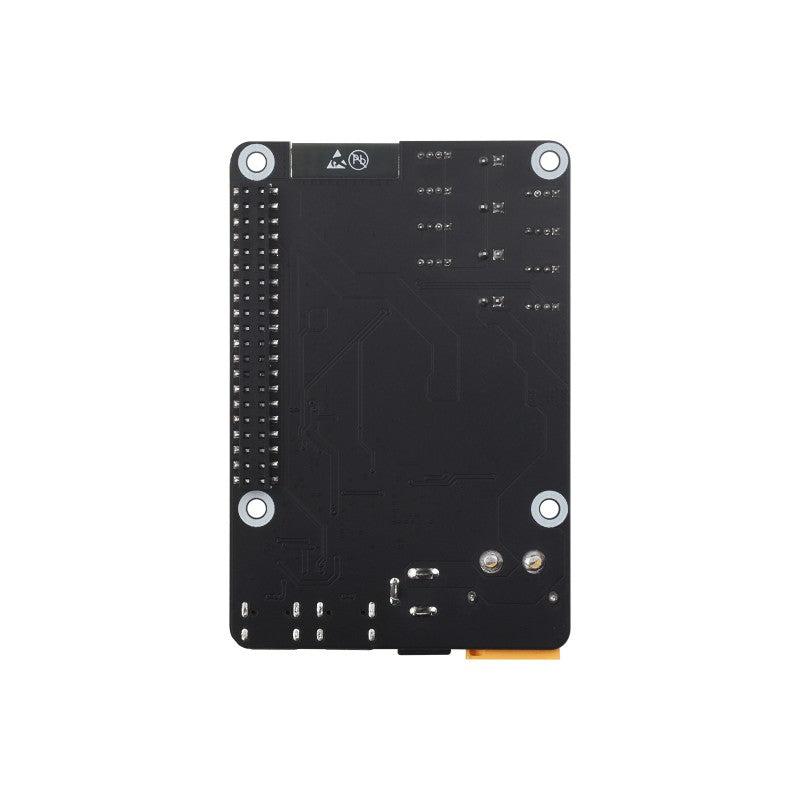

What's On Board

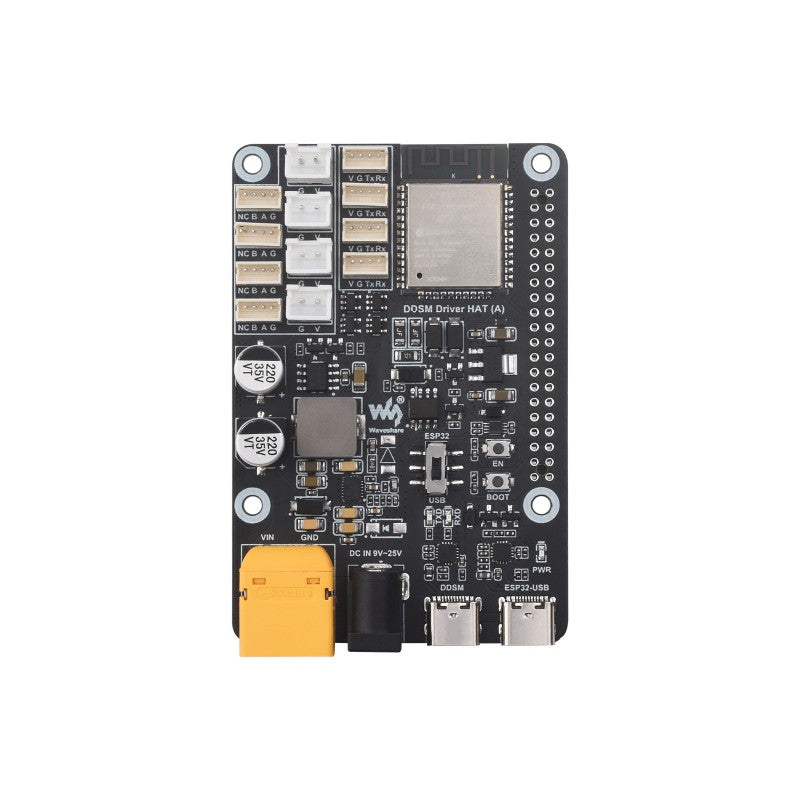

ESP32 controller RS485 hub motor control circuit UART control switch Reset button
BOOT button

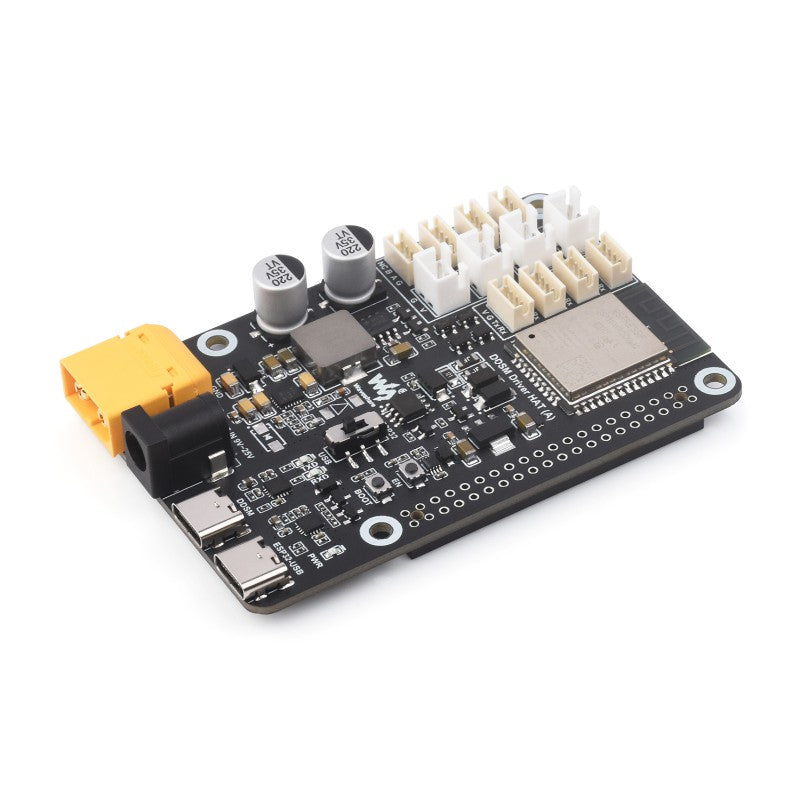

Raspberry Pi 40PIN header ESP32 Type-C port

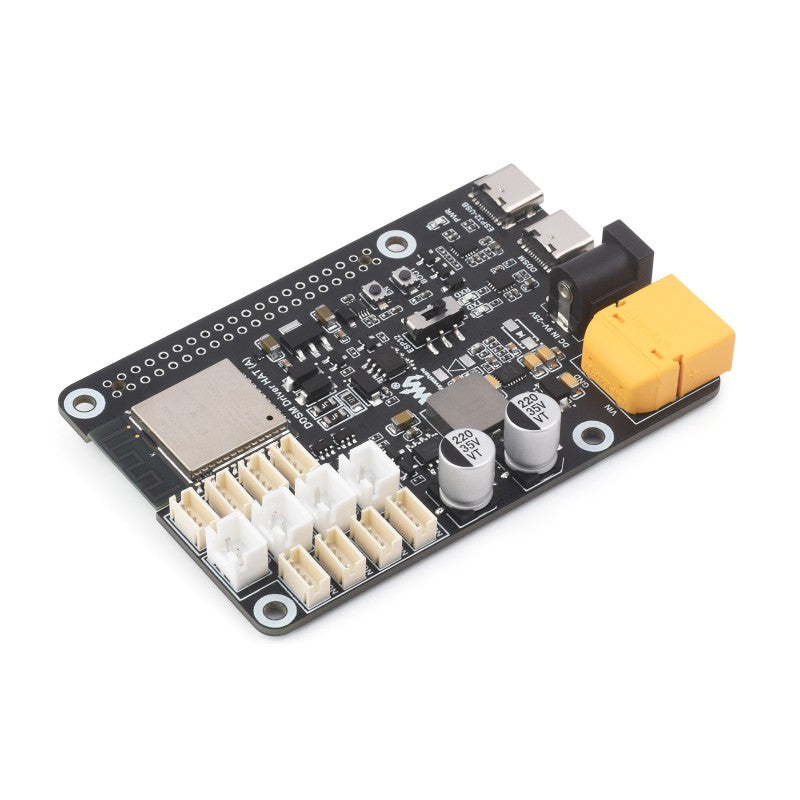

Hub motor Type-C port 5.5x2.5 DC power jack XT60 power supply connector RS485 hub motor headers Hub motor power supply headers UART hub motor headers (TTL level)
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/DDSM_Driver_HAT_(A)
Package Contains:
Weight: 0.07 kg
DDSM Driver HAT (A) x1
2×20 pin header x1
USB Type-A to Type-C cable ×1
Screws pack ×1
