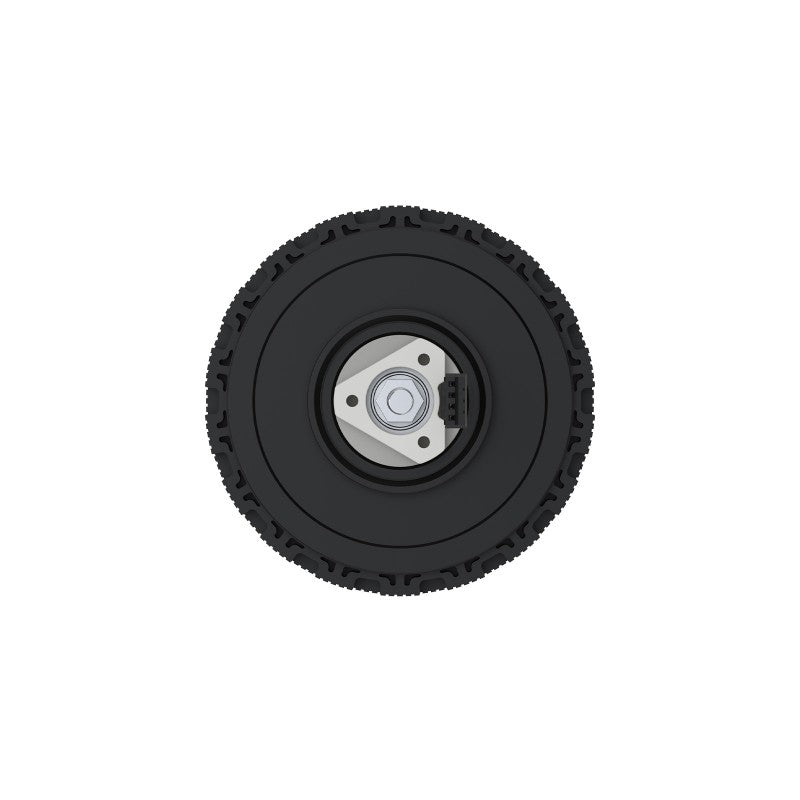

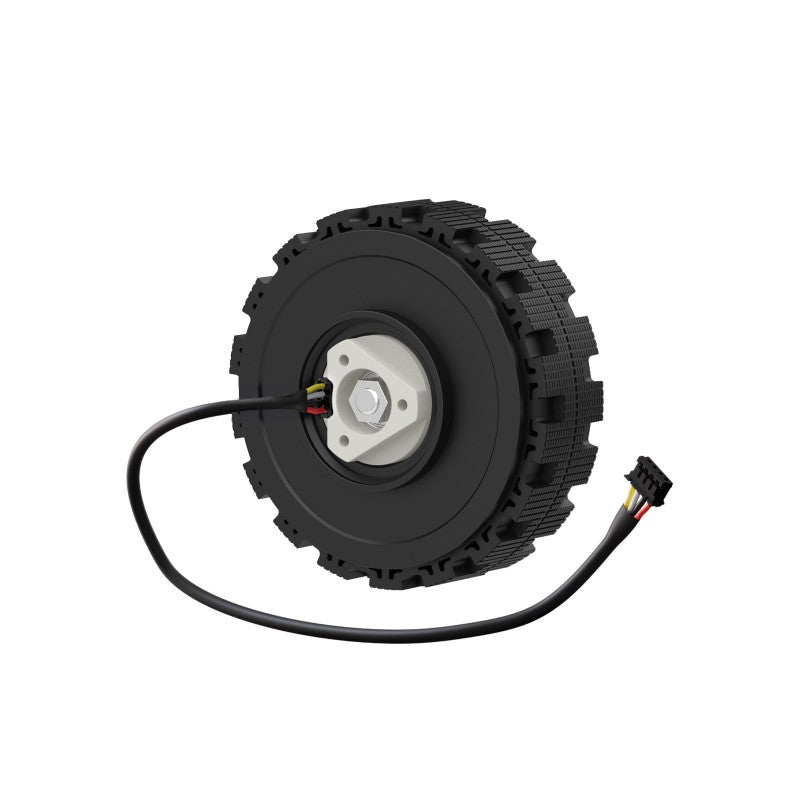

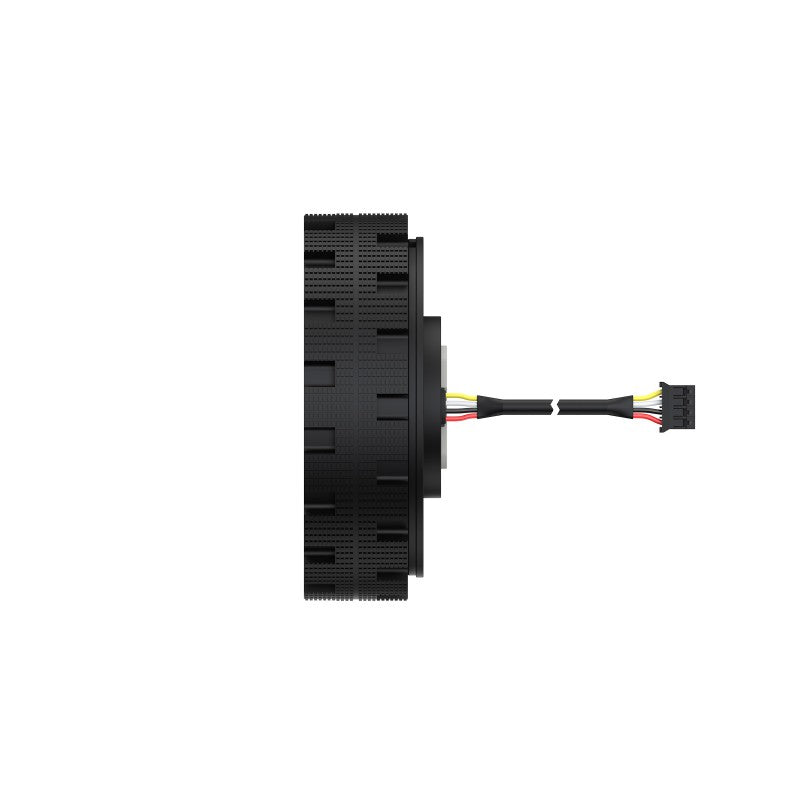

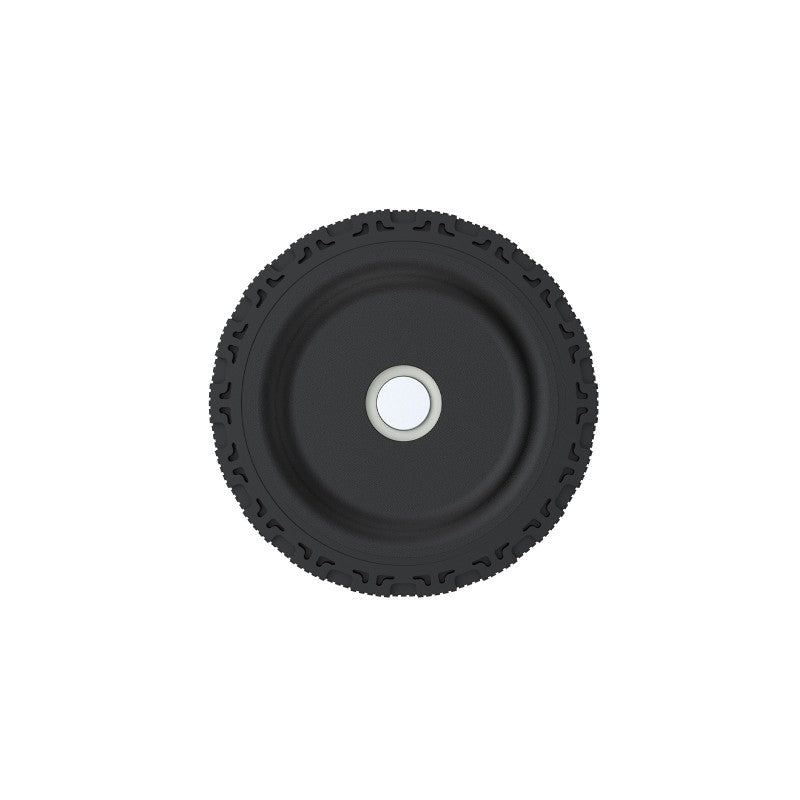

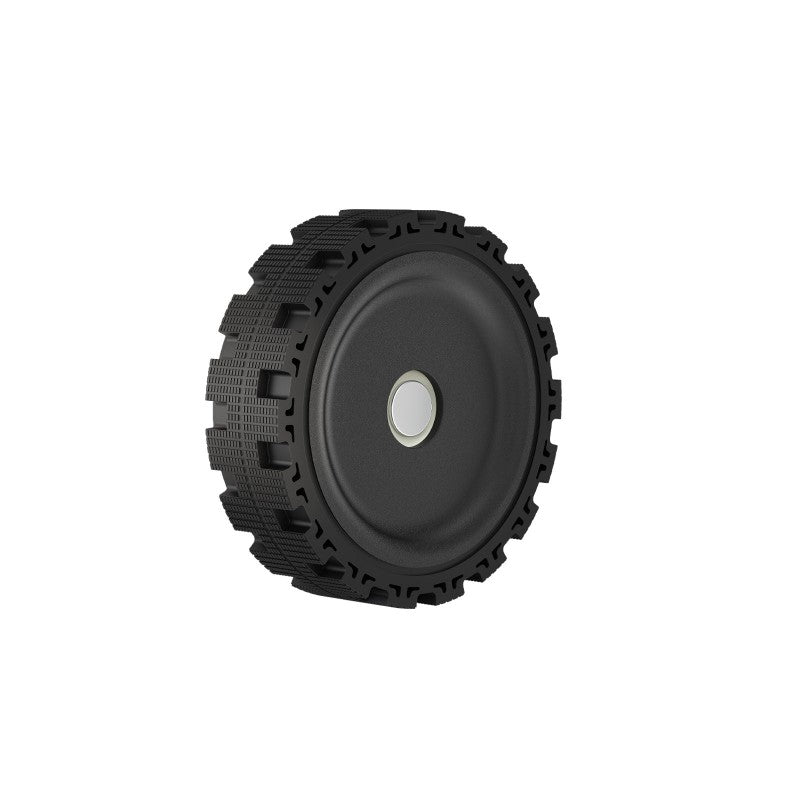

DDSM400 Direct Drive Servo Motor
Adopts Advanced Direct Drive Technology, Removes The Reducer In The Traditional Drive Solution. Say Goodbye To The Shortcomings Of Expensive, Noisy, Inefficient And Bulky
All-In-One Robot Joint
Based On The Integrated Development Concept, DDSM400 Is A High-Reliability Permanent Magnet Synchronous Motor (PMSM) Integrating Outer Rotor Brushless Motor, Encoder And Servo
Features
- Ultra low noise
- High precision and zero-backlash
- Fast response, direct drive without delay
- Integrated motor and driver, compact structure and high integration
- Supports LIN bus communication
- Supports obtaining motor feedback information through communication such as position, speed, current, error code, etc.
- With Hall position detection, over-current protection, etc.
- Supports electric brake
- No drive mechanical friction, drive efficiency close to 99.99%
Specifications
| No-load speed | 400±20RPM | Operating temperature | -5℃ ~ 40℃ |
| No-load current | 0.25A | Total weight | 236g |
| Rated speed | 100RPM | Encoder resolution | 12bit |
| Rated torque | 0.15Nm | Rated current | 0.24±0.07A |
| Locked-rotor torque | 0.3Nm | Noise level | ≦40dB(A) |
| Torque constant | 0.3Nm/A | Input voltage | 25.2V DC |
| Locked-rotor current | 1.0±0.2A | Speed constant | 15.9RPM/V |
Multiple Operating Modes
Current Loop Mode, Position Loop Mode, Velocity Loop Mode
Supports LIN Bus Communication
Only 1-Ch LIN Bus Is Required To Control Multiple Direct Drive Servo Motors At The Same Time
* the robot chassis shown in the picture is not included, but we provide its open-source drawing, please refer to the Package Content for detailed part list
Closed-Loop Control, Multiple Feedback
You Can Get The Motor Feedback Information Such As Temperature, Position, Velocity, Current, Etc. By Communication
Temperature Feedback |
Position Feedback |
Speed Feedback |
Current Feedback |
Integrated Direct Drive Design, No Reducer
The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration
Wide Speed Range Adjustable
The no-load speed of DDSM400 is up to 400±20 RPM, and is capable of operating at a rated speed of 100 RPM combined with a rated torque of 0.15Nm, suitable for robotic projects that require high speed running with low torque demands.
Waterproof & Dustproof, Longer Service Life
IP54 Protection Rating, The Ingress Protection Design Against Dust And Water Jets Can Make The Motor Better Protected, Provides A Longer Lifetime And Better Performance
Supports Suspension Installation
Supports Installing With Our UGV Suspension Designed For Hub Motors Via Aluminum Profile Or By Cutting Holes On The Side Of The Chassis, Reducing The Difficulty Of Chassis Design
* for reference only, the UGV Suspension (B) and robot chassis are not included, please purchase separately. The open-source drawing of robot chassis is provided in the wiki.
Pin Definition
Dimensions
Resources
WIKI: www.waveshare.com/wiki/DDSM400
Package Contents:
Weight: 0.232 kg
DDSM400 x1
What is the DDSM400 direct drive servo motor and what are its main advantages?
It is an integrated direct drive servo motor with an onboard driver and encoder, eliminating the external reducer for smooth torque and compact design.
What are the key electrical specifications and performance figures?
No load speed is 400 plus or minus 20 RPM and the rated speed is 100 RPM with a rated torque of 0.15 Nm. The motor draws about 0.24 plus minus 0.07 A and uses a 25.2 V DC supply; weight is 236 g.
How can I control multiple motors at once?
The motor supports LIN bus communication and requires only a single LIN bus line to control multiple Direct Drive Servo Motors simultaneously.
What protection and operating environment should I use this motor in?
It features IP54 protection against dust and water jets and operates from -5 C to 40 C; it also includes over current protection and Hall position sensing.
What is included in the package and how do I install it?
The package includes one DDSM400 unit; chassis or robot chassis are not included. Open source chassis drawings are provided in the wiki and the product supports suspension installation options.
