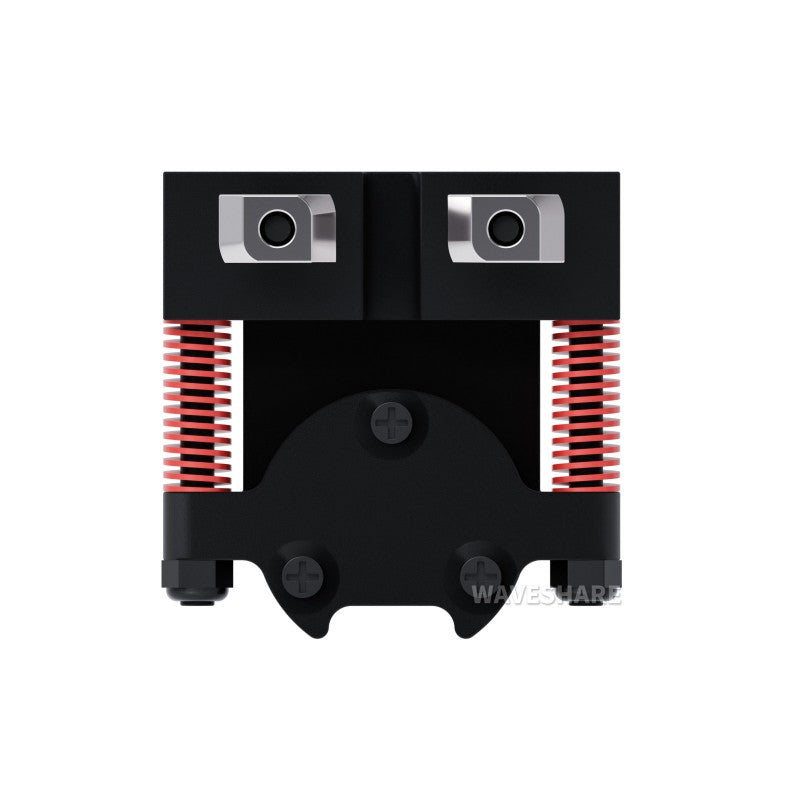

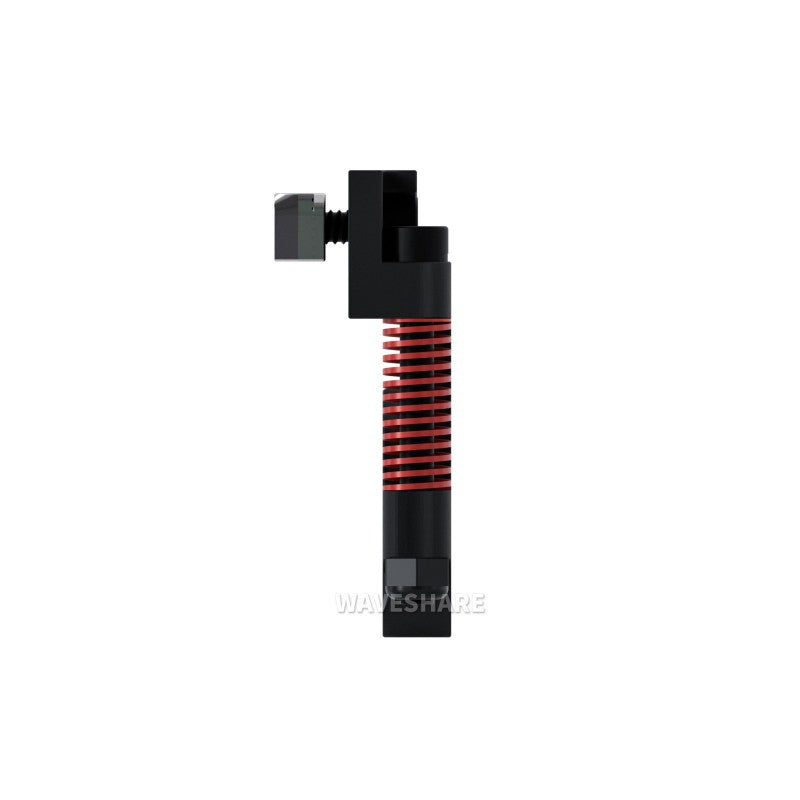

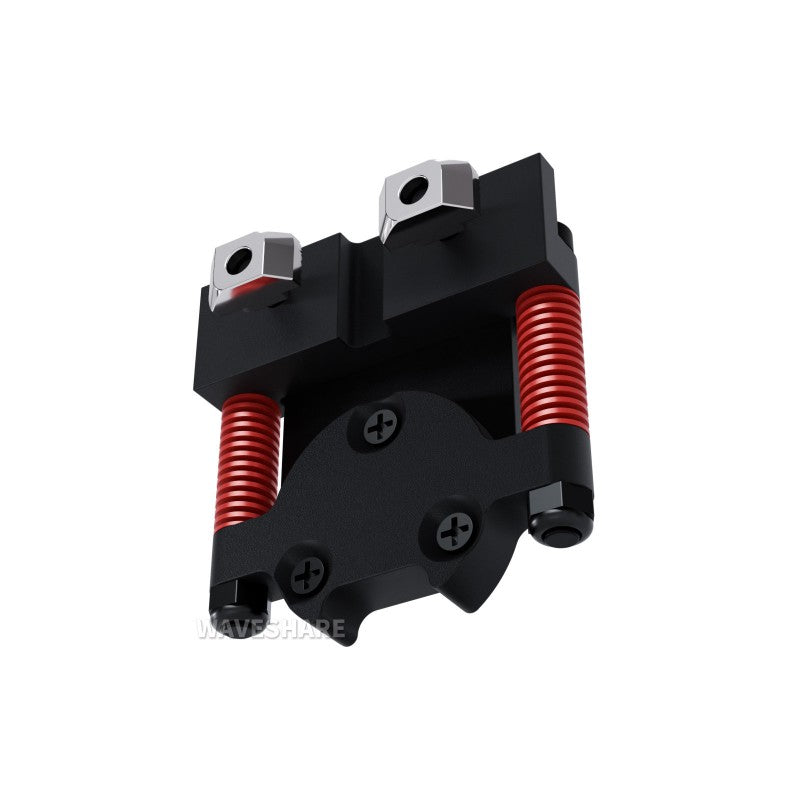

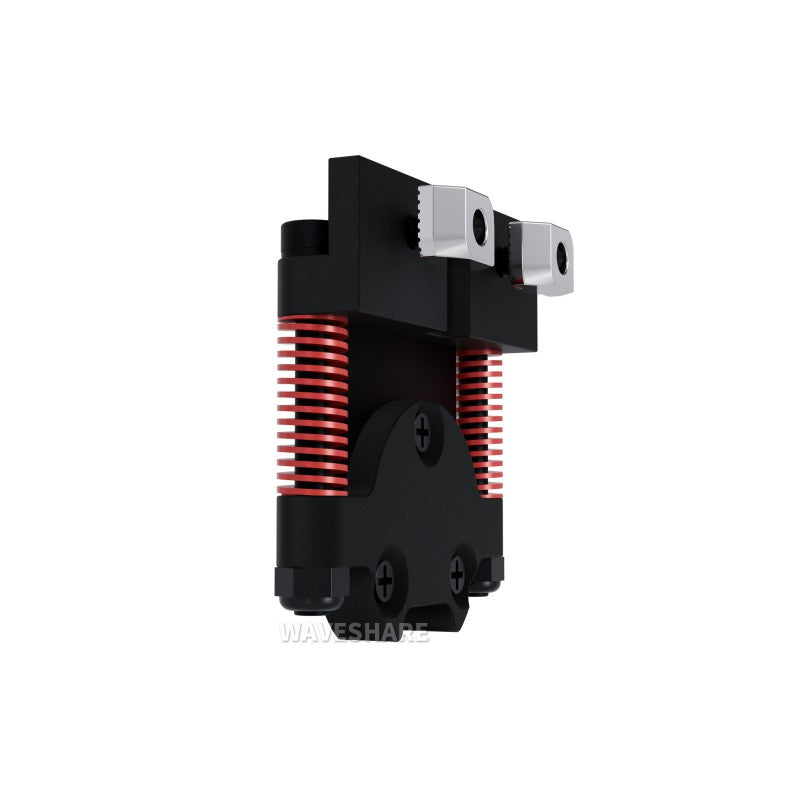

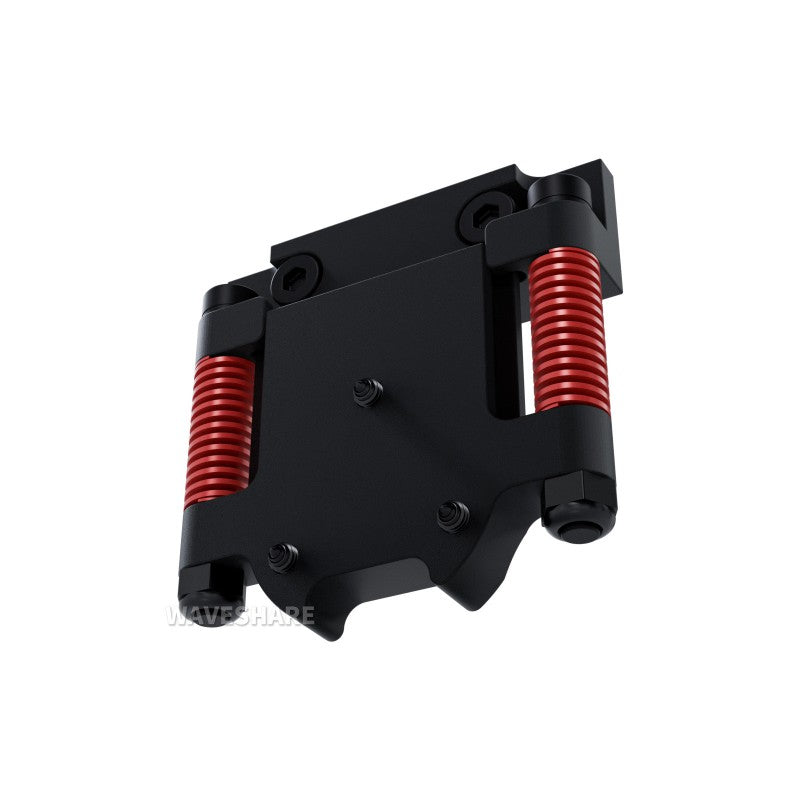

All-Metal Compact UGV Suspension
Suitable For DDSM210 And DDSM400 Hub Motors
Easy To Install, Reducing The Design Complexity Of UGV And AGV Chassis
Adopts Compact Structure For Saving Chassis Space
* Note: the images used on this webpage are for reference only, do not include any other components than the suspension. Please refer to the package content for the detailed part list.
Ā
Suitable For Aluminum Profile Chassis
Comes With 20 Series European Standard T-Nuts For Users To Install The Suspension On Aluminum Profile. Provides An Open-Source Profile Chassis Model For Secondary Development
Ā
Easy To Build A Fully Enclosed Chassis
For Advanced Users, The Suspension Can Be Installed By Cutting Holes On The Side Of The Chassis Body, And We Also Provide An Open Source Model Of Fully Enclosed Chassis
Ā
12KG* Load Capacity For 4-Wheel Chassis
*Note: The 12KG is the static load capacity of chassis structure. You need to consider factors such as motor torque, slop, ground friction, alternating stress, etc. when using in specific projects.
Ā
Compact And Reliable Structure Design
Adopts 6061 Aluminum Alloy CNC Process, With High-Durability 65Mn* Spring, Ensuring The Overall Strength While Making The Structure More Compact, Saving More Chassis Space
* 65Mn is a type of spring steel, features high strength, long lifespan, and a certain degree of flexibility and plasticity after heat treatment and cold drawing hardening.
Ā
Reserved Slot For Neat Wiring
The Suspension Is Designed With Slot For Making The Wiring Of The Hub Motor Neater. When Designing The Chassis, The Cutting Holes On The Car Body Can Be Aligned With The Suspension Slot To Make The Wiring Easier
Ā
Dimensions
Ā
Product Selection
| Model | UGV Suspension (A) | UGV Suspension (B) |
| Load capacity | 7.5kg | 3kg |
| Dimensions | 62Ć47Ć20mm | 40Ć40.88Ć9mm |
| Applicable hub motors | DDSM115 | DDSM210, DDSM400 |
| Open source models | fully enclosed chassis, profile chassis | |
Ā
Ā
Ā
Resources
WIKI: www.waveshare.com/wiki/UGV_Suspension_(B)
Ā
Ā
Ā
Package Contains:
Weight: 0.06 kg
UGV Suspension (B) x1
Which hub motors is this suspension compatible with and what is the load consideration?
It is suitable for DDSM210 and DDSM400 hub motors. The static load capacity for a 4 wheel chassis is 12 kg, but motor torque, slop, ground friction and alternating stress must be considered for specific projects.
How is it installed on an aluminum profile chassis?
The unit is designed for aluminum profile chassis using 20 Series European standard T-nuts and includes a slot to align with the chassis. You can cut holes on the chassis side to align with the suspension slot to make wiring neater.
Are open source chassis models provided?
Yes, open source models for a fully enclosed chassis and for a profile chassis are provided.
What materials and durability features are used in the suspension?
It uses 6061 aluminum alloy CNC process parts and a high durability 65Mn spring to provide strength in a compact form.
What is included in the package and its weight?
Package contains UGV Suspension (B) x1 and the weight is 0.06 kg.
