Easy To Install, Reducing The Design Complexity Of UGV And AGV Chassis
Adopts Compact Structure For Saving Chassis Space
* Note: the images used on this webpage are for reference only, do not include any other components than the suspension. Please refer to the package content for the detailed part list.

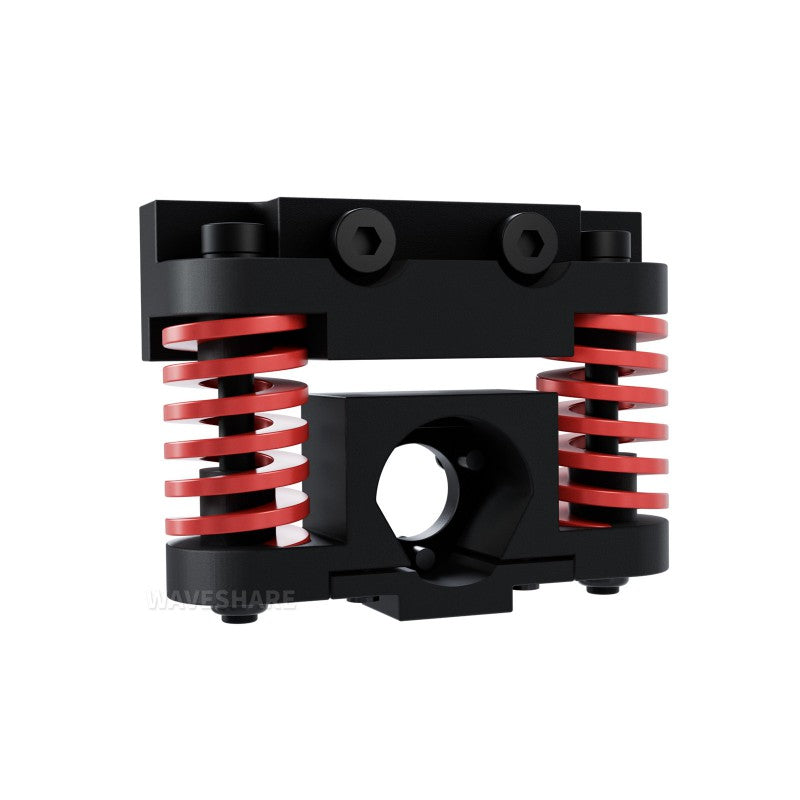

UGV Suspension (A) is an all-metal compact suspension for DDSM115 hub motor, adopting high-strength springs with 7.5KG load capacity. The product is easy to install, which can reduce the difficulty of UGV and AGV chassis design, save chassis space, and lower the threshold of using hub motors.

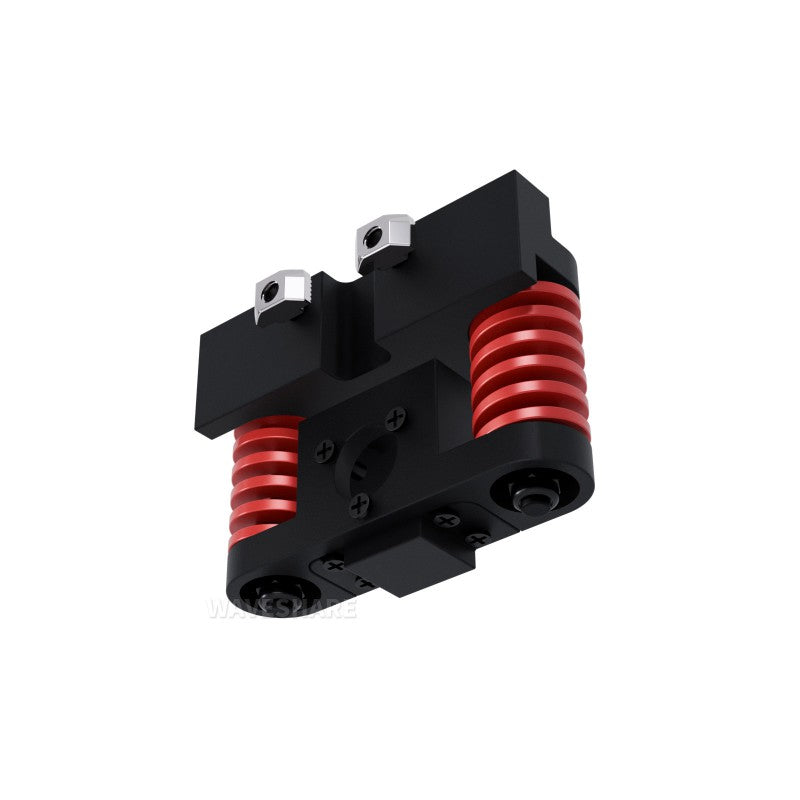

Comes with 20 series European standard T-nuts for users to install the suspension on the aluminum profile. Also, we provide an open-source profile chassis model for secondary development.
For high-level users, when designing the chassis, the cutting holes on the car body can be aligned with the suspension slot to make the wiring easier. In addition, we provide an open-source model for this full-enclosed chassis, so you can freely modify it to meet your requirements and produce this chassis through 3D printing or sheet metal fabrication.

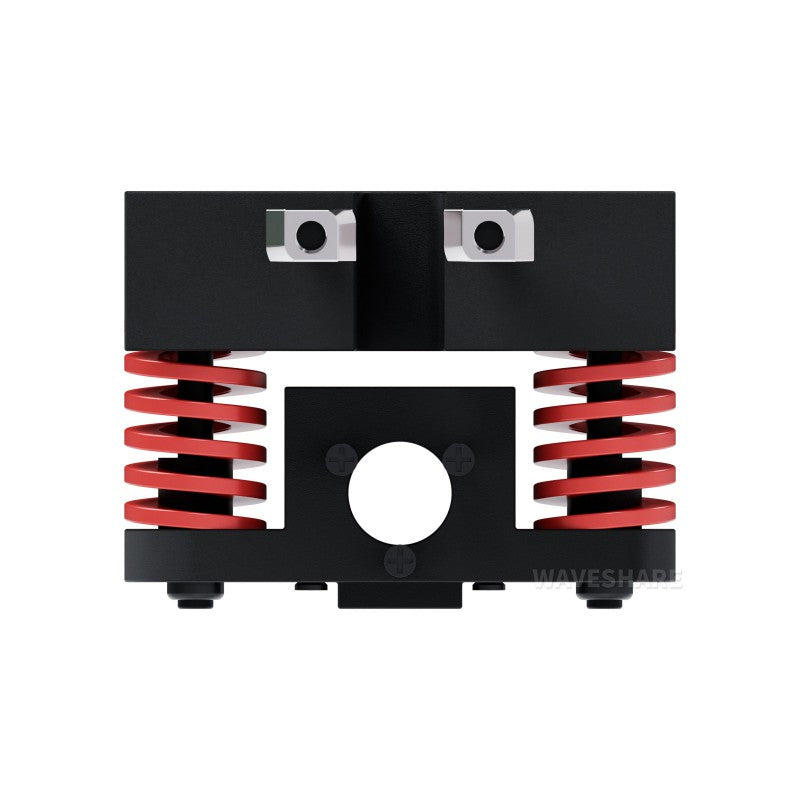

Comes With 20 Series European Standard T-Nuts For Users To Install The Suspension On Aluminum Profile.
Provides An Open-Source Profile Chassis Model For Secondary Development
For Advanced Users, The Suspension Can Be Installed By Cutting Holes On The Side Of The Chassis Body,
And We Also Provide An Open Source Model Of Fully Enclosed Chassis
*Note: The 30KG is the static load capacity of chassis structure. You need to consider factors such as motor torque, slop, ground friction, alternating stress, etc. when using in specific projects.

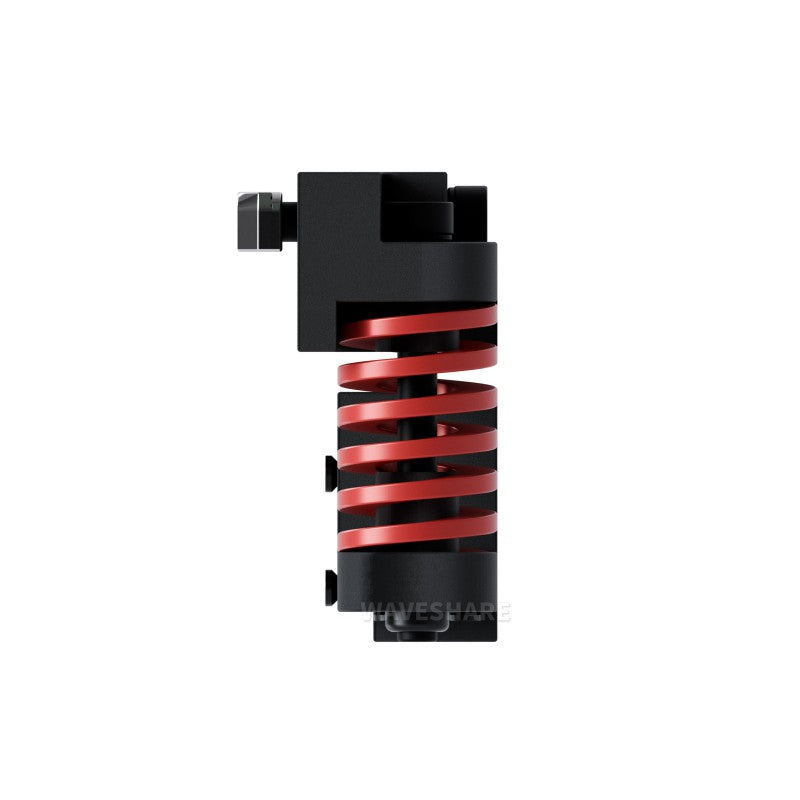

Adopts 6061 Aluminum Alloy CNC Process, With High-Durability 65Mn* Spring, Ensuring The Overall Strength While Making The Structure More Compact, Saving More Chassis Space
* 65Mn is a type of spring steel, features high strength, long lifespan, and a certain degree of flexibility and plasticity after heat treatment and cold drawing hardening.

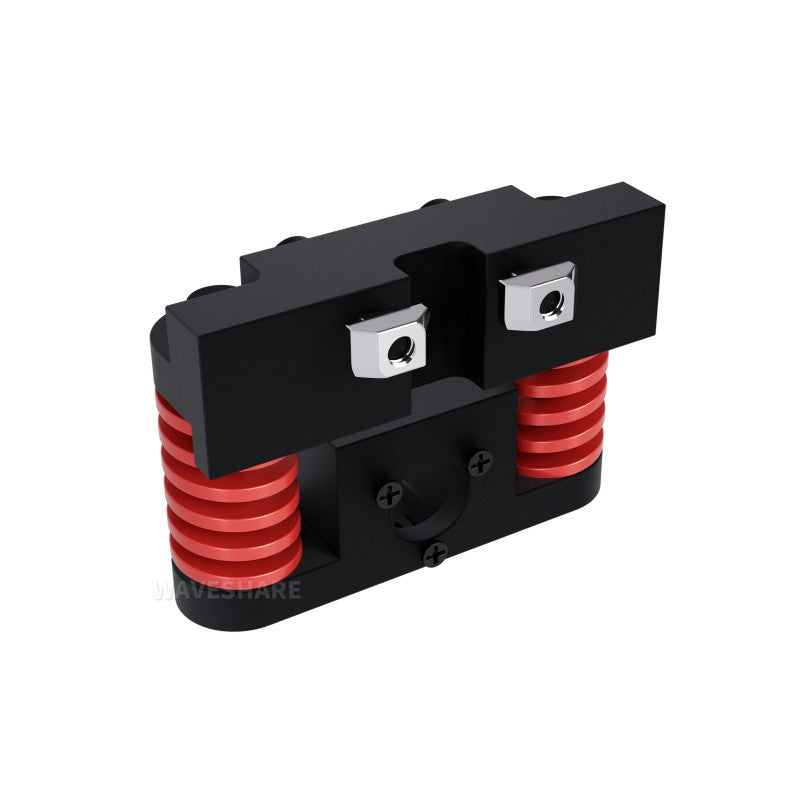

The Suspension Is Designed With Slot For Making The Wiring Of The Hub Motor Neater. When Designing The Chassis, The Cutting Holes On The Car Body Can Be Aligned With The Suspension Slot To Make The Wiring Easier
| Model | UGV Suspension (A) | UGV Suspension (B) |
| Load capacity | 7.5kg | 3kg |
| Dimensions | 62×47×20mm | 40×40.88×9mm |
| Applicable hub motors | DDSM115 | DDSM210, DDSM400 |
| Open source models | fully enclosed chassis, profile chassis | |
WIKI: www.waveshare.com/wiki/UGV_Suspension_(A)
Weight: 0.131 kg
UGV Suspension (A) x1
