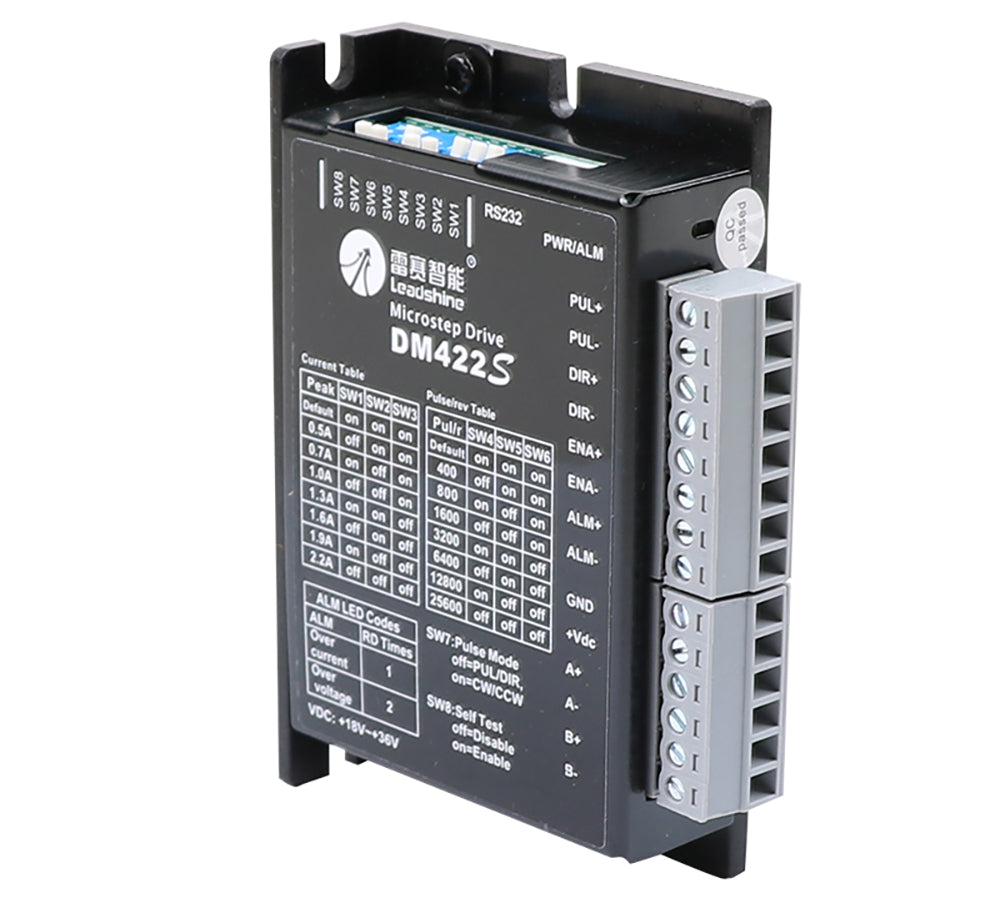

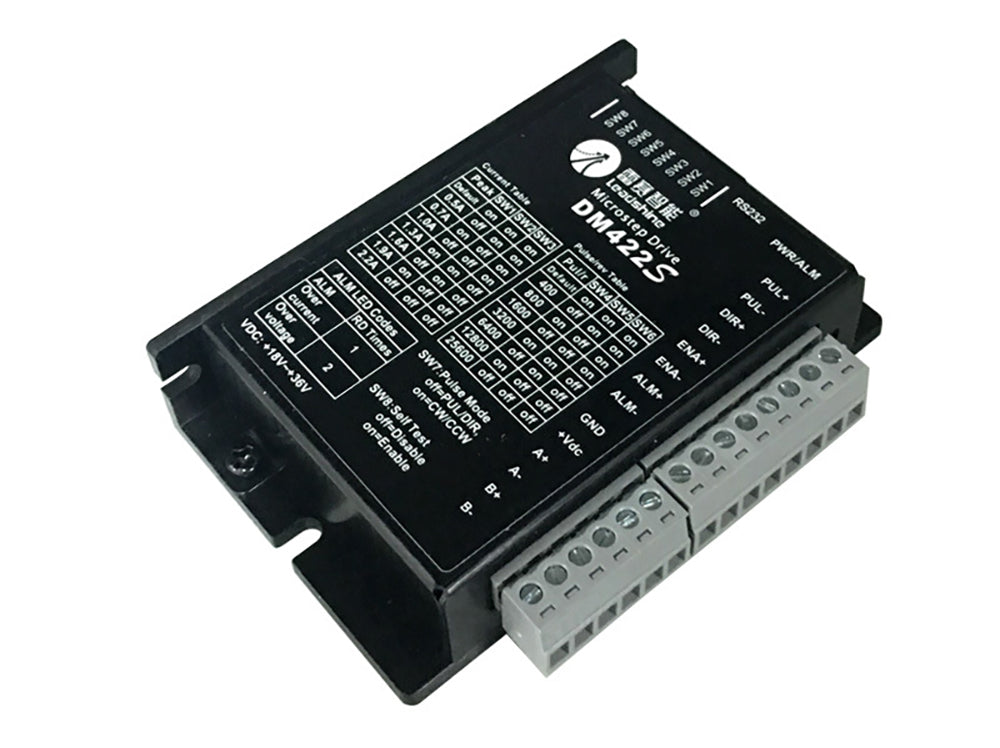

The DM422S digital 2-phase stepper drive is based on Tl's 32-bit DSP platform and integrated with the micro-stepping technology and auto tuning of power-up parameters.
With the features of low noise, low vibration low heating and high-speed high torque output, it is suitable for most stepper motors.
{"id":6628714741846,"title":"DM422S Microstep Stepper Motor Driver","handle":"dm422s-microstep-stepper-motor-driver","description":"\u003cp\u003eThe DM422S digital 2-phase stepper drive is based on Tl's 32-bit DSP platform and integrated with the micro-stepping technology and auto tuning of power-up parameters.\u003c\/p\u003e\n\u003cp\u003eWith the features of low noise, low vibration low heating and high-speed high torque output, it is suitable for most stepper motors.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003ePulse Mode:\u003c\/strong\u003e Monopulse\/Double-Pulse\/Orthogonal Pulse\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eOutput Current:\u003c\/strong\u003e Programmable (0. 3A - 2.2A)\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSupply Voltage\u003c\/strong\u003e: 18-48 VDC;\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePulse Input Frequency:\u003c\/strong\u003e up to 200KHz \u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eTypical Application:\u003c\/strong\u003e Marking Machine, Soldering Tin Machine, Laser, 3D Printing, Visual Localization, Automatic Assembly Equipment\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable cellspacing=\"1\" cellpadding=\"1\" border=\"1\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\"\u003e\u003cspan\u003e\u003cstrong\u003eParameters\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"4\"\u003e\u003cspan\u003e\u003cb\u003eDM422S\u003c\/b\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eMin.\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eTypical\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eMax.\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eUnit\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eOutput Current\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0.3\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e-\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e2.2\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eA\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eSupply Voltage\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e18\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e24\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e48\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cspan\u003eVDC\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eLogic Signal Current\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e7\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e10\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e16\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003emA\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003ePulse Input Frequency\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e-\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e200\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003ekHz\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eDimension\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003e\u003cspan\u003e92.6x56x21\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\"\u003e\u003cspan\u003emm\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eWeight\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003e\u003cspan\u003e106\/3.74\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cspan color=\"#000000\" style=\"color: #000000;\"\u003eg\/oz\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eSuitable Stepper Motors\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"4\"\u003e\u003cspan\u003eNEMA 17\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2022-12-06T11:10:31+05:30","created_at":"2021-09-11T11:28:30+05:30","vendor":"ThinkRobotics.in","type":"","tags":["12V stepper driver","5V Stepper Driver","DM422","DM422S","DM542","Dual H-Bridge Stepper Motor","ELC4","MTR-DRV","NEMA17","nema17 motor driver","NEMA17 Stepper Motor","stepper driver","stepper motor driver","STPR-DRV","Trinamic Stepper Driver"],"price":189999,"price_min":189999,"price_max":189999,"available":false,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":39536310747222,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC4027","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"DM422S Microstep Stepper Motor Driver","public_title":null,"options":["Default Title"],"price":189999,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"39536310747222","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/products\/Hfeb2aa0a836648c09881924e85161a5cC.jpg?v=1631340011","\/\/thinkrobotics.com\/cdn\/shop\/products\/H9ecf1ba752d24fba9c4def26c4405cc1f.jpg?v=1631340011"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/products\/Hfeb2aa0a836648c09881924e85161a5cC.jpg?v=1631340011","options":["Title"],"media":[{"alt":"DM422S Microstep Stepper Motor Driver","id":21275357937750,"position":1,"preview_image":{"aspect_ratio":1.337,"height":748,"width":1000,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/Hfeb2aa0a836648c09881924e85161a5cC.jpg?v=1631340011"},"aspect_ratio":1.337,"height":748,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/Hfeb2aa0a836648c09881924e85161a5cC.jpg?v=1631340011","width":1000},{"alt":"DM422S Microstep Stepper Motor Driver","id":21275357872214,"position":2,"preview_image":{"aspect_ratio":1.095,"height":913,"width":1000,"src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/H9ecf1ba752d24fba9c4def26c4405cc1f.jpg?v=1631340011"},"aspect_ratio":1.095,"height":913,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/products\/H9ecf1ba752d24fba9c4def26c4405cc1f.jpg?v=1631340011","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe DM422S digital 2-phase stepper drive is based on Tl's 32-bit DSP platform and integrated with the micro-stepping technology and auto tuning of power-up parameters.\u003c\/p\u003e\n\u003cp\u003eWith the features of low noise, low vibration low heating and high-speed high torque output, it is suitable for most stepper motors.\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003ePulse Mode:\u003c\/strong\u003e Monopulse\/Double-Pulse\/Orthogonal Pulse\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eOutput Current:\u003c\/strong\u003e Programmable (0. 3A - 2.2A)\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eSupply Voltage\u003c\/strong\u003e: 18-48 VDC;\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePulse Input Frequency:\u003c\/strong\u003e up to 200KHz \u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eTypical Application:\u003c\/strong\u003e Marking Machine, Soldering Tin Machine, Laser, 3D Printing, Visual Localization, Automatic Assembly Equipment\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable cellspacing=\"1\" cellpadding=\"1\" border=\"1\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\"\u003e\u003cspan\u003e\u003cstrong\u003eParameters\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"4\"\u003e\u003cspan\u003e\u003cb\u003eDM422S\u003c\/b\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eMin.\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eTypical\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eMax.\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cstrong\u003eUnit\u003c\/strong\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eOutput Current\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0.3\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e-\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e2.2\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eA\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eSupply Voltage\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e18\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e24\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e48\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cspan\u003eVDC\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eLogic Signal Current\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e7\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e10\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e16\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003emA\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003ePulse Input Frequency\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e-\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e200\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003ekHz\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eDimension\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003e\u003cspan\u003e92.6x56x21\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\"\u003e\u003cspan\u003emm\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eWeight\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003e\u003cspan\u003e106\/3.74\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e\u003cspan color=\"#000000\" style=\"color: #000000;\"\u003eg\/oz\u003c\/span\u003e\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cspan\u003eSuitable Stepper Motors\u003c\/span\u003e\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"4\"\u003e\u003cspan\u003eNEMA 17\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}
