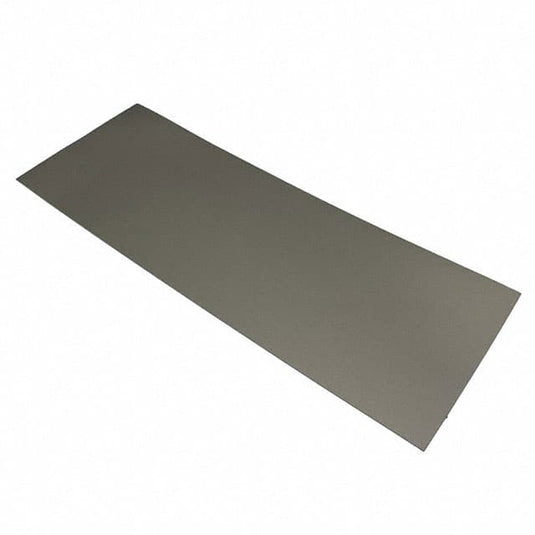

Part Number: EFS(05)-240X80T0800
Manufacturer: KEMET ELECTRONICS
Country of Origin: JP
Unit of Measure: EA
ECCN: EAR99
Package Type: BLK
Datasheet: Download Datasheet
Product Overview
The KEMET FLEX SUPPRESSOR Noise Suppression Sheet is a flexible, polymer-based EMI gasket designed for high-frequency noise suppression in electronic devices. It effectively reduces electromagnetic wave interference and resonance across a wide frequency range from MHz to GHz bands. The sheet can be easily cut into various shapes and sizes, facilitating quick installation in portable and embedded electronic equipment.
Key Features
Electromagnetic wave suppression by magnetic structure absorption
Resonance suppression through impedance control
Effective from MHz to GHz frequency bands
Thin, flexible, and easy to cut into custom shapes
RoHS compliant and halogen-free
Suitable for radiation noise suppression in mobile phones, cameras, notebooks, tablets, automotive infotainment, and wireless communication devices
Countermeasure for electrostatic discharge (ESD)
Enhanced wireless power transfer capabilities
Available in sheet and roll formats with various dimensions and thicknesses
Specifications
Series
Effective Frequency
Operating Temperature (°C)
Thickness (mm)
Standard Dimensions (mm)
Permeability (μ)
Decoupling Characteristics (dB)
Reflow Temperature (°C)
EFA, EFF4, EFS
1 MHz to 3 GHz
–40 to +105 / +125
0.05/0.1/0.2/0.3
240 x 240 (roll on request), 240 x 80, 80 x 80, 120 x 120, etc.
