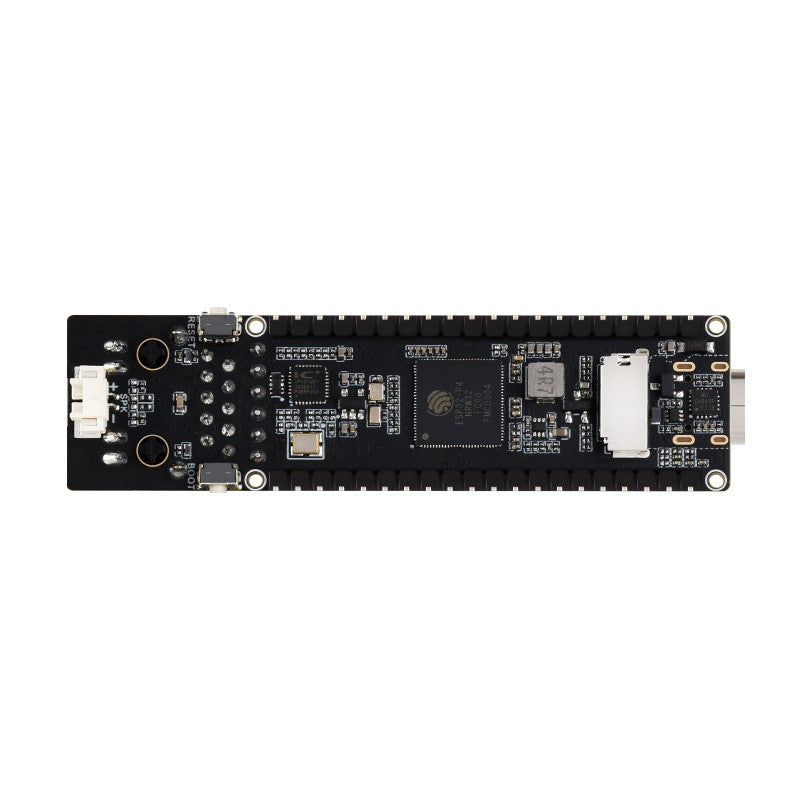

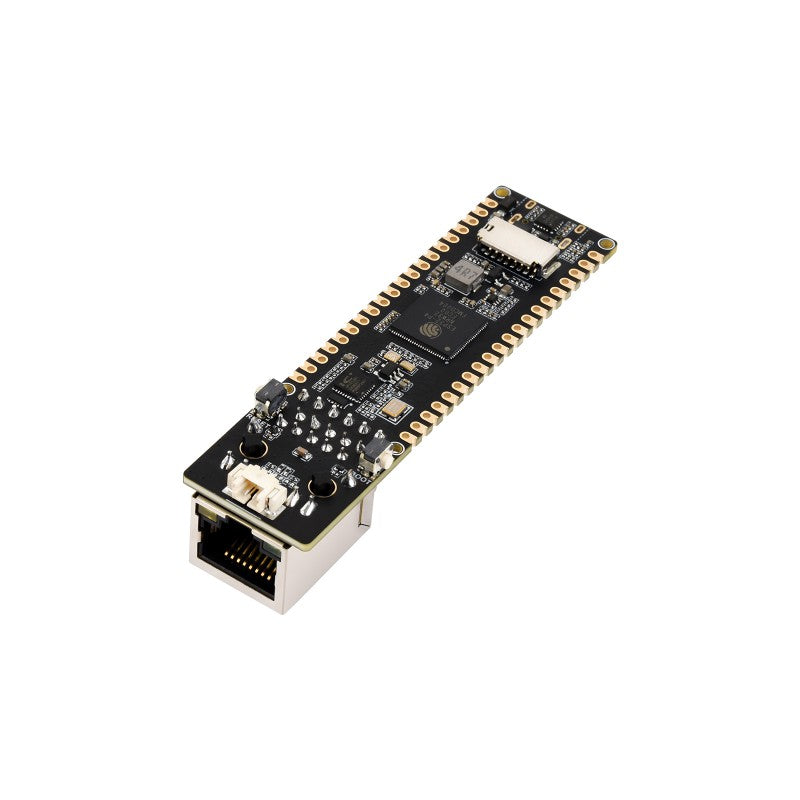

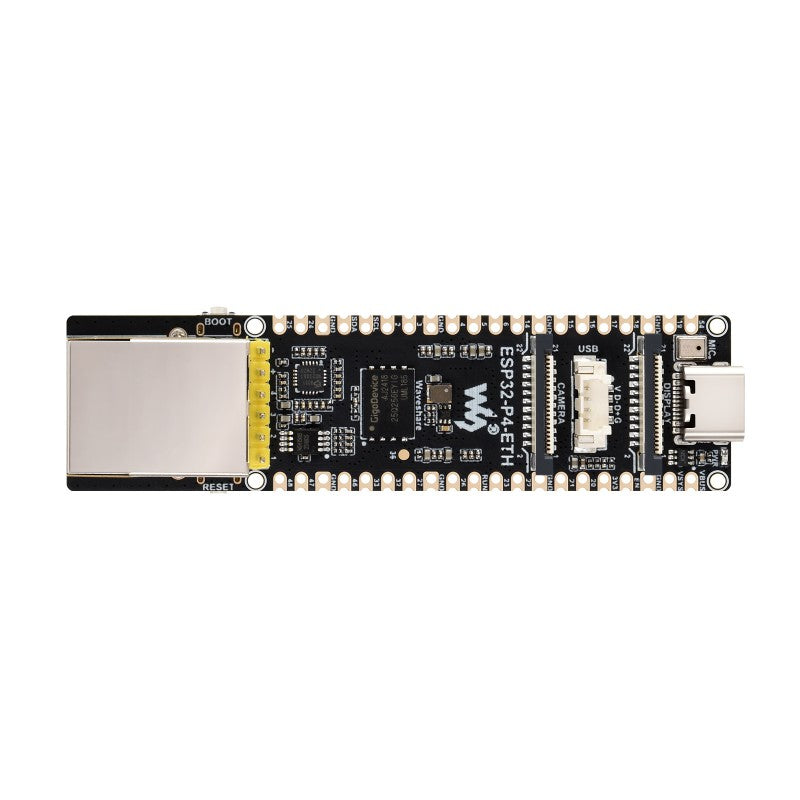

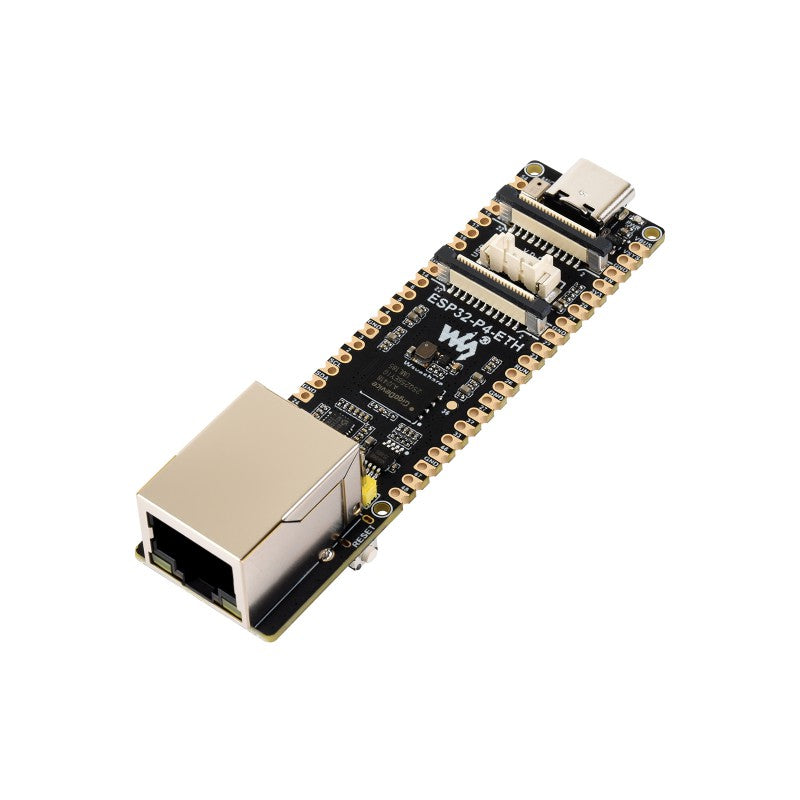

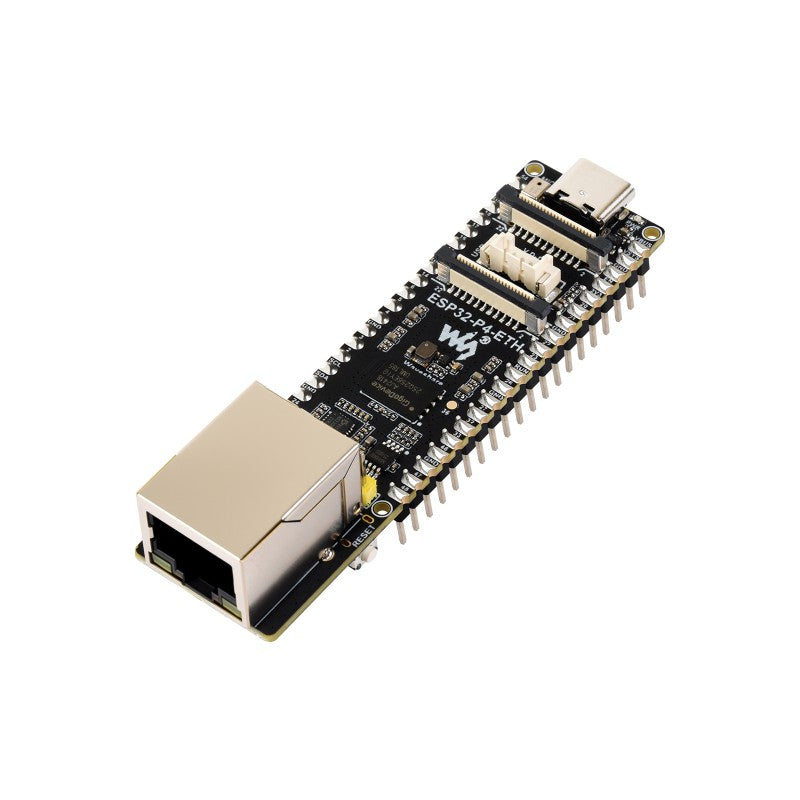

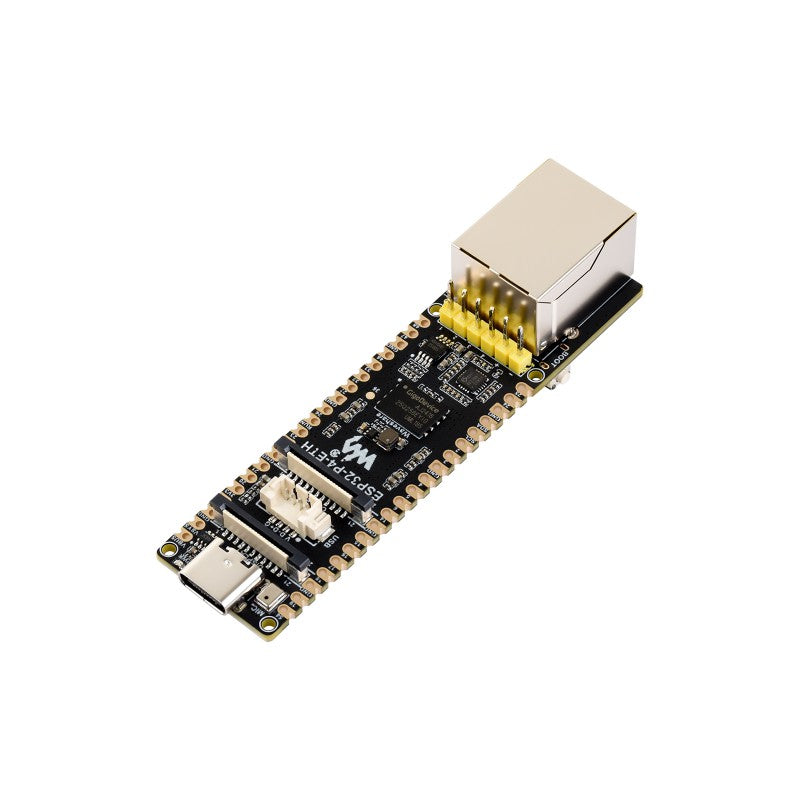

High-performance Development Board Based On ESP32-P4
Rich Human-Machine Interfaces
This product is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.
The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.
| High-performance MCU with RISC-V 32-bit dual-core and single-core processors |
| 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM |
| Powerful image and voice processing capability with JPEG codecs, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder |
| 32MB PSRAM in the chip's package, onboard 32MB NOR Flash |
| Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header, etc. |
| Adapting 2×20 GPIO headers with 27 remaining programmable GPIOs |
| Security features including Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, access permission management, and privilege separation |
Optional For DSI Capacitive Touch Display, IPS Screen,
Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle.
Supports 10-Point Touch, provides clear image and excellent visual experience.
| Model | 10.1-DSI-TOUCH-A |
| Resolution | 800 × 1280 (H × V) |
| Communication Interface | MIPI-DSI (2-lane) |
| Brightness | 400 cd/m² (supports customization for 1000 cd/m² high brightness version) |
| Touch Chip | GT9271 |
| Outline Dimension | 147.0 × 239.0 mm |
| Display Area | 135.36 × 216.58 mm |
| Pixel Pitch | 0.1692 (H) × 0.1692 (V) mm |
| Contrast Ratio | 800:1 |
| Operating Temperature | 0 ℃ ~ 60 ℃ |
* the DSI LCD is only included in the ESP32-P4-POE-ETH-KIT-B
5MP | Manual Focus
Compatible with Raspberry Pi series boards
| Sensor | OV5647 | CMOS Size | 1/4 inch |
| Pixels | 5 MP | Aperture | F2.0 |
| Focal Length | 6 mm | Field of View | 60.6° |
| Night Vision Function | Not supported | Focusing | Manual Focus |
* for reference only, please refer to the package content for detailed part list.
Adopts ESP32-P4 Module, onboard 32MB Nor Flash

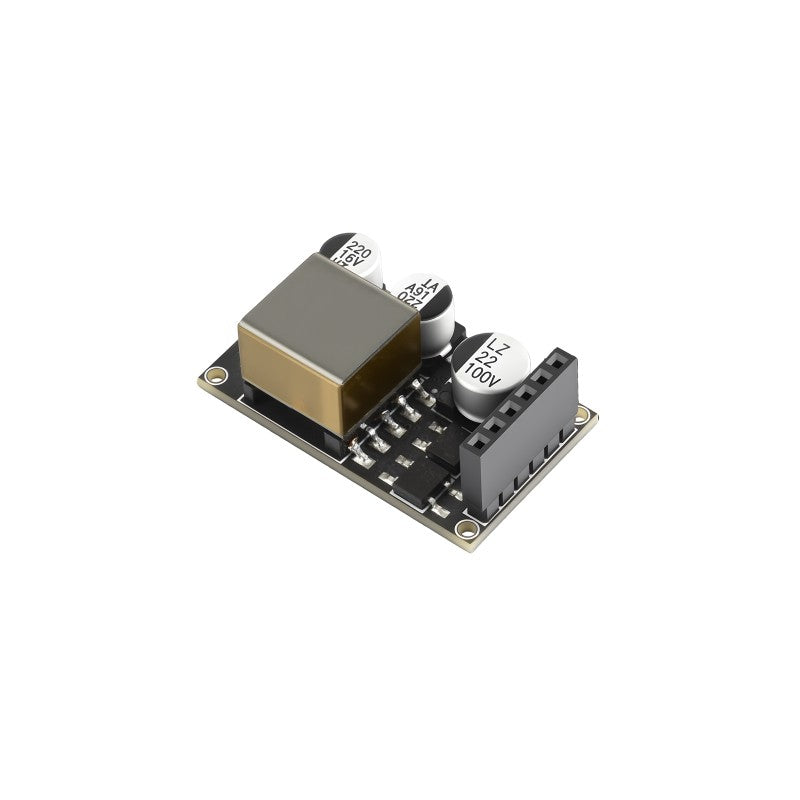

Supports both PoE* and USB Type-C power supply
* the PoE module is required.
Provides Both Network Connection And Power Supply In Only One Ethernet Cable
* the PoE module is optional, and the switch in the picture above is NOT included.
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
* (the speaker is only included in the ESP32-P4-POE-ETH-KIT-A / B)
(the DSl display is only included in the ESP32-P4-POE-ETH-KIT-B)
| 1. ESP32-P4NRW32 | ESP32-P4 chip with 32MB PSRAM |
| 2. Ethernet | 100M RJ45 Ethernet port |
| 3. Flash | 32MB NOR Flash |
| 4. Display Interface | MIPI-DSI (2-lane) Supports 5 / 7 / 8 / 10.1 inch DSI screens |
| 5. Camera Interface | MIPI-CSI (2-lane) Supports OV5647 camera |
| 6. Type-C Port | For power supply and program burning |
| 7. Onboard Microphone | Built-in microphone |
| 8. Speaker Header | MX1.25 2-pin connector Supports 8Ω 2W speaker |
| 9. USB Header | 4-pin USB OTG 2.0 High-Speed interface |
| 10. Power Options | PoE module & power supply header |
| 11. BOOT Button | Press during power-on or reset to enter download mode |
| 12. Reset Button | RST reset button |
| 13. Indicator | Power indicator LED |
| 14. TF Card Slot | SDIO 3.0 interface protocol |
Wiki: www.waveshare.com/wiki/ESP32-P4-ETH
ESP32-P4-ETH
ESP32-P4-ETH × 1
20PIN header × 2
ESP32-P4-POE-ETH
ESP32-P4-ETH-M × 1
PoE module × 1
Screws pack × 1

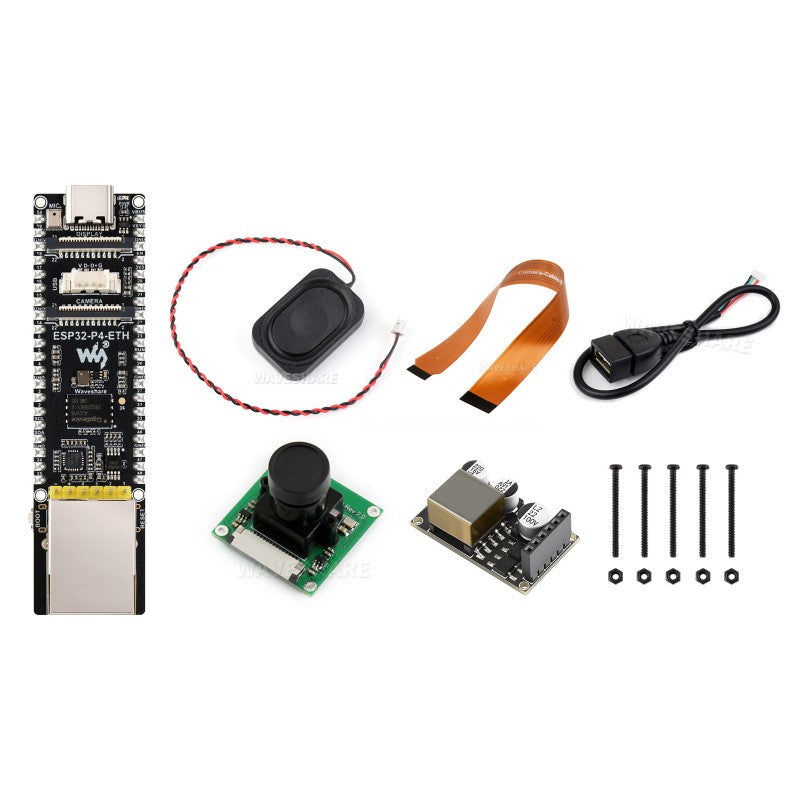

ESP32-P4-POE-ETH-NH-KIT-A
ESP32-P4-ETH-M × 1
PoE module × 1
Screws pack × 1
8Ω 2W speaker × 1
Pi5-Camera-Cable-200mm × 1
FFC 15PIN cable × 1
RPi Camera (B) × 1
MX1.25 4PIN to USB cable × 1

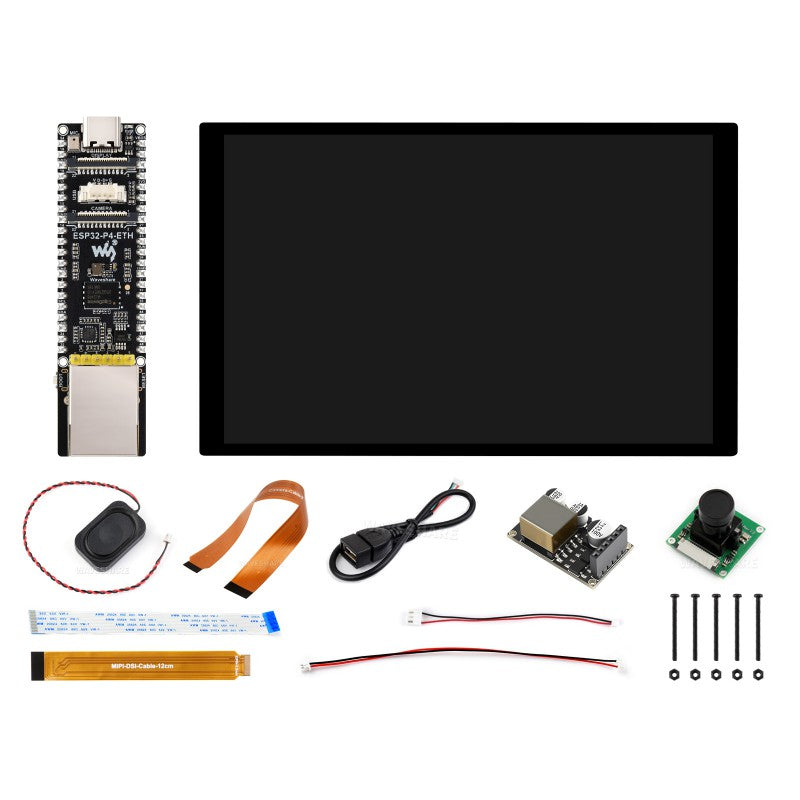

ESP32-P4-POE-ETH-KIT-B
ESP32-P4-ETH-M × 1
10.1-DSI-TOUCH-A × 1
PoE module × 1
Screws pack × 1
8Ω 2W speaker × 1
Pi5-Camera-Cable -200mm × 1
FFC 15PIN cable × 1
RPi Camera (B) × 1
MX1.25 4PIN to USB cable × 1
MIPI-DSI-Cable-12cm × 1
MX1.25 2PIN to 2.54 3PIN cable × 1
FFC 22PIN cable ~220 mm (opposite direction) × 2
MX1.25 2PIN to MX1.25 4PIN ~150 mm × 1
Standoffs × 1
