ESP32-P4-Module Core Board, Based On ESP32-P4 And ESP32-C6 Dual-Chip Design

SKU: WVSH0339

ā‚¹ 1,299.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
ESP32-P4-Module Core Board, Based On ESP32-P4 And ESP32-C6 Dual-Chip Designā‚¹ 1,299.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

ESP32-P4-Module

Based On ESP32-P4 And ESP32-C6 Dual Chips

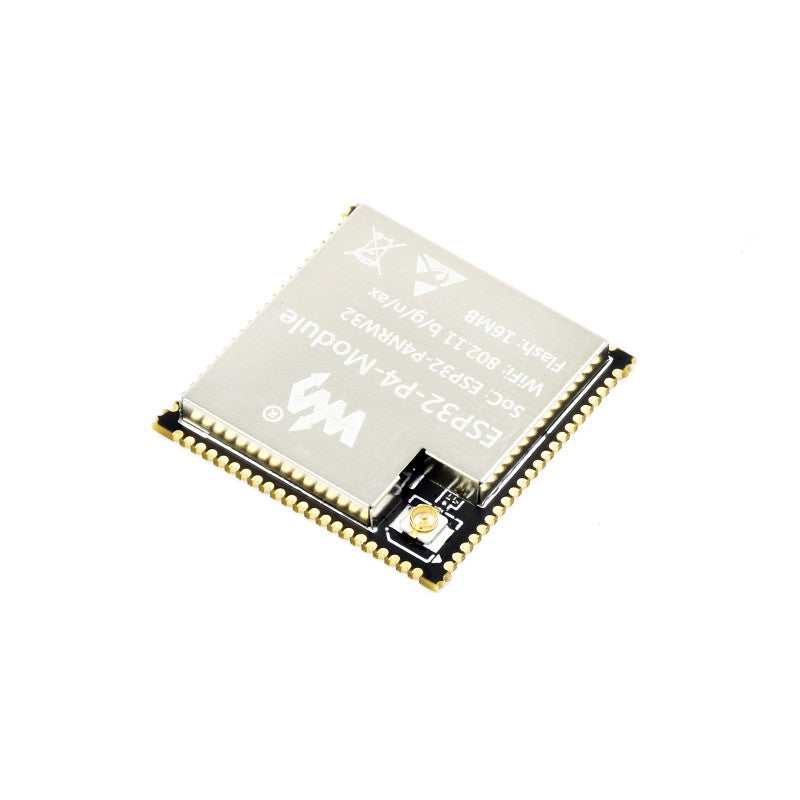

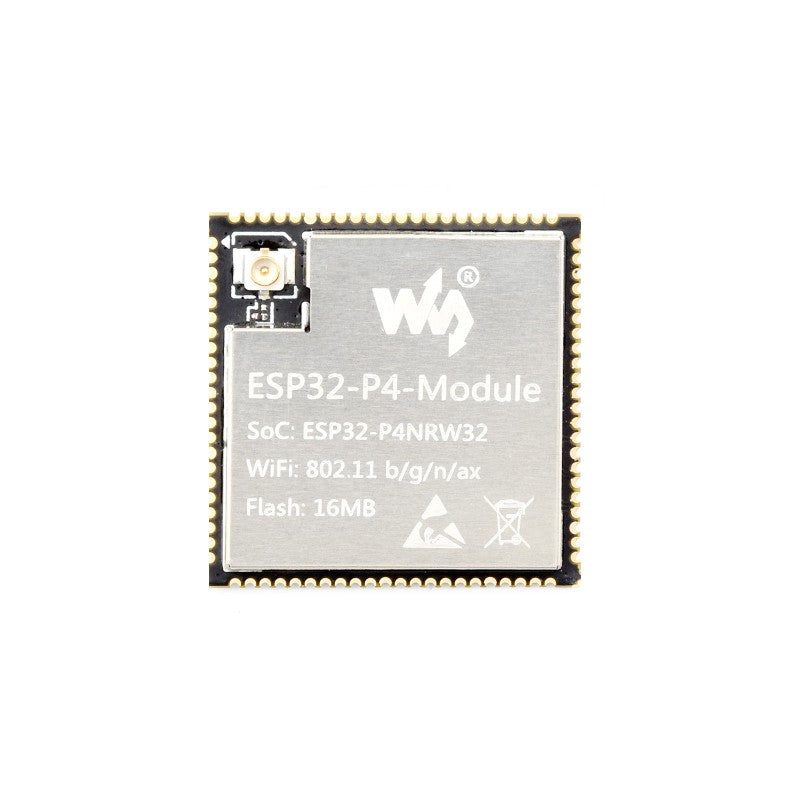

ESP32-P4-Module core board, front view

Ā

Features at a glance

High-performance MCU with RISC-V 32-bit dual-core and single-core processors
Integrated ESP32-C6 chip with support for 2.4GHz Wi-Fi, compliant with 802.11 b/g/n/ax standards
128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM
Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
32MB PSRAM in the chip's package, options for onboard 16MB / 32MB Nor Flash
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Ā

Specifications

Main Control Chip ESP32-P4NRW32
RF Chip ESP32-C6H8
PSRAM 32MB
Flash 16MB
RF Band 802.11 b/g/n/ax; 2.4GHz Wi-Fi; Bluetooth 5.3
Operating Voltage 3.3V
Connector Castellated edge, pitch 1mm
Dimensions 25 Ɨ 25 mm

Ā

Pinout Definition

ESP32-P4-Module core board, pinout definition

Ā

High-Quality Components

For stable performance of communication module

Ā ESP32-P4-Module core board, adopts original chip

Original chip
ESP32-P4

Ā ESP32-P4-Module core board, onboard two connection methods for Antenna

Two connection methods for Antenna
IPEX / Castellated hole

Ā ESP32-P4-Module core board, with professional shield

Professional shield
Anti-interference & ESD protection

Ā

Application Examples

Image Recognition, Smart Watches, Smart Industry, Human-Machine Interface (HMI), Voice Recognition, and IoT Applications

ESP32-P4-Module core board, front view

Ā

Outline Dimensions

ESP32-P4-Module core board, outline dimensions

Ā

Resources & Services

Ā

Package Content

Weight: 0.003 kg

ESP32-P4-Module x1

ESP32-P4-Module

What chips and wireless features does this module include?
It uses a dual chip design with ESP32 P4 and ESP32 C6, and supports 2.4 GHz Wi-Fi and Bluetooth 5.3.
What memory options are available on this module?
The chip package includes 32 MB PSRAM, with onboard Nor Flash options of 16 MB or 32 MB.
What security features are built into the board?
Security features include Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, and hardware access protection.
How is the board powered and what connectivity options does it offer?
Operating voltage is 3.3 V; the board uses a castellated edge with 1 mm pitch and offers antenna options via IPEX or castellated holes with an anti interference shield.
What is included in the package and where can I find documentation?
Package contents include ESP32-P4-Module x1. For documentation see the Waveshare wiki.
