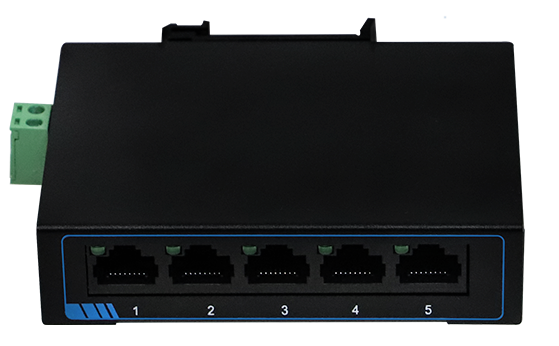

Ethernet Switch/Business - USR-SF1005
USR-SF1005
5-port 100M Ethernet switch
SF1005 is a 5-port 10/100Mbps unmanaged ethernet switch. The product combines store-and-forward technology and dynamic memory allocation together to ensure effective allocation to each port.
SF1005 | 5-port 100M Ethernet switch
Multi-scenario layer 2 switch, Industrial switch, Phoenix type connector
SF1005 is a 5-port 10/100Mbps unmanaged ethernet switch. The product combines store-and-forward technology and dynamic memory allocation together to ensure effective allocation to each port. Flow control ensures that nodes can avoid packet loss as much as possible when transmitting & receiving. The product is compatible with both 10Base-T and 100Base-TX standards, the port rate automatically adapts to 10 or 100Mbps. The product shell is made of frosted iron which makes it pressure-resistant, wear-resistant and explosion-proof, also meets the requirement of wide-temperature range operating. Featured with highly integrated and compact design, lightweight, easy to use, plug-and-play and supporting desktop/wall-mounted and DIN rail installation, the product is suitable for small & medium-sized offices, home and quasi-industrial uses.
Plug and play
Plug and play, no configuration required
Supports Auto MDI/MDIX
All Eth ports support Auto MDI/MDIX and rate Auto-negotiation, simplifying network setup and maintenance.
Complies with IEEE802.3az standard
Supports IEEE 802.3az Energy-efficient Ethernet to reduce energy consumption at both ends of the network when internet or ethernet activities are idle.
Iron shell
Iron shell shields electromagnetic interference and dissipates heat better than the plastic casing
Product details
The device supports DC-jack and terminal block connector for power supply. DC-jack power supply is faster while terminal block connector is more robust for specific scenarios. And the indicator light can directly tell the user the operating status of the equipment, making it easier for users to locate problems.
Dimensions
USR-SF1005: 100*31*77mm
Quasi-industrial design
Exquisite industrial structure design supports various installation methods such as desktop, wall-mounted and DIN rail for different installation conditions
PARAMETER
Model
USR-SF1005
USR-SF1008
USR-SG1005
USR-SG1008
Data Transfer Rate
10/100M
10/100M
10/100/1000M
10/100/1000M
Number of Ports
5
8
5
8
Switching Modes
Store and Forward
Store and Forward
Store and Forward
Store and Forward
Switching Capacity
1.0G
1.6G
10G
16G
Packet Forwarding Rate
10Mbps: 14880pps
10Mbps: 14880pps
10Mbps: 14880pps
10Mbps: 14880pps
MAC Address Table
2K
2K
2K
2K
Network Media (Cable)
10Base-T: UTP Category 3, 5 cable
10Base-T: UTP Category 3, 5 cable
10Base-T: UTP Category 3, 5 cable
10Base-T: UTP Category 3, 5 cable
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab
LED
Port: Link/Act Indicator
Port: Link/Act Indicator
Port: Link/Act Indicator
Port: Link/Act Indicator
Mounting
35mm DIN Rail Mounting
35mm DIN Rail Mounting
35mm DIN Rail Mounting
35mm DIN Rail Mounting
Dimensions
100*77*31mm
140*90*31mm
100*77*31mm
140*90*31mm
Certifications
CE, ROHS, FCC, WEEE
CE, ROHS, FCC, WEEE
CE, ROHS, FCC, WEEE
CE, ROHS, FCC, WEEE
Operating environment
Operating temperature: -5℃~45℃
Operating temperature: -5℃~45℃
Operating temperature: -5℃~45℃
Operating temperature: -5℃~45℃
Power & Consumption
Input: DC12V /0.5A, Consumption: <3W
Input: DC12V /0.5A, Consumption: <3W
Input: DC12V /0.5A, Consumption: <4W
Input: DC12V /0.5A, Consumption: <4W
Accessories
Power adapter (Optional), Terminal Block, Quick Start Guide
Power adapter (Optional), Terminal Block, Quick Start Guide
Power adapter (Optional), Terminal Block, Quick Start Guide
Power adapter (Optional), Terminal Block, Quick Start Guide
