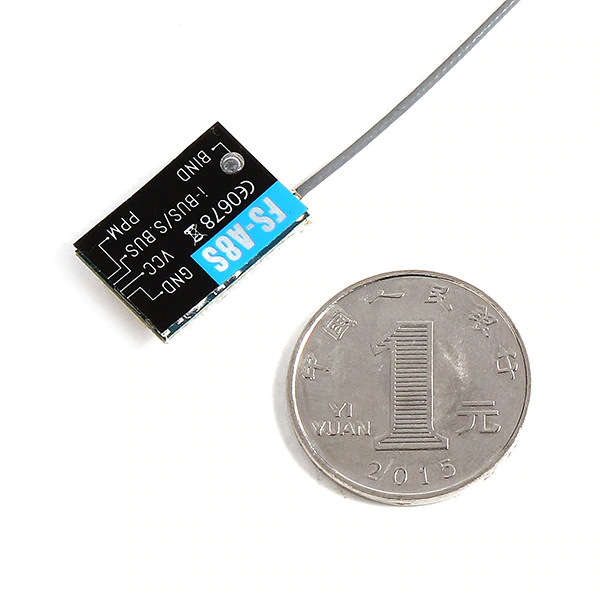

FlySky FS-A8S PPM i-BUS & SBUS 2.4G 8CH Mini Receiver Module
The Flysky FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports standart PPM output and has i-BUS support for up to 18 channels.
Specifications

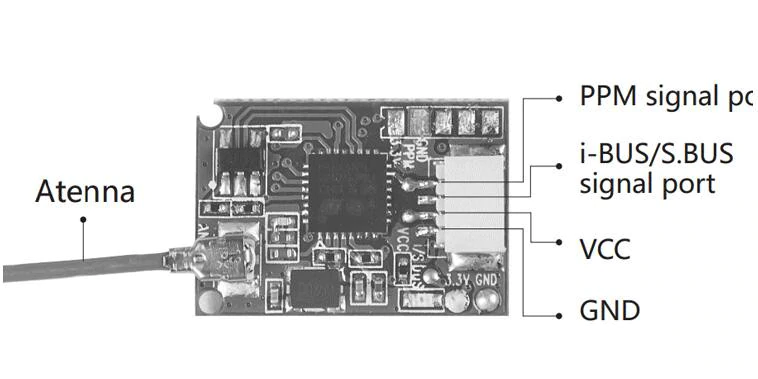

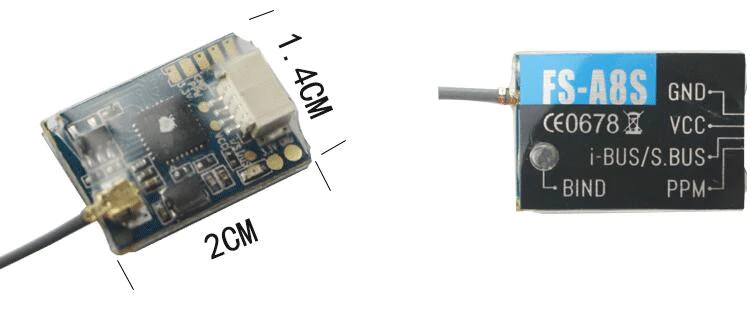

Brand Name:Flysky Item Name:FS-A8S Receiver Channels: PPM 8CH, i-BUS 18CH Model type: Multi-rotor Frequency range: 2.408-2.475GHz b and width: 500KHz b and number: 135 RX Sensitivity: -92 dBm 2.4GHz system: AFHDS 2A Modulation type: GFSK DSC port: PPM/i-BUS/S.BUS Transfer method: FHSS Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS Antenna length: 26mm (Not including brass contacts) Input power supply: 4.0-8.4V Display method: LED No ground interference ( Transmitting and receiving 1 m from the ground): >300m Working current: 40mA Each channel data: depend on the transmitter Channel delay: <15mS Size: 20*14*5.3mm
Resources Datasheet
Tutorial VIDEO
