Orbbec GeminiE
Orbbec GeminiE
Orbbec GeminiE
Orbbec GeminiE
Orbbec GeminiE
Orbbec GeminiE
Need Support? Click Here
Free Delivery Above ā‚¹999

Best seller

Orbbec

Orbbec GeminiE

SKU: SBC4018

ā‚¹ 24,499.99 ā‚¹ 29,999.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Orbbec GeminiEā‚¹ 24,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

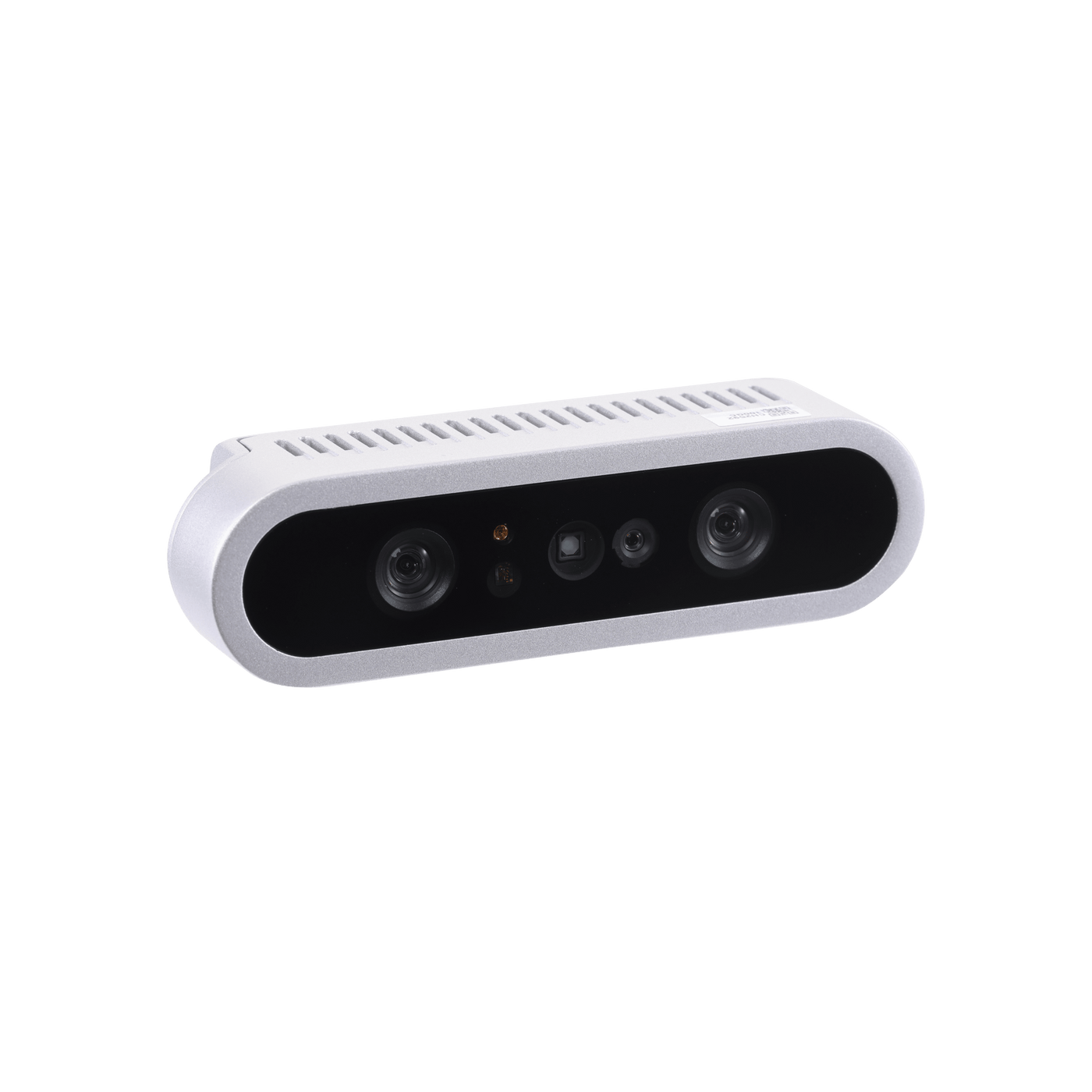

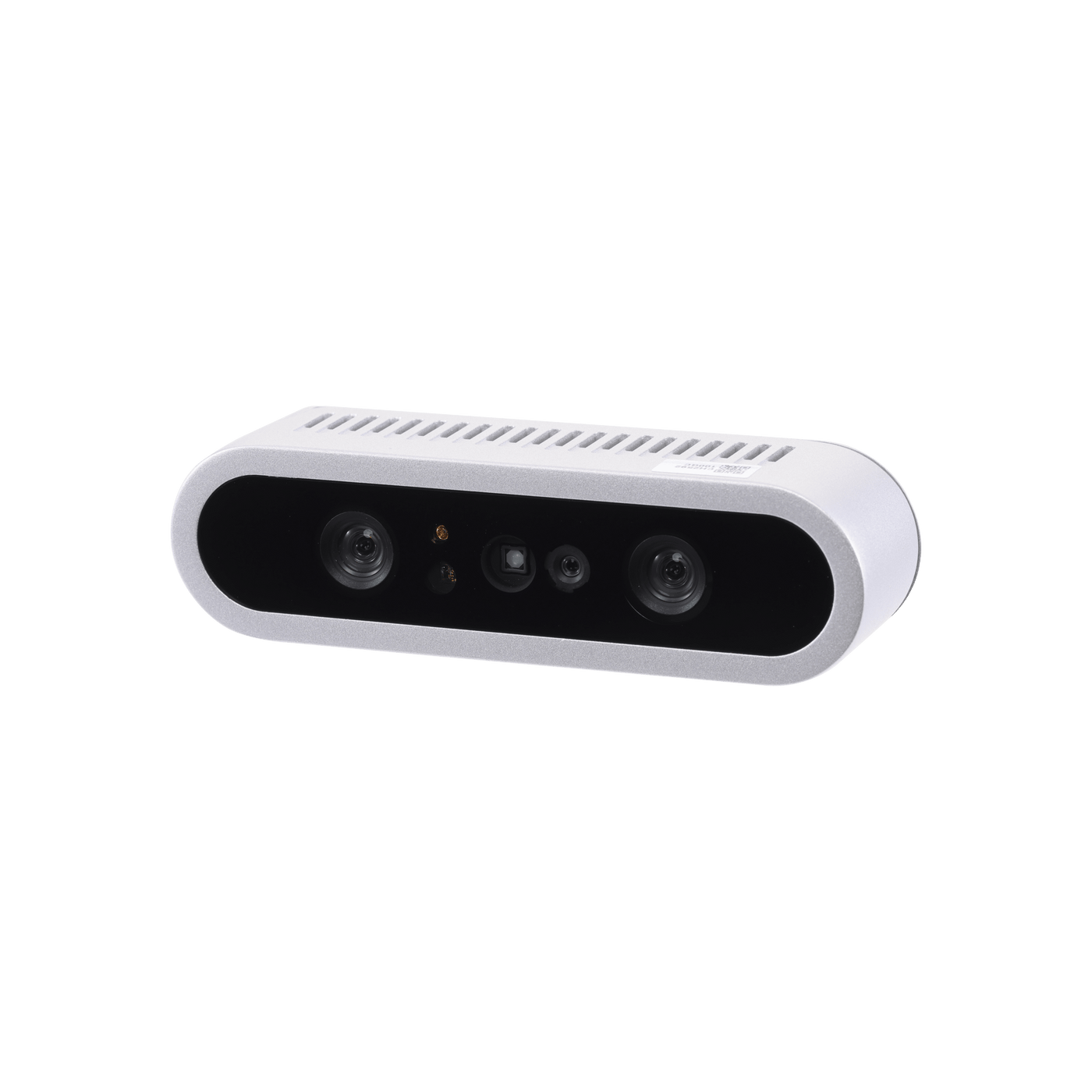

The Gemini E camera module is designed based on Orbbec's technology to obtain the depth image and color image of the object. This small camera will give you the high performance you need for any depth-sensing project. Gemini E is a great camera for Robotic applications.

Ā Ā

Technical Specs

Product Name Gemini E
Range 0.2m - 2.5m
Dimensions 89.82 Ɨ 25.10 Ɨ 25.10 mm
Technology Active Stereo IR
Depth FoV H79Ā° V62Ā° D91Ā° Ā±3Ā°
RGB FoV H84.3Ā° V53.6Ā° D92.2Ā° Ā±3Ā°
Depth Resolution Framerate Up to 1024 x 768 @10 fps
RGB Resolution Framerate Up to 1920 x 1080 @30 fps
Precision 1% @1m
Power Input USB Type-C
Operating Systems Windows/Linux/Android
Power Consumption Average ā‰¤ 2.3W
SDK Orbbec SDK
Data Transfer USB2.0
Temperature 10ā„ƒ-40ā„ƒ
What interfaces and platforms does the Gemini E support?
The camera uses USB Type C for data transfer and supports Windows, Linux and Android via the Orbbec SDK.
What are the depth and RGB resolutions and frame rates?
Depth resolution is up to 1024 x 768 at 10 fps and RGB resolution is up to 1920 x 1080 at 30 fps.
What are the field of view specifications for depth and RGB?
Depth field of view is horizontal 79 degrees, vertical 62 degrees, and diagonal 91 degrees with a tolerance of 3 degrees. RGB field of view is horizontal 84.3 degrees, vertical 53.6 degrees, and diagonal 92.2 degrees with a tolerance of 3 degrees.
What are the power and operating temperature specifications?
The camera uses USB Type C for power input and has an average power consumption up to 2.3 W. Operating temperature is 10 to 40 degrees C.
Is this camera suitable for robotic applications and what is its intended use?
Yes, it is described as a great camera for robotic applications and is designed to obtain depth and color images for depth sensing projects.
